Ferrari 550 Barchetta - BRAKE AND CLUTCH HYDRAULIC SYSTEM

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
154009 CLUTCH CONTROL TUBE Enquire To Order
Photo Part No Description Price (each) Stock
10441590 BRACKET WITH SHEATH Enquire To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 Enquire To Order
Photo Part No Description Price (each) Stock
175211 Clutch master cylinder Enquire To Order
Photo Part No Description Price (each) Stock
13516824 STUD BOLT Enquire To Order
Photo Part No Description Price (each) Stock
14040711 NUT M8 FLANGED Enquire To Order
Photo Part No Description Price (each) Stock
12601374 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
169363 BRAKE BOOSTER WITH PUMP Enquire To Order
Photo Part No Description Price (each) Stock
171783 BRAKE OIL TANK Enquire To Order
Photo Part No Description Price (each) Stock
147985 NUT Enquire To Order
Photo Part No Description Price (each) Stock
12601374 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
173882 FRONT RUBBER HOSE Enquire To Order
Photo Part No Description Price (each) Stock
157934 SCREW COLLAR Enquire To Order
Photo Part No Description Price (each) Stock
184497 CONNECTOR Enquire To Order
Photo Part No Description Price (each) Stock
175189 SEAT RING Enquire To Order
Photo Part No Description Price (each) Stock
153592 PLUG Enquire To Order
Photo Part No Description Price (each) Stock
144552 UNION Enquire To Order
Photo Part No Description Price (each) Stock
151475 CABLE GROMMET Enquire To Order
Photo Part No Description Price (each) Stock
171785 BOOSTER Enquire To Order
Photo Part No Description Price (each) Stock
171782 BRAKE PUMP Enquire To Order
Photo Part No Description Price (each) Stock
262111 JUBILEE CLAMP Enquire To Order
Photo Part No Description Price (each) Stock
169745 INSULATING SHIELD FOR BRAKE BOOSTER Enquire To Order
Photo Part No Description Price (each) Stock
175212 PROTECTION BOOT Enquire To Order
View All

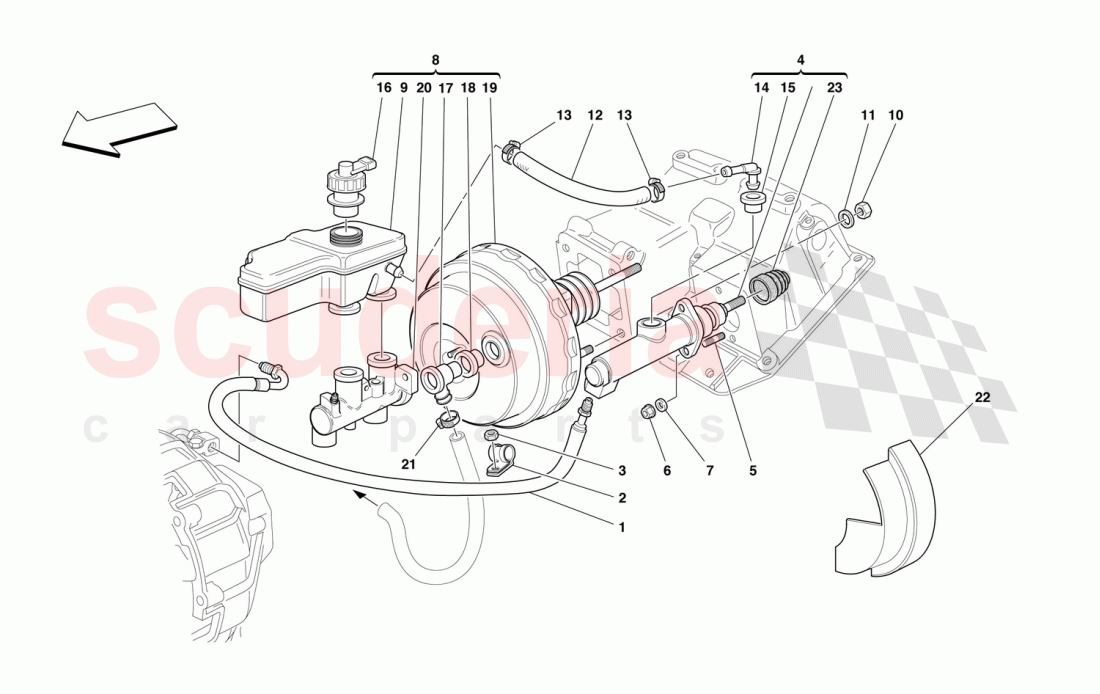

BRAKE AND CLUTCH HYDRAULIC SYSTEM of Ferrari Ferrari 550 Barchetta Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 172812
INSULATING SHIELD FOR BRAKE BOOSTER
Valid for GD 		- 1 Enquire
- 156119
CLUTCH CONTROL TUBE
Valid for GD 		- 1 Enquire
1 154009
CLUTCH CONTROL TUBE
Not for GD 		- 1 Enquire
2 10441590
BRACKET WITH SHEATH 		- 2 Enquire
3 14059290
FLANGED NUT M6 		- 2 Enquire
4 175211
Clutch master cylinder 		- 1 Enquire
5 13516824
STUD BOLT 		- 2 Enquire
6 14040711
NUT M8 FLANGED 		- 2 Enquire
7 12601374
WASHER 		- 2 Enquire
8 169363
BRAKE BOOSTER WITH PUMP 		- 1 Enquire
9 171783
BRAKE OIL TANK 		- 1 Enquire
10 147985
NUT 		- 4 Enquire
11 12601374
WASHER 		- 4 Enquire
12 173882
FRONT RUBBER HOSE 		- 1 Enquire
13 157934
SCREW COLLAR 		- 2 Enquire
14 184497
CONNECTOR 		- 1 Enquire
15 175189
SEAT RING 		- 1 Enquire
16 153592
PLUG 		- 1 Enquire
17 144552
UNION 		- 1 Enquire
18 151475
CABLE GROMMET 		- 1 Enquire
19 171785
BOOSTER 		- 1 Enquire
20 171782
BRAKE PUMP 		- 1 Enquire
21 262111
JUBILEE CLAMP 		- 1 Enquire
22 169745
INSULATING SHIELD FOR BRAKE BOOSTER
Not for GD 		- 1 Enquire
23 175212
PROTECTION BOOT 		- 1 Enquire
