Ferrari 512 TR - Lamps

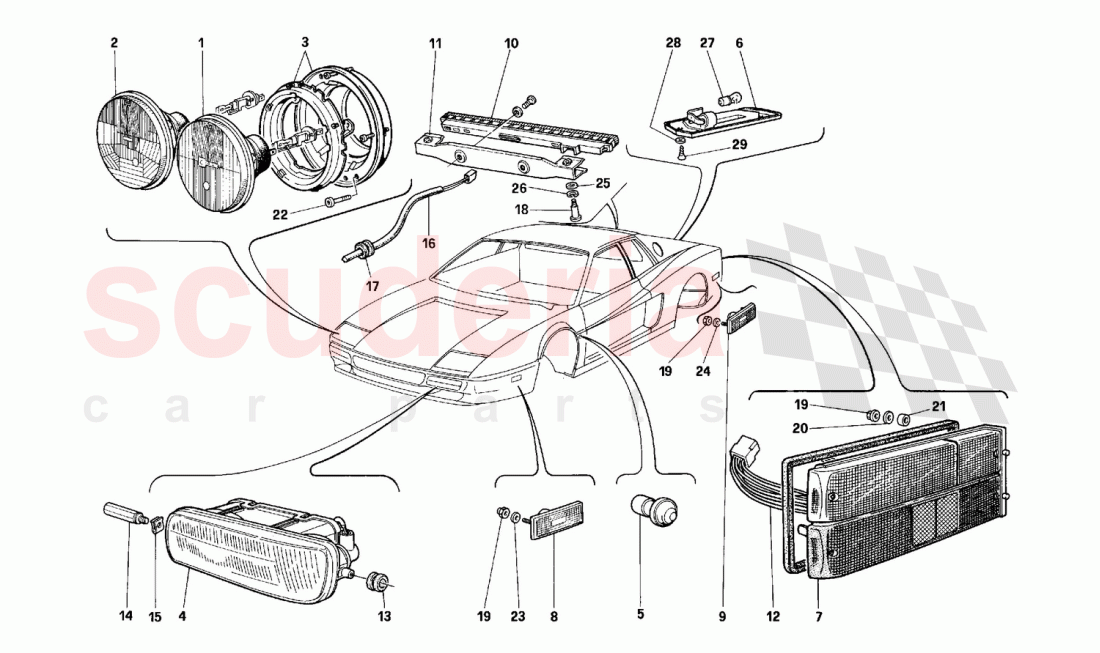

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	149637	Main beams light unit	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	149638	Low beam light unit	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61646400	Ring frame for R.H. main beam lamp	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	149032	LH front side-direction fog light	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	162902	Direction light -Not for USA-	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	186180	REAR LICENSE PLATE LIGHT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	149642	L.H. rear light	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	147563	FRONT SIDE MARKER LAMP	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	140594	REAR SIDE-MARKER LIGHT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63077500	Additional stop lights	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63077300	Stop light bracket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	150190	Rear lights cable connection	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10458187	Rubber	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62771200	Pin	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62770000	Spring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	150059	Additional stop light cable connection	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10396380	CABLE GROMMET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62771000	Screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14084111	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	860172	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	104339	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13273911	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62769800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12624101	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84653800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127496	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10857790	12 V-5 W LAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12638124	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	168133	Screw M5 x 20	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	150211	Rear lights cable connection	150211 Rear lights cable connection Valid for USA, CDN, SA, J	-	2	Enquire
-	147185	L.H. rear light	147185 L.H. rear light Valid for USA, CDN, SA, J	-	1	Enquire
-	149641	R.H. rear light	149641 R.H. rear light Not for USA, CDN, SA, J	-	1	Enquire
-	147184	R.H. rear light	147184 R.H. rear light Valid for USA, CDN, SA, J	-	1	Enquire
-	152657	RH front side-direction fog light	152657 RH front side-direction fog light fog light -Valid for F /	-	1	Enquire
-	162902	Direction light -Not for USA-	162902 Direction light -Not for USA- Valid after stock exhaustion / of 61830400 / Not for USA and CDN	-	2	Enquire
-	147183	LH front side-direction fog light	147183 LH front side-direction fog light fog light / Valid for USA and CDN	-	1	Enquire
-	152658	LH front side-direction fog light	152658 LH front side-direction fog light fog light -Valid for F /	-	1	Enquire
-	149033	RH front side-direction fog light	149033 RH front side-direction fog light fog light / Not for USA, CDN, F	-	1	Enquire
-	147182	RH front side-direction fog light	147182 RH front side-direction fog light fog light / Valid for USA and CDN	-	1	Enquire
-	61646500	Ring frame for L.H. main beam lamp	61646500 Ring frame for L.H. main beam lamp	-	1	Enquire
-	61646600	Ring frame for R.H. low beam lamp	61646600 Ring frame for R.H. low beam lamp	-	1	Enquire
-	61646700	Ring frame for L.H. low beam lamp	61646700 Ring frame for L.H. low beam lamp	-	1	Enquire
-	61610600	Low beam light unit	61610600 Low beam light unit Valid for USA and CDN	-	2	Enquire
-	150748	Low beam light unit	150748 Low beam light unit Valid for F	-	2	Enquire
-	152699	Low beam light unit	152699 Low beam light unit Valid for J	-	2	Enquire
-	150539	Low beam light unit	150539 Low beam light unit Valid for GD	-	2	Enquire
-	61610500	Main beams light unit	61610500 Main beams light unit Valid for USA and CDN	-	2	Enquire
-	150749	Main beams light unit	150749 Main beams light unit Valid for F	-	2	Enquire
-	152698	Main beams light unit	152698 Main beams light unit Valid for J	-	2	Enquire
1	149637	Main beams light unit	149637 Main beams light unit Not for USA, CDN, F, J	-	2	Enquire
2	149638	Low beam light unit	149638 Low beam light unit Not for USA, CDN, F, J, GD	-	2	Enquire
3	61646400	Ring frame for R.H. main beam lamp	61646400 Ring frame for R.H. main beam lamp	-	1	Enquire
4	149032	LH front side-direction fog light	149032 LH front side-direction fog light fog light / Not for USA, CDN, F	-	1	Enquire
5	162902	Direction light -Not for USA-	162902 Direction light -Not for USA- Valid till stock exhaustion / Not for USA and CDN	-	2	Enquire
6	186180	REAR LICENSE PLATE LIGHT	186180 REAR LICENSE PLATE LIGHT	-	2	Enquire
7	149642	L.H. rear light	149642 L.H. rear light Not for USA, CDN, SA, J	-	1	Enquire
8	147563	FRONT SIDE MARKER LAMP ARRIVING SOON	147563 FRONT SIDE MARKER LAMP Valid for USA and CDN ARRIVING SOON	-	2	Enquire
9	140594	REAR SIDE-MARKER LIGHT	140594 REAR SIDE-MARKER LIGHT Valid for USA and CDN	-	2	Enquire
10	63077500	Additional stop lights	63077500 Additional stop lights Valid for USA, CDN, AUS	-	1	Enquire
11	63077300	Stop light bracket	63077300 Stop light bracket Valid for USA, CDN, AUS	-	1	Enquire
12	150190	Rear lights cable connection	150190 Rear lights cable connection Not for USA, CDN, SA, J	-	2	Enquire
13	10458187	Rubber	10458187 Rubber	-	2	Enquire
14	62771200	Pin	62771200 Pin	-	4	Enquire
15	62770000	Spring	62770000 Spring	-	4	Enquire
16	150059	Additional stop light cable connection	150059 Additional stop light cable connection connection -Valid for USA, / CDN, AUS	-	1	Enquire
17	10396380	CABLE GROMMET	10396380 CABLE GROMMET Valid for USA, CDN, AUS	-	1	Enquire
18	62771000	Screw	62771000 Screw	-	2	Enquire
19	14084111	NUT	14084111 NUT	-	20	Enquire
20	860172	WASHER	860172 WASHER	-	12	Enquire
21	104339	SPACER	104339 SPACER	-	12	Enquire
22	13273911	SCREW	13273911 SCREW	-	12	Enquire
23	62769800	WASHER	62769800 WASHER	-	4	Enquire
24	12624101	WASHER	12624101 WASHER	-	4	Enquire
25	84653800	WASHER	84653800 WASHER	-	2	Enquire
26	127496	WASHER	127496 WASHER	-	2	Enquire
27	10857790	12 V-5 W LAMP	10857790 12 V-5 W LAMP	-	2	Enquire
28	12638124	WASHER	12638124 WASHER	-	4	Enquire
29	168133	Screw M5 x 20	168133 Screw M5 x 20	-	4	Enquire
