Ferrari 512 TR - Rear suspension - Wishbones and shock absorber

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
150415 SPRING Enquire To Order
Photo Part No Description Price (each) Stock
150928 Upper spacer Enquire To Order
Photo Part No Description Price (each) Stock
113581 LOWER SPACER Enquire To Order
Photo Part No Description Price (each) Stock
134862 Bar link Enquire To Order
Photo Part No Description Price (each) Stock
125061 Grommet Enquire To Order
Photo Part No Description Price (each) Stock
147985 NUT Enquire IN STOCK
Photo Part No Description Price (each) Stock
14489270 Washer Enquire To Order
Photo Part No Description Price (each) Stock
219344 WASHER Enquire IN STOCK
Photo Part No Description Price (each) Stock
160549 UPPER LEVER Enquire To Order
Photo Part No Description Price (each) Stock
154536 FLAMBLOCK Enquire To Order
Photo Part No Description Price (each) Stock
134897 Screw Enquire To Order
Photo Part No Description Price (each) Stock
84653800 WASHER Enquire IN STOCK
Photo Part No Description Price (each) Stock
148020 NUT Enquire IN STOCK
Photo Part No Description Price (each) Stock
106419 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
148020 NUT Enquire IN STOCK
Photo Part No Description Price (each) Stock
160550 R.H. lower lever Enquire To Order
Photo Part No Description Price (each) Stock
154539 FLAMBLOCK Enquire To Order
Photo Part No Description Price (each) Stock
154538 FLAMBLOCK Enquire To Order
Photo Part No Description Price (each) Stock
120815 Screw Enquire To Order
Photo Part No Description Price (each) Stock
105434 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
150238 Nut -For car with lifting Enquire IN STOCK
Photo Part No Description Price (each) Stock
125889 Rear fork Enquire To Order
Photo Part No Description Price (each) Stock
106422 SCREW Enquire IN STOCK
Photo Part No Description Price (each) Stock
150238 Nut -For car with lifting Enquire IN STOCK
Photo Part No Description Price (each) Stock
101041 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
101040 Nut Enquire To Order
Photo Part No Description Price (each) Stock
150238 Nut -For car with lifting Enquire IN STOCK
Photo Part No Description Price (each) Stock
141860 RING NUT Enquire To Order
Photo Part No Description Price (each) Stock
101039 Ditto, thickness 1 mm. Enquire To Order
Photo Part No Description Price (each) Stock
148507 SHOCK ABSORBER Enquire To Order
Photo Part No Description Price (each) Stock
150739 Estendblock Enquire To Order
Photo Part No Description Price (each) Stock
128509 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
149857 RUBBER SHOCK ABSORBER PAD Enquire IN STOCK
Photo Part No Description Price (each) Stock
116861 Plate to ret. spring Enquire To Order
Photo Part No Description Price (each) Stock
116864 Hyperblock Enquire To Order
Photo Part No Description Price (each) Stock
149849 Washer Enquire To Order
Photo Part No Description Price (each) Stock
12354524 Stud Securing Exhaust Enquire IN STOCK
Photo Part No Description Price (each) Stock
155086 SPACER Enquire IN STOCK
Photo Part No Description Price (each) Stock
159408 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
104030 NYLOC NUT M8 X 1.25 X 9.5 Enquire IN STOCK
Photo Part No Description Price (each) Stock
148020 NUT Enquire IN STOCK
Photo Part No Description Price (each) Stock
104417 Cramp to ret. bar Enquire To Order
Photo Part No Description Price (each) Stock
102742 Nyloc Nut M10 x 1.25 x 10mm Enquire IN STOCK
Photo Part No Description Price (each) Stock
148840 STABILIZER BAR Ø MM 17 Enquire To Order
Photo Part No Description Price (each) Stock
118276 Pad for stabilizer bar Ø mm 17 Enquire IN STOCK
Photo Part No Description Price (each) Stock
136437 Pin Enquire To Order
Photo Part No Description Price (each) Stock
14496524 WASHER Enquire IN STOCK
View All

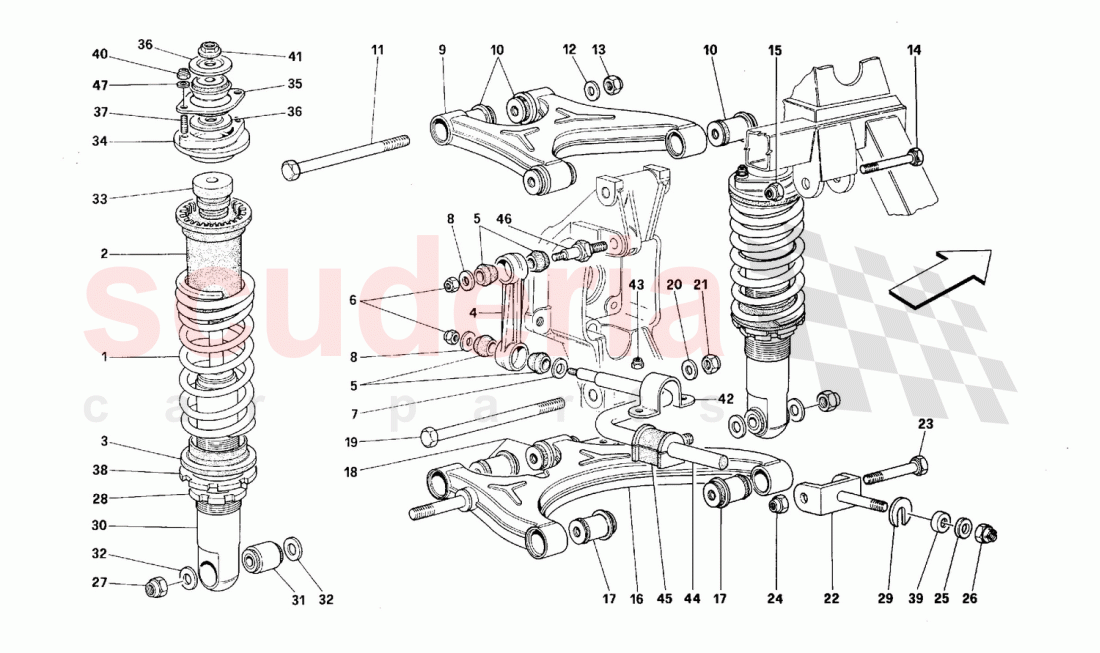

Rear suspension - Wishbones and shock absorber of Ferrari Ferrari 512 TR Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 151886
Stabilizer bar Ø mm 18 		- 1 Enquire
- 108748
Pad for stabilizer bar Ø mm 18 		- 2 Enquire
- 155086
SPACER
Valid for shock absorber / dis. Nr. 151860
IN STOCK 		- 4 Enquire
- 107342
Ditto, thickness 3,25 mm.
Possible mounting 		- - Enquire
- 151860
Shock absorber
Valid for EU from car / Ass. Nr. 9116 and for USA, / CDN, J, from car / Ass. Nr. 10501 		- 4 Enquire
- 107338
SPACER WASHER mm. 1,5
Possible mounting 		- - Enquire
- 107339
Ditto, thickness 2 mm.
Possible mounting
IN STOCK 		- - Enquire
- 107340
Ditto, thickness 2,5 mm
Possible mounting 		- - Enquire
- 107341
Ditto, thickness 3 mm.
Possible mounting 		- - Enquire
- 177707
Front fork 		- 2 Enquire
- 160551
L.H. lower lever 		- 1 Enquire
- 151822
Oil Seal
IN STOCK 		- 4 Enquire
- 149129
Upper spacer
Valid for spring dis. / Nr. 151882 		- 4 Enquire
- 103264
LOWER SPACER
Valid for spring dis. / Nr. 151882 		- 4 Enquire
- 151882
SPRING
Valid for EU from car / Ass. Nr. 9116 and for USA, / CDN, J, from car / Ass. Nr. 12601
IN STOCK 		- 4 Enquire
1 150415
SPRING
Valid for EU up to car / Ass. Nr. 9115 and for USA, / CDN, J, up to car / Ass. Nr. 12600 / / 		- 4 Enquire
2 150928
Upper spacer
Valid for spring dis. / Nr. 150415 		- 4 Enquire
3 113581
LOWER SPACER
Valid for spring dis. / Nr. 150415 		- 4 Enquire
4 134862
Bar link 		- 2 Enquire
5 125061
Grommet 		- 8 Enquire
6 147985
NUT
IN STOCK 		- 4 Enquire
7 14489270
Washer 		- 2 Enquire
8 219344
WASHER
IN STOCK 		- 4 Enquire
9 160549
UPPER LEVER 		- 2 Enquire
10 154536
FLAMBLOCK 		- 8 Enquire
11 134897
Screw 		- 2 Enquire
12 84653800
WASHER
IN STOCK 		- 2 Enquire
13 148020
NUT
IN STOCK 		- 2 Enquire
14 106419
SCREW 		- 4 Enquire
15 148020
NUT
IN STOCK 		- 4 Enquire
16 160550
R.H. lower lever 		- 1 Enquire
17 154539
FLAMBLOCK 		- 4 Enquire
18 154538
FLAMBLOCK 		- 4 Enquire
19 120815
Screw 		- 2 Enquire
20 105434
WASHER 		- 2 Enquire
21 150238
Nut -For car with lifting
IN STOCK 		- 2 Enquire
22 125889
Rear fork 		- 2 Enquire
23 106422
SCREW
IN STOCK 		- 4 Enquire
24 150238
Nut -For car with lifting
IN STOCK 		- 4 Enquire
25 101041
WASHER 		- 4 Enquire
26 101040
Nut 		- 4 Enquire
27 150238
Nut -For car with lifting
IN STOCK 		- 4 Enquire
28 141860
RING NUT 		- 4 Enquire
29 101039
Ditto, thickness 1 mm.
Possible mounting 		- - Enquire
30 148507
SHOCK ABSORBER
Valid for EU up to car / Ass. Nr. 9115 and for USA, / CDN, J, up to car / Ass. Nr. 10500 		- 4 Enquire
31 150739
Estendblock 		- 4 Enquire
32 128509
WASHER 		- 8 Enquire
33 149857
RUBBER SHOCK ABSORBER PAD
IN STOCK 		- 4 Enquire
34 116861
Plate to ret. spring 		- 4 Enquire
35 116864
Hyperblock 		- 4 Enquire
36 149849
Washer 		- 8 Enquire
37 12354524
Stud Securing Exhaust
IN STOCK 		- 8 Enquire
38 155086
SPACER
Valid for shock absorber / dis. Nr. 148507
IN STOCK 		- 4 Enquire
39 159408
WASHER 		- 4 Enquire
40 104030
NYLOC NUT M8 X 1.25 X 9.5
IN STOCK 		- 8 Enquire
41 148020
NUT
IN STOCK 		- 4 Enquire
42 104417
Cramp to ret. bar 		- 2 Enquire
43 102742
Nyloc Nut M10 x 1.25 x 10mm
IN STOCK 		- 4 Enquire
44 148840
STABILIZER BAR Ø MM 17 		- 1 Enquire
45 118276
Pad for stabilizer bar Ø mm 17
IN STOCK 		- 2 Enquire
46 136437
Pin 		- 2 Enquire
47 14496524
WASHER
IN STOCK 		- 8 Enquire
