Front Suspension - Wishbones

Ferrari 512 TR

Find Your Part

Ferrari 512 TR - Front suspension - Wishbones

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
114691 SHACKLE FOR STABILISER BAR Enquire To Order
Photo Part No Description Price (each) Stock
100984 Grommet Enquire To Order
Photo Part No Description Price (each) Stock
132665 PIVOT Enquire To Order
Photo Part No Description Price (each) Stock
100985 Spacer tube Enquire To Order
Photo Part No Description Price (each) Stock
105334 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
148020 NUT Enquire To Order
Photo Part No Description Price (each) Stock
102742 Nyloc Nut M10 x 1.25 x 10mm Enquire ARRIVING SOON
Photo Part No Description Price (each) Stock
112874 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
10520224 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
159372 UPPER LEVER Enquire To Order
Photo Part No Description Price (each) Stock
159154 Lower lever Enquire To Order
Photo Part No Description Price (each) Stock
154537 Flamblock for upper lever Enquire To Order
Photo Part No Description Price (each) Stock
146462 Lower fork Enquire To Order
Photo Part No Description Price (each) Stock
150238 Nut -For car with lifting Enquire To Order
Photo Part No Description Price (each) Stock
101041 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
101039 Ditto, thickness 1 mm. Enquire To Order
Photo Part No Description Price (each) Stock
106419 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
148020 NUT Enquire To Order
Photo Part No Description Price (each) Stock
66535800 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
104030 NYLOC NUT M8 X 1.25 X 9.5 Enquire To Order
Photo Part No Description Price (each) Stock
15971734 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
102742 Nyloc Nut M10 x 1.25 x 10mm Enquire ARRIVING SOON
Photo Part No Description Price (each) Stock
132667 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
148020 NUT Enquire To Order
Photo Part No Description Price (each) Stock
101022 SETTING PLATE -mm. 1.50- Enquire To Order
Photo Part No Description Price (each) Stock
115073 SETTING PLATE -mm. 1.20- Enquire To Order
Photo Part No Description Price (each) Stock
149565 Stabilizer bar Enquire To Order
Photo Part No Description Price (each) Stock
138389 Support -Valid after Enquire To Order
Photo Part No Description Price (each) Stock
149566 Pad Enquire To Order
Photo Part No Description Price (each) Stock
132776 UPPER BALL JOINT Enquire To Order
Photo Part No Description Price (each) Stock
133944 LOWER BALL JOINT Enquire To Order
Photo Part No Description Price (each) Stock
14054511 NUT Enquire To Order
Photo Part No Description Price (each) Stock
122237 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
149807 NUT Enquire To Order
Photo Part No Description Price (each) Stock
159406 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
154537 Flamblock for upper lever Enquire To Order
View All

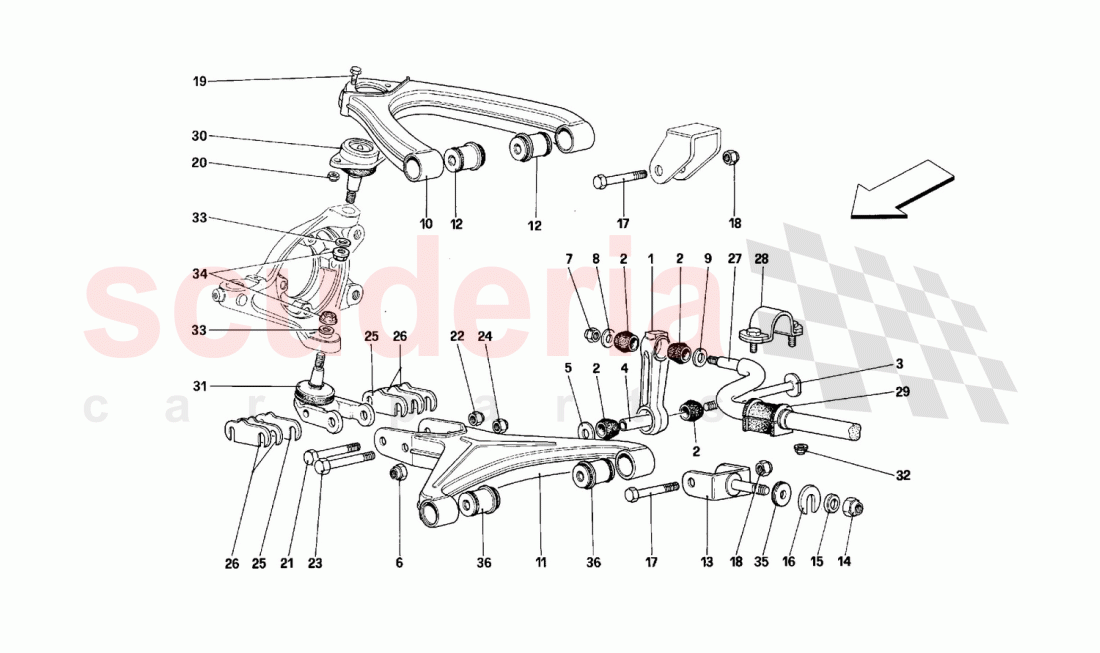

Front suspension - Wishbones of Ferrari Ferrari 512 TR Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 107338
SPACER WASHER mm. 1,5
Possible mounting 		- - Enquire
- 107339
Ditto, thickness 2 mm.
Possible mounting 		- - Enquire
- 107340
Ditto, thickness 2,5 mm
Possible mounting 		- - Enquire
- 107341
Ditto, thickness 3 mm.
Possible mounting 		- - Enquire
- 107342
Ditto, thickness 3,25 mm.
Possible mounting 		- - Enquire
1 114691
SHACKLE FOR STABILISER BAR 		- 2 Enquire
2 100984
Grommet 		- 8 Enquire
3 132665
PIVOT 		- 2 Enquire
4 100985
Spacer tube 		- 2 Enquire
5 105334
WASHER 		- 2 Enquire
6 148020
NUT 		- 2 Enquire
7 102742
Nyloc Nut M10 x 1.25 x 10mm
ARRIVING SOON 		- 2 Enquire
8 112874
WASHER 		- 2 Enquire
9 10520224
WASHER 		- 2 Enquire
10 159372
UPPER LEVER 		- 2 Enquire
11 159154
Lower lever 		- 2 Enquire
12 154537
Flamblock for upper lever 		- 4 Enquire
13 146462
Lower fork 		- 4 Enquire
14 150238
Nut -For car with lifting 		- 4 Enquire
15 101041
WASHER 		- 4 Enquire
16 101039
Ditto, thickness 1 mm.
Possible mounting 		- - Enquire
17 106419
SCREW 		- 8 Enquire
18 148020
NUT 		- 8 Enquire
19 66535800
SCREW 		- 4 Enquire
20 104030
NYLOC NUT M8 X 1.25 X 9.5 		- 4 Enquire
21 15971734
SCREW 		- 2 Enquire
22 102742
Nyloc Nut M10 x 1.25 x 10mm
ARRIVING SOON 		- 2 Enquire
23 132667
SCREW 		- 2 Enquire
24 148020
NUT 		- 2 Enquire
25 101022
SETTING PLATE -mm. 1.50-
Possible mounting 		- - Enquire
26 115073
SETTING PLATE -mm. 1.20-
Possible mounting 		- - Enquire
27 149565
Stabilizer bar 		- 1 Enquire
28 138389
Support -Valid after 		- 2 Enquire
29 149566
Pad 		- 2 Enquire
30 132776
UPPER BALL JOINT 		- 2 Enquire
31 133944
LOWER BALL JOINT 		- 2 Enquire
32 14054511
NUT 		- 4 Enquire
33 122237
WASHER 		- 4 Enquire
34 149807
NUT 		- 4 Enquire
35 159406
WASHER 		- 4 Enquire
36 154537
Flamblock for upper lever 		- 4 Enquire
