Door - Finishing of Ferrari Ferrari 512 M

View All

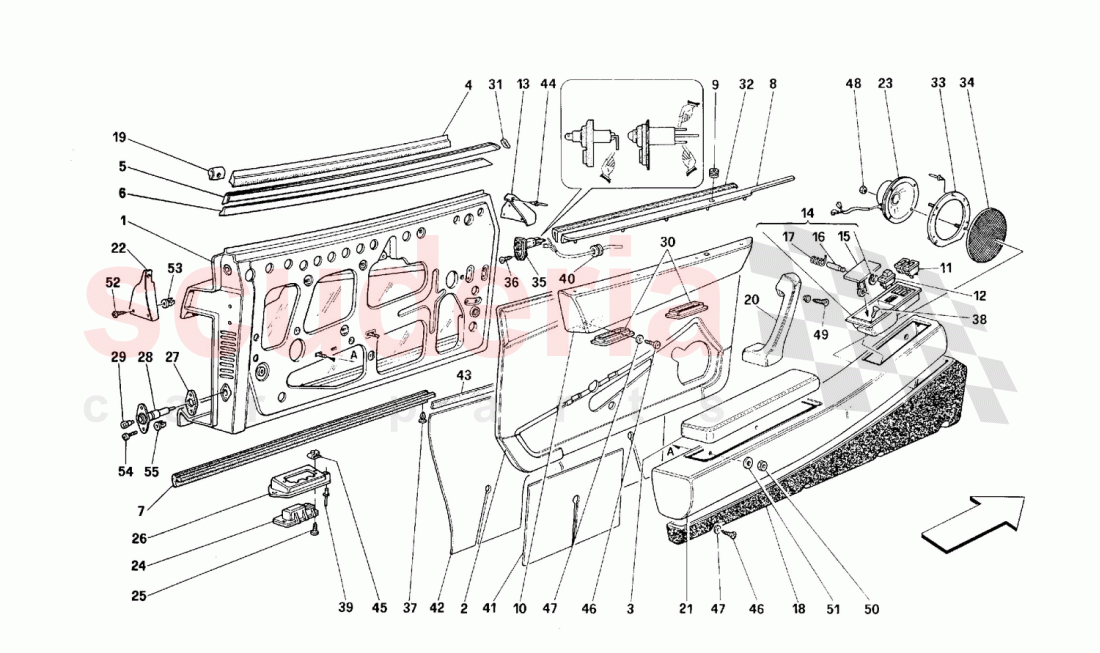

Ferrari 512 M - Door - Finishing

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	63452100	L.H. door	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	634676	L.H. panel	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	630979	L.H. coating	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61573700	L.H. gasket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61539200	L.H. outer moulding	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61543600	L.H. run channel	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61539600	Underdoor gasket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63098312	Moulding for L.H. belt	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61813500	Bush to guide rod	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	630981	L.H. upper trim	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	147206	L.H. switch for window control	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	134414	SWITCH FOR OUTER REARVIEW MIRRORS CONTROL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61505800	L.H. gasket for door front side	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63410700	L.H. inner handle complete	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61504700	Left handle	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63411000	Pin	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63410900	L.H. spring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	630975	LH lower covering for door panel	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63117300	Spring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	630977	L.H. inner handle	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	630972	L.H. armrest	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63089900	L.H. frame for door rear side	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	150626	Woofer loudspeaker	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65088400	UNDER DOOR LAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13272042	Screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	60842000	UNDER DOOR BOX LAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	140576	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	60788100	OPENING DOOR LAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	101525	12 V-3 W LAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61533100	Cover	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63058700	Front butt for L.H. moulding	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61811100	Inner gasket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63409700	Loudspeaker support ring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62801000	Protection	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	153069	SWITCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15915977	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62764000	RIVET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	145998	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	60643400	RIVET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10396380	CABLE GROMMET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63405600	Lining for door panel	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63405300	Lining for inner door panel	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62387000	Band	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	60310703	RIVET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	60841900	Spring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15692677	Screw -Valid for dark leather-	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13338047	Washer -Valid for dark leather-	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	808769	CAP NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65206700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12648925	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15690778	Screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62765000	PLASTIC NUT SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15901470	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14115580	FIXING BLOCK	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	62768300	Washer -Valid for light leather-	62768300 Washer -Valid for light leather- Valid for light covering	-	2	Enquire
-	15692670	Washer -Valid for light leather-	15692670 Washer -Valid for light leather- Valid for light covering	-	2	Enquire
-	63058600	Front butt for R.H. moulding	63058600 Front butt for R.H. moulding	-	1	Enquire
-	630971	R.H. armrest	630971 R.H. armrest	-	1	Enquire
-	63089800	R.H. frame for door rear side	63089800 R.H. frame for door rear side	-	1	Enquire
-	65088400	UNDER DOOR LAMP	65088400 UNDER DOOR LAMP Valid after stock exhaustion / of 60842100	-	2	Enquire
-	630974	RH lower covering for door panel	630974 RH lower covering for door panel panel	-	1	Enquire
-	630976	R.H. inner handle	630976 R.H. inner handle	-	1	Enquire
-	63410600	R.H. inner handle complete	63410600 R.H. inner handle complete Not for GB, ZA	-	1	Enquire
-	63410400	R.H. inner handle complete	63410400 R.H. inner handle complete Valid for GB, ZA	-	1	Enquire
-	61504600	R.H. handle	61504600 R.H. handle	-	1	Enquire
-	63410800	R.H. spring	63410800 R.H. spring	-	1	Enquire
-	147207	R.H. switch for window control	147207 R.H. switch for window control For GD Q.ty.1	-	2	Enquire
-	61505700	R.H. gasket for door front side	61505700 R.H. gasket for door front side	-	1	Enquire
-	63410500	L.H. inner handle complete	63410500 L.H. inner handle complete Valid for GB, ZA	-	1	Enquire
-	63098200	Moulding for R.H. belt	63098200 Moulding for R.H. belt	-	1	Enquire
-	630980	R.H. upper trim	630980 R.H. upper trim	-	1	Enquire
-	630978	R.H. coating	630978 R.H. coating	-	1	Enquire
-	61573600	R.H. gasket	61573600 R.H. gasket	-	1	Enquire
-	61539300	R.H. outer moulding	61539300 R.H. outer moulding	-	1	Enquire
-	61543500	R.H. run channel	61543500 R.H. run channel	-	1	Enquire
-	63464900	L.H. door	63464900 L.H. door Valid for USA, CDN, AUS	-	1	Enquire
-	63452000	R.H. door	63452000 R.H. door Not for USA, CDN, AUS	-	1	Enquire
-	63464800	R.H. door	63464800 R.H. door Valid for USA, CDN, AUS	-	1	Enquire
-	63405400	Lining for R.H. outside door panel	63405400 Lining for R.H. outside door panel	-	2	Enquire
-	634675	R.H. panel	634675 R.H. panel	-	1	Enquire
1	63452100	L.H. door	63452100 L.H. door Not for USA, CDN, AUS	-	1	Enquire
2	634676	L.H. panel	634676 L.H. panel	-	1	Enquire
3	630979	L.H. coating	630979 L.H. coating	-	1	Enquire
4	61573700	L.H. gasket	61573700 L.H. gasket	-	1	Enquire
5	61539200	L.H. outer moulding	61539200 L.H. outer moulding	-	1	Enquire
6	61543600	L.H. run channel	61543600 L.H. run channel	-	1	Enquire
7	61539600	Underdoor gasket	61539600 Underdoor gasket	-	2	Enquire
8	63098312	Moulding for L.H. belt	63098312 Moulding for L.H. belt	-	1	Enquire
9	61813500	Bush to guide rod	61813500 Bush to guide rod	-	2	Enquire
10	630981	L.H. upper trim	630981 L.H. upper trim	-	1	Enquire
11	147206	L.H. switch for window control	147206 L.H. switch for window control For GD Q.ty.2	-	1	Enquire
12	134414	SWITCH FOR OUTER REARVIEW MIRRORS CONTROL	134414 SWITCH FOR OUTER REARVIEW MIRRORS CONTROL	-	1	Enquire
13	61505800	L.H. gasket for door front side	61505800 L.H. gasket for door front side	-	1	Enquire
14	63410700	L.H. inner handle complete	63410700 L.H. inner handle complete Not for GB, ZA	-	1	Enquire
15	61504700	Left handle	61504700 Left handle	-	1	Enquire
16	63411000	Pin	63411000 Pin	-	2	Enquire
17	63410900	L.H. spring	63410900 L.H. spring	-	1	Enquire
18	630975	LH lower covering for door panel	630975 LH lower covering for door panel panel	-	1	Enquire
19	63117300	Spring	63117300 Spring	-	2	Enquire
20	630977	L.H. inner handle	630977 L.H. inner handle	-	1	Enquire
21	630972	L.H. armrest	630972 L.H. armrest	-	1	Enquire
22	63089900	L.H. frame for door rear side	63089900 L.H. frame for door rear side	-	1	Enquire
23	150626	Woofer loudspeaker	150626 Woofer loudspeaker	-	2	Enquire
24	65088400	UNDER DOOR LAMP	65088400 UNDER DOOR LAMP	-	2	Enquire
25	13272042	Screw	13272042 Screw	-	4	Enquire
26	60842000	UNDER DOOR BOX LAMP	60842000 UNDER DOOR BOX LAMP	-	2	Enquire
27	140576	GASKET	140576 GASKET	-	2	Enquire
28	60788100	OPENING DOOR LAMP	60788100 OPENING DOOR LAMP	-	2	Enquire
29	101525	12 V-3 W LAMP	101525 12 V-3 W LAMP	-	2	Enquire
30	61533100	Cover	61533100 Cover	-	4	Enquire
31	63058700	Front butt for L.H. moulding	63058700 Front butt for L.H. moulding	-	1	Enquire
32	61811100	Inner gasket	61811100 Inner gasket	-	2	Enquire
33	63409700	Loudspeaker support ring	63409700 Loudspeaker support ring	-	2	Enquire
34	62801000	Protection	62801000 Protection	-	2	Enquire
35	153069	SWITCH	153069 SWITCH For USA, CDN, Q.ty 4	-	2	Enquire
36	15915977	SCREW	15915977 SCREW SA, J, Q.ty 4	-	2	Enquire
37	62764000	RIVET	62764000 RIVET	-	18	Enquire
38	145998	SCREW	145998 SCREW	-	2	Enquire
39	60643400	RIVET	60643400 RIVET	-	-	Enquire
40	10396380	CABLE GROMMET	10396380 CABLE GROMMET	-	2	Enquire
41	63405600	Lining for door panel	63405600 Lining for door panel	-	2	Enquire
42	63405300	Lining for inner door panel	63405300 Lining for inner door panel	-	2	Enquire
43	62387000	Band	62387000 Band	-	1	Enquire
44	60310703	RIVET	60310703 RIVET	-	10	Enquire
45	60841900	Spring	60841900 Spring	-	4	Enquire
46	15692677	Screw -Valid for dark leather-	15692677 Screw -Valid for dark leather- Valid for dark covering	-	10	Enquire
47	13338047	Washer -Valid for dark leather-	13338047 Washer -Valid for dark leather- Valid for dark covering	-	10	Enquire
48	808769	CAP NUT	808769 CAP NUT	-	8	Enquire
49	65206700	SCREW	65206700 SCREW	-	2	Enquire
50	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	6	Enquire
51	12648925	WASHER	12648925 WASHER	-	6	Enquire
52	15690778	Screw	15690778 Screw	-	4	Enquire
53	62765000	PLASTIC NUT SCREW	62765000 PLASTIC NUT SCREW	-	4	Enquire
54	15901470	SCREW	15901470 SCREW	-	4	Enquire
55	14115580	FIXING BLOCK	14115580 FIXING BLOCK	-	4	Enquire
