Name: Front hood
Rating: 4.9 (1 reviews)

View All

Ferrari 512 M - Front hood

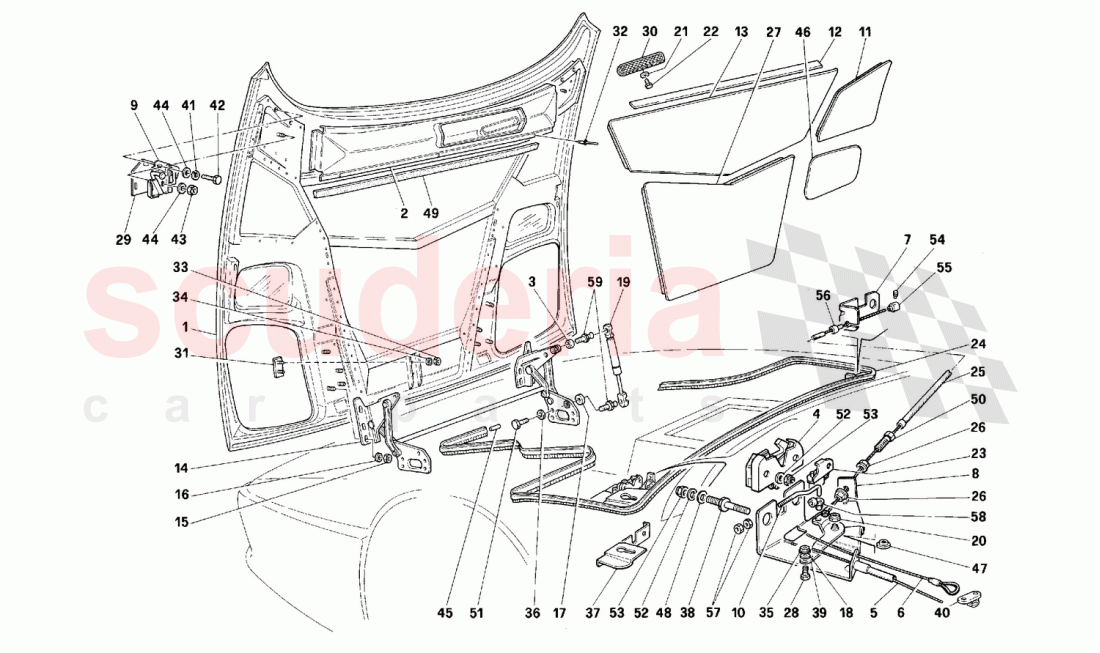

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	64630600	Front bonnet	$6,523.96	To Order

Photo	Part No	Description	Price (each)	Stock
	64441500	Water shield panel	$459.19	To Order

Photo	Part No	Description	Price (each)	Stock
	64687100	Upper spacer	$5.62	To Order

Photo	Part No	Description	Price (each)	Stock
	60277407	ENGINE BONNET LOCK	$105.37	To Order

Photo	Part No	Description	Price (each)	Stock
	63088400	Cable for opening bonnet	$11.54	To Order

Photo	Part No	Description	Price (each)	Stock
	63088500	Emergency cable	$10.84	To Order

Photo	Part No	Description	Price (each)	Stock
	61495900	Sheath support plate	$61.15	To Order

Photo	Part No	Description	Price (each)	Stock
	63114300	Sheath support plate	$68.11	To Order

Photo	Part No	Description	Price (each)	Stock
	63051700	L.H. lock striker	$101.22	To Order

Photo	Part No	Description	Price (each)	Stock
	61496200	L.H. striker rod	$13.18	To Order

Photo	Part No	Description	Price (each)	Stock
	64454600	R.H. lateral insulating	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64641700	Adhesive polyurethan	$58.41	To Order

Photo	Part No	Description	Price (each)	Stock
	64454300	Central upper insulating	$46.79	To Order

Photo	Part No	Description	Price (each)	Stock
	64685400	Hinge	$957.46	To Order

Photo	Part No	Description	Price (each)	Stock
	104030	NUT	$0.26	To Order

Photo	Part No	Description	Price (each)	Stock
	12647021	WASHER	$0.32	To Order

Photo	Part No	Description	Price (each)	Stock
	64687200	Lower spacer	$7.29	To Order

Photo	Part No	Description	Price (each)	Stock
	62764900	WASHER	$0.31	To Order

Photo	Part No	Description	Price (each)	Stock
	63671500	Stabilus	$65.46	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	10902287	Screw	$0.75	To Order

Photo	Part No	Description	Price (each)	Stock
	61501200	Warning light switch	$59.19	To Order

Photo	Part No	Description	Price (each)	Stock
	64441000	Bonnet gasket	$35.66	To Order

Photo	Part No	Description	Price (each)	Stock
	61497100	Open bonnet cable	$33.06	To Order

Photo	Part No	Description	Price (each)	Stock
	14054577	CAP NUT	$0.32	To Order

Photo	Part No	Description	Price (each)	Stock
	64454800	Sound insulation, central lower	$58.48	To Order

Photo	Part No	Description	Price (each)	Stock
	62764700	Screw	$0.76	To Order

Photo	Part No	Description	Price (each)	Stock
	153957	L.H. Zincfoil	$3.08	To Order

Photo	Part No	Description	Price (each)	Stock
	64453700	R.H. net for air intake	$115.98	To Order

Photo	Part No	Description	Price (each)	Stock
	986800	STICKER EMBLE	$90.30	To Order

Photo	Part No	Description	Price (each)	Stock
	64386000	Rivet	$0.16	To Order

Photo	Part No	Description	Price (each)	Stock
	15896470	NUT	$7.33	To Order

Photo	Part No	Description	Price (each)	Stock
	149951	WASHER	$0.31	To Order

Photo	Part No	Description	Price (each)	Stock
	14084111	NUT	$0.05	To Order

Photo	Part No	Description	Price (each)	Stock
	12625224	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	63094600	L.H. bracket for lock	$67.85	To Order

Photo	Part No	Description	Price (each)	Stock
	62770900	Screw	$2.61	To Order

Photo	Part No	Description	Price (each)	Stock
	63114100	Lever	$60.91	To Order

Photo	Part No	Description	Price (each)	Stock
	63435000	Hook	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127494	WASHER	$0.08	To Order

Photo	Part No	Description	Price (each)	Stock
	10902221	SCREW	$1.05	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	62781300	Gasket connection pipe	$4.85	To Order

Photo	Part No	Description	Price (each)	Stock
	64454400	R.H. front insulating	$46.79	To Order

Photo	Part No	Description	Price (each)	Stock
	63117400	Bushing	$6.82	To Order

Photo	Part No	Description	Price (each)	Stock
	14496701	WASHER	$0.45	To Order

Photo	Part No	Description	Price (each)	Stock
	64454200	Adhesive polyurethan	$19.69	To Order

Photo	Part No	Description	Price (each)	Stock
	62764800	Drilled screw	$1.12	To Order

Photo	Part No	Description	Price (each)	Stock
	16043211	Screw	$0.21	To Order

Photo	Part No	Description	Price (each)	Stock
	12648925	WASHER	$0.39	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	60276805	DOWEL	$0.79	To Order

Photo	Part No	Description	Price (each)	Stock
	60276607	TERMINAL	$42.98	To Order

Photo	Part No	Description	Price (each)	Stock
	63434400	Bushing	$0.32	To Order

Photo	Part No	Description	Price (each)	Stock
	899480	NUT	$0.42	To Order

Photo	Part No	Description	Price (each)	Stock
	14578283	TIE ROD RETAINING CLIP	$0.11	To Order

Photo	Part No	Description	Price (each)	Stock
	64537400	Pin for stabilus	$24.18	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	64454500	L.H. front insulating	64454500 L.H. front insulating	$46.79	1
-	63094500	R.H. bracket for lock	63094500 R.H. bracket for lock	$67.85 MSRP: ~~125.00~~ (45.7% off)	1
-	153956	R.H. Zincfoil	153956 R.H. Zincfoil	$3.08	1
-	64454100	L.H. net for air intake	64454100 L.H. net for air intake	$115.98	1
-	12601374	WASHER	12601374 WASHER	$0.02 MSRP: ~~0.25~~ (92% off)	4
-	64454000	L.H. lateral insulating	64454000 L.H. lateral insulating	$149.88	1
-	64454200	Adhesive polyurethan	64454200 Adhesive polyurethan L. mm 2000	$19.69	1
-	63051600	R.H. lock striker	63051600 R.H. lock striker	$95.50 MSRP: ~~143.50~~ (33.4% off)	1
-	61532900	R.H. striker rod	61532900 R.H. striker rod Valid for GD	$10.96	1
-	64543800	Water shield panel	64543800 Water shield panel Valid for GD	$507.54	1
-	64630700	Front bonnet	64630700 Front bonnet Not as spare pars now / Replaced by 64630600 / Valid for GD	-	1	Enquire
1	64630600	Front bonnet	64630600 Front bonnet Not for GD	$6,523.96	1
2	64441500	Water shield panel	64441500 Water shield panel Not for GD	$459.19	1
3	64687100	Upper spacer	64687100 Upper spacer	$5.62	2
4	60277407	ENGINE BONNET LOCK	60277407 ENGINE BONNET LOCK	$105.37 MSRP: ~~168.00~~ (37.3% off)	2
5	63088400	Cable for opening bonnet	63088400 Cable for opening bonnet	$11.54 MSRP: ~~105.13~~ (89% off)	1
6	63088500	Emergency cable	63088500 Emergency cable	$10.84	1
7	61495900	Sheath support plate	61495900 Sheath support plate Passenger side	$61.15	1
8	63114300	Sheath support plate	63114300 Sheath support plate Driver side	$68.11 MSRP: ~~102.17~~ (33.3% off)	1
9	63051700	L.H. lock striker	63051700 L.H. lock striker	$101.22	1
10	61496200	L.H. striker rod	61496200 L.H. striker rod Not for GD	$13.18	1
11	64454600	R.H. lateral insulating	64454600 R.H. lateral insulating	-	1	Enquire
12	64641700	Adhesive polyurethan	64641700 Adhesive polyurethan L. mm 1000	$58.41	1
13	64454300	Central upper insulating	64454300 Central upper insulating	$46.79	1
14	64685400	Hinge	64685400 Hinge	$957.46	1
15	104030	NUT	104030 NUT	$0.26 MSRP: ~~1.00~~ (74% off)	4
16	12647021	WASHER	12647021 WASHER	$0.32	4
17	64687200	Lower spacer	64687200 Lower spacer	$7.29	2
18	62764900	WASHER	62764900 WASHER	$0.31	3
19	63671500	Stabilus	63671500 Stabilus	$65.46 MSRP: ~~122.53~~ (46.6% off)	2
20	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	$1.51	1
21	12643724	WASHER	12643724 WASHER	$0.06 MSRP: ~~0.50~~ (88% off)	4
22	10902287	Screw	10902287 Screw	$0.75	4
23	61501200	Warning light switch	61501200 Warning light switch	$59.19	2
24	64441000	Bonnet gasket	64441000 Bonnet gasket	$35.66	1
25	61497100	Open bonnet cable	61497100 Open bonnet cable	$33.06 MSRP: ~~75.26~~ (56.1% off)	1
26	14054577	CAP NUT	14054577 CAP NUT	$0.32	2
27	64454800	Sound insulation, central lower	64454800 Sound insulation, central lower	$58.48	1
28	62764700	Screw	62764700 Screw	$0.76	3
29	153957	L.H. Zincfoil	153957 L.H. Zincfoil	$3.08	1
30	64453700	R.H. net for air intake	64453700 R.H. net for air intake	$115.98	1
31	986800	STICKER EMBLE	986800 STICKER EMBLE	$90.30	1
32	64386000	Rivet	64386000 Rivet	$0.16 MSRP: ~~0.35~~ (54.3% off)	48
33	15896470	NUT	15896470 NUT	$7.33	1
34	149951	WASHER	149951 WASHER	$0.31	2
35	14084111	NUT	14084111 NUT	$0.05	3
36	12625224	WASHER	12625224 WASHER	$0.06 MSRP: ~~0.25~~ (76% off)	8
37	63094600	L.H. bracket for lock	63094600 L.H. bracket for lock	$67.85 MSRP: ~~125.00~~ (45.7% off)	1
38	62770900	Screw	62770900 Screw	$2.61 MSRP: ~~7.30~~ (64.2% off)	2
39	63114100	Lever	63114100 Lever	$60.91	1
40	63435000	Hook	63435000 Hook	-	1	Enquire
41	127494	WASHER	127494 WASHER	$0.08 MSRP: ~~0.68~~ (88.2% off)	6
42	10902221	SCREW	10902221 SCREW	$1.05 MSRP: ~~3.25~~ (67.7% off)	6
43	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	$1.51	2
44	12643724	WASHER	12643724 WASHER	$0.06 MSRP: ~~0.50~~ (88% off)	8
45	62781300	Gasket connection pipe	62781300 Gasket connection pipe	$4.85	1
46	64454400	R.H. front insulating	64454400 R.H. front insulating	$46.79	1
47	63117400	Bushing	63117400 Bushing	$6.82	1
48	14496701	WASHER	14496701 WASHER	$0.45	4
49	64454200	Adhesive polyurethan	64454200 Adhesive polyurethan	$19.69	1
50	62764800	Drilled screw	62764800 Drilled screw	$1.12	1
51	16043211	Screw	16043211 Screw	$0.21	8
52	12648925	WASHER	12648925 WASHER	$0.39	6
53	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	$1.51	6
54	60276805	DOWEL	60276805 DOWEL	$0.79 MSRP: ~~1.50~~ (47.3% off)	1
55	60276607	TERMINAL	60276607 TERMINAL	$42.98 MSRP: ~~64.45~~ (33.3% off)	1
56	63434400	Bushing	63434400 Bushing	$0.32	1
57	899480	NUT	899480 NUT	$0.42	2
58	14578283	TIE ROD RETAINING CLIP	14578283 TIE ROD RETAINING CLIP	$0.11 MSRP: ~~0.75~~ (85.3% off)	2
59	64537400	Pin for stabilus	64537400 Pin for stabilus	$24.18	4
