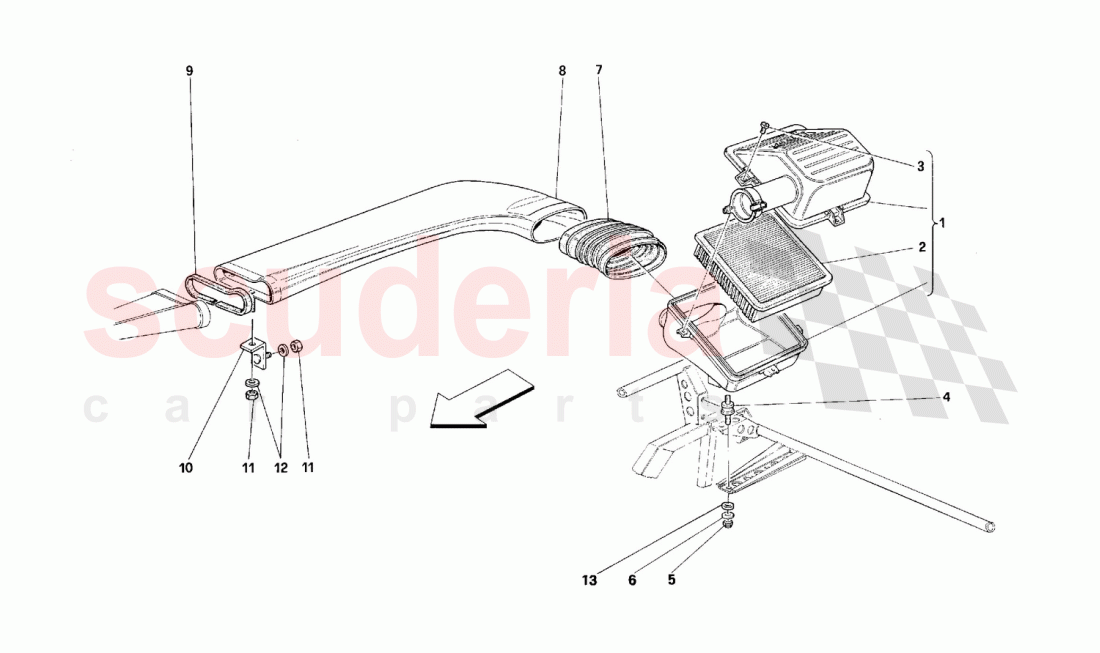

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	148719	R.H. air intake assy	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

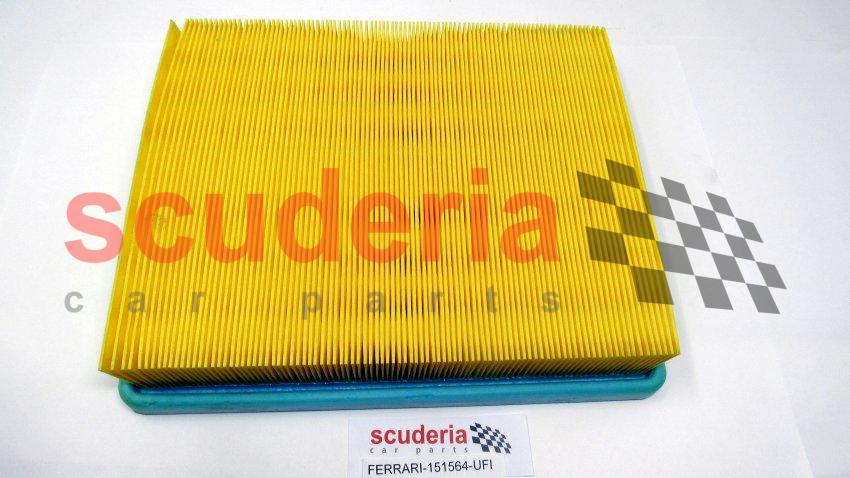

	151564-UFI	Air filter	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10376577	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	285553	VIBRATION DAMPER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	63379200	Sleeve	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63112600	R.H. rear air conveyor	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63112800	Gasket -Not for CH-	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63100500	Bracket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14054577	CAP NUT	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	127494	WASHER	Enquire	IN STOCK

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	63946300	R.H. rear air conveyor	63946300 R.H. rear air conveyor Valid for CH	-	1	Enquire
-	63112700	L.H. rear air conveyor	63112700 L.H. rear air conveyor Not for CH	-	1	Enquire
-	63946400	L.H. rear air conveyor	63946400 L.H. rear air conveyor Valid for CH	-	1	Enquire
-	148720	L.H. air intake assy	148720 L.H. air intake assy Not for CH	-	1	Enquire
-	152341	L.H. air intake assy	152341 L.H. air intake assy Valid for CH	-	1	Enquire
-	152340	R.H. air intake assy	152340 R.H. air intake assy Valid for CH	-	1	Enquire
1	148719	R.H. air intake assy	148719 R.H. air intake assy Not for CH	-	1	Enquire
2	151564-UFI	Air filter	151564-UFI Air filter	-	2	Enquire
3	10376577	SCREW	10376577 SCREW	-	6	Enquire
4	285553	VIBRATION DAMPER IN STOCK	285553 VIBRATION DAMPER IN STOCK	-	6	Enquire
5	14059290	FLANGED NUT M6 IN STOCK	14059290 FLANGED NUT M6 IN STOCK	-	6	Enquire
6	12643724	WASHER IN STOCK	12643724 WASHER IN STOCK	-	6	Enquire
7	63379200	Sleeve	63379200 Sleeve	-	2	Enquire
8	63112600	R.H. rear air conveyor	63112600 R.H. rear air conveyor Not for CH	-	1	Enquire
9	63112800	Gasket -Not for CH-	63112800 Gasket -Not for CH-	-	2	Enquire
10	63100500	Bracket	63100500 Bracket	-	2	Enquire
11	14054577	CAP NUT IN STOCK	14054577 CAP NUT IN STOCK	-	4	Enquire
12	12643724	WASHER IN STOCK	12643724 WASHER IN STOCK	-	4	Enquire
13	127494	WASHER IN STOCK	127494 WASHER IN STOCK	-	6	Enquire
