Left Cylinder Head

Ferrari 512 M

Find Your Part

Ferrari 512 M - Left cylinder head

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
139960 Left cylinder head Enquire To Order
Photo Part No Description Price (each) Stock
12354524 Stud Securing Exhaust Enquire To Order
Photo Part No Description Price (each) Stock
14040711 NUT M8 FLANGED Enquire To Order
Photo Part No Description Price (each) Stock
84653800 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
13953124 Stud Enquire To Order
Photo Part No Description Price (each) Stock
12601474 WAVY WASHER 10MM Enquire To Order
Photo Part No Description Price (each) Stock
102742 Nyloc Nut M10 x 1.25 x 10mm Enquire ARRIVING SOON
Photo Part No Description Price (each) Stock
13970324 STUD Enquire To Order
Photo Part No Description Price (each) Stock
12604474 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
16104411 Selflocking nut Enquire To Order
Photo Part No Description Price (each) Stock
102735 Stud for intermediate caps Enquire To Order
Photo Part No Description Price (each) Stock
102754 Stud for outer caps Enquire To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 Enquire To Order
Photo Part No Description Price (each) Stock
11197774 WAVY WASHER D.6.4 X 12 X 1.2 Enquire To Order
Photo Part No Description Price (each) Stock
13543424 STUD BOLT Enquire To Order
Photo Part No Description Price (each) Stock
147985 NUT Enquire To Order
Photo Part No Description Price (each) Stock
12601374 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
13543524 STUD BOLT Enquire To Order
Photo Part No Description Price (each) Stock
124525 Nut Enquire To Order
Photo Part No Description Price (each) Stock
10441790 BRACKET WITH SHEATH Enquire To Order
Photo Part No Description Price (each) Stock
102725 CENTERING DOWEL Enquire To Order
Photo Part No Description Price (each) Stock
13541324 STUD BOLT Enquire To Order
Photo Part No Description Price (each) Stock
13541424 STUD BOLT Enquire To Order
Photo Part No Description Price (each) Stock
100044 Selflocking nut Enquire To Order
Photo Part No Description Price (each) Stock
11197774 WAVY WASHER D.6.4 X 12 X 1.2 Enquire To Order
Photo Part No Description Price (each) Stock
13541024 STUD BOLT Enquire To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 Enquire To Order
Photo Part No Description Price (each) Stock
11197774 WAVY WASHER D.6.4 X 12 X 1.2 Enquire To Order
Photo Part No Description Price (each) Stock
150074 GASKET Enquire To Order
Photo Part No Description Price (each) Stock
140102 REAR SMALL COVER Enquire To Order
Photo Part No Description Price (each) Stock
10902424 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
11197774 WAVY WASHER D.6.4 X 12 X 1.2 Enquire To Order
Photo Part No Description Price (each) Stock
13541024 STUD BOLT Enquire To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 Enquire To Order
Photo Part No Description Price (each) Stock
11197774 WAVY WASHER D.6.4 X 12 X 1.2 Enquire To Order
Photo Part No Description Price (each) Stock
13541124 STUD BOLT Enquire To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 Enquire To Order
Photo Part No Description Price (each) Stock
11197774 WAVY WASHER D.6.4 X 12 X 1.2 Enquire To Order
Photo Part No Description Price (each) Stock
102725 CENTERING DOWEL Enquire To Order
Photo Part No Description Price (each) Stock
10300740 Water drain plug Enquire To Order
Photo Part No Description Price (each) Stock
10261460 GASKET Enquire To Order
Photo Part No Description Price (each) Stock
137717 Left cylinder head, complete Enquire To Order
Photo Part No Description Price (each) Stock
150195 Gasket Enquire To Order
Photo Part No Description Price (each) Stock
121116 Front cover Enquire To Order
Photo Part No Description Price (each) Stock
133628 RH Oil Sealing Ring Enquire To Order
Photo Part No Description Price (each) Stock
117036 Sealing ring Enquire To Order
Photo Part No Description Price (each) Stock
127649 Sealing ring Enquire To Order
Photo Part No Description Price (each) Stock
10269750 THREADED PLUG - Ø 18 mm Enquire To Order
Photo Part No Description Price (each) Stock
14326150 CAP Enquire To Order
Photo Part No Description Price (each) Stock
11500124 STUD BOLT Enquire To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 Enquire To Order
Photo Part No Description Price (each) Stock
11197774 WAVY WASHER D.6.4 X 12 X 1.2 Enquire To Order
Photo Part No Description Price (each) Stock
127635 THREADED PLUG Enquire To Order
Photo Part No Description Price (each) Stock
10269750 THREADED PLUG - Ø 18 mm Enquire To Order
Photo Part No Description Price (each) Stock
13525470 THREADED INSERT Enquire To Order
Photo Part No Description Price (each) Stock
145600 Left intake camshaft, complete Enquire To Order
Photo Part No Description Price (each) Stock
141425 Left exhaust camshaft, complete Enquire To Order
Photo Part No Description Price (each) Stock
114499 Front cap Enquire To Order
Photo Part No Description Price (each) Stock
114497 Rear cap -Not as spare parts- Enquire To Order
Photo Part No Description Price (each) Stock
126811 Intermediate cap -With compl. Enquire To Order
Photo Part No Description Price (each) Stock
146928 Rear cover Enquire To Order
Photo Part No Description Price (each) Stock
128010 Washer Enquire To Order
Photo Part No Description Price (each) Stock
150194 Gasket Enquire To Order
View All

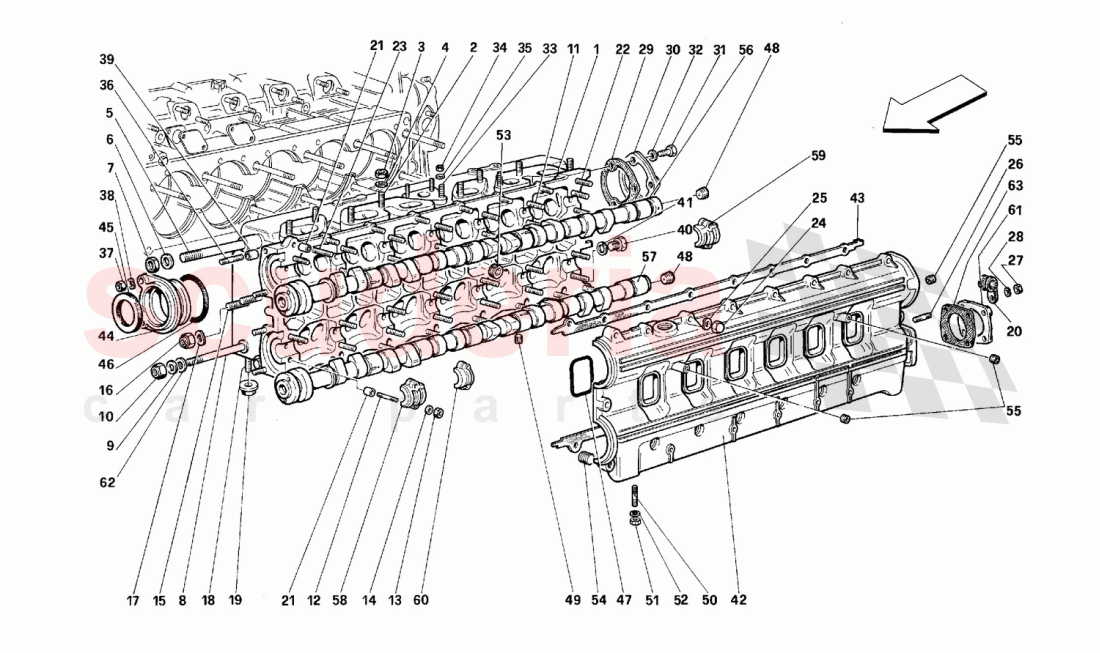

Left cylinder head of Ferrari Ferrari 512 M Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 137717
Left cylinder head, complete 		- 1 Enquire
1 139960
Left cylinder head
Not as spare parts / With complete cylinder / head 137717 		- 1 Enquire
2 12354524
Stud Securing Exhaust 		- 10 Enquire
3 14040711
NUT M8 FLANGED 		- 10 Enquire
4 84653800
WASHER 		- 10 Enquire
5 13953124
Stud 		- 1 Enquire
6 12601474
WAVY WASHER 10MM 		- 1 Enquire
7 102742
Nyloc Nut M10 x 1.25 x 10mm
ARRIVING SOON 		- 1 Enquire
8 13970324
STUD 		- 1 Enquire
9 12604474
WASHER 		- 1 Enquire
10 16104411
Selflocking nut 		- 1 Enquire
11 102735
Stud for intermediate caps 		- 24 Enquire
12 102754
Stud for outer caps 		- 4 Enquire
13 14059290
FLANGED NUT M6 		- 28 Enquire
14 11197774
WAVY WASHER D.6.4 X 12 X 1.2 		- 28 Enquire
15 13543424
STUD BOLT 		- 2 Enquire
16 147985
NUT 		- 2 Enquire
17 12601374
WASHER 		- 2 Enquire
18 13543524
STUD BOLT 		- 12 Enquire
19 124525
Nut 		- 12 Enquire
20 10441790
BRACKET WITH SHEATH 		- 1 Enquire
21 102725
CENTERING DOWEL 		- 30 Enquire
22 13541324
STUD BOLT 		- 16 Enquire
23 13541424
STUD BOLT 		- 2 Enquire
24 100044
Selflocking nut 		- 18 Enquire
25 11197774
WAVY WASHER D.6.4 X 12 X 1.2 		- 18 Enquire
26 13541024
STUD BOLT 		- 4 Enquire
27 14059290
FLANGED NUT M6 		- 4 Enquire
28 11197774
WAVY WASHER D.6.4 X 12 X 1.2 		- 4 Enquire
29 150074
GASKET 		- 1 Enquire
30 140102
REAR SMALL COVER 		- 1 Enquire
31 10902424
SCREW 		- 3 Enquire
32 11197774
WAVY WASHER D.6.4 X 12 X 1.2 		- 3 Enquire
33 13541024
STUD BOLT 		- 3 Enquire
34 14059290
FLANGED NUT M6 		- 3 Enquire
35 11197774
WAVY WASHER D.6.4 X 12 X 1.2 		- 3 Enquire
36 13541124
STUD BOLT 		- 4 Enquire
37 14059290
FLANGED NUT M6 		- 4 Enquire
38 11197774
WAVY WASHER D.6.4 X 12 X 1.2 		- 4 Enquire
39 102725
CENTERING DOWEL 		- 4 Enquire
40 10300740
Water drain plug 		- 1 Enquire
41 10261460
GASKET 		- 1 Enquire
42 137717
Left cylinder head, complete
Not as spare parts / With complete cylinder / head 137717 		- 1 Enquire
43 150195
Gasket 		- 1 Enquire
44 121116
Front cover 		- 2 Enquire
45 133628
RH Oil Sealing Ring 		- 2 Enquire
46 117036
Sealing ring 		- 2 Enquire
47 127649
Sealing ring 		- 6 Enquire
48 10269750
THREADED PLUG - Ø 18 mm 		- 2 Enquire
49 14326150
CAP 		- 3 Enquire
50 11500124
STUD BOLT 		- 2 Enquire
51 14059290
FLANGED NUT M6 		- 2 Enquire
52 11197774
WAVY WASHER D.6.4 X 12 X 1.2 		- 2 Enquire
53 127635
THREADED PLUG 		- 2 Enquire
54 10269750
THREADED PLUG - Ø 18 mm 		- 3 Enquire
55 13525470
THREADED INSERT 		- 3 Enquire
56 145600
Left intake camshaft, complete
complete 		- 1 Enquire
57 141425
Left exhaust camshaft, complete
complete 		- 1 Enquire
58 114499
Front cap
Not as spare parts / With complete cylinder / head 137717 		- 2 Enquire
59 114497
Rear cap -Not as spare parts-
Not as spare parts / With complete cylinder / head 137717 		- 2 Enquire
60 126811
Intermediate cap -With compl.
Not as spare parts / With complete cylinder / head 137717 		- 10 Enquire
61 146928
Rear cover 		- 1 Enquire
62 128010
Washer 		- 1 Enquire
63 150194
Gasket 		- 1 Enquire
