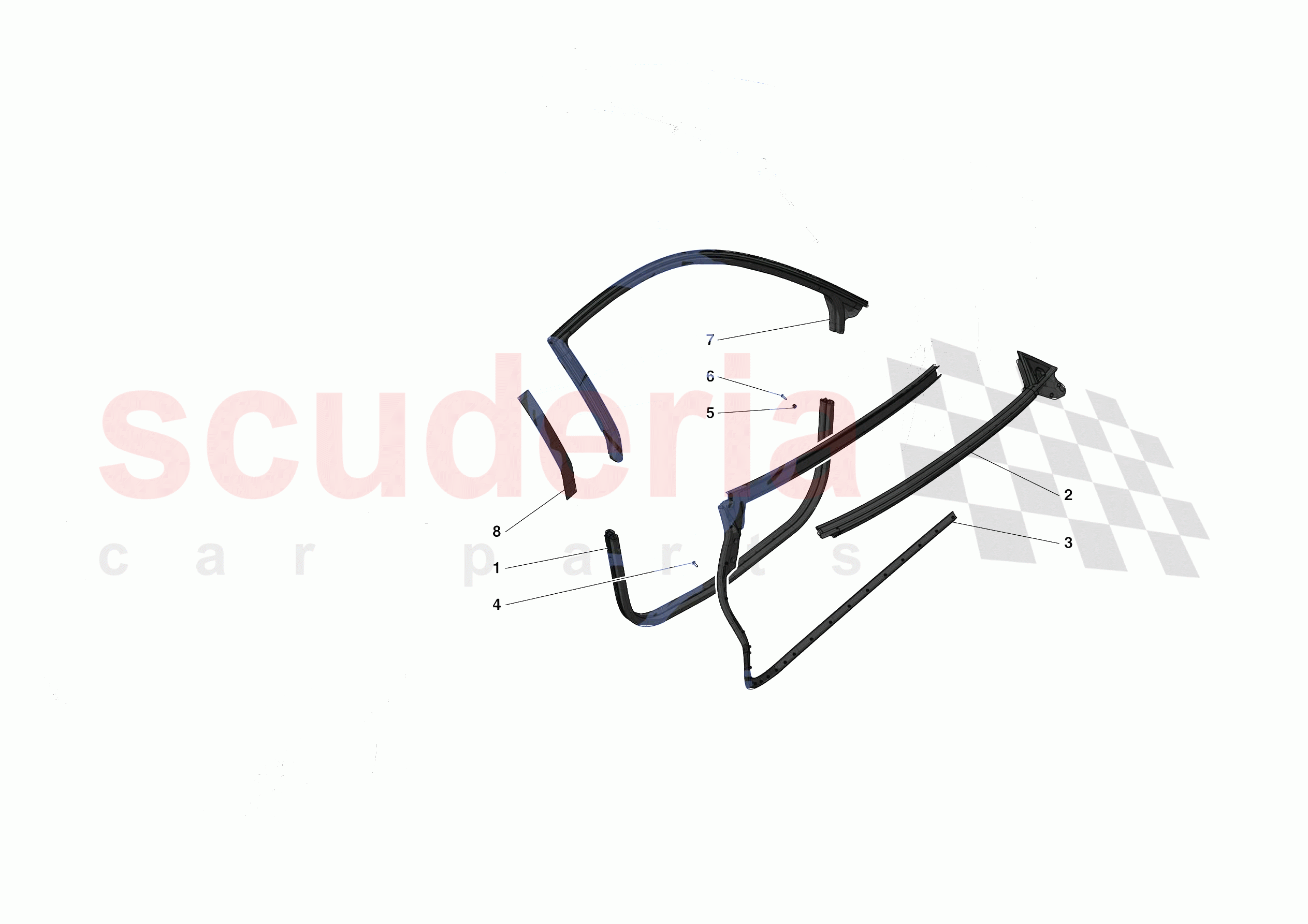

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	83987400	LOWER DOOR PERIMETER SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	88822200	SCREW TORX HEAD M4 X 10MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14115885	BLOCK	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	815292	ADHESIVE STRIP	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
0001	83987400	LOWER DOOR PERIMETER SEAL	83987400 LOWER DOOR PERIMETER SEAL	-	2	Enquire
0002	86742900	RH DOOR OUTER PERIMETER SEAL	86742900 RH DOOR OUTER PERIMETER SEAL	-	1	Enquire
0002	86742800	LH DOOR OUTER PERIMETER SEAL	86742800 LH DOOR OUTER PERIMETER SEAL	-	1	Enquire
0003	86743100	RH DOOR INNER PERIMETER SEAL	86743100 RH DOOR INNER PERIMETER SEAL	-	1	Enquire
0003	86743000	LH DOOR INNER PERIMETER SEAL	86743000 LH DOOR INNER PERIMETER SEAL	-	1	Enquire
0004	88822200	SCREW TORX HEAD M4 X 10MM	88822200 SCREW TORX HEAD M4 X 10MM M4 X 15	-	2	Enquire
0005	14115885	BLOCK	14115885 BLOCK	-	16	Enquire
0006	15689809	SCREW	15689809 SCREW	-	16	Enquire
0006	15689809	SCREW	15689809 SCREW D4.2 X 19	-	16	Enquire
0007	86743200	RH DOOR PERIMETER SEAL	86743200 RH DOOR PERIMETER SEAL Applies until depletion	-	1	Enquire
0007	770647	RH DOOR PERIMETER SEAL	770647 RH DOOR PERIMETER SEAL Applicable after depletion of 86743200	-	1	Enquire
0007	86743300	LH DOOR PERIMETER SEAL	86743300 LH DOOR PERIMETER SEAL Applies until depletion	-	1	Enquire
0007	770646	LH DOOR PERIMETER SEAL	770646 LH DOOR PERIMETER SEAL Applicable after depletion of 86743300	-	1	Enquire
0008	815292	ADHESIVE STRIP	815292 ADHESIVE STRIP	-	2	Enquire
