LATERAL OUTER BODYSHELL of Ferrari Ferrari 488 Pista USA

View All

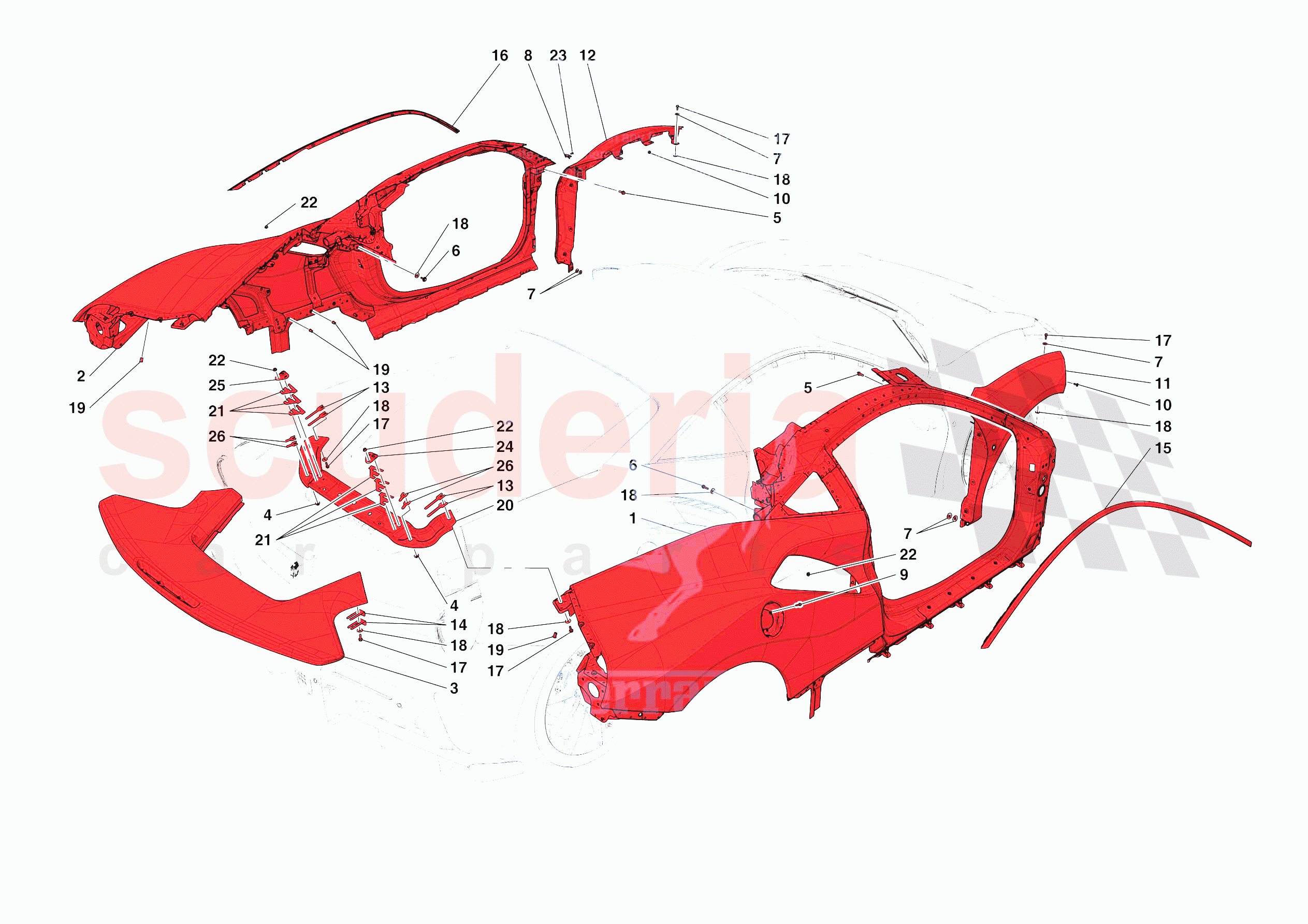

Ferrari 488 Pista USA - LATERAL OUTER BODYSHELL

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	89237111	RH FLANK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	89237711	LH FLANK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	873944	COMPL. REAR SPOILER	Enquire	To Order
	873945	COMPL. REAR SPOILER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16287221	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231625	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68040000	WASHER 6 X 20 X 2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87472400	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10977621	SCREW	Enquire	To Order
	10977624	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11625824	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87523811	FRONT RH FENDER	Enquire	To Order
	87524011	FRONT RH FENDER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87523711	FRONT LH FENDER	Enquire	To Order
	87523911	FRONT LH FENDER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86847600	ADJUSTMENT SHIM	Enquire	To Order
	87576600	FORK ADJUSTER SHIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	821189	ADJUSTER SHIM	Enquire	To Order
	87549900	SHIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86728110	RH ROOF GUTTER MOULDING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86728210	LH ROOF GUTTER MOULDING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16286121	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12647724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248146	HEXAGONAL RIVET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86821700	FLANK LINK CROSS MEMBER	Enquire	To Order
	86821711	FLANK LINK CROSS MEMBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86821900	SPOILER DUCT ADJUSTMENT BRACKET SHIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14645690	RIVET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	899588	SPOILER DUCT ADJUSTMENT BRACKET	Enquire	To Order
	899588	SPOILER DUCT ADJUSTMENT BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	899588	SPOILER DUCT ADJUSTMENT BRACKET	Enquire	To Order
	899588	SPOILER DUCT ADJUSTMENT BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87583800	ADJUSTMENT SHIM	Enquire	To Order
	87583700	ADJUSTMENT SHIM	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
0001	89237111	RH FLANK	89237111 RH FLANK Request ASM authorisation	-	1	Enquire
0002	89237711	LH FLANK	89237711 LH FLANK Request ASM authorisation	-	1	Enquire
0003	873944	COMPL. REAR SPOILER	873944 COMPL. REAR SPOILER Not applicable for vehicles with Modena yellow exterior; Dark colour primer	-	1	Enquire
0003	873945	COMPL. REAR SPOILER	873945 COMPL. REAR SPOILER Applicable for vehicles with Modena yellow exterior; Light colour primer	-	1	Enquire
0004	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	2	Enquire
0005	16287221	SCREW	16287221 SCREW M8 X 25	-	4	Enquire
0006	231625	SCREW	231625 SCREW M6 X 25	-	6	Enquire
0007	68040000	WASHER 6 X 20 X 2	68040000 WASHER 6 X 20 X 2	-	16	Enquire
0008	87472400	BRACKET	87472400 BRACKET	-	2	Enquire
0009	10977621	SCREW	10977621 SCREW No longer supplied - Replaced by 10977624; M5 X 12	-	3	Enquire
0009	10977624	SCREW	10977624 SCREW M5 X 12	-	3	Enquire
0010	11625824	SCREW	11625824 SCREW M6 X 18	-	4	Enquire
0011	87523811	FRONT RH FENDER	87523811 FRONT RH FENDER Request ASM authorisation	-	1	Enquire
0011	87524011	FRONT RH FENDER	87524011 FRONT RH FENDER Shield badge; Request ASM authorisation	-	1	Enquire
0012	87523711	FRONT LH FENDER	87523711 FRONT LH FENDER Request ASM authorisation	-	1	Enquire
0012	87523911	FRONT LH FENDER	87523911 FRONT LH FENDER Shield badge; Request ASM authorisation	-	1	Enquire
0013	86847600	ADJUSTMENT SHIM	86847600 ADJUSTMENT SHIM Th. 1 mm	-	2	Enquire
0013	87576600	FORK ADJUSTER SHIM	87576600 FORK ADJUSTER SHIM Th. 1.5 mm	-	2	Enquire
0014	821189	ADJUSTER SHIM	821189 ADJUSTER SHIM Th. 1 mm	-	2	Enquire
0014	87549900	SHIM	87549900 SHIM Th. 1.5 mm	-	2	Enquire
0015	86728110	RH ROOF GUTTER MOULDING	86728110 RH ROOF GUTTER MOULDING	-	1	Enquire
0016	86728210	LH ROOF GUTTER MOULDING	86728210 LH ROOF GUTTER MOULDING	-	1	Enquire
0017	16286121	SCREW	16286121 SCREW M6 X 20	-	12	Enquire
0018	12647724	WASHER	12647724 WASHER	-	22	Enquire
0019	248146	HEXAGONAL RIVET	248146 HEXAGONAL RIVET M6	-	4	Enquire
0020	86821700	FLANK LINK CROSS MEMBER	86821700 FLANK LINK CROSS MEMBER Applies until depletion	-	1	Enquire
0020	86821711	FLANK LINK CROSS MEMBER	86821711 FLANK LINK CROSS MEMBER Applicable after depletion of 86821700	-	1	Enquire
0021	86821900	SPOILER DUCT ADJUSTMENT BRACKET SHIM	86821900 SPOILER DUCT ADJUSTMENT BRACKET SHIM Th. 1 mm	-	6	Enquire
0022	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	4	Enquire
0022	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	4	Enquire
0023	14645690	RIVET	14645690 RIVET 4.8 X 10	-	4	Enquire
0024	899588	SPOILER DUCT ADJUSTMENT BRACKET	899588 SPOILER DUCT ADJUSTMENT BRACKET	-	1	Enquire
0024	899588	SPOILER DUCT ADJUSTMENT BRACKET	899588 SPOILER DUCT ADJUSTMENT BRACKET	-	1	Enquire
0025	899588	SPOILER DUCT ADJUSTMENT BRACKET	899588 SPOILER DUCT ADJUSTMENT BRACKET	-	1	Enquire
0025	899588	SPOILER DUCT ADJUSTMENT BRACKET	899588 SPOILER DUCT ADJUSTMENT BRACKET	-	1	Enquire
0026	87583800	ADJUSTMENT SHIM	87583800 ADJUSTMENT SHIM Th. 1 mm	-	2	Enquire
0026	87583700	ADJUSTMENT SHIM	87583700 ADJUSTMENT SHIM Th. 1.5 mm	-	2	Enquire
