Name: FORCED INDUCTION SYSTEM PIPES
Rating: 4.1 (1 reviews)

FORCED INDUCTION SYSTEM PIPES of Ferrari Ferrari 488 Pista Spider Europe RH

View All

Ferrari 488 Pista Spider Europe RH - FORCED INDUCTION SYSTEM PIPES

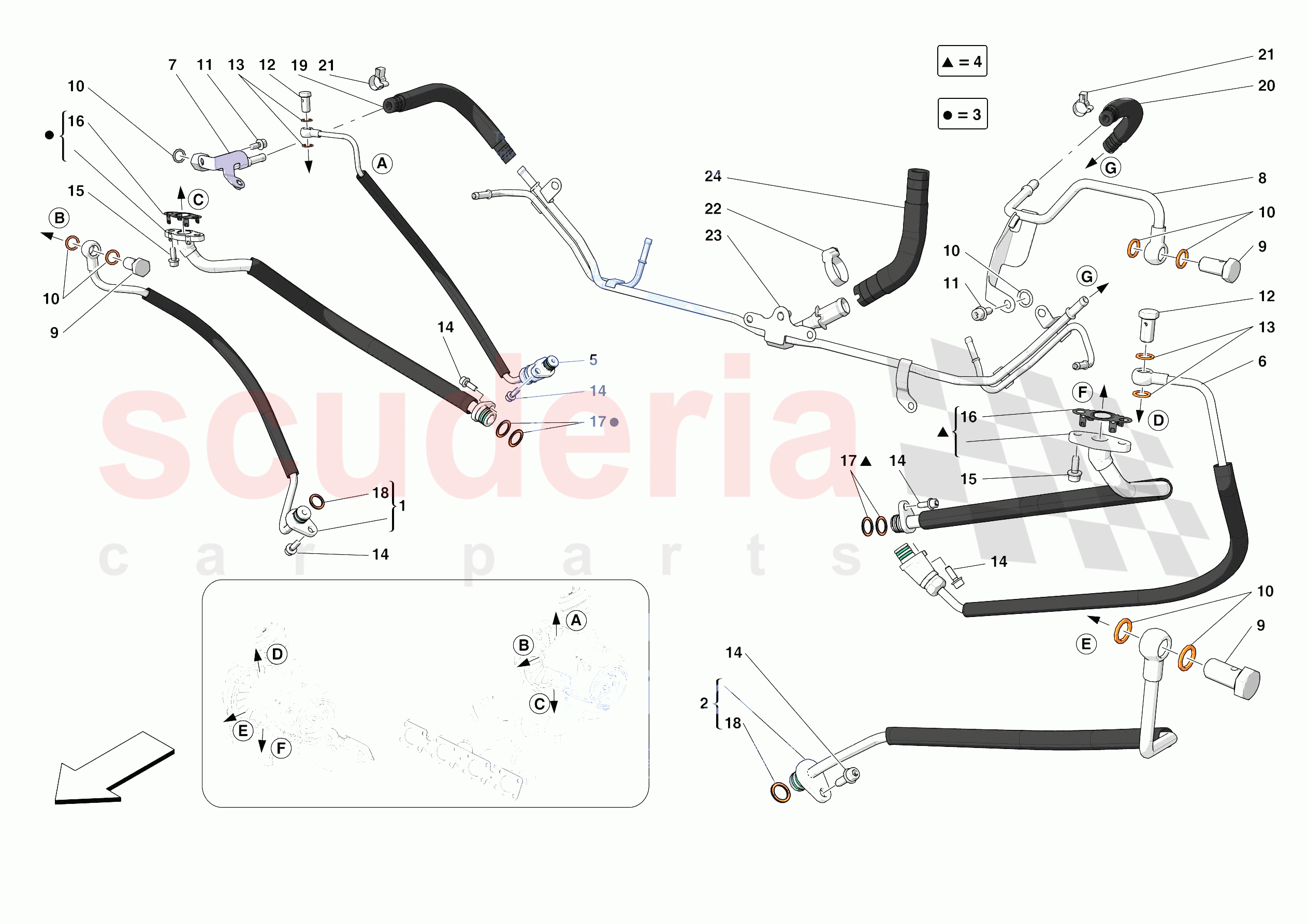

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	322814	WATER DELIVERY PIPE TO RH TURBO	$256.72	To Order

Photo	Part No	Description	Price (each)	Stock
	327480	WATER DELIVERY PIPE TO LH TURBO	$240.67	To Order

Photo	Part No	Description	Price (each)	Stock
	337498	OIL RETURN PIPE FROM RH TURBO	$353.00	To Order

Photo	Part No	Description	Price (each)	Stock
	327479	OIL RETURN PIPE FROM LH TURBO	$385.09	To Order

Photo	Part No	Description	Price (each)	Stock
	337130	OIL DELIVERY PIPE TO RH TURBO	$435.11	To Order

Photo	Part No	Description	Price (each)	Stock
	337131	OIL DELIVERY PIPE TO LH TURBO	$433.23	To Order

Photo	Part No	Description	Price (each)	Stock
	317597	WATER RETURN PIPE FROM RH TURBO	$72.19	To Order

Photo	Part No	Description	Price (each)	Stock
	317598	WATER RETURN PIPE FROM LH TURBO	$89.84	To Order

Photo	Part No	Description	Price (each)	Stock
	308429	HOSE CONNECTOR	$13.14	To Order

Photo	Part No	Description	Price (each)	Stock
	10261060	GASKET COPPER 12 - 16 X 1.5	$0.18	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW	$0.68	To Order

Photo	Part No	Description	Price (each)	Stock
	315276	HOSE CONNECTOR	$20.29	To Order

Photo	Part No	Description	Price (each)	Stock
	10260160	Copper Washer D. 10 - 14 x 1	$0.84	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW	$0.31	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW	$0.68	To Order

Photo	Part No	Description	Price (each)	Stock
	308203	OIL RECOVERY PIPE SEAL	$29.06	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	287722	O-RING	$7.05	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14456981	GASKET	$0.99	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	318497	RUBBER PIPE	$56.14	To Order

Photo	Part No	Description	Price (each)	Stock
	318500	RUBBER PIPE	$48.12	To Order

Photo	Part No	Description	Price (each)	Stock
	13125470	COLLAR	$0.66	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	296778	SCREW COLLAR	$7.23	To Order

Photo	Part No	Description	Price (each)	Stock
	768361	COMPL. RIGID COOLING PIPE	$593.69	To Order

Photo	Part No	Description	Price (each)	Stock
	768362	HEADER TANK DELIVERY PIPE	$40.10	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
0001	322814	WATER DELIVERY PIPE TO RH TURBO	322814 WATER DELIVERY PIPE TO RH TURBO	$256.72	1
0002	327480	WATER DELIVERY PIPE TO LH TURBO	327480 WATER DELIVERY PIPE TO LH TURBO	$240.67	1
0003	337498	OIL RETURN PIPE FROM RH TURBO	337498 OIL RETURN PIPE FROM RH TURBO	$353.00	1
0004	327479	OIL RETURN PIPE FROM LH TURBO	327479 OIL RETURN PIPE FROM LH TURBO	$385.09	1
0005	337130	OIL DELIVERY PIPE TO RH TURBO	337130 OIL DELIVERY PIPE TO RH TURBO	$435.11	1
0006	337131	OIL DELIVERY PIPE TO LH TURBO	337131 OIL DELIVERY PIPE TO LH TURBO	$433.23	1
0007	317597	WATER RETURN PIPE FROM RH TURBO	317597 WATER RETURN PIPE FROM RH TURBO	$72.19	1
0008	317598	WATER RETURN PIPE FROM LH TURBO	317598 WATER RETURN PIPE FROM LH TURBO	$89.84	1
0009	308429	HOSE CONNECTOR	308429 HOSE CONNECTOR	$13.14	3
0010	10261060	GASKET COPPER 12 - 16 X 1.5 IN STOCK	10261060 GASKET COPPER 12 - 16 X 1.5 Also included in engine gasket set IN STOCK	$0.18 MSRP: ~~0.49~~ (63.3% off)	8
0011	248334	SCREW	248334 SCREW M6 X 16	$0.68	4
0012	315276	HOSE CONNECTOR	315276 HOSE CONNECTOR	$20.29	2
0013	10260160	Copper Washer D. 10 - 14 x 1 IN STOCK	10260160 Copper Washer D. 10 - 14 x 1 Also included in engine gasket set IN STOCK	$0.84 MSRP: ~~0.90~~ (6.7% off)	4
0014	231619	SCREW IN STOCK	231619 SCREW M6 X 18 IN STOCK	$0.31	6
0015	248334	SCREW	248334 SCREW M6 X 16	$0.68	4
0016	308203	OIL RECOVERY PIPE SEAL ARRIVING SOON	308203 OIL RECOVERY PIPE SEAL ARRIVING SOON	$29.06	2
0017	287722	O-RING IN STOCK	287722 O-RING IN STOCK	$7.05	4
0018	14456981	GASKET IN STOCK	14456981 GASKET IN STOCK	$0.99 MSRP: ~~1.25~~ (20.8% off)	2
0019	318497	RUBBER PIPE	318497 RUBBER PIPE	$56.14	1
0020	318500	RUBBER PIPE	318500 RUBBER PIPE	$48.12	1
0021	13125470	COLLAR IN STOCK	13125470 COLLAR IN STOCK	$0.66	4
0022	296778	SCREW COLLAR	296778 SCREW COLLAR	$7.23	1
0023	768361	COMPL. RIGID COOLING PIPE	768361 COMPL. RIGID COOLING PIPE	$593.69	1
0024	768362	HEADER TANK DELIVERY PIPE	768362 HEADER TANK DELIVERY PIPE	$40.10	1

Forced Induction System Pipes

Ferrari 488 Pista Spider Europe RH

Ferrari 488 Pista Spider Europe RH - FORCED INDUCTION SYSTEM PIPES
