Name: ENGINE COVERS
Rating: 5.0 (1 reviews)

View All

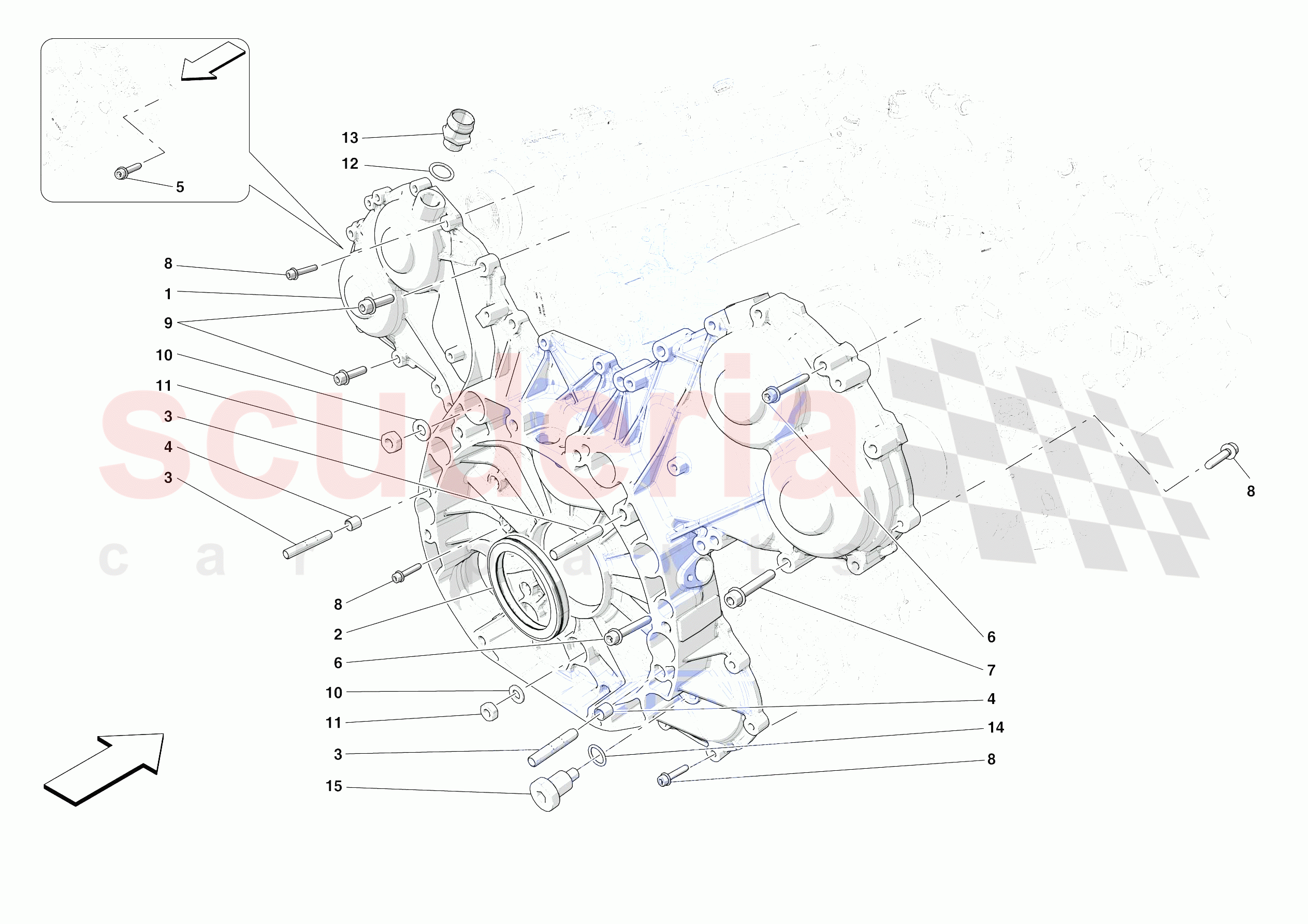

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	782004	TIMING COVER	$1,390.44	To Order

Photo	Part No	Description	Price (each)	Stock
	240214	GASKET	$62.56	To Order

Photo	Part No	Description	Price (each)	Stock
	13546834	STUD BOLT	$1.65	To Order

Photo	Part No	Description	Price (each)	Stock
	100052	CENTERING DOWEL	$2.37	To Order

Photo	Part No	Description	Price (each)	Stock
	231625	SCREW	$0.65	To Order

Photo	Part No	Description	Price (each)	Stock
	231624	SCREW	$0.44	To Order

Photo	Part No	Description	Price (each)	Stock
	285494	SCREW	$1.07	To Order

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	$0.32	To Order

Photo	Part No	Description	Price (each)	Stock
	231629	SCREW	$0.65	To Order

Photo	Part No	Description	Price (each)	Stock
	178348	WASHER D.10.2-20 X 2	$0.78	To Order

Photo	Part No	Description	Price (each)	Stock
	133988	HEX NUT M10 X 1.25 X 8	$0.21	To Order

Photo	Part No	Description	Price (each)	Stock
	10263160	GASKET	$0.28	To Order

Photo	Part No	Description	Price (each)	Stock
	309101	CONNECTOR	$22.45	To Order

Photo	Part No	Description	Price (each)	Stock
	302618	GASKET	$1.26	To Order

Photo	Part No	Description	Price (each)	Stock
	307936	PLUG	$22.45	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
0001	782004	TIMING COVER	782004 TIMING COVER	$1,390.44	1
0002	240214	GASKET	240214 GASKET	$62.56 MSRP: ~~77.65~~ (19.4% off)	1
0003	13546834	STUD BOLT	13546834 STUD BOLT Shank length 40 mm	$1.65	10
0004	100052	CENTERING DOWEL	100052 CENTERING DOWEL	$2.37	2
0005	231625	SCREW	231625 SCREW L. 40 mm	$0.65	1
0006	231624	SCREW	231624 SCREW M6 X 45	$0.44	6
0007	285494	SCREW	285494 SCREW M8 X 50	$1.07	5
0008	231620	SCREW	231620 SCREW M6 X 30	$0.32 MSRP: ~~0.35~~ (8.6% off)	17
0009	231629	SCREW	231629 SCREW M8 X 30	$0.65 MSRP: ~~0.95~~ (31.6% off)	5
0010	178348	WASHER D.10.2-20 X 2	178348 WASHER D.10.2-20 X 2	$0.78	8
0011	133988	HEX NUT M10 X 1.25 X 8	133988 HEX NUT M10 X 1.25 X 8	$0.21 MSRP: ~~0.35~~ (40% off)	8
0012	10263160	GASKET	10263160 GASKET	$0.28 MSRP: ~~1.00~~ (72% off)	1
0013	309101	CONNECTOR	309101 CONNECTOR	$22.45	1
0014	302618	GASKET	302618 GASKET Also included in engine gasket set	$1.26	1
0015	307936	PLUG	307936 PLUG	$22.45	1
