Name: DASHBOARD - DUCTS -APPLICABLE FOR RHD-
Rating: 4.8 (1 reviews)

View All

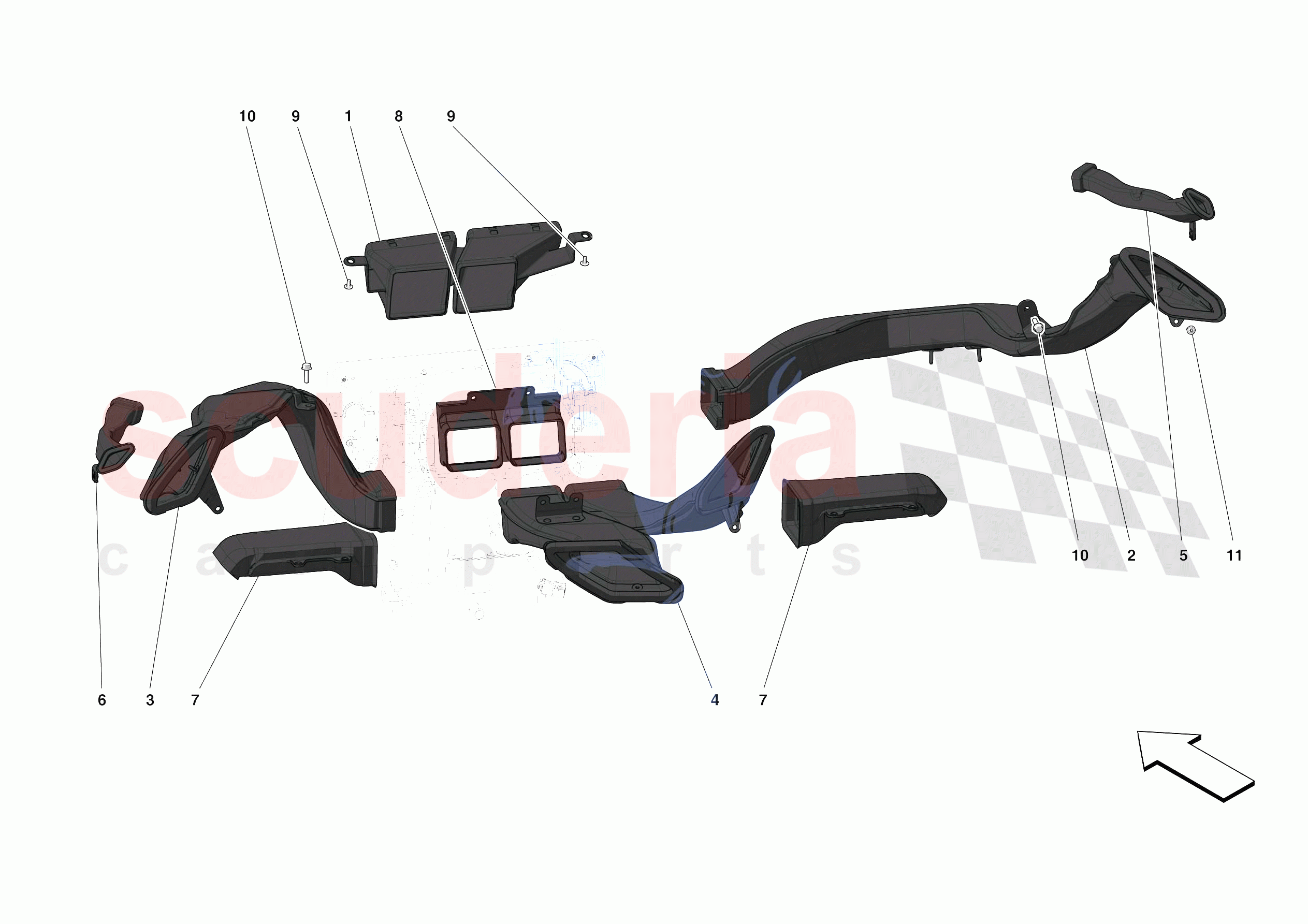

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	87030200	HVAC DEFROSTER CONNECTOR	$94.66	To Order

Photo	Part No	Description	Price (each)	Stock
	87023000	COMPL. RH DRIVER SIDE VENTILATION DUCT	$224.63	To Order

Photo	Part No	Description	Price (each)	Stock
	87028400	COMPL. LH PASSENGER SIDE VENTILATION DUCT	$174.03	To Order

Photo	Part No	Description	Price (each)	Stock
	87023900	COMPL. LH DRIVER SIDE / LH PASSENGER SIDE VENTILATION DUCT	$208.58	To Order

Photo	Part No	Description	Price (each)	Stock
	87031300	COMPL. DRIVER SIDE DEMISTER DUCT	$86.63	To Order

Photo	Part No	Description	Price (each)	Stock
	87030600	COMPL. PASSENGER SIDE DEMISTER DUCT	$86.63	To Order

Photo	Part No	Description	Price (each)	Stock
	84497100	FOOTWELL DUCT	$65.77	To Order

Photo	Part No	Description	Price (each)	Stock
	83127400	CENTRE AIR DUCT CONNECTOR	$13.31	To Order

Photo	Part No	Description	Price (each)	Stock
	85833900	SCREW	$0.36	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	16286124	SCREW	$0.37	To Order

Photo	Part No	Description	Price (each)	Stock
	85833900	SCREW	$0.36	IN STOCK

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
0001	87030200	HVAC DEFROSTER CONNECTOR	87030200 HVAC DEFROSTER CONNECTOR	$94.66	1
0002	87023000	COMPL. RH DRIVER SIDE VENTILATION DUCT	87023000 COMPL. RH DRIVER SIDE VENTILATION DUCT	$224.63	1
0003	87028400	COMPL. LH PASSENGER SIDE VENTILATION DUCT	87028400 COMPL. LH PASSENGER SIDE VENTILATION DUCT	$174.03	1
0004	87023900	COMPL. LH DRIVER SIDE / LH PASSENGER SIDE VENTILATION DUCT	87023900 COMPL. LH DRIVER SIDE / LH PASSENGER SIDE VENTILATION DUCT	$208.58	1
0005	87031300	COMPL. DRIVER SIDE DEMISTER DUCT	87031300 COMPL. DRIVER SIDE DEMISTER DUCT	$86.63	1
0006	87030600	COMPL. PASSENGER SIDE DEMISTER DUCT	87030600 COMPL. PASSENGER SIDE DEMISTER DUCT	$86.63	1
0007	84497100	FOOTWELL DUCT	84497100 FOOTWELL DUCT	$65.77	2
0008	83127400	CENTRE AIR DUCT CONNECTOR	83127400 CENTRE AIR DUCT CONNECTOR	$13.31	1
0009	85833900	SCREW IN STOCK	85833900 SCREW M5 X 14 IN STOCK	$0.36	4
0010	16286124	SCREW	16286124 SCREW M6 X 20	$0.37	3
0011	85833900	SCREW IN STOCK	85833900 SCREW M5 X 14 IN STOCK	$0.36	4

Dashboard - Ducts -Applicable For Rhd-

Ferrari 488 Pista Spider Europe
