LATERAL OUTER BODYSHELL of Ferrari Ferrari 488 Pista Spider Europe

View All

Ferrari 488 Pista Spider Europe - LATERAL OUTER BODYSHELL

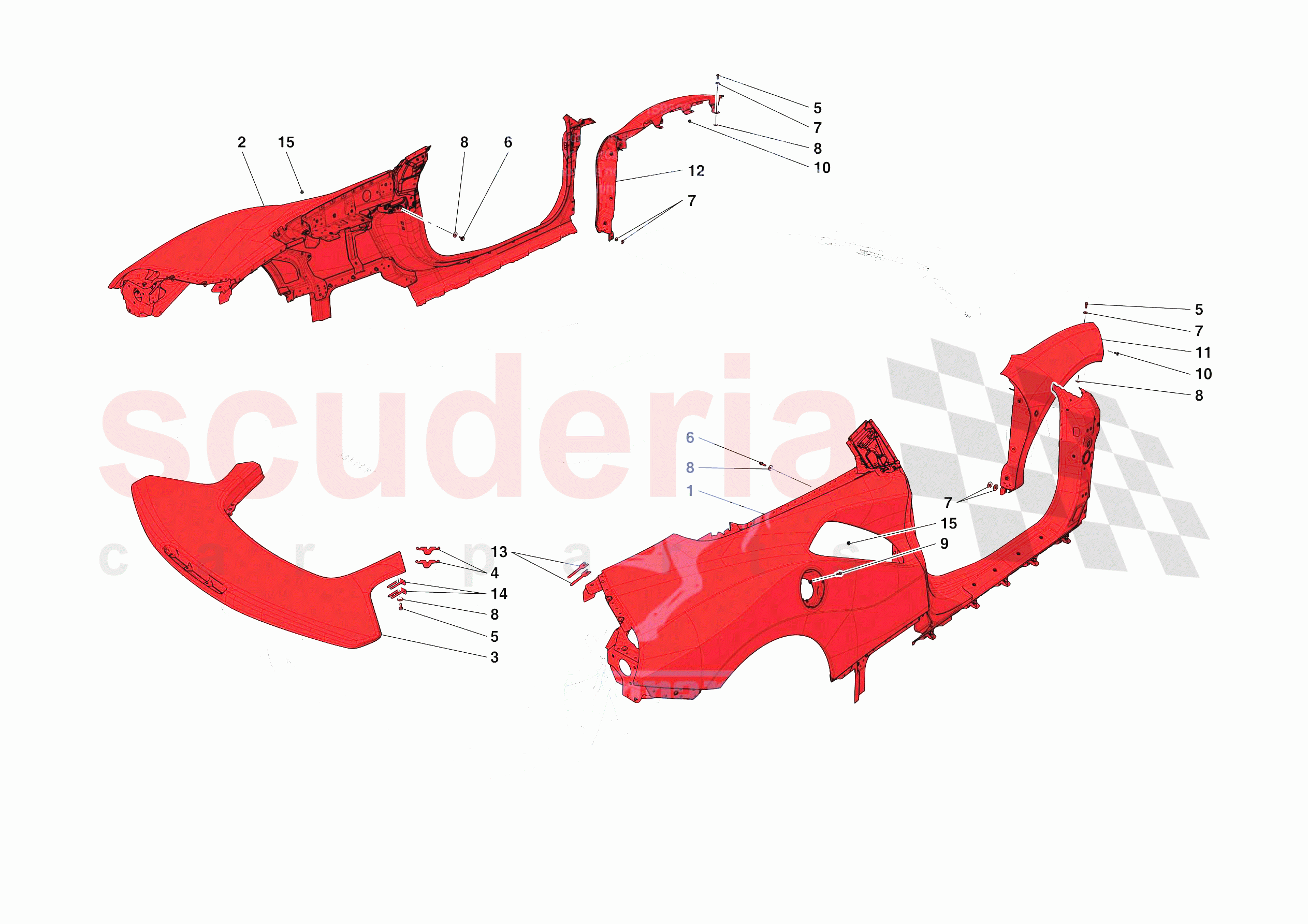

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	985803718	RH FLANK	Enquire	To Order
	985829032	RH FLANK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	985803726	LH FLANK	Enquire	To Order
	985829034	LH FLANK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	808177	COMPL. REAR SPOILER	Enquire	To Order
	873936	COMPL. REAR SPOILER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	819451	SHIM	Enquire	To Order
	819449	SHIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16286121	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231625	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68040000	WASHER 6 X 20 X 2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12647724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10977621	SCREW	Enquire	To Order
	10977624	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11625824	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87523811	FRONT RH FENDER	Enquire	To Order
	87524011	FRONT RH FENDER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87523711	FRONT LH FENDER	Enquire	To Order
	87523911	FRONT LH FENDER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86847600	ADJUSTMENT SHIM	Enquire	To Order
	87576600	FORK ADJUSTER SHIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	821189	ADJUSTER SHIM	Enquire	To Order
	87549900	SHIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
0001	985803718	RH FLANK	985803718 RH FLANK Applicable for Brazil	-	1	Enquire
0001	985829032	RH FLANK	985829032 RH FLANK Not for Brazil	-	1	Enquire
0002	985803726	LH FLANK	985803726 LH FLANK Applicable for Brazil	-	1	Enquire
0002	985829034	LH FLANK	985829034 LH FLANK Not for Brazil	-	1	Enquire
0003	808177	COMPL. REAR SPOILER	808177 COMPL. REAR SPOILER Not applicable for vehicles with Modena yellow exterior; Dark colour primer	-	1	Enquire
0003	873936	COMPL. REAR SPOILER	873936 COMPL. REAR SPOILER Applicable for vehicles with Modena yellow exterior; Light colour primer	-	1	Enquire
0004	819451	SHIM	819451 SHIM Th. 0.5 mm	-	4	Enquire
0004	819449	SHIM	819449 SHIM Th. 1 mm	-	2	Enquire
0005	16286121	SCREW	16286121 SCREW M6 X 20	-	12	Enquire
0006	231625	SCREW	231625 SCREW M6 X 25	-	6	Enquire
0007	68040000	WASHER 6 X 20 X 2	68040000 WASHER 6 X 20 X 2	-	16	Enquire
0008	12647724	WASHER	12647724 WASHER	-	22	Enquire
0009	10977621	SCREW	10977621 SCREW No longer supplied - Replaced by 10977624; M5 X 12	-	3	Enquire
0009	10977624	SCREW	10977624 SCREW M5 X 12	-	3	Enquire
0010	11625824	SCREW	11625824 SCREW M6 X 18	-	4	Enquire
0011	87523811	FRONT RH FENDER	87523811 FRONT RH FENDER Request ASM authorisation	-	1	Enquire
0011	87524011	FRONT RH FENDER	87524011 FRONT RH FENDER Shield badge; Request ASM authorisation	-	1	Enquire
0012	87523711	FRONT LH FENDER	87523711 FRONT LH FENDER Request ASM authorisation	-	1	Enquire
0012	87523911	FRONT LH FENDER	87523911 FRONT LH FENDER Shield badge; Request ASM authorisation	-	1	Enquire
0013	86847600	ADJUSTMENT SHIM	86847600 ADJUSTMENT SHIM Th. 1 mm	-	2	Enquire
0013	87576600	FORK ADJUSTER SHIM	87576600 FORK ADJUSTER SHIM Th. 1.5 mm	-	2	Enquire
0014	821189	ADJUSTER SHIM	821189 ADJUSTER SHIM Th. 1 mm	-	2	Enquire
0014	87549900	SHIM	87549900 SHIM Th. 1.5 mm	-	2	Enquire
0015	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	4	Enquire
