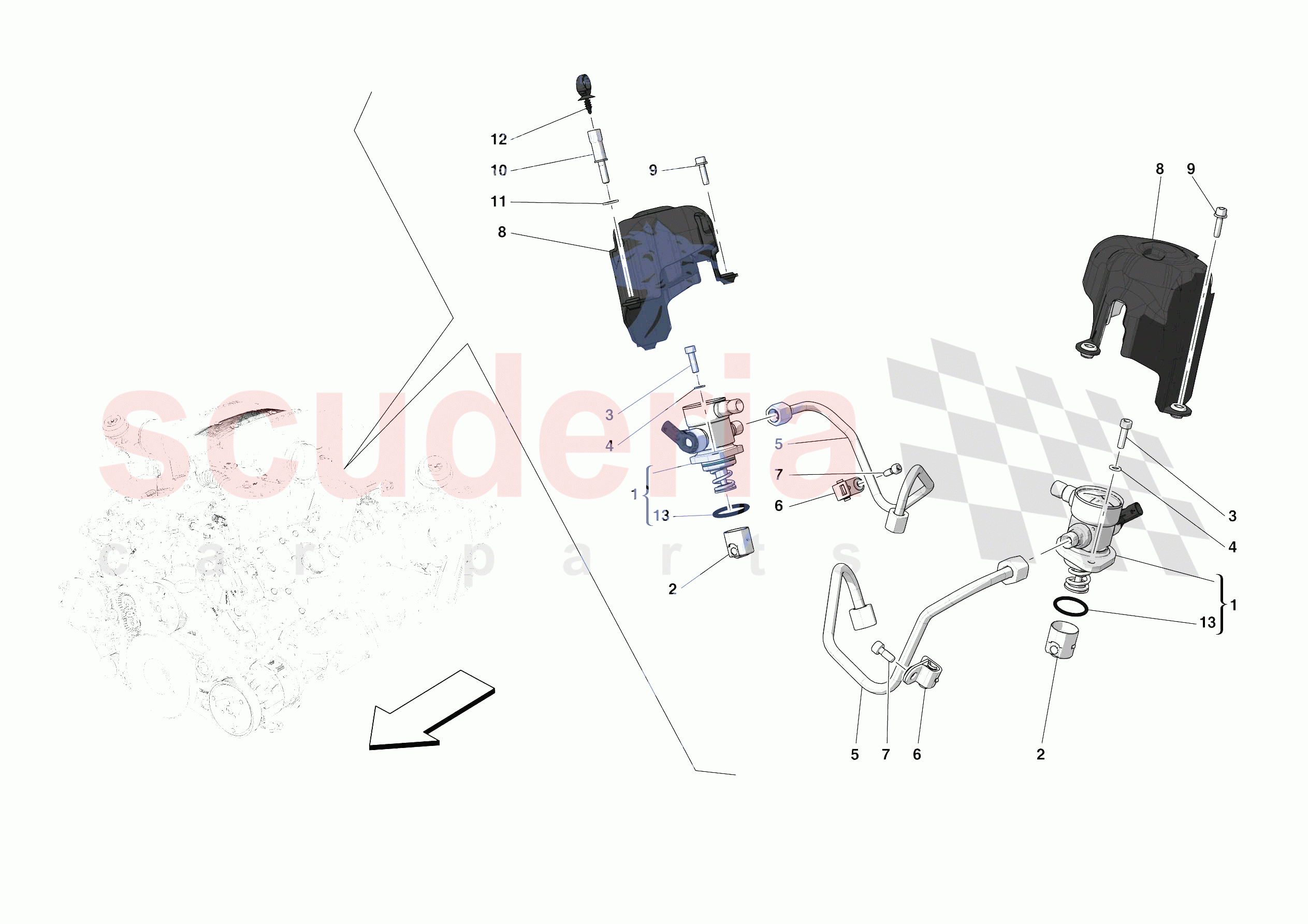

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	768410	FUEL PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	270601	HIG PRESSURE PUMP BUCKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14305334	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12639724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	321485	FUEL PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	836236	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	297021	GDI PUMP SOUNDPROOFING COVER	Enquire	To Order
	793242	GDI PUMP SOUNDPROOFING COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	198462	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	786671	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	769201	O-RING	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
0001	768410	FUEL PUMP	768410 FUEL PUMP Also order ref. 5 fuel pipe and ref. 7 M6 x 14 screw	-	2	Enquire
0002	270601	HIG PRESSURE PUMP BUCKET	270601 HIG PRESSURE PUMP BUCKET	-	2	Enquire
0003	14305334	SCREW	14305334 SCREW M6 X 20	-	4	Enquire
0004	12639724	WASHER	12639724 WASHER	-	4	Enquire
0005	321485	FUEL PIPE	321485 FUEL PIPE	-	2	Enquire
0006	836236	BRACKET	836236 BRACKET	-	2	Enquire
0007	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM M6 X 14	-	2	Enquire
0008	297021	GDI PUMP SOUNDPROOFING COVER	297021 GDI PUMP SOUNDPROOFING COVER Applies until depletion	-	2	Enquire
0008	793242	GDI PUMP SOUNDPROOFING COVER	793242 GDI PUMP SOUNDPROOFING COVER Applicable after depletion of 297021	-	2	Enquire
0009	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER M6 X 22	-	4	Enquire
0010	198462	STUD BOLT	198462 STUD BOLT	-	2	Enquire
0011	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	2	Enquire
0012	786671	CLIP	786671 CLIP	-	2	Enquire
0013	769201	O-RING	769201 O-RING	-	2	Enquire
