ENGINE INTAKE DUCT of Ferrari Ferrari 488 Pista Spider Europe

View All

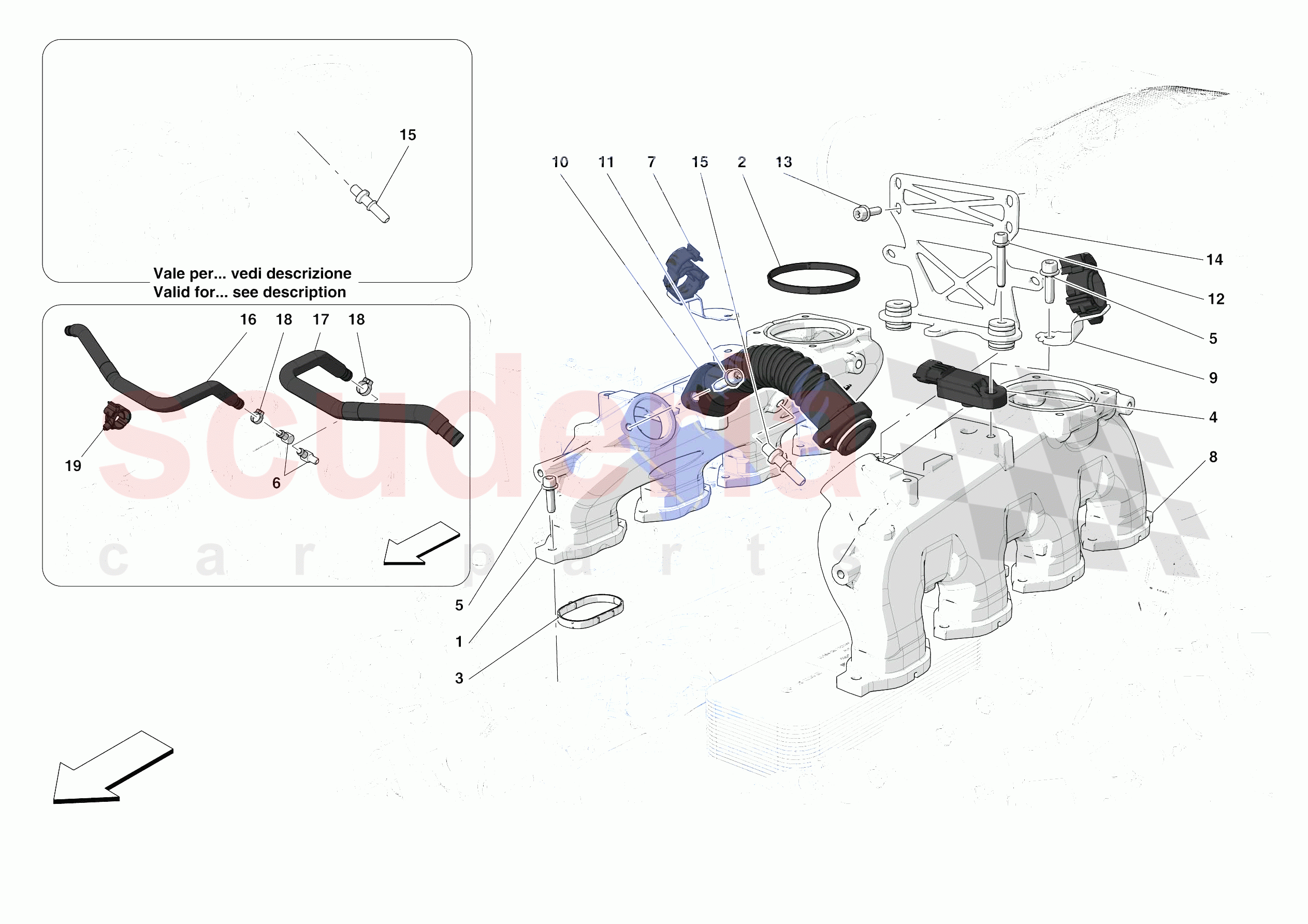

Ferrari 488 Pista Spider Europe - ENGINE INTAKE DUCT

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	786157	RH INTAKE MANIFOLD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	309026	V6 Airbox Intake Manifold Connection Gasket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	309025	V8 Airbox Intake Manifold Gasket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	283538	PRESSURE SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	268877	CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	808984	COMPL. RH FLUSH PIPE BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	786158	LH INTAKE MANIFOLD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	808985	COMPL. LH FLUSH PIPE BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	786094	COMPL. COMPENSATION PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231622	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	339588	COMPL. PLENUM CONNECTION BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14326101	THREADED PLUG	Enquire	To Order
	317584	THREADED CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	338932	RH FLUSH PIPE, ENGINE SIDE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	338933	LH FLUSH PIPE, ENGINE SIDE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13432070	HOSE COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	259508	CLIP	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
0001	786157	RH INTAKE MANIFOLD	786157 RH INTAKE MANIFOLD	-	1	Enquire
0002	309026	V6 Airbox Intake Manifold Connection Gasket	309026 V6 Airbox Intake Manifold Connection Gasket	-	2	Enquire
0003	309025	V8 Airbox Intake Manifold Gasket	309025 V8 Airbox Intake Manifold Gasket	-	8	Enquire
0004	283538	PRESSURE SENSOR	283538 PRESSURE SENSOR	-	2	Enquire
0005	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER M6 X 22	-	18	Enquire
0006	268877	CONNECTOR	268877 CONNECTOR	-	2	Enquire
0007	808984	COMPL. RH FLUSH PIPE BRACKET	808984 COMPL. RH FLUSH PIPE BRACKET	-	1	Enquire
0008	786158	LH INTAKE MANIFOLD	786158 LH INTAKE MANIFOLD	-	1	Enquire
0009	808985	COMPL. LH FLUSH PIPE BRACKET	808985 COMPL. LH FLUSH PIPE BRACKET	-	1	Enquire
0010	786094	COMPL. COMPENSATION PIPE	786094 COMPL. COMPENSATION PIPE	-	1	Enquire
0011	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER M6 X 20	-	2	Enquire
0012	231622	SCREW	231622 SCREW M6 X 35	-	2	Enquire
0013	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER M6 X 18	-	4	Enquire
0014	339588	COMPL. PLENUM CONNECTION BRACKET	339588 COMPL. PLENUM CONNECTION BRACKET	-	1	Enquire
0015	14326101	THREADED PLUG	14326101 THREADED PLUG	-	2	Enquire
0015	317584	THREADED CONNECTOR	317584 THREADED CONNECTOR	-	2	Enquire
0016	338932	RH FLUSH PIPE, ENGINE SIDE	338932 RH FLUSH PIPE, ENGINE SIDE	-	1	Enquire
0017	338933	LH FLUSH PIPE, ENGINE SIDE	338933 LH FLUSH PIPE, ENGINE SIDE	-	1	Enquire
0018	13432070	HOSE COLLAR	13432070 HOSE COLLAR D. 15.7	-	2	Enquire
0019	259508	CLIP	259508 CLIP 1 compartment-	-	2	Enquire
