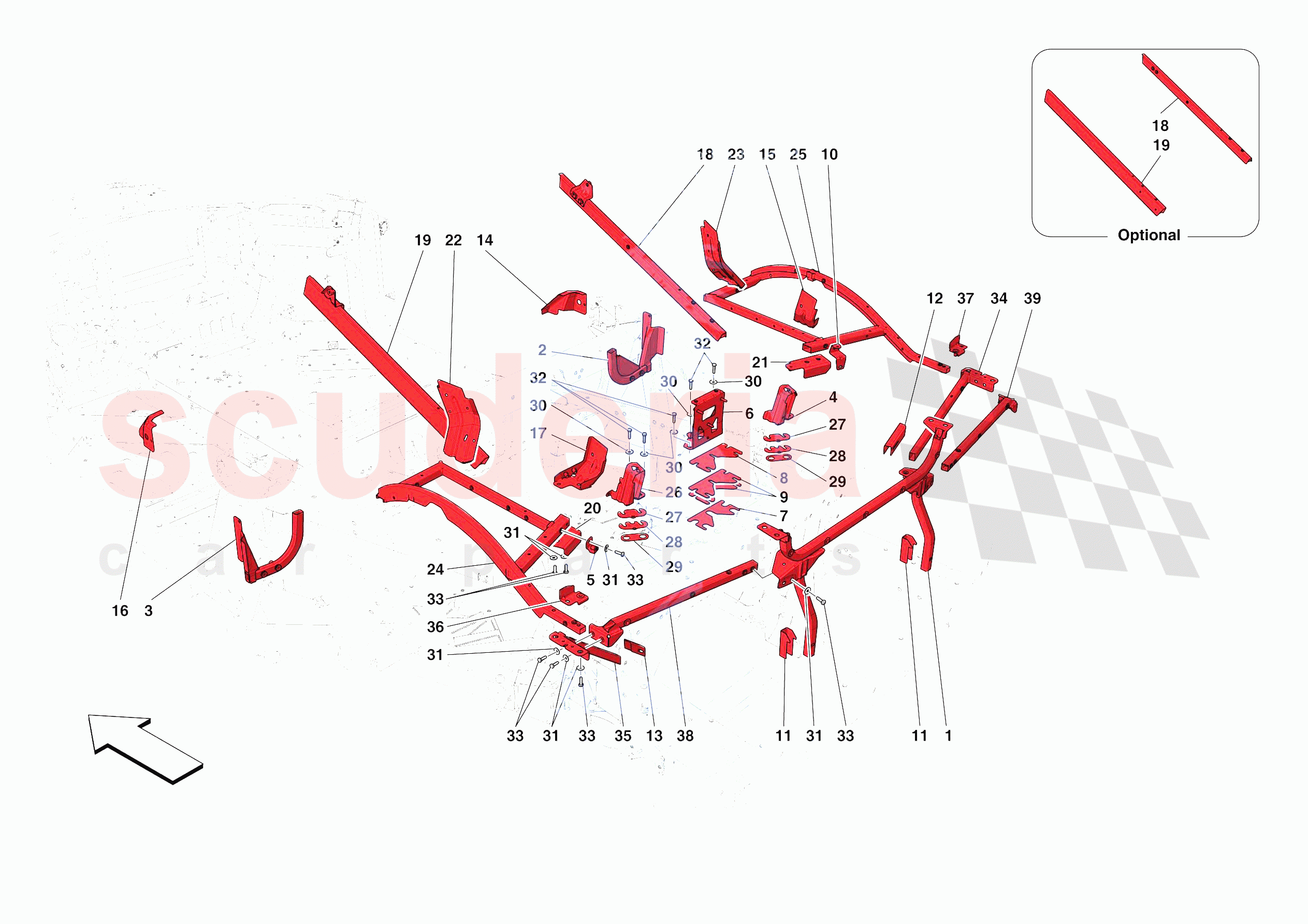

Ferrari 488 Pista Europe - REAR SUBSTRUCTURE

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	89231311	REAR FRAME	$609.73	To Order

Photo	Part No	Description	Price (each)	Stock
	87762311	RH INTERCOOLER MOUNTING TUBE	$433.23	To Order
	87762311	RH INTERCOOLER MOUNTING TUBE	$433.23	To Order

Photo	Part No	Description	Price (each)	Stock
	87762211	LH INTERCOOLER MOUNTING TUBE	$401.13	To Order
	87762211	LH INTERCOOLER MOUNTING TUBE	$401.13	To Order

Photo	Part No	Description	Price (each)	Stock
	87915900	RH BRACKET FOR ENGINE COMPARTMENT LID FASTENER BUSH	$401.13	To Order

Photo	Part No	Description	Price (each)	Stock
	87805311	LH EVAP. EM. CONTROL SYSTEM PIPE MOUNTING BRACKET	$133.17	To Order
	87805311	LH EVAP. EM. CONTROL SYSTEM PIPE MOUNTING BRACKET	$133.17	To Order

Photo	Part No	Description	Price (each)	Stock
	87388611	ENGINE COMPARTMENT LID LOCK BRACKET	$240.67	To Order

Photo	Part No	Description	Price (each)	Stock
	87232000	LOCK SPACER	$3.16	To Order

Photo	Part No	Description	Price (each)	Stock
	87231900	ENGINE COMPARTMENT LID LOCK SHIM	$13.47	To Order

Photo	Part No	Description	Price (each)	Stock
	87231800	ENGINE COMPARTMENT LID LOCK SHIM	$8.17	To Order

Photo	Part No	Description	Price (each)	Stock
	87168911	RH EVAP. EM. CONTROL SYSTEM PIPE MOUNTING BRACKET	$188.53	IN STOCK
	87168911	RH EVAP. EM. CONTROL SYSTEM PIPE MOUNTING BRACKET	$188.53	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	86743611	BRACKET FOR REAR ADJUSTER	$176.49	To Order
	86743611	BRACKET FOR REAR ADJUSTER	$176.49	To Order

Photo	Part No	Description	Price (each)	Stock
	86743511	BRACKET FOR RH LATERAL ADJUSTER	$176.49	To Order

Photo	Part No	Description	Price (each)	Stock
	86743411	BRACKET FOR LH LATERAL ADJUSTER	$176.49	To Order
	86743411	BRACKET FOR LH LATERAL ADJUSTER	$176.49	To Order

Photo	Part No	Description	Price (each)	Stock
	86696111	FRONT LOWER MOUNTING BRACKET FOR RH FENDER	$208.58	To Order
	86696111	FRONT LOWER MOUNTING BRACKET FOR RH FENDER	$208.58	To Order

Photo	Part No	Description	Price (each)	Stock
	86696000	REAR RH SUBSTRUCTURE MOUNTING BRACKET	$44.57	To Order
	86696011	REAR RH SUBSTRUCTURE MOUNTING BRACKET	$224.63	To Order

Photo	Part No	Description	Price (each)	Stock
	86695911	FRONT LOWER MOUNTING BRACKET FOR LH FENDER	$203.04	To Order
	86695911	FRONT LOWER MOUNTING BRACKET FOR LH FENDER	$203.04	To Order

Photo	Part No	Description	Price (each)	Stock
	86695800	REAR LH SUBSTRUCTURE MOUNTING BRACKET	$44.25	To Order
	86695811	REAR LH SUBSTRUCTURE MOUNTING BRACKET	$224.63	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	86676811	RH BOX ELEMENT REINFORCEMENT TUBE	$319.07	To Order
	985809877	RH BOX ELEMENT REINFORCEMENT TUBE	$336.95	To Order

Photo	Part No	Description	Price (each)	Stock
	86676700	LH BOX ELEMENT REINFORCEMENT TUBE	$116.20	To Order
	86676711	LH BOX ELEMENT REINFORCEMENT TUBE	$320.90	To Order
	985809867	LH BOX ELEMENT REINFORCEMENT TUBE	$336.95	To Order

Photo	Part No	Description	Price (each)	Stock
	86675711	LH UPPER REAR TRELLIS MOUNTING BRACKET	$188.53	To Order
	86675711	LH UPPER REAR TRELLIS MOUNTING BRACKET	$188.53	To Order

Photo	Part No	Description	Price (each)	Stock
	86675611	RH UPPER REAR TRELLIS MOUNTING BRACKET	$192.54	To Order
	86675611	RH UPPER REAR TRELLIS MOUNTING BRACKET	$192.54	To Order

Photo	Part No	Description	Price (each)	Stock
	86696011	REAR RH SUBSTRUCTURE MOUNTING BRACKET	$224.63	To Order
	86675211	CENTRE LH SUBSTRUCTURE MOUNTING BRACKET	$208.58	To Order

Photo	Part No	Description	Price (each)	Stock
	86675011	CENTRE RH SUBSTRUCTURE MOUNTING BRACKET	$208.58	To Order
	86675011	CENTRE RH SUBSTRUCTURE MOUNTING BRACKET	$208.58	To Order

Photo	Part No	Description	Price (each)	Stock
	86674511	LH REAR FLANK TRELLIS	$545.55	To Order
	86674511	LH REAR FLANK TRELLIS	$545.55	To Order

Photo	Part No	Description	Price (each)	Stock
	86674311	RH REAR FLANK TRELLIS	$545.55	To Order
	86674311	RH REAR FLANK TRELLIS	$545.55	To Order

Photo	Part No	Description	Price (each)	Stock
	86495700	LH BRACKET FOR ENGINE COMPARTMENT LID FASTENER BUSH	$401.13	To Order

Photo	Part No	Description	Price (each)	Stock
	82119700	SHIM	$4.15	To Order

Photo	Part No	Description	Price (each)	Stock
	81905000	SHIM	$3.36	To Order

Photo	Part No	Description	Price (each)	Stock
	81905100	SPACER FOR BUFFER BRACKET	$1.67	To Order

Photo	Part No	Description	Price (each)	Stock
	12647724	WASHER	$0.15	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	231625	SCREW	$0.66	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	10902424	SCREW	$0.15	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	86439300	LOWER EXTRUDED ELEMENT CONNECTING TO RH CHASSIS	$42.24	To Order
	86439311	LOWER EXTRUDED ELEMENT CONNECTING TO RH CHASSIS	$224.63	To Order

Photo	Part No	Description	Price (each)	Stock
	86439111	LOWER EXTRUDED ELEMENT CONNECTING TO LH CHASSIS	$224.63	To Order

Photo	Part No	Description	Price (each)	Stock
	985761332	COMPL. LH TAIL LIGHT MOUNTING BRACKET	$272.77	To Order

Photo	Part No	Description	Price (each)	Stock
	985761329	COMPL. RH TAIL LIGHT MOUNTING BRACKET	$401.13	To Order

Photo	Part No	Description	Price (each)	Stock
	985767658	COMPL. LH CONNECTION	$401.13	To Order
	985874800	COMPL. LH CONNECTION	$272.77	To Order

Photo	Part No	Description	Price (each)	Stock
	985767791	COMPL. RH CONNECTION	$401.13	To Order
	985874802	COMPL. RH CONNECTION	$272.77	To Order

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
0001	89231311	REAR FRAME	89231311 REAR FRAME	$609.73	1
0002	87762311	RH INTERCOOLER MOUNTING TUBE	87762311 RH INTERCOOLER MOUNTING TUBE	$433.23	1
0002	87762311	RH INTERCOOLER MOUNTING TUBE	87762311 RH INTERCOOLER MOUNTING TUBE	$433.23	1
0003	87762211	LH INTERCOOLER MOUNTING TUBE	87762211 LH INTERCOOLER MOUNTING TUBE Applicable after depletion of 87762200	$401.13	1
0003	87762211	LH INTERCOOLER MOUNTING TUBE	87762211 LH INTERCOOLER MOUNTING TUBE	$401.13	1
0004	87915900	RH BRACKET FOR ENGINE COMPARTMENT LID FASTENER BUSH	87915900 RH BRACKET FOR ENGINE COMPARTMENT LID FASTENER BUSH	$401.13	1
0005	87805311	LH EVAP. EM. CONTROL SYSTEM PIPE MOUNTING BRACKET	87805311 LH EVAP. EM. CONTROL SYSTEM PIPE MOUNTING BRACKET Applicable after depletion of 87805300	$133.17	1
0005	87805311	LH EVAP. EM. CONTROL SYSTEM PIPE MOUNTING BRACKET	87805311 LH EVAP. EM. CONTROL SYSTEM PIPE MOUNTING BRACKET	$133.17	1
0006	87388611	ENGINE COMPARTMENT LID LOCK BRACKET	87388611 ENGINE COMPARTMENT LID LOCK BRACKET	$240.67	1
0007	87232000	LOCK SPACER	87232000 LOCK SPACER	$3.16	1
0008	87231900	ENGINE COMPARTMENT LID LOCK SHIM	87231900 ENGINE COMPARTMENT LID LOCK SHIM Th. 3 mm	$13.47	1
0009	87231800	ENGINE COMPARTMENT LID LOCK SHIM	87231800 ENGINE COMPARTMENT LID LOCK SHIM Th. 1 mm	$8.17	2
0010	87168911	RH EVAP. EM. CONTROL SYSTEM PIPE MOUNTING BRACKET IN STOCK	87168911 RH EVAP. EM. CONTROL SYSTEM PIPE MOUNTING BRACKET Applicable after depletion of 87168900 IN STOCK	$188.53	1
0010	87168911	RH EVAP. EM. CONTROL SYSTEM PIPE MOUNTING BRACKET IN STOCK	87168911 RH EVAP. EM. CONTROL SYSTEM PIPE MOUNTING BRACKET IN STOCK	$188.53	1
0011	86743611	BRACKET FOR REAR ADJUSTER	86743611 BRACKET FOR REAR ADJUSTER Applicable after depletion of 86743600	$176.49	2
0011	86743611	BRACKET FOR REAR ADJUSTER	86743611 BRACKET FOR REAR ADJUSTER	$176.49	2
0012	86743511	BRACKET FOR RH LATERAL ADJUSTER	86743511 BRACKET FOR RH LATERAL ADJUSTER	$176.49	1
0013	86743411	BRACKET FOR LH LATERAL ADJUSTER	86743411 BRACKET FOR LH LATERAL ADJUSTER Applicable after depletion of 86743400	$176.49	1
0013	86743411	BRACKET FOR LH LATERAL ADJUSTER	86743411 BRACKET FOR LH LATERAL ADJUSTER	$176.49	1
0014	86696111	FRONT LOWER MOUNTING BRACKET FOR RH FENDER	86696111 FRONT LOWER MOUNTING BRACKET FOR RH FENDER Applicable after depletion of 86696100	$208.58	1
0014	86696111	FRONT LOWER MOUNTING BRACKET FOR RH FENDER	86696111 FRONT LOWER MOUNTING BRACKET FOR RH FENDER	$208.58	1
0015	86696000	REAR RH SUBSTRUCTURE MOUNTING BRACKET	86696000 REAR RH SUBSTRUCTURE MOUNTING BRACKET Applies until depletion	$44.57	1
0015	86696011	REAR RH SUBSTRUCTURE MOUNTING BRACKET	86696011 REAR RH SUBSTRUCTURE MOUNTING BRACKET Applicable after depletion of 86696000	$224.63	1
0016	86695911	FRONT LOWER MOUNTING BRACKET FOR LH FENDER	86695911 FRONT LOWER MOUNTING BRACKET FOR LH FENDER Applicable after depletion of 86695900	$203.04	1
0016	86695911	FRONT LOWER MOUNTING BRACKET FOR LH FENDER	86695911 FRONT LOWER MOUNTING BRACKET FOR LH FENDER	$203.04	1
0017	86695800	REAR LH SUBSTRUCTURE MOUNTING BRACKET	86695800 REAR LH SUBSTRUCTURE MOUNTING BRACKET Applies until depletion	$44.25	1
0017	86695811	REAR LH SUBSTRUCTURE MOUNTING BRACKET IN STOCK	86695811 REAR LH SUBSTRUCTURE MOUNTING BRACKET Applicable after depletion of 86695800 IN STOCK	$224.63	1
0018	86676811	RH BOX ELEMENT REINFORCEMENT TUBE	86676811 RH BOX ELEMENT REINFORCEMENT TUBE Request ASM authorisation	$319.07	1
0018	985809877	RH BOX ELEMENT REINFORCEMENT TUBE	985809877 RH BOX ELEMENT REINFORCEMENT TUBE Naked weave carbon engine subframe - Request ASM authorisation	$336.95	1
0019	86676700	LH BOX ELEMENT REINFORCEMENT TUBE	86676700 LH BOX ELEMENT REINFORCEMENT TUBE Request ASM authorisation; Applies until depletion	$116.20	1
0019	86676711	LH BOX ELEMENT REINFORCEMENT TUBE	86676711 LH BOX ELEMENT REINFORCEMENT TUBE Request ASM authorisation; Applicable after depletion of 86676700	$320.90	1
0019	985809867	LH BOX ELEMENT REINFORCEMENT TUBE	985809867 LH BOX ELEMENT REINFORCEMENT TUBE Naked weave carbon engine subframe - Request ASM authorisation	$336.95	1
0020	86675711	LH UPPER REAR TRELLIS MOUNTING BRACKET	86675711 LH UPPER REAR TRELLIS MOUNTING BRACKET Applicable after depletion of 86675700	$188.53	1
0020	86675711	LH UPPER REAR TRELLIS MOUNTING BRACKET	86675711 LH UPPER REAR TRELLIS MOUNTING BRACKET	$188.53	1
0021	86675611	RH UPPER REAR TRELLIS MOUNTING BRACKET	86675611 RH UPPER REAR TRELLIS MOUNTING BRACKET Applicable after depletion of 86675600	$192.54	1
0021	86675611	RH UPPER REAR TRELLIS MOUNTING BRACKET	86675611 RH UPPER REAR TRELLIS MOUNTING BRACKET	$192.54	1
0022	86696011	REAR RH SUBSTRUCTURE MOUNTING BRACKET	86696011 REAR RH SUBSTRUCTURE MOUNTING BRACKET	$224.63	1
0022	86675211	CENTRE LH SUBSTRUCTURE MOUNTING BRACKET	86675211 CENTRE LH SUBSTRUCTURE MOUNTING BRACKET Applicable after depletion of 86675200	$208.58	1
0023	86675011	CENTRE RH SUBSTRUCTURE MOUNTING BRACKET	86675011 CENTRE RH SUBSTRUCTURE MOUNTING BRACKET Applicable after depletion of 86675000	$208.58	1
0023	86675011	CENTRE RH SUBSTRUCTURE MOUNTING BRACKET	86675011 CENTRE RH SUBSTRUCTURE MOUNTING BRACKET	$208.58	1
0024	86674511	LH REAR FLANK TRELLIS	86674511 LH REAR FLANK TRELLIS Applicable after depletion of 86674500	$545.55	1
0024	86674511	LH REAR FLANK TRELLIS	86674511 LH REAR FLANK TRELLIS	$545.55	1
0025	86674311	RH REAR FLANK TRELLIS	86674311 RH REAR FLANK TRELLIS Applicable after depletion of 86674300	$545.55	1
0025	86674311	RH REAR FLANK TRELLIS	86674311 RH REAR FLANK TRELLIS	$545.55	1
0026	86495700	LH BRACKET FOR ENGINE COMPARTMENT LID FASTENER BUSH	86495700 LH BRACKET FOR ENGINE COMPARTMENT LID FASTENER BUSH	$401.13	1
0027	82119700	SHIM	82119700 SHIM Th. 3 mm	$4.15	2
0028	81905000	SHIM	81905000 SHIM Th. 1 mm	$3.36	2
0029	81905100	SPACER FOR BUFFER BRACKET	81905100 SPACER FOR BUFFER BRACKET	$1.67	2
0030	12647724	WASHER IN STOCK	12647724 WASHER IN STOCK	$0.15	7
0031	12643724	WASHER IN STOCK	12643724 WASHER IN STOCK	$0.06 MSRP: ~~0.50~~ (88% off)	18
0032	231625	SCREW IN STOCK	231625 SCREW M6 X 25 IN STOCK	$0.66	7
0033	10902424	SCREW IN STOCK	10902424 SCREW M6 X 20 IN STOCK	$0.15 MSRP: ~~0.70~~ (78.6% off)	18
0034	86439300	LOWER EXTRUDED ELEMENT CONNECTING TO RH CHASSIS	86439300 LOWER EXTRUDED ELEMENT CONNECTING TO RH CHASSIS Applies until depletion	$42.24	1
0034	86439311	LOWER EXTRUDED ELEMENT CONNECTING TO RH CHASSIS	86439311 LOWER EXTRUDED ELEMENT CONNECTING TO RH CHASSIS Applicable after depletion of 86439300	$224.63	1
0035	86439111	LOWER EXTRUDED ELEMENT CONNECTING TO LH CHASSIS	86439111 LOWER EXTRUDED ELEMENT CONNECTING TO LH CHASSIS	$224.63	1
0036	985761332	COMPL. LH TAIL LIGHT MOUNTING BRACKET	985761332 COMPL. LH TAIL LIGHT MOUNTING BRACKET	$272.77	1
0037	985761329	COMPL. RH TAIL LIGHT MOUNTING BRACKET	985761329 COMPL. RH TAIL LIGHT MOUNTING BRACKET	$401.13	1
0038	985767658	COMPL. LH CONNECTION	985767658 COMPL. LH CONNECTION Applies until depletion	$401.13	1
0038	985874800	COMPL. LH CONNECTION	985874800 COMPL. LH CONNECTION Applicable after depletion of 985767658	$272.77	1
0039	985767791	COMPL. RH CONNECTION	985767791 COMPL. RH CONNECTION Applies until depletion	$401.13	1
0039	985874802	COMPL. RH CONNECTION	985874802 COMPL. RH CONNECTION Applicable after depletion of 985767791	$272.77	1
