Cylinder Heads - Timing

Ferrari 488 Pista Europe

Find Your Part

Ferrari 488 Pista Europe - CYLINDER HEADS - TIMING

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
334900 RH INTAKE CAMSHAFT $323.40 To Order
Photo Part No Description Price (each) Stock
334901 LH INTAKE CAMSHAFT $323.40 To Order
Photo Part No Description Price (each) Stock
334902 RH EXHAUST CAMSHAFT $338.80 To Order
Photo Part No Description Price (each) Stock
334903 LH EXHAUST CAMSHAFT $338.80 To Order
Photo Part No Description Price (each) Stock
317956 INTAKE VALVE $40.10 To Order
314857 EXHAUST VALVE $80.21 To Order
Photo Part No Description Price (each) Stock
296310 SPACER $24.05 To Order
Photo Part No Description Price (each) Stock
287553 LOWER INTAKE VALVE SPRING CAP $3.16 To Order
287551 LOWER EXHAUST VALVE SPRING CAP $3.06 To Order
Photo Part No Description Price (each) Stock
221473 OIL SEAL $1.75 IN STOCK
Photo Part No Description Price (each) Stock
287708 SCREW M14 X 1.5 $14.33 To Order
Photo Part No Description Price (each) Stock
327416 VALVE RETURN SPRING $18.83 To Order
Photo Part No Description Price (each) Stock
313581 UPPER VALVE SPRING CAP $9.77 To Order
Photo Part No Description Price (each) Stock
179763 VALVE SPRING SEMI-CONE $0.86 IN STOCK
Photo Part No Description Price (each) Stock
927517 COMPL. FINGER-TAPPET $81.82 To Order
927517 COMPL. FINGER-TAPPET $81.82 To Order
927517 COMPL. FINGER-TAPPET $81.82 To Order
Photo Part No Description Price (each) Stock
240559 DIAMOND COATED WASHER $9.11 IN STOCK
Photo Part No Description Price (each) Stock
246965 O-RING $12.03 IN STOCK
Photo Part No Description Price (each) Stock
279099 VARIABLE VALVE TIMING ADJUSTER, INTAKE CAMSHAFT $609.73 To Order
Photo Part No Description Price (each) Stock
295300 VARIABLE VALVE TIMING ADJUSTER, EXHAUST CAMSHAFT $577.64 To Order
View All

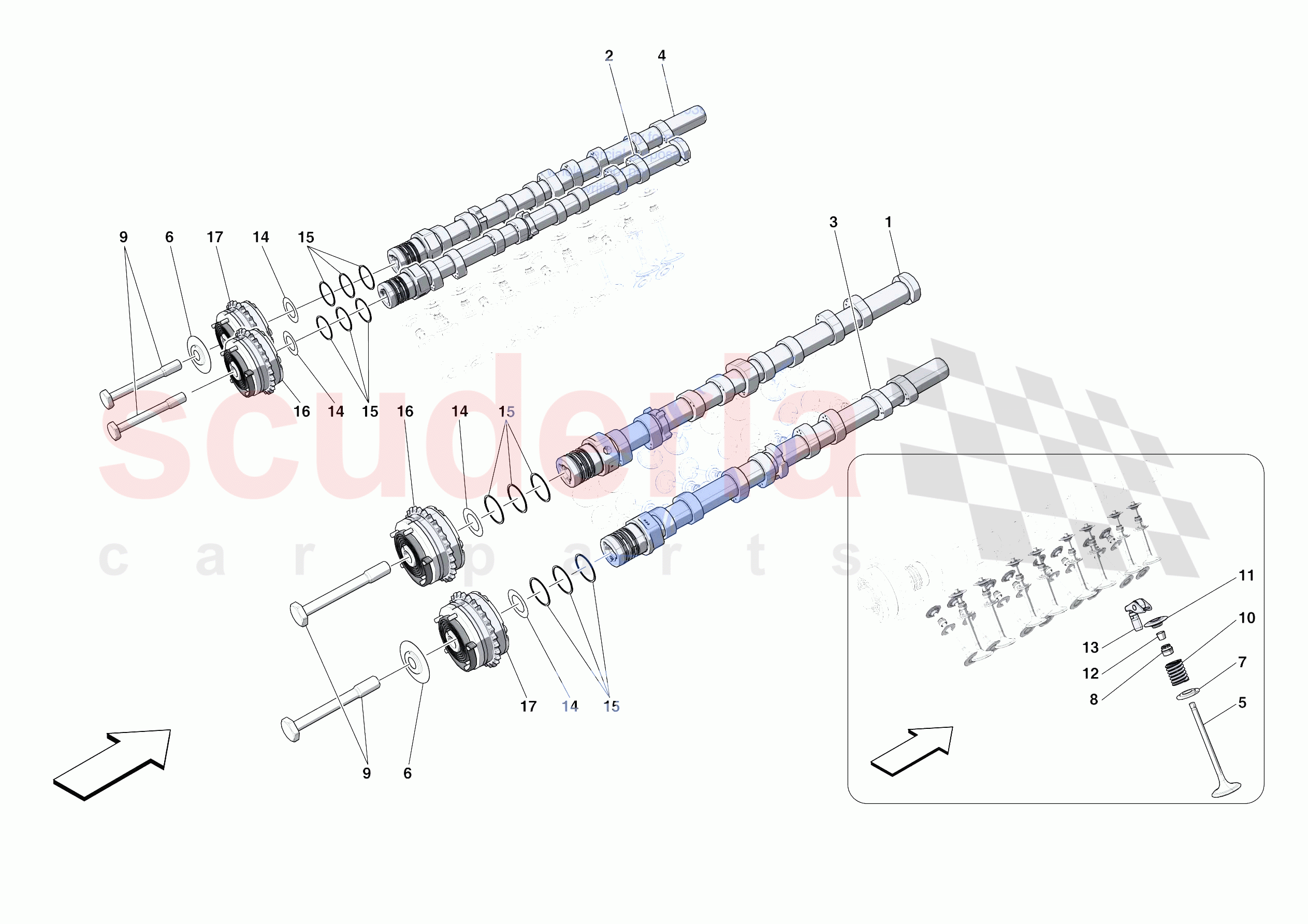

CYLINDER HEADS - TIMING of Ferrari Ferrari 488 Pista Europe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
0001 334900
RH INTAKE CAMSHAFT 		$323.40 1
0002 334901
LH INTAKE CAMSHAFT 		$323.40 1
0003 334902
RH EXHAUST CAMSHAFT 		$338.80 1
0004 334903
LH EXHAUST CAMSHAFT 		$338.80 1
0005 317956
INTAKE VALVE 		$40.10 16
0005 314857
EXHAUST VALVE 		$80.21 16
0006 296310
SPACER 		$24.05 2
0007 287553
LOWER INTAKE VALVE SPRING CAP 		$3.16 16
0007 287551
LOWER EXHAUST VALVE SPRING CAP 		$3.06 16
0008 221473
OIL SEAL
IN STOCK 		$1.75 (32.7% off) 32
0009 287708
SCREW M14 X 1.5
M14 X 1.5 		$14.33 4
0010 327416
VALVE RETURN SPRING 		$18.83 32
0011 313581
UPPER VALVE SPRING CAP 		$9.77 32
0012 179763
VALVE SPRING SEMI-CONE
IN STOCK 		$0.86 (4.4% off) 64
0013 927517
COMPL. FINGER-TAPPET
Applicable from engine No. 458736 		$81.82 32
0013 927517
COMPL. FINGER-TAPPET 		$81.82 32
0013 927517
COMPL. FINGER-TAPPET 		$81.82 32
0014 240559
DIAMOND COATED WASHER
IN STOCK 		$9.11 4
0015 246965
O-RING
IN STOCK 		$12.03 12
0016 279099
VARIABLE VALVE TIMING ADJUSTER, INTAKE CAMSHAFT 		$609.73 2
0017 295300
VARIABLE VALVE TIMING ADJUSTER, EXHAUST CAMSHAFT 		$577.64 2
