Ferrari 488 Pista Europe - CRANKCASE

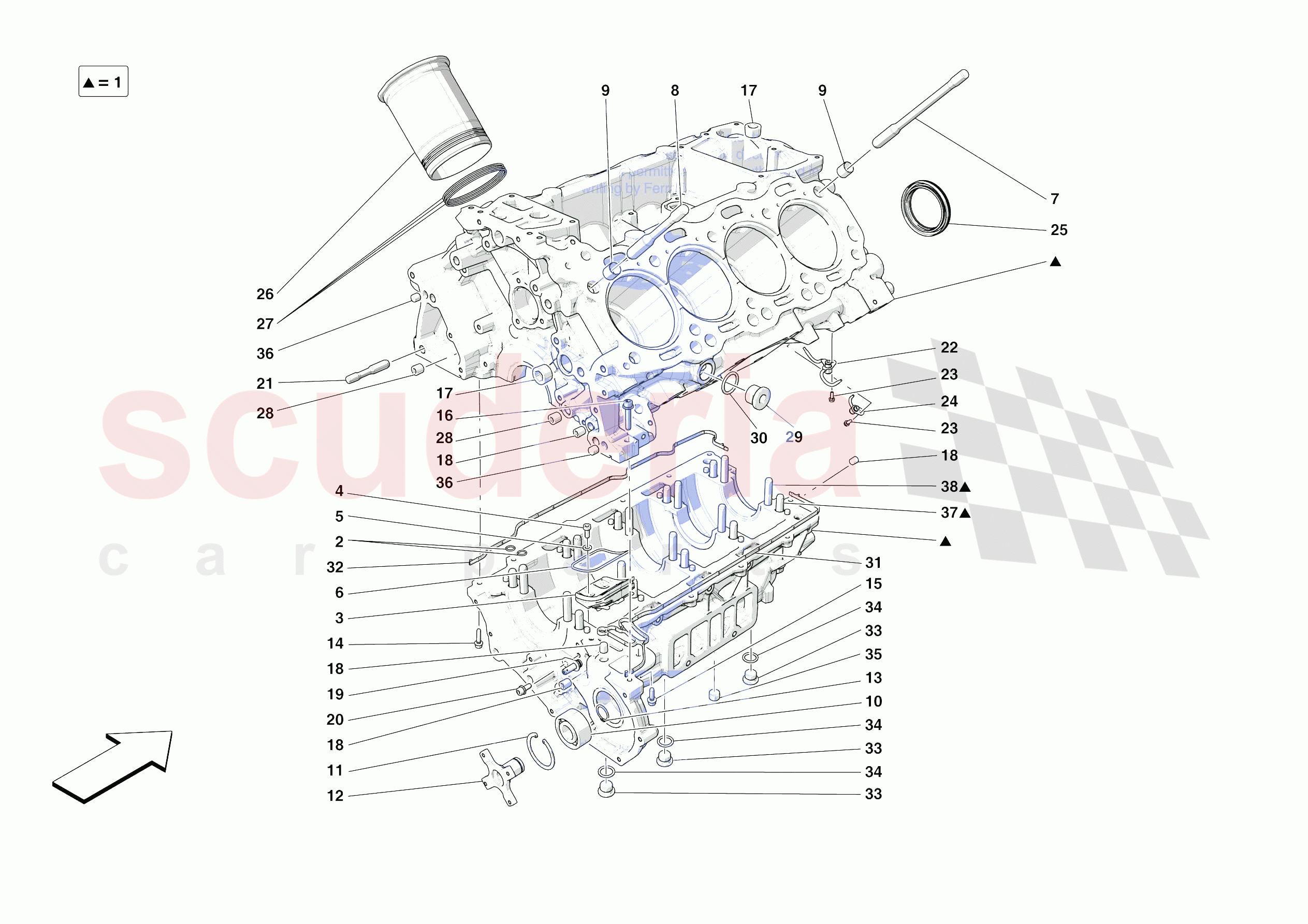

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	807811	CRANKCASE-LOWER CRANKCASE SHELL ASSEMBLY	$5,120.69	To Order

Photo	Part No	Description	Price (each)	Stock
	134705	GASKET	$0.36	To Order

Photo	Part No	Description	Price (each)	Stock
	312836	COMPL. VALVE HOLDER	$320.90	To Order

Photo	Part No	Description	Price (each)	Stock
	13026924	SCREW	$0.31	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	103994	GASKET	$6.08	To Order

Photo	Part No	Description	Price (each)	Stock
	270464	STUD BOLT	$30.47	To Order

Photo	Part No	Description	Price (each)	Stock
	271564	STUD BOLT	$29.00	To Order

Photo	Part No	Description	Price (each)	Stock
	185360	CENTERING DOWEL	$2.74	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	247049	BEARING	$54.04	To Order

Photo	Part No	Description	Price (each)	Stock
	11060276	SEEGER RING	$0.45	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	304697	DRIVE JOINT	$174.03	To Order

Photo	Part No	Description	Price (each)	Stock
	11066876	SEEGER RING	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	$0.32	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW	$0.31	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	$0.32	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	282753	THREADED PLUG	$6.74	To Order

Photo	Part No	Description	Price (each)	Stock
	282755	THREADED PLUG	$2.07	To Order

Photo	Part No	Description	Price (each)	Stock
	317217	CHAIN COOLING NOZZLE ASSEMBLY	$56.55	To Order

Photo	Part No	Description	Price (each)	Stock
	282393	SCREW	$0.75	To Order

Photo	Part No	Description	Price (each)	Stock
	278120	STUD BOLT	$24.05	To Order

Photo	Part No	Description	Price (each)	Stock
	298858	PISTON COOLING NOZZLE ASSEMBLY	$41.70	To Order

Photo	Part No	Description	Price (each)	Stock
	315493	SCREW	$1.17	To Order

Photo	Part No	Description	Price (each)	Stock
	298859	PISTON COOLING NOZZLE ASSEMBLY	$28.87	To Order

Photo	Part No	Description	Price (each)	Stock
	271598	GASKET	$38.49	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	334890	CYLINDER SLEEVE	$369.59	To Order

Photo	Part No	Description	Price (each)	Stock
	334895	GASKET	$4.80	To Order

Photo	Part No	Description	Price (each)	Stock
	291078	THREADED PLUG	$2.46	To Order

Photo	Part No	Description	Price (each)	Stock
	307477	THREADED PLUG	$3.89	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	10263460	COPPER GASKET D.28-22.3 X 1.5	$0.37	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	339287	GASKET	$28.87	To Order

Photo	Part No	Description	Price (each)	Stock
	339289	GASKET	$52.94	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	306145	Thread Cap M18 x 1.5	$10.03	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	10259960	Copper Washer 18 - 24 x 1.5	$0.32	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	164400	THREADED PLUG	$3.55	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	311001	CENTERING DOWEL	$2.95	To Order

Photo	Part No	Description	Price (each)	Stock
	270465	STUD BOLT	$24.05	To Order

Photo	Part No	Description	Price (each)	Stock
	270466	STUD BOLT	$27.26	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
0001	807811	CRANKCASE-LOWER CRANKCASE SHELL ASSEMBLY	807811 CRANKCASE-LOWER CRANKCASE SHELL ASSEMBLY	$5,120.69	1
0002	134705	GASKET	134705 GASKET	$0.36 MSRP: ~~0.82~~ (56.1% off)	20
0003	312836	COMPL. VALVE HOLDER	312836 COMPL. VALVE HOLDER	$320.90	4
0004	13026924	SCREW	13026924 SCREW M6 X 14	$0.31	8
0005	11197774	WASHER IN STOCK	11197774 WASHER IN STOCK	$0.06 MSRP: ~~0.30~~ (80% off)	8
0006	103994	GASKET	103994 GASKET	$6.08	4
0007	270464	STUD BOLT	270464 STUD BOLT	$30.47	18
0008	271564	STUD BOLT	271564 STUD BOLT	$29.00	2
0009	185360	CENTERING DOWEL IN STOCK	185360 CENTERING DOWEL IN STOCK	$2.74	4
0010	247049	BEARING	247049 BEARING	$54.04	1
0011	11060276	SEEGER RING IN STOCK	11060276 SEEGER RING IN STOCK	$0.45 MSRP: ~~1.75~~ (74.3% off)	1
0012	304697	DRIVE JOINT	304697 DRIVE JOINT	$174.03	1
0013	11066876	SEEGER RING	11066876 SEEGER RING	$0.06 MSRP: ~~0.35~~ (82.9% off)	1
0014	231620	SCREW IN STOCK	231620 SCREW M6 X 25 IN STOCK	$0.32 MSRP: ~~0.35~~ (8.6% off)	12
0015	231619	SCREW IN STOCK	231619 SCREW M6 X 20 IN STOCK	$0.31	1
0016	231620	SCREW IN STOCK	231620 SCREW M6 X 30 IN STOCK	$0.32 MSRP: ~~0.35~~ (8.6% off)	1
0017	282753	THREADED PLUG	282753 THREADED PLUG	$6.74	2
0018	282755	THREADED PLUG	282755 THREADED PLUG D. 10 X 1.25	$2.07	4
0019	317217	CHAIN COOLING NOZZLE ASSEMBLY	317217 CHAIN COOLING NOZZLE ASSEMBLY	$56.55	1
0020	282393	SCREW	282393 SCREW M6 X 14	$0.75	1
0021	278120	STUD BOLT	278120 STUD BOLT	$24.05	8
0022	298858	PISTON COOLING NOZZLE ASSEMBLY	298858 PISTON COOLING NOZZLE ASSEMBLY	$41.70	4
0023	315493	SCREW	315493 SCREW M4 X 10	$1.17	12
0024	298859	PISTON COOLING NOZZLE ASSEMBLY	298859 PISTON COOLING NOZZLE ASSEMBLY	$28.87	8
0025	271598	GASKET IN STOCK	271598 GASKET IN STOCK	$38.49	1
0026	334890	CYLINDER SLEEVE	334890 CYLINDER SLEEVE	$369.59	8
0027	334895	GASKET	334895 GASKET	$4.80	24
0028	291078	THREADED PLUG	291078 THREADED PLUG M12 X 11	$2.46	2
0029	307477	THREADED PLUG IN STOCK	307477 THREADED PLUG IN STOCK	$3.89	2
0030	10263460	COPPER GASKET D.28-22.3 X 1.5 IN STOCK	10263460 COPPER GASKET D.28-22.3 X 1.5 Also included in engine gasket set IN STOCK	$0.37 MSRP: ~~1.00~~ (63% off)	2
0031	339287	GASKET	339287 GASKET Also included in engine gasket set	$28.87	1
0032	339289	GASKET IN STOCK	339289 GASKET Also included in engine gasket set IN STOCK	$52.94	1
0033	306145	Thread Cap M18 x 1.5 IN STOCK	306145 Thread Cap M18 x 1.5 IN STOCK	$10.03	3
0034	10259960	Copper Washer 18 - 24 x 1.5 IN STOCK	10259960 Copper Washer 18 - 24 x 1.5 Also included in engine gasket set IN STOCK	$0.32 MSRP: ~~1.25~~ (74.4% off)	3
0035	164400	THREADED PLUG IN STOCK	164400 THREADED PLUG IN STOCK	$3.55	1
0036	311001	CENTERING DOWEL	311001 CENTERING DOWEL	$2.95	2
0037	270465	STUD BOLT	270465 STUD BOLT	$24.05	10
0038	270466	STUD BOLT	270466 STUD BOLT	$27.26	10
