MAIN WIRING HARNESSES of Ferrari Ferrari 488 Spider

View All

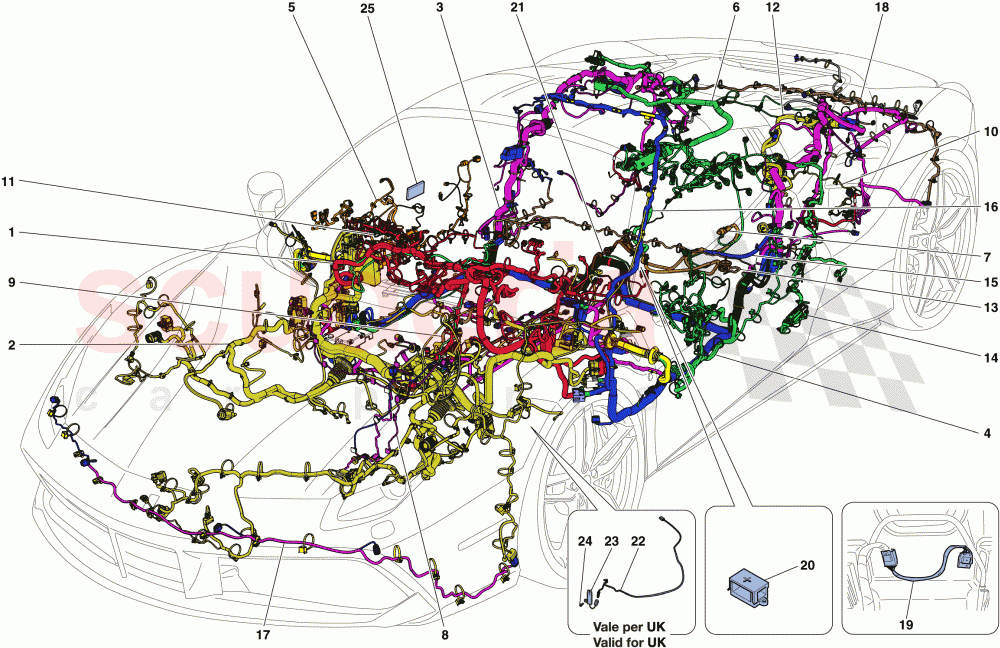

Ferrari 488 Spider - MAIN WIRING HARNESSES

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	333466	DASHBOARD CABLE	Enquire	To Order
	320171	DASHBOARD CABLE	Enquire	To Order
	320170	DASHBOARD CABLE	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	320164	FRONT CABLE	Enquire	To Order
	320859	FRONT CABLE	Enquire	To Order
	320166	FRONT CABLE	Enquire	To Order

...and 25 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	320179	REAR CABLE	Enquire	To Order
	320177	REAR CABLE	Enquire	To Order
	320178	REAR CABLE	Enquire	To Order

...and 6 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	319414	DRIVER SIDE DOOR CABLE	Enquire	To Order
	324903	DRIVER SIDE DOOR CABLE	Enquire	To Order
	343075	DRIVER SIDE DOOR CABLE	Enquire	To Order

...and 13 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	324905	PASSENGER SIDE DOOR CABLE	Enquire	To Order
	343077	PASSENGER SIDE DOOR CABLE	Enquire	To Order
	319415	PASSENGER SIDE DOOR CABLE	Enquire	To Order

...and 12 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	323572	INJECTION WIRING HARNESS	Enquire	To Order
	340617	INJECTION WIRING HARNESS	Enquire	To Order
	323571	INJECTION WIRING HARNESS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	317772	ANCILLARIES WIRING HARNESS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	320880	LUGGAGE COMPARTMENT CABLE FOR ANTENNA AND LIGHT UNIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	317955	A/C CONTROL PANEL EXTENSION CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	313951	REAR FOG LIGHT WIRING HARNESS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	307038	PASSENGER AIRBAG CABLES	Enquire	To Order
	312757	PASSENGER AIRBAG CABLES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	313160	DCT CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	313952	TANK WIRING HARNESS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	317894	VEHICLE LIFT CABLE	Enquire	To Order
	312761	VEHICLE LIFT CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	255982	CHASSIS GROUND CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	276837	ENGINE GROUND - CHASSIS GROUND CONNECTOR BRAID	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	315952	FRONT BUMPER CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	317562	REAR BUMPER CABLE	Enquire	To Order
	317563	REAR BUMPER CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	266805	WIRING HARNESS FOR MECHANICAL SEAT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	170114	TERMINAL BLOCK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	307436	BATTERY CABLE	Enquire	To Order
	312759	BATTERY CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	325389	PASS. COMPARTMENT-BUMPER DAB EXTENSION CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	325390	BUMPER DAB AMPLIFIER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11625824	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	255515	BUSH	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	333466	DASHBOARD CABLE	333466 DASHBOARD CABLE High power Hi-Fi version; Applicable for Russia, Armenia, Belarus, Kazakhstan and Kyrgyzstan markets; Applicable for ERA GLONASS system	-	1	Enquire
1	320171	DASHBOARD CABLE	320171 DASHBOARD CABLE High power Hi-Fi version; Applicable for GD	-	1	Enquire
1	320170	DASHBOARD CABLE	320170 DASHBOARD CABLE Not for High power Hi-Fi; Applicable for GD	-	1	Enquire
1	317547	DASHBOARD CABLE	317547 DASHBOARD CABLE High power Hi-Fi version; Not for ERA GLONASS system; Not for GD	-	1	Enquire
1	317546	DASHBOARD CABLE	317546 DASHBOARD CABLE Not for High power Hi-Fi; Applicable for front parking sensor, telemetry, front camera, rear camera, car lift system, CarPlay, passenger display, electric seats and CD reader; Not for GD	-	1	Enquire
1	333465	DASHBOARD CABLE	333465 DASHBOARD CABLE Not for High power Hi-Fi; Base; Applicable for Russia, Armenia, Belarus, Kazakhstan and Kyrgyzstan markets; Applicable for ERA GLONASS system	-	1	Enquire
2	320164	FRONT CABLE	320164 FRONT CABLE Applicable for AFS headlights; Version with front and rear digital cameras; Applicable for GD	-	1	Enquire
2	320859	FRONT CABLE	320859 FRONT CABLE Applicable for AFS headlights; Applicable for front and rear parking sensors; Version with front and rear digital cameras; Not for GD	-	1	Enquire
2	320166	FRONT CABLE	320166 FRONT CABLE Applicable for AFS headlights; Applicable for HELE; Applicable for GD	-	1	Enquire
2	320855	FRONT CABLE	320855 FRONT CABLE Applicable for AFS headlights; Applicable for front and rear parking sensors; Version with front and rear digital cameras; Not for GD	-	1	Enquire
2	320857	FRONT CABLE	320857 FRONT CABLE Applicable for AFS headlights; Applicable for front and rear parking sensors and TMPS; Applicable for HELE; Not for GD	-	1	Enquire
2	320853	FRONT CABLE	320853 FRONT CABLE Applicable for AFS headlights; Applicable for front and rear parking sensors and TMPS; Not for GD	-	1	Enquire
2	320858	FRONT CABLE	320858 FRONT CABLE No AFS headlights; Version with digital front and rear camera; Applicable for HELE; Not for GD	-	1	Enquire
2	320163	FRONT CABLE	320163 FRONT CABLE No AFS headlights; Version with digital front and rear camera; Applicable for GD	-	1	Enquire
2	320852	FRONT CABLE	320852 FRONT CABLE No AFS headlights; Applicable for front and rear parking sensors; Not for GD	-	1	Enquire
2	320854	FRONT CABLE	320854 FRONT CABLE No AFS headlights; Version with digital front and rear camera; Not for GD	-	1	Enquire
2	320162	FRONT CABLE	320162 FRONT CABLE No AFS headlights; Not for front and rear digital cameras; Applicable for GD	-	1	Enquire
2	320856	FRONT CABLE	320856 FRONT CABLE No AFS headlights; Applicable for HELE; Applicable for front parking sensors; Not for GD	-	1	Enquire
2	320165	FRONT CABLE	320165 FRONT CABLE No AFS headlights; Applicable for HELE; Applicable for front parking sensors; Applicable for GD	-	1	Enquire
2	329017	FRONT CABLE	329017 FRONT CABLE Base; No AFS headlights; Not for front parking sensors; Applicable for HELE; Applicable for GD	-	1	Enquire
2	791418	FRONT CABLE	791418 FRONT CABLE Base; No AFS headlights; Not for front parking sensors; Applicable for HELE; Applicable for GOLFO; Applicable from Ass. No. 153911	-	1	Enquire
2	791418	FRONT CABLE	791418 FRONT CABLE Base; No AFS headlights; Not for front parking sensors; Applicable for HELE; Applicable for J; Applicable from Ass. No. 153682	-	1	Enquire
2	329016	FRONT CABLE	329016 FRONT CABLE Base; No AFS headlights; Not for front parking sensors; Applicable for HELE; Applicable for J; Applicable up to Ass. No. 153681	-	1	Enquire
2	791418	FRONT CABLE	791418 FRONT CABLE Base; No AFS headlights; Not for front parking sensors; Applicable for HELE; Applicable for CINA; Applicable from Ass. No. 153580	-	1	Enquire
2	329016	FRONT CABLE	329016 FRONT CABLE Base; No AFS headlights; Not for front parking sensors; Applicable for HELE; Applicable for GOLFO; Applicable up to Ass. No. 153910	-	1	Enquire
2	329016	FRONT CABLE	329016 FRONT CABLE Base; No AFS headlights; Not for front parking sensors; Applicable for HELE; Applicable for EU GS	-	1	Enquire
2	329016	FRONT CABLE	329016 FRONT CABLE Base; No AFS headlights; Not for front parking sensors; Applicable for HELE; Applicable for CINA; Applicable up to Ass. No. 153579	-	1	Enquire
2	791416	FRONT CABLE	791416 FRONT CABLE Base; Applicable for GOLFO; Applicable from Ass. No. 153911	-	1	Enquire
2	791416	FRONT CABLE	791416 FRONT CABLE Base; Applicable for J; Applicable from Ass. No. 153682	-	1	Enquire
2	320850	FRONT CABLE	320850 FRONT CABLE Base; Applicable for GOLFO; Applicable up to Ass. No. 153910	-	1	Enquire
2	320850	FRONT CABLE	320850 FRONT CABLE Base; Applicable for J; Applicable up to Ass. No. 153681	-	1	Enquire
2	791416	FRONT CABLE	791416 FRONT CABLE Base; Applicable for CINA; Applicable from Ass. No. 153580	-	1	Enquire
2	320850	FRONT CABLE	320850 FRONT CABLE Base; Applicable for EU GS	-	1	Enquire
2	320850	FRONT CABLE	320850 FRONT CABLE Base; Applicable for CINA; Applicable up to Ass. No. 153579	-	1	Enquire
3	320179	REAR CABLE	320179 REAR CABLE Applicable for front and rear parking camera; Applicable for Apple Car Play and rear parking camera; Applicable for GD	-	1	Enquire
3	320177	REAR CABLE	320177 REAR CABLE Base; Applicable for GD	-	1	Enquire
3	320178	REAR CABLE	320178 REAR CABLE Applicable for rear parking camera; Applicable for GD	-	1	Enquire
3	318601	REAR CABLE	318601 REAR CABLE Applicable for front and rear parking sensors, high power Hi Fi, Apple Car Play, telemetry, electric seats, electrochromic mirrors, lift system; Applicable for USA, CDN, USA LIGHT; Applicable up to Ass. No. 156183	-	1	Enquire
3	318601	REAR CABLE	318601 REAR CABLE Applicable for front and rear parking sensors, high power Hi Fi, Apple Car Play, telemetry, electric seats, electrochromic mirrors, lift system; Not for USA, CDN, GD, USA LIGHT	-	1	Enquire
3	315631	REAR CABLE	315631 REAR CABLE Applicable for front and rear parking sensors, front and rear parking cameras, high power Hi Fi, Apple Car Play, telemetry, electric seats, electrochromic mirrors, lift system; Not for GD	-	1	Enquire
3	316800	REAR CABLE	316800 REAR CABLE Base; Applicable for USA, CDN, USA LIGHT; Applicable up to Ass. No. 156183	-	1	Enquire
3	315629	REAR CABLE	315629 REAR CABLE Applicable for front and rear parking sensors, rear parking camera, high power Hi Fi, telemetry, electric seats, electrochromic mirrors, lift system; Not for GD	-	1	Enquire
3	316800	REAR CABLE	316800 REAR CABLE Base; Not for USA, CDN, GD, USA LIGHT	-	1	Enquire
4	319414	DRIVER SIDE DOOR CABLE	319414 DRIVER SIDE DOOR CABLE High power Hi-Fi version; Version for full electric seats and electrochromic rear view mirrors; Applicable for GD; Applicable from Ass. No. 133503	-	1	Enquire
4	324903	DRIVER SIDE DOOR CABLE	324903 DRIVER SIDE DOOR CABLE Version for full electric seats and electrochromic rear view mirrors; Applicable for GD; Applicable from Ass. No. 133503 up to Ass. No. 144754	-	1	Enquire
4	343075	DRIVER SIDE DOOR CABLE	343075 DRIVER SIDE DOOR CABLE Version for full electric seats and electrochromic rear view mirrors; Applicable for GD; Applicable from Ass. No. 144755	-	1	Enquire
4	319414	DRIVER SIDE DOOR CABLE	319414 DRIVER SIDE DOOR CABLE Version for full electric seats and electrochromic rear view mirrors; Applicable for GD; Applicable up to Ass. No. 133502	-	1	Enquire
4	343024	DRIVER SIDE DOOR CABLE	343024 DRIVER SIDE DOOR CABLE Version for full electric seats and electrochromic rear view mirrors; Not for GD; Applicable from Ass. No. 144755	-	1	Enquire
4	317557	DRIVER SIDE DOOR CABLE	317557 DRIVER SIDE DOOR CABLE High power Hi-Fi version; Version for full electric seats and electrochromic rear view mirrors; Not for GD; Applicable from Ass. No. 133503	-	1	Enquire
4	324899	DRIVER SIDE DOOR CABLE	324899 DRIVER SIDE DOOR CABLE Version for full electric seats and electrochromic rear view mirrors; Not for GD; Applicable from Ass. No. 133503 up to Ass. No. 144754	-	1	Enquire
4	320883	DRIVER SIDE DOOR CABLE	320883 DRIVER SIDE DOOR CABLE High power Hi-Fi version; Applicable for GD; Applicable from Ass. No. 133503	-	1	Enquire
4	317557	DRIVER SIDE DOOR CABLE	317557 DRIVER SIDE DOOR CABLE Version for full electric seats and electrochromic rear view mirrors; Not for GD; Applicable up to Ass. No. 133502	-	1	Enquire
4	324902	DRIVER SIDE DOOR CABLE	324902 DRIVER SIDE DOOR CABLE Base; Applicable for GD; Applicable from Ass. No. 133503 up to Ass. No. 144754	-	1	Enquire
4	343074	DRIVER SIDE DOOR CABLE	343074 DRIVER SIDE DOOR CABLE Base; Applicable for GD; Applicable from Ass. No. 144755	-	1	Enquire
4	320860	DRIVER SIDE DOOR CABLE	320860 DRIVER SIDE DOOR CABLE High power Hi-Fi version; Not for GD; Applicable from Ass. No. 133503	-	1	Enquire
4	320883	DRIVER SIDE DOOR CABLE	320883 DRIVER SIDE DOOR CABLE Base; Applicable for GD; Applicable up to Ass. No. 133502	-	1	Enquire
4	324898	DRIVER SIDE DOOR CABLE	324898 DRIVER SIDE DOOR CABLE Base; Not for GD; Applicable from Ass. No. 133503 up to Ass. No. 144754	-	1	Enquire
4	343023	DRIVER SIDE DOOR CABLE	343023 DRIVER SIDE DOOR CABLE Base; Not for GD; Applicable from Ass. No. 144755	-	1	Enquire
4	320860	DRIVER SIDE DOOR CABLE	320860 DRIVER SIDE DOOR CABLE Base; Not for GD; Applicable up to Ass. No. 133502	-	1	Enquire
5	324905	PASSENGER SIDE DOOR CABLE	324905 PASSENGER SIDE DOOR CABLE Version for full electric seats and electrochromic rear view mirrors; Applicable for GD; Applicable from Ass. No. 133503 up to Ass. No. 144754	-	1	Enquire
5	343077	PASSENGER SIDE DOOR CABLE	343077 PASSENGER SIDE DOOR CABLE Version for full electric seats and electrochromic rear view mirrors; Applicable for GD; Applicable from Ass. No. 144755	-	1	Enquire
5	319415	PASSENGER SIDE DOOR CABLE	319415 PASSENGER SIDE DOOR CABLE Version for full electric seats and electrochromic rear view mirrors; Applicable for GD; Applicable up to Ass. No. 133502	-	1	Enquire
5	317560	PASSENGER SIDE DOOR CABLE	317560 PASSENGER SIDE DOOR CABLE High power Hi-Fi version; Version for full electric seats and electrochromic rear view mirrors; Not for GD; Applicable from Ass. No. 133503	-	1	Enquire
5	324901	PASSENGER SIDE DOOR CABLE	324901 PASSENGER SIDE DOOR CABLE Version for full electric seats and electrochromic rear view mirrors; Not for GD; Applicable from Ass. No. 133503 up to Ass. No. 144754	-	1	Enquire
5	343027	PASSENGER SIDE DOOR CABLE	343027 PASSENGER SIDE DOOR CABLE Version for full electric seats and electrochromic rear view mirrors; Not for GD; Applicable from Ass. No. 144755	-	1	Enquire
5	317560	PASSENGER SIDE DOOR CABLE	317560 PASSENGER SIDE DOOR CABLE Version for full electric seats and electrochromic rear view mirrors; Not for GD; Applicable up to Ass. No. 133502	-	1	Enquire
5	343076	PASSENGER SIDE DOOR CABLE	343076 PASSENGER SIDE DOOR CABLE Base; Applicable for GD; Applicable from Ass. No. 144755	-	1	Enquire
5	320885	PASSENGER SIDE DOOR CABLE	320885 PASSENGER SIDE DOOR CABLE High power Hi-Fi version; Applicable for GD; Applicable from Ass. No. 133503	-	1	Enquire
5	320885	PASSENGER SIDE DOOR CABLE	320885 PASSENGER SIDE DOOR CABLE Base; Applicable for GD; Applicable up to Ass. No. 133502	-	1	Enquire
5	324904	PASSENGER SIDE DOOR CABLE	324904 PASSENGER SIDE DOOR CABLE Base; Applicable for GD; Applicable from Ass. No. 133503 up to Ass. No. 144754	-	1	Enquire
5	324900	PASSENGER SIDE DOOR CABLE	324900 PASSENGER SIDE DOOR CABLE Base; Not for GD; Applicable from Ass. No. 133503 up to Ass. No. 144754	-	1	Enquire
5	343025	PASSENGER SIDE DOOR CABLE	343025 PASSENGER SIDE DOOR CABLE Base; Not for GD; Applicable from Ass. No. 144755	-	1	Enquire
5	320861	PASSENGER SIDE DOOR CABLE	320861 PASSENGER SIDE DOOR CABLE High power Hi-Fi version; Not for GD; Applicable from Ass. No. 133503	-	1	Enquire
5	320861	PASSENGER SIDE DOOR CABLE	320861 PASSENGER SIDE DOOR CABLE Base; Not for GD; Applicable up to Ass. No. 133502	-	1	Enquire
6	323572	INJECTION WIRING HARNESS	323572 INJECTION WIRING HARNESS Applicable for USA, CDN, USA LIGHT; Applicable up to engine No. 306698	-	1	Enquire
6	340617	INJECTION WIRING HARNESS	340617 INJECTION WIRING HARNESS Applicable for EU GS, AUS, UK; Applicable from engine No. 306699 up to engine No. 384015	-	1	Enquire
6	323571	INJECTION WIRING HARNESS	323571 INJECTION WIRING HARNESS Not for USA, CDN, USA LIGHT; Applicable up to engine No. 306698	-	1	Enquire
7	317772	ANCILLARIES WIRING HARNESS	317772 ANCILLARIES WIRING HARNESS	-	1	Enquire
8	320880	LUGGAGE COMPARTMENT CABLE FOR ANTENNA AND LIGHT UNIT	320880 LUGGAGE COMPARTMENT CABLE FOR ANTENNA AND LIGHT UNIT	-	1	Enquire
9	317955	A/C CONTROL PANEL EXTENSION CABLE	317955 A/C CONTROL PANEL EXTENSION CABLE	-	1	Enquire
10	313951	REAR FOG LIGHT WIRING HARNESS	313951 REAR FOG LIGHT WIRING HARNESS	-	1	Enquire
11	307038	PASSENGER AIRBAG CABLES	307038 PASSENGER AIRBAG CABLES Not for GD	-	1	Enquire
11	312757	PASSENGER AIRBAG CABLES	312757 PASSENGER AIRBAG CABLES Applicable for GD	-	1	Enquire
12	313160	DCT CABLE	313160 DCT CABLE	-	1	Enquire
13	313952	TANK WIRING HARNESS	313952 TANK WIRING HARNESS	-	1	Enquire
14	317894	VEHICLE LIFT CABLE	317894 VEHICLE LIFT CABLE Vehicle lift system; Not for GD	-	1	Enquire
14	312761	VEHICLE LIFT CABLE	312761 VEHICLE LIFT CABLE Vehicle lift system; Applicable for GD	-	1	Enquire
15	255982	CHASSIS GROUND CABLE	255982 CHASSIS GROUND CABLE	-	1	Enquire
16	276837	ENGINE GROUND - CHASSIS GROUND CONNECTOR BRAID	276837 ENGINE GROUND - CHASSIS GROUND CONNECTOR BRAID CHASSIS GROUND CONNECTOR BRAID	-	1	Enquire
17	315952	FRONT BUMPER CABLE	315952 FRONT BUMPER CABLE Applicable for front and rear parking sensors; Version with front and rear digital cameras	-	1	Enquire
18	317562	REAR BUMPER CABLE	317562 REAR BUMPER CABLE Applicable for Korea; Not for USA, CDN	-	1	Enquire
18	317563	REAR BUMPER CABLE	317563 REAR BUMPER CABLE Applicable for USA, CDN, USA LIGHT	-	1	Enquire
19	266805	WIRING HARNESS FOR MECHANICAL SEAT	266805 WIRING HARNESS FOR MECHANICAL SEAT Applicable for mechanical seat; For full house version of rear cable	-	1	Enquire
20	170114	TERMINAL BLOCK	170114 TERMINAL BLOCK	-	1	Enquire
21	307436	BATTERY CABLE	307436 BATTERY CABLE Not for GD	-	1	Enquire
21	312759	BATTERY CABLE	312759 BATTERY CABLE Applicable for GD	-	1	Enquire
22	325389	PASS. COMPARTMENT-BUMPER DAB EXTENSION CABLE	325389 PASS. COMPARTMENT-BUMPER DAB EXTENSION CABLE Also supplied with front cable pos. 2; Applicable for UK; Applicable from Ass. No. 131050	-	1	Enquire
23	325390	BUMPER DAB AMPLIFIER	325390 BUMPER DAB AMPLIFIER Applicable for UK; Applicable from Ass. No. 131050	-	1	Enquire
24	11625824	SCREW	11625824 SCREW M6 X 18; Applicable for UK; Applicable from Ass. No. 131050	-	1	Enquire
25	255515	BUSH	255515 BUSH 100 x 50 mm	-	2	Enquire
