DASHBOARD AND TUNNEL INSTRUMENTS of Ferrari Ferrari 488 Spider

View All

Ferrari 488 Spider - DASHBOARD AND TUNNEL INSTRUMENTS

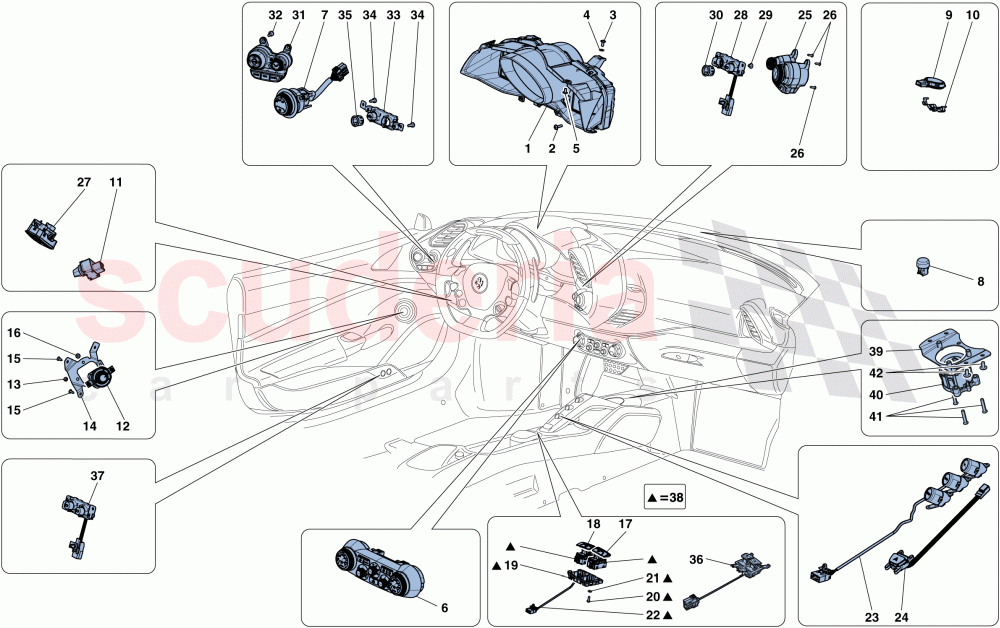

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	860172	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87292400	AC CONTROL PANEL	Enquire	To Order
	87849400	AC CONTROL PANEL	Enquire	To Order
	87263200	A/C CONTROL PANEL	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	87845100	COMPL. LIGHTS CONTROL	Enquire	To Order
	87929000	COMPL. LIGHTS CONTROL	Enquire	To Order
	87929100	COMPL. LIGHTS CONTROL	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	236871	SUNLIGHT SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	305081	RAIN AND TWILIGHT SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	305536	SENSOR FASTENER CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	193862	STEERING COLUMN ADJUSTMENT CONTROL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	319552	REAR VIEW MIRROR CONTROL	Enquire	To Order
	326042	REAR VIEW MIRROR CONTROL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16082801	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86215100	MIRROR CONTROLS BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16082801	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14227474	Motif Clip	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	247883	RH POWER WINDOW SWITCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	247885	LH POWER WINDOW SWITCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86152800	POWER WINDOW SWITCH BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14496101	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86152500	POWER WINDOW SWITCH WIRING HARNESS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	293353	F1 GEARBOX CONTROL PANEL	Enquire	To Order
	291657	F1 GEARBOX CONTROL PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86162100	HAZARD WARNING LIGHTS CONTROL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87843900	NIT CONTROL	Enquire	To Order
	87263400	NIT CONTROL	Enquire	To Order
	87844600	NIT CONTROL	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	88822200	SCREW TORX HEAD M4 X 10MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	72587700	EPB Switch With AutoPark Disable -No longer supplied- -Replaced by 820259..-	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	317307	COMPL. CAMERA CONTROL	Enquire	To Order
	321123	COMPL. CAMERA CONTROL	Enquire	To Order
	321123	COMPL. CAMERA CONTROL	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	86912700	SCREW	Enquire	To Order
	86912700	SCREW	Enquire	To Order
	86912700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	268000	TRIM RING	Enquire	To Order
	268000	TRIM RING	Enquire	To Order
	268000	TRIM RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87263500	DISPLAY MODE SELECTOR	Enquire	To Order
	87843400	DISPLAY MODE SELECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	88822200	SCREW TORX HEAD M4 X 10MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	321122	VEHICLE LIFT CONTROL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	795930	SCREW	Enquire	To Order
	86912700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	268000	TRIM RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	70003939	POWER REAR SCREEN CONTROL KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	316875	LUGGAGE COMPARTMENT LID AND FUEL FILLER FLAP RELEASE BUTTONS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86152700	POWER WINDOW CONTROL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	311645	KIN FASTENER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	900756	KIN FOR PASSIVE START SYSTEM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14302921	SCREW	Enquire	To Order
	13272077	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	795930	SCREW	Enquire	To Order
	86912700	SCREW	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
2	85833700	SCREW	85833700 SCREW M5 X 10	-	2	Enquire
3	85833700	SCREW	85833700 SCREW M5 X 12	-	2	Enquire
4	860172	WASHER	860172 WASHER	-	2	Enquire
5	85833700	SCREW	85833700 SCREW M5 X 8	-	2	Enquire
6	87292400	AC CONTROL PANEL	87292400 AC CONTROL PANEL Burnished grey; Applicable for USA	-	1	Enquire
6	87849400	AC CONTROL PANEL	87849400 AC CONTROL PANEL NART grey; Interior in paint finish aluminium; Applicable for USA	-	1	Enquire
6	87263200	A/C CONTROL PANEL	87263200 A/C CONTROL PANEL Burnished grey; Not for USA	-	1	Enquire
6	87841900	AC CONTROL PANEL	87841900 AC CONTROL PANEL NART grey; Interior in paint finish aluminium; Not for USA	-	1	Enquire
7	87845100	COMPL. LIGHTS CONTROL	87845100 COMPL. LIGHTS CONTROL NART grey; Interior in paint finish aluminium; Not for J	-	1	Enquire
7	87929000	COMPL. LIGHTS CONTROL	87929000 COMPL. LIGHTS CONTROL Burnished grey; Applicable for J	-	1	Enquire
7	87929100	COMPL. LIGHTS CONTROL	87929100 COMPL. LIGHTS CONTROL NART grey; Interior in paint finish aluminium; Applicable for J	-	1	Enquire
7	87379100	COMPL. LIGHTS CONTROL	87379100 COMPL. LIGHTS CONTROL Burnished grey; Not for J	-	1	Enquire
8	236871	SUNLIGHT SENSOR	236871 SUNLIGHT SENSOR	-	1	Enquire
9	305081	RAIN AND TWILIGHT SENSOR	305081 RAIN AND TWILIGHT SENSOR	-	1	Enquire
10	305536	SENSOR FASTENER CLIP	305536 SENSOR FASTENER CLIP	-	1	Enquire
11	193862	STEERING COLUMN ADJUSTMENT CONTROL	193862 STEERING COLUMN ADJUSTMENT CONTROL Applicable for electric steering column	-	1	Enquire
12	319552	REAR VIEW MIRROR CONTROL	319552 REAR VIEW MIRROR CONTROL Burnished grey	-	1	Enquire
12	326042	REAR VIEW MIRROR CONTROL	326042 REAR VIEW MIRROR CONTROL NART grey; Interior in paint finish aluminium	-	1	Enquire
13	16082801	SCREW	16082801 SCREW	-	2	Enquire
14	86215100	MIRROR CONTROLS BRACKET	86215100 MIRROR CONTROLS BRACKET Not for GD	-	1	Enquire
15	16082801	SCREW	16082801 SCREW	-	3	Enquire
16	14227474	Motif Clip	14227474 Motif Clip	-	2	Enquire
17	247883	RH POWER WINDOW SWITCH	247883 RH POWER WINDOW SWITCH	-	1	Enquire
18	247885	LH POWER WINDOW SWITCH	247885 LH POWER WINDOW SWITCH	-	1	Enquire
19	86152800	POWER WINDOW SWITCH BRACKET	86152800 POWER WINDOW SWITCH BRACKET Replaced by compl. ref. 38.; No longer supplied	-	1	Enquire
21	14496101	WASHER	14496101 WASHER Replaced by compl. ref. 38.; No longer supplied	-	4	Enquire
22	86152500	POWER WINDOW SWITCH WIRING HARNESS	86152500 POWER WINDOW SWITCH WIRING HARNESS Replaced by compl. ref. 38.; No longer supplied	-	1	Enquire
23	293353	F1 GEARBOX CONTROL PANEL	293353 F1 GEARBOX CONTROL PANEL Not for USA, CDN, USA LIGHT	-	1	Enquire
23	291657	F1 GEARBOX CONTROL PANEL	291657 F1 GEARBOX CONTROL PANEL Applicable for USA, CDN, USA LIGHT	-	1	Enquire
24	86162100	HAZARD WARNING LIGHTS CONTROL	86162100 HAZARD WARNING LIGHTS CONTROL	-	1	Enquire
25	87843900	NIT CONTROL	87843900 NIT CONTROL NART grey; Applicable for Apple Car Play; Interior in paint finish aluminium	-	1	Enquire
25	87263400	NIT CONTROL	87263400 NIT CONTROL Burnished grey; Not for Apple Car Play	-	1	Enquire
25	87844600	NIT CONTROL	87844600 NIT CONTROL NART grey; Not for Apple Car Play; Interior in paint finish aluminium	-	1	Enquire
25	87263600	NIT CONTROL	87263600 NIT CONTROL Burnished grey; Applicable for Apple Car Play	-	1	Enquire
26	88822200	SCREW TORX HEAD M4 X 10MM	88822200 SCREW TORX HEAD M4 X 10MM	-	3	Enquire
27	72587700	EPB Switch With AutoPark Disable -No longer supplied- -Replaced by 820259..-	72587700 EPB Switch With AutoPark Disable -No longer supplied- -Replaced by 820259..- Plastic in interior leather trim colour	-	1	Enquire
28	317307	COMPL. CAMERA CONTROL	317307 COMPL. CAMERA CONTROL Version with analogue rear camera; Version with front and rear digital cameras; Applicable for GD	-	1	Enquire
28	321123	COMPL. CAMERA CONTROL	321123 COMPL. CAMERA CONTROL Version with analogue rear camera; Version with front and rear digital cameras; Applicable for USA, CDN, USA LIGHT; Applicable from Ass. No. 156184	-	1	Enquire
28	321123	COMPL. CAMERA CONTROL	321123 COMPL. CAMERA CONTROL Version with analogue rear camera; Version with front and rear digital cameras; Applicable for USA, CDN, USA LIGHT; Applicable up to Ass. No. 156183	-	1	Enquire
28	321123	COMPL. CAMERA CONTROL	321123 COMPL. CAMERA CONTROL Version with analogue rear camera; Version with front and rear digital cameras; Not for USA, CDN, GD, USA LIGHT	-	1	Enquire
29	86912700	SCREW	86912700 SCREW M4 X 6; Version with analogue rear camera; Version with front and rear digital cameras; Applicable for USA, CDN, USA LIGHT; Applicable from Ass. No. 156184	-	2	Enquire
29	86912700	SCREW	86912700 SCREW M4 X 6; Version with analogue rear camera; Version with front and rear digital cameras; Applicable for USA, CDN, USA LIGHT; Applicable up to Ass. No. 156183	-	2	Enquire
29	86912700	SCREW	86912700 SCREW M4 X 6; Version with analogue rear camera; Version with front and rear digital cameras; Not for USA, CDN, USA LIGHT	-	2	Enquire
30	268000	TRIM RING	268000 TRIM RING Version with analogue rear camera; Version with front and rear digital cameras; Applicable for USA, CDN, USA LIGHT; Applicable up to Ass. No. 156183	-	1	Enquire
30	268000	TRIM RING	268000 TRIM RING Version with analogue rear camera; Version with front and rear digital cameras; Applicable for USA, CDN, USA LIGHT; Applicable from Ass. No. 156184	-	1	Enquire
30	268000	TRIM RING	268000 TRIM RING Version with analogue rear camera; Version with front and rear digital cameras; Not for USA, CDN, USA LIGHT	-	1	Enquire
31	87263500	DISPLAY MODE SELECTOR	87263500 DISPLAY MODE SELECTOR Burnished grey	-	1	Enquire
31	87843400	DISPLAY MODE SELECTOR	87843400 DISPLAY MODE SELECTOR NART grey; Interior in paint finish aluminium	-	1	Enquire
32	88822200	SCREW TORX HEAD M4 X 10MM	88822200 SCREW TORX HEAD M4 X 10MM	-	3	Enquire
33	321122	VEHICLE LIFT CONTROL	321122 VEHICLE LIFT CONTROL Version with lifter	-	1	Enquire
34	795930	SCREW	795930 SCREW M4 X 8; Version with lifter	-	2	Enquire
34	86912700	SCREW	86912700 SCREW M4 X 6; Version with lifter; No longer supplied; Replaced by 309629	-	2	Enquire
35	268000	TRIM RING	268000 TRIM RING Version with lifter	-	1	Enquire
36	70003939	POWER REAR SCREEN CONTROL KIT	70003939 POWER REAR SCREEN CONTROL KIT	-	1	Enquire
37	316875	LUGGAGE COMPARTMENT LID AND FUEL FILLER FLAP RELEASE BUTTONS	316875 LUGGAGE COMPARTMENT LID AND FUEL FILLER FLAP RELEASE BUTTONS	-	1	Enquire
38	86152700	POWER WINDOW CONTROL	86152700 POWER WINDOW CONTROL	-	1	Enquire
39	311645	KIN FASTENER BRACKET	311645 KIN FASTENER BRACKET	-	1	Enquire
40	900756	KIN FOR PASSIVE START SYSTEM	900756 KIN FOR PASSIVE START SYSTEM	-	1	Enquire
41	14302921	SCREW	14302921 SCREW M4 X 20	-	3	Enquire
41	13272077	SCREW	13272077 SCREW M4 X 20; No longer supplied; Replaced by 14303324	-	3	Enquire
42	795930	SCREW	795930 SCREW M4 X 8	-	4	Enquire
42	86912700	SCREW	86912700 SCREW M4 X 6; No longer supplied; Replaced by 309629	-	2	Enquire
