LUBRICATION SYSTEM: TANK, PUMP AND FILTER

Find Your Part

Ferrari 488 Spider - LUBRICATION SYSTEM: TANK, PUMP AND FILTER

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
325249 COMPL. OIL TANK $2,687.69 To Order
Photo Part No Description Price (each) Stock
270805 OIL FILTER GASKET $14.15 To Order
Photo Part No Description Price (each) Stock
231619 SCREW $0.31 To Order
Photo Part No Description Price (each) Stock
231620 SCREW $0.32 To Order
Photo Part No Description Price (each) Stock
177576 CABLE GROMMET $2.33 To Order
Photo Part No Description Price (each) Stock
819489 FLANGED BUSHING $14.75 To Order
Photo Part No Description Price (each) Stock
14326101 THREADED PLUG $1.26 To Order
317584 THREADED CONNECTOR $27.21 To Order
14326101 THREADED PLUG $1.26 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
317655 CAP COMPL. WITH DIPSTICK $320.90 To Order
Photo Part No Description Price (each) Stock
294022 RING FOR ENGINE OIL TANK $56.14 To Order
Photo Part No Description Price (each) Stock
100332 OIL PICKUP FILTER $20.65 To Order
Photo Part No Description Price (each) Stock
125521 O-RING $11.20 To Order
Photo Part No Description Price (each) Stock
255176 OIL PICKUP $160.44 To Order
Photo Part No Description Price (each) Stock
11500524 STUD BOLT $0.39 To Order
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.51 To Order
Photo Part No Description Price (each) Stock
10261460 COPPER WASHER 16 X 24 X 1.5 $0.36 To Order
Photo Part No Description Price (each) Stock
293107 THREADED PLUG $90.10 To Order
Photo Part No Description Price (each) Stock
317832 OIL DELIVERY PIPE FROM TANK TO PUMP $529.50 To Order
Photo Part No Description Price (each) Stock
14458481 O-RING $2.50 To Order
Photo Part No Description Price (each) Stock
862084 GASKET $5.61 To Order
Photo Part No Description Price (each) Stock
231619 SCREW $0.31 To Order
Photo Part No Description Price (each) Stock
231619 SCREW $0.31 To Order
Photo Part No Description Price (each) Stock
317835 OIL RECOVERY PIPE FROM ENGINE TO TANK $320.90 To Order
Photo Part No Description Price (each) Stock
139934 O-RING $0.94 To Order
Photo Part No Description Price (each) Stock
342155 COMPL. OIL PUMPS $3,454.98 To Order
Photo Part No Description Price (each) Stock
285494 SCREW $1.07 To Order
Photo Part No Description Price (each) Stock
239462 CALIBRATED SCREW $7.73 To Order
Photo Part No Description Price (each) Stock
986899 WASHER $6.26 To Order
Photo Part No Description Price (each) Stock
303379 OIL RECOVERY PUMP FILTER $33.58 To Order
Photo Part No Description Price (each) Stock
309348 OIL RECOVERY PUMP GASKET $15.71 To Order
Photo Part No Description Price (each) Stock
320781 CHECK VALVE $78.61 To Order
Photo Part No Description Price (each) Stock
310610 CHECK VALVE MOUNTING BRACKET $12.66 To Order
Photo Part No Description Price (each) Stock
310612 OIL PUMP BUSHING MOUNTING BRACKET $12.66 To Order
Photo Part No Description Price (each) Stock
282391 SCREW $0.92 To Order
Photo Part No Description Price (each) Stock
295943 OIL FILTER $158.84 To Order
Photo Part No Description Price (each) Stock
295948 OIL FILTER $119.60 To Order
Photo Part No Description Price (each) Stock
315644 OIL FILTER MOUNT $272.34 To Order
Photo Part No Description Price (each) Stock
336913 OIL PUMP GASKET KIT $28.66 To Order
Photo Part No Description Price (each) Stock
804104 OIL PUMP GASKET KIT $28.87 To Order
View All

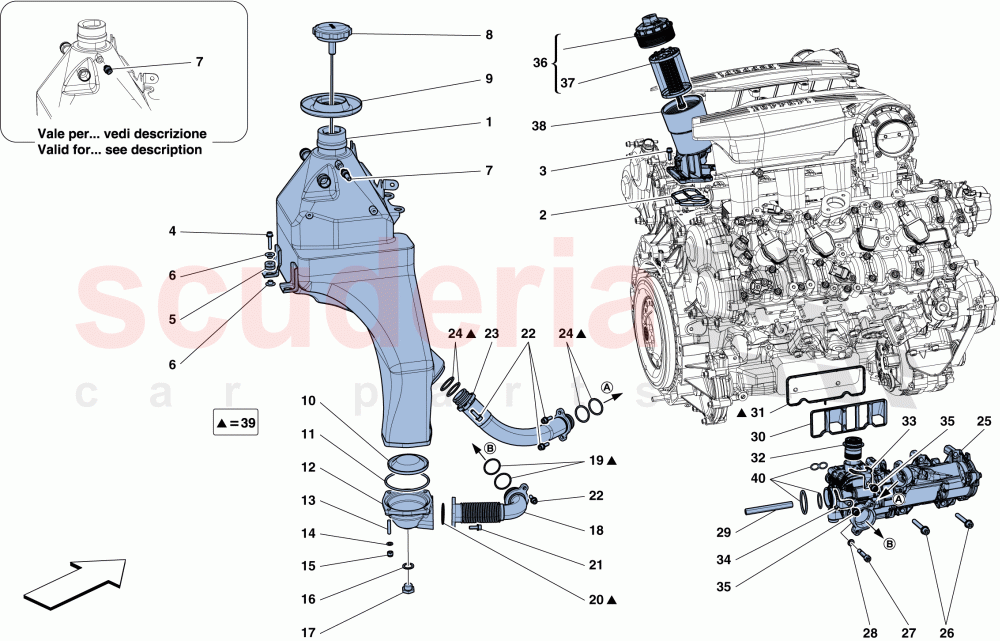

LUBRICATION SYSTEM: TANK, PUMP AND FILTER of Ferrari Ferrari 488 Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 325249
COMPL. OIL TANK 		$2,687.69 1
2 270805
OIL FILTER GASKET 		$14.15 1
3 231619
SCREW
M6 X 20 		$0.31 4
4 231620
SCREW
M6 X 30 		$0.32 (8.6% off) 4
5 177576
CABLE GROMMET 		$2.33 6
6 819489
FLANGED BUSHING 		$14.75 8
7 14326101
THREADED PLUG
Applicable for USA, CDN, USA LIGHT 		$1.26 (23.6% off) 1
7 317584
THREADED CONNECTOR
Applicable for EU GS, AUS, UK; Applicable up to engine No. 384015 		$27.21 1
7 14326101
THREADED PLUG
Applicable for EU GS, AUS, UK; Applicable from engine No. 384016 		$1.26 (23.6% off) 1
7 317584
THREADED CONNECTOR
Not for EU GS, AUS, USA, CDN, UK, USA LIGHT 		$27.21 1
8 317655
CAP COMPL. WITH DIPSTICK 		$320.90 1
9 294022
RING FOR ENGINE OIL TANK 		$56.14 1
10 100332
OIL PICKUP FILTER 		$20.65 1
11 125521
O-RING 		$11.20 1
12 255176
OIL PICKUP 		$160.44 1
13 11500524
STUD BOLT 		$0.39 (61% off) 4
14 11197774
WASHER 		$0.06 (80% off) 4
15 14059290
FLANGED NUT M6 		$1.51 4
16 10261460
COPPER WASHER 16 X 24 X 1.5
Also comes with engine gasket set 		$0.36 (64% off) 1
17 293107
THREADED PLUG 		$90.10 1
18 317832
OIL DELIVERY PIPE FROM TANK TO PUMP 		$529.50 1
19 14458481
O-RING
Also comes with engine gasket set 		$2.50 2
20 862084
GASKET 		$5.61 1
21 231619
SCREW
M6 X 18 		$0.31 3
22 231619
SCREW
M6 X 20 		$0.31 6
23 317835
OIL RECOVERY PIPE FROM ENGINE TO TANK 		$320.90 1
24 139934
O-RING 		$0.94 (58.2% off) 4
25 342155
COMPL. OIL PUMPS 		$3,454.98 1
26 285494
SCREW
M8 X 50 		$1.07 5
27 239462
CALIBRATED SCREW 		$7.73 2
28 986899
WASHER 		$6.26 2
30 303379
OIL RECOVERY PUMP FILTER 		$33.58 1
31 309348
OIL RECOVERY PUMP GASKET
Also comes with engine gasket set 		$15.71 1
32 320781
CHECK VALVE 		$78.61 1
33 310610
CHECK VALVE MOUNTING BRACKET 		$12.66 1
34 310612
OIL PUMP BUSHING MOUNTING BRACKET 		$12.66 1
35 282391
SCREW
M6 X 12 		$0.92 2
36 295943
OIL FILTER 		$158.84 1
37 295948
OIL FILTER 		$119.60 1
38 315644
OIL FILTER MOUNT 		$272.34 1
39 336913
OIL PUMP GASKET KIT 		$28.66 1
40 804104
OIL PUMP GASKET KIT 		$28.87 1
