Ferrari 488 Spider - EXHAUST SYSTEM

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
844311 CENTRAL SILENCER Enquire To Order
Photo Part No Description Price (each) Stock
321608 COMPL. RH CATALYTIC CONVERTER Enquire To Order
Photo Part No Description Price (each) Stock
321609 COMPL. LH CATALYTIC CONVERTER Enquire To Order
Photo Part No Description Price (each) Stock
319368 RH CATALYTIC CONVERTER HEAT SHIELD Enquire To Order
Photo Part No Description Price (each) Stock
319369 LH CATALYTIC CONVERTER HEAT SHIELD Enquire To Order
Photo Part No Description Price (each) Stock
319366 RH CHASSIS TURBO HEAT SHIELD Enquire To Order
Photo Part No Description Price (each) Stock
962333 LH CHASSIS TURBO HEAT SHIELD Enquire To Order
Photo Part No Description Price (each) Stock
231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER Enquire IN STOCK
Photo Part No Description Price (each) Stock
300595 RH CATALYTIC CONVERTER BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
300596 LH CATALYTIC CONVERTER BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
216575 SCREW Enquire IN STOCK
Photo Part No Description Price (each) Stock
305308 RH BRACKET COMPL. WITH BUSHES Enquire To Order
Photo Part No Description Price (each) Stock
305310 LH BRACKET COMPL. WITH BUSHES Enquire To Order
Photo Part No Description Price (each) Stock
320008 RH CATALYTIC CONVERTER SHIELD Enquire To Order
Photo Part No Description Price (each) Stock
320009 LH CATALYTIC CONVERTER SHIELD Enquire To Order
Photo Part No Description Price (each) Stock
324642 RING CLAMP Enquire ARRIVING SOON
Photo Part No Description Price (each) Stock
289529 FLEXIBLE SILENCER MOUNTING BUSH Enquire IN STOCK
Photo Part No Description Price (each) Stock
283425 SQUARE HEADED SCREW M6 X 18.5MM Enquire IN STOCK
Photo Part No Description Price (each) Stock
240598 PLATE Enquire IN STOCK
Photo Part No Description Price (each) Stock
875279 SILENCER MOUNTING BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
875282 SILENCER MOUNTING BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
11585024 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
12648978 WASHER Enquire IN STOCK
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 Enquire IN STOCK
Photo Part No Description Price (each) Stock
11627826 SCREW Enquire IN STOCK
Photo Part No Description Price (each) Stock
16044321 SCREW Enquire IN STOCK
Photo Part No Description Price (each) Stock
13578324 WASHER Enquire IN STOCK
Photo Part No Description Price (each) Stock
14059311 NUT Enquire IN STOCK
Photo Part No Description Price (each) Stock
12601374 WASHER Enquire IN STOCK
Photo Part No Description Price (each) Stock
85833700 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
110860 THREADED PLUG Enquire IN STOCK
Photo Part No Description Price (each) Stock
10298460 GASKET Enquire IN STOCK
Photo Part No Description Price (each) Stock
292582 OXYGEN SENSOR Enquire IN STOCK
Photo Part No Description Price (each) Stock
784822 REAR OXYGEN SENSOR Enquire IN STOCK
Photo Part No Description Price (each) Stock
303385 CLIP Enquire IN STOCK
Photo Part No Description Price (each) Stock
303385 CLIP Enquire IN STOCK
Photo Part No Description Price (each) Stock
292945 NUT Enquire To Order
Photo Part No Description Price (each) Stock
70003133 BYPASS VALVE ACTUATOR KIT Enquire To Order
View All

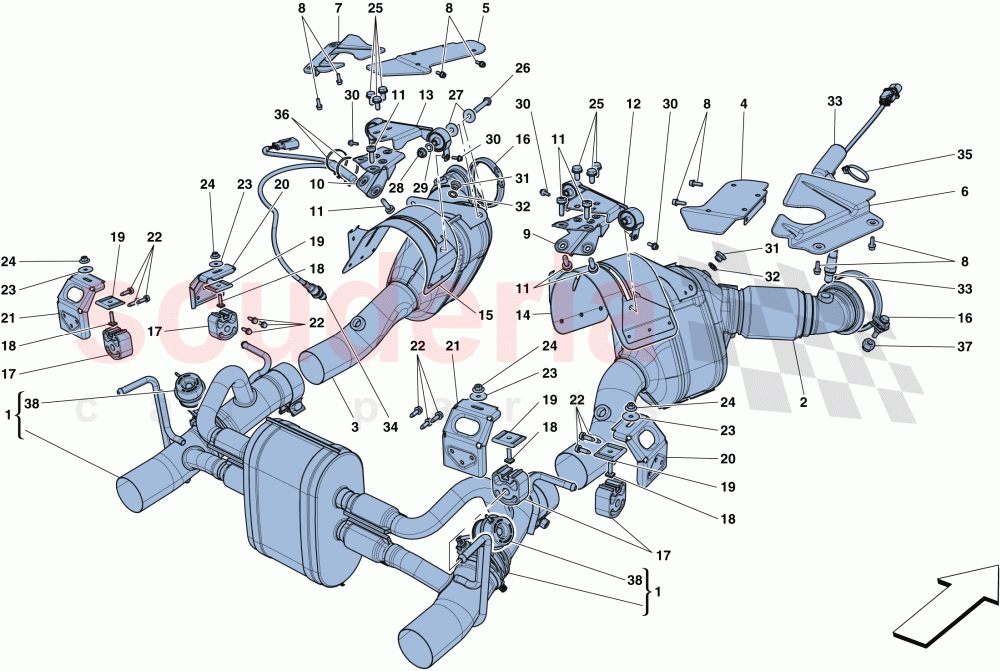

EXHAUST SYSTEM of Ferrari Ferrari 488 Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 844311
CENTRAL SILENCER 		- 1 Enquire
2 321608
COMPL. RH CATALYTIC CONVERTER 		- 1 Enquire
3 321609
COMPL. LH CATALYTIC CONVERTER 		- 1 Enquire
4 319368
RH CATALYTIC CONVERTER HEAT SHIELD 		- 1 Enquire
5 319369
LH CATALYTIC CONVERTER HEAT SHIELD 		- 1 Enquire
6 319366
RH CHASSIS TURBO HEAT SHIELD 		- 1 Enquire
7 962333
LH CHASSIS TURBO HEAT SHIELD 		- 1 Enquire
8 231619
SOCKET HEAD SCREW M6 X 22 WITH WASHER
M6 X 18
IN STOCK 		- 8 Enquire
9 300595
RH CATALYTIC CONVERTER BRACKET 		- 1 Enquire
10 300596
LH CATALYTIC CONVERTER BRACKET 		- 1 Enquire
11 216575
SCREW
IN STOCK 		- 8 Enquire
12 305308
RH BRACKET COMPL. WITH BUSHES 		- 1 Enquire
13 305310
LH BRACKET COMPL. WITH BUSHES 		- 1 Enquire
14 320008
RH CATALYTIC CONVERTER SHIELD 		- 1 Enquire
15 320009
LH CATALYTIC CONVERTER SHIELD 		- 1 Enquire
16 324642
RING CLAMP
ARRIVING SOON 		- 2 Enquire
17 289529
FLEXIBLE SILENCER MOUNTING BUSH
IN STOCK 		- 4 Enquire
18 283425
SQUARE HEADED SCREW M6 X 18.5MM
IN STOCK 		- 4 Enquire
19 240598
PLATE
IN STOCK 		- 4 Enquire
20 875279
SILENCER MOUNTING BRACKET 		- 2 Enquire
21 875282
SILENCER MOUNTING BRACKET 		- 2 Enquire
22 11585024
SCREW 		- 12 Enquire
23 12648978
WASHER
IN STOCK 		- 4 Enquire
24 14059290
FLANGED NUT M6
IN STOCK 		- 4 Enquire
25 11627826
SCREW
IN STOCK 		- 6 Enquire
26 16044321
SCREW
IN STOCK 		- 4 Enquire
27 13578324
WASHER
IN STOCK 		- 8 Enquire
28 14059311
NUT
IN STOCK 		- 4 Enquire
29 12601374
WASHER
IN STOCK 		- 4 Enquire
30 85833700
SCREW
M5 X 16 		- 4 Enquire
31 110860
THREADED PLUG
IN STOCK 		- 2 Enquire
32 10298460
GASKET
IN STOCK 		- 2 Enquire
33 292582
OXYGEN SENSOR
IN STOCK 		- 2 Enquire
34 784822
REAR OXYGEN SENSOR
IN STOCK 		- 2 Enquire
35 303385
CLIP
IN STOCK 		- 2 Enquire
36 303385
CLIP
IN STOCK 		- 4 Enquire
37 292945
NUT 		- 2 Enquire
38 70003133
BYPASS VALVE ACTUATOR KIT
Also order collar, part number 241986 		- 2 Enquire
