MAIN WIRING HARNESSES

Find Your Part

Ferrari 488 GTB - MAIN WIRING HARNESSES

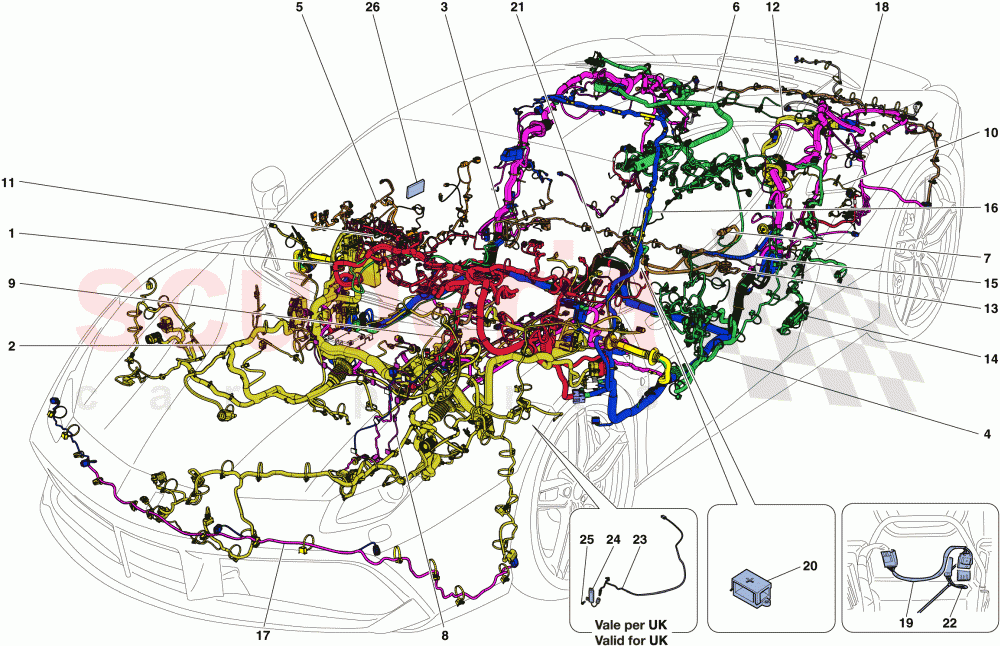

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
320171 DASHBOARD CABLE $1,667.16 To Order
333466 DASHBOARD CABLE $1,495.08 To Order
317547 DASHBOARD CABLE $1,540.40 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
320162 FRONT CABLE $5,048.05 To Order
329017 FRONT CABLE $4,551.21 To Order
791418 FRONT CABLE $3,086.21 To Order
...and 15 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
317554 REAR CABLE $6,590.07 To Order
320174 REAR CABLE $7,844.87 To Order
317552 REAR CABLE $6,509.84 To Order
...and 6 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
320883 DRIVER SIDE DOOR CABLE $559.03 To Order
320860 DRIVER SIDE DOOR CABLE $465.32 To Order
343023 DRIVER SIDE DOOR CABLE $401.34 To Order
...and 13 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
343077 PASSENGER SIDE DOOR CABLE $530.36 To Order
324905 PASSENGER SIDE DOOR CABLE $501.69 To Order
319415 PASSENGER SIDE DOOR CABLE $529.50 To Order
...and 12 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
323572 INJECTION WIRING HARNESS $3,512.45 To Order
323571 INJECTION WIRING HARNESS $3,523.68 To Order
Photo Part No Description Price (each) Stock
317772 ANCILLARIES WIRING HARNESS $372.69 To Order
Photo Part No Description Price (each) Stock
320880 LUGGAGE COMPARTMENT CABLE FOR ANTENNA AND LIGHT UNIT $89.84 To Order
Photo Part No Description Price (each) Stock
317955 A/C CONTROL PANEL EXTENSION CABLE $65.77 To Order
Photo Part No Description Price (each) Stock
313951 REAR FOG LIGHT WIRING HARNESS $53.02 To Order
Photo Part No Description Price (each) Stock
312757 PASSENGER AIRBAG CABLES $65.77 To Order
307038 PASSENGER AIRBAG CABLES $65.77 To Order
Photo Part No Description Price (each) Stock
313160 DCT CABLE $722.05 To Order
Photo Part No Description Price (each) Stock
313952 TANK WIRING HARNESS $240.67 To Order
Photo Part No Description Price (each) Stock
312760 VEHICLE LIFT CABLE $449.27 To Order
314711 VEHICLE LIFT CABLE $465.32 To Order
Photo Part No Description Price (each) Stock
255982 CHASSIS GROUND CABLE $64.17 To Order
Photo Part No Description Price (each) Stock
276837 ENGINE GROUND - CHASSIS GROUND CONNECTOR BRAID $113.23 To Order
Photo Part No Description Price (each) Stock
315952 FRONT BUMPER CABLE $673.92 To Order
Photo Part No Description Price (each) Stock
317563 REAR BUMPER CABLE $657.87 To Order
317562 REAR BUMPER CABLE $1,203.43 To Order
Photo Part No Description Price (each) Stock
266805 WIRING HARNESS FOR MECHANICAL SEAT $37.25 To Order
268295 PASSENGER SEAT WIRING HARNESS $107.49 To Order
268473 WIRING HARNESS FOR DRIVER SEAT $141.90 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
170114 TERMINAL BLOCK $56.14 To Order
Photo Part No Description Price (each) Stock
307436 BATTERY CABLE $208.58 To Order
Photo Part No Description Price (each) Stock
285128 WIRING HARNESS FOR PASSENGER SEAT $105.89 To Order
Photo Part No Description Price (each) Stock
325389 PASS. COMPARTMENT-BUMPER DAB EXTENSION CABLE $3,026.01 To Order
Photo Part No Description Price (each) Stock
325390 BUMPER DAB AMPLIFIER $286.67 To Order
Photo Part No Description Price (each) Stock
11625824 SCREW $0.39 To Order
Photo Part No Description Price (each) Stock
255515 BUSH $2.24 To Order
View All
MAIN WIRING HARNESSES of Ferrari Ferrari 488 GTB Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 320171
DASHBOARD CABLE
High power Hi-Fi version; Applicable for GD 		$1,667.16 1
1 333466
DASHBOARD CABLE
High power Hi-Fi version; Applicable for Russia, Armenia, Belarus, Kazakhstan and Kyrgyzstan markets; Applicable for ERA GLONASS system 		$1,495.08 1
1 317547
DASHBOARD CABLE
High power Hi-Fi version; Not for ERA GLONASS system; Not for GD 		$1,540.40 1
1 320170
DASHBOARD CABLE
Not for High power Hi-Fi; Applicable for GD 		$1,444.12 1
1 317546
DASHBOARD CABLE
Not for High power Hi-Fi; Applicable for front parking sensor, telemetry, front camera, rear camera, car lift system, CarPlay, passenger display, electric seats and CD reader; Not for GD 		$1,347.85 1
1 333465
DASHBOARD CABLE
Not for High power Hi-Fi; Base; Applicable for Russia, Armenia, Belarus, Kazakhstan and Kyrgyzstan markets; Applicable for ERA GLONASS system 		$1,318.77 1
2 320162
FRONT CABLE
No AFS headlights; Not for front and rear digital cameras; Applicable for GD 		$5,048.05 1
2 329017
FRONT CABLE
Base; No AFS headlights; Not for front parking sensors; Applicable for HELE; Applicable for GD 		$4,551.21 1
2 791418
FRONT CABLE
Base; No AFS headlights; Not for front parking sensors; Applicable for HELE; Applicable for CINA, GOLFO, J 		$3,086.21 1
2 329016
FRONT CABLE
Base; No AFS headlights; Not for front parking sensors; Applicable for HELE; Applicable for EU GS 		$3,218.09 1
2 791416
FRONT CABLE
Base; Applicable for CINA, GOLFO, J 		$2,981.57 1
2 320850
FRONT CABLE
Base; Applicable for EU GS 		$3,512.45 1
2 320163
FRONT CABLE
No AFS headlights; Version with digital front and rear camera; Applicable for GD 		$5,691.49 1
2 320858
FRONT CABLE
No AFS headlights; Version with digital front and rear camera; Applicable for HELE; Not for GD 		$5,088.17 1
2 320854
FRONT CABLE
No AFS headlights; Version with digital front and rear camera; Applicable for front and rear parking sensors; Not for GD 		$5,145.93 1
2 320852
FRONT CABLE
No AFS headlights; Applicable for front and rear parking sensors; Not for GD 		$4,508.91 1
2 320165
FRONT CABLE
No AFS headlights; Applicable for HELE; Applicable for front parking sensors; Applicable for GD 		$5,803.82 1
2 320856
FRONT CABLE
No AFS headlights; Applicable for HELE; Applicable for front parking sensors; Not for GD 		$4,643.69 1
2 320164
FRONT CABLE
Applicable for AFS headlights; Version with front and rear digital cameras; Applicable for GD 		$5,773.33 1
2 320859
FRONT CABLE
Applicable for AFS headlights; Version with front and rear digital cameras; Applicable for HELE; Not for GD 		$5,145.93 1
2 320166
FRONT CABLE
Applicable for AFS headlights; Applicable for HELE; Applicable for GD 		$5,888.86 1
2 320857
FRONT CABLE
Applicable for AFS headlights; Applicable for HELE; Not for GD 		$4,711.08 1
2 320855
FRONT CABLE
Applicable for AFS headlights; Applicable for front and rear parking sensors; Version with front and rear digital cameras; Not for GD 		$5,165.19 1
2 320853
FRONT CABLE
Applicable for AFS headlights; Applicable for front and rear parking sensors; Not for GD 		$4,576.30 1
3 317554
REAR CABLE
Full house; Version with front and rear digital cameras; Not for GD 		$6,590.07 1
3 320174
REAR CABLE
Full house; Version with analogue rear camera; Applicable for GD 		$7,844.87 1
3 317552
REAR CABLE
Full house; Version with analogue rear camera; Not for GD 		$6,509.84 1
3 320173
REAR CABLE
Full house; No rear camera; Applicable for GD 		$7,642.69 1
3 318600
REAR CABLE
Full house; No rear camera; Applicable for USA, CDN, USA LIGHT; Applicable up to Ass. No. 156183 		$6,373.45 1
3 318600
REAR CABLE
Full house; No rear camera; Not for USA, CDN, GD, USA LIGHT 		$6,373.45 1
3 317550
REAR CABLE
Base; Applicable for USA, CDN, USA LIGHT; Applicable up to Ass. No. 156183 		$5,455.62 1
3 317550
REAR CABLE
Base; Applicable for USA, CDN, USA LIGHT; Not for GD 		$5,455.62 1
3 320175
REAR CABLE
Full house; Version with front and rear digital cameras; Applicable for GD 		$7,934.72 1
4 320883
DRIVER SIDE DOOR CABLE
Base; Applicable for GD; Applicable up to Ass. No. 133502 		$559.03 1
4 320860
DRIVER SIDE DOOR CABLE
High power Hi-Fi version; Not for GD; Applicable from Ass. No. 133503 		$465.32 1
4 343023
DRIVER SIDE DOOR CABLE
Base; Not for GD; Applicable from Ass. No. 144755 		$401.34 1
4 324898
DRIVER SIDE DOOR CABLE
Base; Not for GD; Applicable from Ass. No. 133503 up to Ass. No. 144754 		$415.69 1
4 320860
DRIVER SIDE DOOR CABLE
Base; Not for GD; Applicable up to Ass. No. 133502 		$465.32 1
4 324899
DRIVER SIDE DOOR CABLE
Version for full electric seats and electrochromic rear view mirrors; Not for GD; Applicable from Ass. No. 133503 up to Ass. No. 144754 		$559.03 1
4 317557
DRIVER SIDE DOOR CABLE
Version for full electric seats and electrochromic rear view mirrors; Not for GD; Applicable up to Ass. No. 133502 		$545.55 1
4 320883
DRIVER SIDE DOOR CABLE
High power Hi-Fi version; Applicable for GD; Applicable from Ass. No. 133503 		$559.03 1
4 343074
DRIVER SIDE DOOR CABLE
Base; Applicable for GD; Applicable from Ass. No. 144755 		$530.36 1
4 324902
DRIVER SIDE DOOR CABLE
Base; Applicable for GD; Applicable from Ass. No. 133503 up to Ass. No. 144754 		$530.36 1
4 343075
DRIVER SIDE DOOR CABLE
Version for full electric seats and electrochromic rear view mirrors; Applicable for GD; Applicable from Ass. No. 144755 		$544.69 1
4 324903
DRIVER SIDE DOOR CABLE
Version for full electric seats and electrochromic rear view mirrors; Applicable for GD; Applicable from Ass. No. 133503 up to Ass. No. 144754 		$544.69 1
4 319414
DRIVER SIDE DOOR CABLE
Version for full electric seats and electrochromic rear view mirrors; Applicable for GD; Applicable up to Ass. No. 133502 		$577.64 1
4 317557
DRIVER SIDE DOOR CABLE
Version for full electric seats and electrochromic rear view mirrors; High power Hi-Fi version; Not for GD; Applicable from Ass. No. 133503 		$545.55 1
4 343024
DRIVER SIDE DOOR CABLE
Version for full electric seats and electrochromic rear view mirrors; Not for GD; Applicable from Ass. No. 144755 		$559.03 1
4 319414
DRIVER SIDE DOOR CABLE
Version for full electric seats and electrochromic rear view mirrors; High power Hi-Fi version; Applicable for GD; Applicable from Ass. No. 133503 		$577.64 1
5 343077
PASSENGER SIDE DOOR CABLE
Version for full electric seats and electrochromic rear view mirrors; Applicable for GD; Applicable from Ass. No. 144755 		$530.36 1
5 324905
PASSENGER SIDE DOOR CABLE
Version for full electric seats and electrochromic rear view mirrors; Applicable for GD; Applicable from Ass. No. 133503 up to Ass. No. 144754 		$501.69 1
5 319415
PASSENGER SIDE DOOR CABLE
Version for full electric seats and electrochromic rear view mirrors; Applicable for GD; Applicable up to Ass. No. 133502 		$529.50 1
5 317560
PASSENGER SIDE DOOR CABLE
Version for full electric seats and electrochromic rear view mirrors; High power Hi-Fi version; Not for GD; Applicable from Ass. No. 133503 		$501.69 1
5 343027
PASSENGER SIDE DOOR CABLE
Version for full electric seats and electrochromic rear view mirrors; Not for GD; Applicable from Ass. No. 144755 		$516.03 1
5 324901
PASSENGER SIDE DOOR CABLE
Version for full electric seats and electrochromic rear view mirrors; Not for GD; Applicable from Ass. No. 133503 up to Ass. No. 144754 		$516.03 1
5 317560
PASSENGER SIDE DOOR CABLE
Version for full electric seats and electrochromic rear view mirrors; Not for GD; Applicable up to Ass. No. 133502 		$501.69 1
5 320885
PASSENGER SIDE DOOR CABLE
High power Hi-Fi version; Applicable for GD; Applicable from Ass. No. 133503 		$516.03 1
5 343076
PASSENGER SIDE DOOR CABLE
Base; Applicable for GD; Applicable from Ass. No. 144755 		$487.36 1
5 324904
PASSENGER SIDE DOOR CABLE
Base; Applicable for GD; Applicable from Ass. No. 133503 up to Ass. No. 144754 		$487.36 1
5 320885
PASSENGER SIDE DOOR CABLE
Base; Applicable for GD; Applicable up to Ass. No. 133502 		$516.03 1
5 320861
PASSENGER SIDE DOOR CABLE
High power Hi-Fi version; Not for GD; Applicable from Ass. No. 133503 		$415.69 1
5 343025
PASSENGER SIDE DOOR CABLE
Base; Not for GD; Applicable from Ass. No. 144755 		$344.02 1
5 324900
PASSENGER SIDE DOOR CABLE
Base; Not for GD; Applicable from Ass. No. 133503 up to Ass. No. 144754 		$358.34 1
5 320861
PASSENGER SIDE DOOR CABLE
Base; Not for GD; Applicable up to Ass. No. 133502 		$415.69 1
6 323572
INJECTION WIRING HARNESS
Applicable for USA, CDN, USA LIGHT; Applicable up to engine No. 306698 		$3,512.45 1
6 323571
INJECTION WIRING HARNESS
Not for USA, CDN, USA LIGHT; Applicable up to engine No. 306698 		$3,523.68 1
7 317772
ANCILLARIES WIRING HARNESS 		$372.69 1
8 320880
LUGGAGE COMPARTMENT CABLE FOR ANTENNA AND LIGHT UNIT 		$89.84 1
9 317955
A/C CONTROL PANEL EXTENSION CABLE 		$65.77 1
10 313951
REAR FOG LIGHT WIRING HARNESS 		$53.02 1
11 312757
PASSENGER AIRBAG CABLES
Applicable for GD 		$65.77 1
11 307038
PASSENGER AIRBAG CABLES
Not for GD 		$65.77 1
12 313160
DCT CABLE 		$722.05 1
13 313952
TANK WIRING HARNESS 		$240.67 1
14 312760
VEHICLE LIFT CABLE
Version with lifter; Applicable for GD 		$449.27 1
14 314711
VEHICLE LIFT CABLE
Version with lifter; Not for GD 		$465.32 1
15 255982
CHASSIS GROUND CABLE 		$64.17 1
16 276837
ENGINE GROUND - CHASSIS GROUND CONNECTOR BRAID
CHASSIS GROUND CONNECTOR BRAID 		$113.23 1
17 315952
FRONT BUMPER CABLE
Applicable for front and rear parking sensors; Version with front and rear digital cameras 		$673.92 1
18 317563
REAR BUMPER CABLE
Applicable for USA, CDN, USA LIGHT 		$657.87 1
18 317562
REAR BUMPER CABLE
Applicable for Korea; Not for USA, CDN 		$1,203.43 1
19 266805
WIRING HARNESS FOR MECHANICAL SEAT
Applicable for mechanical seat; For full house version of rear cable; Not for 4-point seat harness; Applicable up to Ass. No. 135823 		$37.25 1
19 268295
PASSENGER SEAT WIRING HARNESS
Applicable for 4-point seat harness; Not for USA, CDN, USA LIGHT; Applicable up to Ass. No. 135823 		$107.49 1
19 268473
WIRING HARNESS FOR DRIVER SEAT
Applicable for 4-point seat harness; No longer supplied 		$141.90 1
19 270449
WIRING HARNESS FOR MECHANICAL SEAT
Cpod; Passenger seat; Applicable for USA, CDN, USA LIGHT; No longer supplied 		$128.35 1
19 266805
WIRING HARNESS FOR MECHANICAL SEAT
Applicable for 4-point seat harness; Applicable from Ass. No. 135824 		$37.25 1
20 170114
TERMINAL BLOCK 		$56.14 (12.1% off) 1
21 307436
BATTERY CABLE
Not for GD 		$208.58 1
22 285128
WIRING HARNESS FOR PASSENGER SEAT
Applicable for 4-point seat harness; Applicable for mechanical seat; For rear base cable; Applicable for HELE; Not for USA, CDN, USA LIGHT 		$105.89 1
23 325389
PASS. COMPARTMENT-BUMPER DAB EXTENSION CABLE
Also supplied with front cable pos. 2; Applicable for UK; Applicable from Ass. No. 131050 		$3,026.01 1
24 325390
BUMPER DAB AMPLIFIER
Applicable for UK; Applicable from Ass. No. 131050 		$286.67 1
25 11625824
SCREW
M6 X 18; Applicable for UK; Applicable from Ass. No. 131050 		$0.39 (61% off) 1
26 255515
BUSH
100 x 50 mm 		$2.24 2

Haven't found what you're looking for?

Original Parts Tuning Parts Need help? Call us

View Cart / Checkout
