ANTITHEFT SYSTEM of Ferrari Ferrari 488 GTB

View All

Ferrari 488 GTB - ANTITHEFT SYSTEM

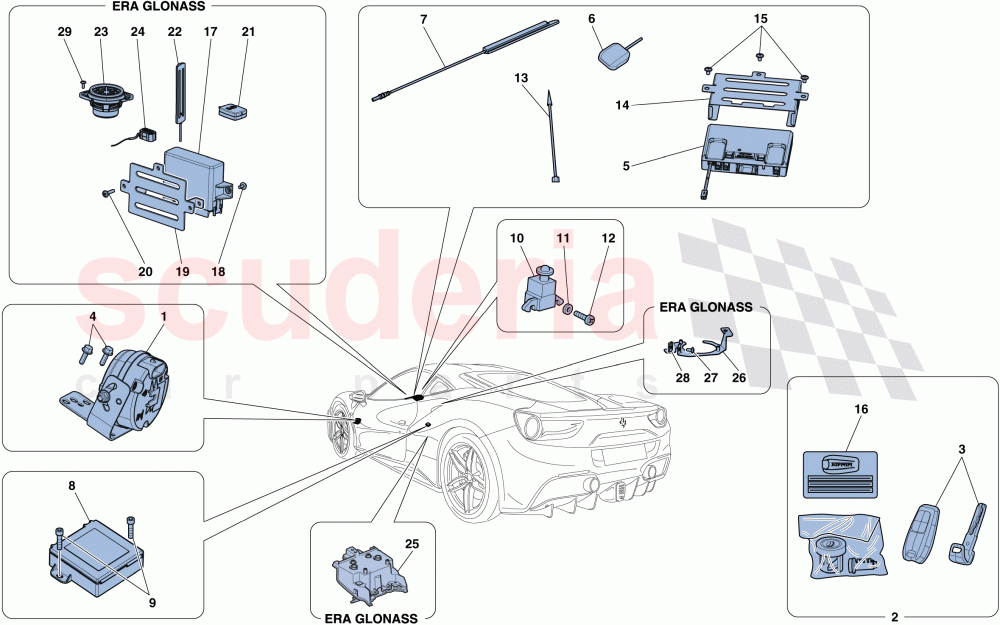

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	315686	ANTI-THEFT SYSTEM SIREN	Enquire	To Order
	294965	ANTI-THEFT SIREN UNIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	329045	KEY AND BLOCK KIT	Enquire	To Order
	328976	KEY AND BLOCK KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	328404	KEYLESS KEY KIT	Enquire	To Order
	328403	KEYLESS KEY KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11568124	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	316923	ADR10 SATELLITE ALARM SYSTEM ECU	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	278513	GPS ANTENNA	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	278514	GSM ANTENNA	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	316531	MASTER DIPOLE ANTI-LIFT SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	847648	DASHBOARD INFOLED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	88822200	SCREW TORX HEAD M4 X 10MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12642821	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	307605	ADR10 ANTI-THEFT SYSTEM ANTENNA	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	315029	SATELLITE ALARM SYSTEM ECU MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6326163	SECRET CARD LABEL FOR KEYS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	794723	GLONASS ECU	Enquire	To Order
	330644	GLONASS ECU	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	334966	ERA GLONASS ECU BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	332823	GLONASS GPS ANTENNA	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	332824	GLONASS GSM ANTENNA	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	332825	GLONASS SPEAKER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	333337	GSM MICROPHONE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	332826	GLONASS SWITCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	88914500	SPEAKER MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68700800	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	88822200	SCREW TORX HEAD M4 X 10MM	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	315686	ANTI-THEFT SYSTEM SIREN	315686 ANTI-THEFT SYSTEM SIREN Applicable for Israel	-	1	Enquire
1	294965	ANTI-THEFT SIREN UNIT	294965 ANTI-THEFT SIREN UNIT Not for Israel	-	1	Enquire
2	329045	KEY AND BLOCK KIT	329045 KEY AND BLOCK KIT Contains 2 keys, 2 barrels, 1 secret card and 1 keyless key; Applicable for J	-	1	Enquire
2	328976	KEY AND BLOCK KIT	328976 KEY AND BLOCK KIT Contains 2 keys, 2 barrels, 1 secret card and 1 keyless key; Not for J	-	1	Enquire
3	328404	KEYLESS KEY KIT	328404 KEYLESS KEY KIT Applicable for J	-	1	Enquire
3	328403	KEYLESS KEY KIT	328403 KEYLESS KEY KIT Not for J	-	1	Enquire
4	11568124	SCREW	11568124 SCREW M5 X 16	-	2	Enquire
5	316923	ADR10 SATELLITE ALARM SYSTEM ECU	316923 ADR10 SATELLITE ALARM SYSTEM ECU	-	1	Enquire
6	278513	GPS ANTENNA	278513 GPS ANTENNA	-	1	Enquire
7	278514	GSM ANTENNA	278514 GSM ANTENNA	-	1	Enquire
8	316531	MASTER DIPOLE ANTI-LIFT SENSOR	316531 MASTER DIPOLE ANTI-LIFT SENSOR	-	1	Enquire
9	85833700	SCREW	85833700 SCREW M5 X 12	-	2	Enquire
10	847648	DASHBOARD INFOLED	847648 DASHBOARD INFOLED	-	1	Enquire
11	88822200	SCREW TORX HEAD M4 X 10MM	88822200 SCREW TORX HEAD M4 X 10MM	-	2	Enquire
12	12642821	WASHER	12642821 WASHER	-	2	Enquire
13	307605	ADR10 ANTI-THEFT SYSTEM ANTENNA	307605 ADR10 ANTI-THEFT SYSTEM ANTENNA	-	1	Enquire
14	315029	SATELLITE ALARM SYSTEM ECU MOUNTING BRACKET	315029 SATELLITE ALARM SYSTEM ECU MOUNTING BRACKET	-	1	Enquire
15	85833700	SCREW	85833700 SCREW M5 X 8	-	3	Enquire
16	6326163	SECRET CARD LABEL FOR KEYS	6326163 SECRET CARD LABEL FOR KEYS	-	1	Enquire
17	794723	GLONASS ECU	794723 GLONASS ECU Scheduled; Applicable for Russia, Armenia, Belarus, Kazakhstan and Kyrgyzstan markets; Applicable for ERA GLONASS system	-	1	Enquire
17	330644	GLONASS ECU	330644 GLONASS ECU Unprogrammed; Applicable for Russia, Armenia, Belarus, Kazakhstan and Kyrgyzstan markets; Applicable for ERA GLONASS system; No longer supplied; Replaced by 794723	-	1	Enquire
18	85833700	SCREW	85833700 SCREW M5 X 8; Applicable for Russia, Armenia, Belarus, Kazakhstan and Kyrgyzstan markets; Applicable for ERA GLONASS system	-	2	Enquire
19	334966	ERA GLONASS ECU BRACKET	334966 ERA GLONASS ECU BRACKET Applicable for Russia, Armenia, Belarus, Kazakhstan and Kyrgyzstan markets; Applicable for ERA GLONASS system	-	1	Enquire
20	85833700	SCREW	85833700 SCREW M5 X 8; Applicable for Russia, Armenia, Belarus, Kazakhstan and Kyrgyzstan markets; Applicable for ERA GLONASS system	-	3	Enquire
21	332823	GLONASS GPS ANTENNA	332823 GLONASS GPS ANTENNA Applicable for Russia, Armenia, Belarus, Kazakhstan and Kyrgyzstan markets; Applicable for ERA GLONASS system	-	1	Enquire
22	332824	GLONASS GSM ANTENNA	332824 GLONASS GSM ANTENNA Applicable for Russia, Armenia, Belarus, Kazakhstan and Kyrgyzstan markets; Applicable for ERA GLONASS system	-	1	Enquire
23	332825	GLONASS SPEAKER	332825 GLONASS SPEAKER Applicable for Russia, Armenia, Belarus, Kazakhstan and Kyrgyzstan markets; Applicable for ERA GLONASS system	-	1	Enquire
24	333337	GSM MICROPHONE	333337 GSM MICROPHONE Applicable for Russia, Armenia, Belarus, Kazakhstan and Kyrgyzstan markets; Applicable for ERA GLONASS system	-	1	Enquire
25	332826	GLONASS SWITCH	332826 GLONASS SWITCH Applicable for Russia, Armenia, Belarus, Kazakhstan and Kyrgyzstan markets; Applicable for ERA GLONASS system	-	1	Enquire
26	88914500	SPEAKER MOUNTING BRACKET	88914500 SPEAKER MOUNTING BRACKET Applicable for Russia, Armenia, Belarus, Kazakhstan and Kyrgyzstan markets; Applicable for ERA GLONASS system	-	1	Enquire
27	85833700	SCREW	85833700 SCREW M5 X 14; Applicable for Russia, Armenia, Belarus, Kazakhstan and Kyrgyzstan markets; Applicable for ERA GLONASS system	-	1	Enquire
28	68700800	CLIP	68700800 CLIP Applicable for Russia, Armenia, Belarus, Kazakhstan and Kyrgyzstan markets; Applicable for ERA GLONASS system	-	1	Enquire
29	88822200	SCREW TORX HEAD M4 X 10MM	88822200 SCREW TORX HEAD M4 X 10MM M4 X 10; Applicable for Russia, Armenia, Belarus, Kazakhstan and Kyrgyzstan markets; Applicable for ERA GLONASS system	-	2	Enquire
