SECONDARY AIR SYSTEM

Find Your Part

Ferrari 458 Italia - SECONDARY AIR SYSTEM

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
247795 SECONDARY AIR SYSTEM PUMP $802.28 To Order
Photo Part No Description Price (each) Stock
251773 BRACKET $38.69 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.51 To Order
Photo Part No Description Price (each) Stock
262254 CONNECTOR PIPE $125.14 To Order
Photo Part No Description Price (each) Stock
13433370 Screw Collar $0.91 To Order
262111 JUBILEE CLAMP $1.60 To Order
Photo Part No Description Price (each) Stock
258291 LH HEAT SHIELD $192.54 To Order
Photo Part No Description Price (each) Stock
231619 SCREW $0.31 To Order
Photo Part No Description Price (each) Stock
85833900 SCREW $0.36 ARRIVING SOON
Photo Part No Description Price (each) Stock
195645 VACUUM ACCUMULATOR TANK $215.00 To Order
Photo Part No Description Price (each) Stock
60758600 NUT $0.57 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.51 To Order
Photo Part No Description Price (each) Stock
12644424 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
278294 RH VACUUM PIPE TO ENGINE $133.17 To Order
Photo Part No Description Price (each) Stock
278295 LH VACUUM PIPE TO ENGINE $133.17 To Order
Photo Part No Description Price (each) Stock
265726 SHIELD BRACKET $13.63 To Order
Photo Part No Description Price (each) Stock
260385 PIPE FROM TANK TO CONNECTOR $147.61 To Order
Photo Part No Description Price (each) Stock
251422 CONNECTOR $12.72 To Order
Photo Part No Description Price (each) Stock
13432070 HOSE COLLAR $0.57 To Order
10716370 COLLAR $0.89 To Order
13432070 HOSE COLLAR $0.57 To Order
Photo Part No Description Price (each) Stock
85833900 SCREW $0.36 ARRIVING SOON
Photo Part No Description Price (each) Stock
178309 SOLENOID VALVE $109.10 To Order
Photo Part No Description Price (each) Stock
85833900 SCREW $0.36 ARRIVING SOON
Photo Part No Description Price (each) Stock
248008 CAP $14.59 To Order
Photo Part No Description Price (each) Stock
260386 ALUMINIUM PIPE $97.86 To Order
Photo Part No Description Price (each) Stock
141546 CLIP $0.23 To Order
Photo Part No Description Price (each) Stock
140130 CLIP $0.15 To Order
Photo Part No Description Price (each) Stock
260272 BENT PIPE $11.54 To Order
Photo Part No Description Price (each) Stock
260244 BRACKET $10.89 To Order
Photo Part No Description Price (each) Stock
260246 BRACKET $7.44 To Order
Photo Part No Description Price (each) Stock
264289 PIPE $97.86 To Order
264089 PIPE $105.89 To Order
260250 PIPE Enquire To Order
Photo Part No Description Price (each) Stock
260387 BRACKET $94.66 To Order
Photo Part No Description Price (each) Stock
231619 SCREW $0.31 To Order
Photo Part No Description Price (each) Stock
262245 RUBBER PIPE $37.25 To Order
Photo Part No Description Price (each) Stock
149773 CLIP $0.44 To Order
149773 CLIP $0.44 To Order
263772 CLIP $1.65 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
258623 SECONDARY AIR SYSTEM PIPE $258.00 To Order
Photo Part No Description Price (each) Stock
141235 RUBBER PIPE $10.73 To Order
Photo Part No Description Price (each) Stock
171175 SECONDARY AIR VALVE $336.95 To Order
Photo Part No Description Price (each) Stock
183717 SLEEVE $372.69 To Order
Photo Part No Description Price (each) Stock
262111 JUBILEE CLAMP $1.60 To Order
Photo Part No Description Price (each) Stock
186781 GASKET $5.28 To Order
Photo Part No Description Price (each) Stock
245816 RH VALVE FASTENER BRACKET $15.71 To Order
245815 LH VALVE FASTENER BRACKET $20.84 To Order
Photo Part No Description Price (each) Stock
263794 PIPE FROM AIR VALVE TO RH MANIFOLD $224.63 To Order
263795 PIPE FROM AIR VALVE TO LH MANIFOLD $224.63 To Order
Photo Part No Description Price (each) Stock
231620 SCREW $0.32 To Order
Photo Part No Description Price (each) Stock
819489 FLANGED BUSHING $14.75 To Order
Photo Part No Description Price (each) Stock
231619 SCREW $0.31 To Order
Photo Part No Description Price (each) Stock
248334 SCREW $0.68 To Order
Photo Part No Description Price (each) Stock
241986 COLLAR FOR HOSE UNION $1.05 To Order
Photo Part No Description Price (each) Stock
258595 ANCHOR FOR CLIPS $0.94 To Order
Photo Part No Description Price (each) Stock
249556 CLIP $0.55 To Order
Photo Part No Description Price (each) Stock
303076 BRACKET $43.31 To Order
Photo Part No Description Price (each) Stock
231619 SCREW $0.31 To Order
View All

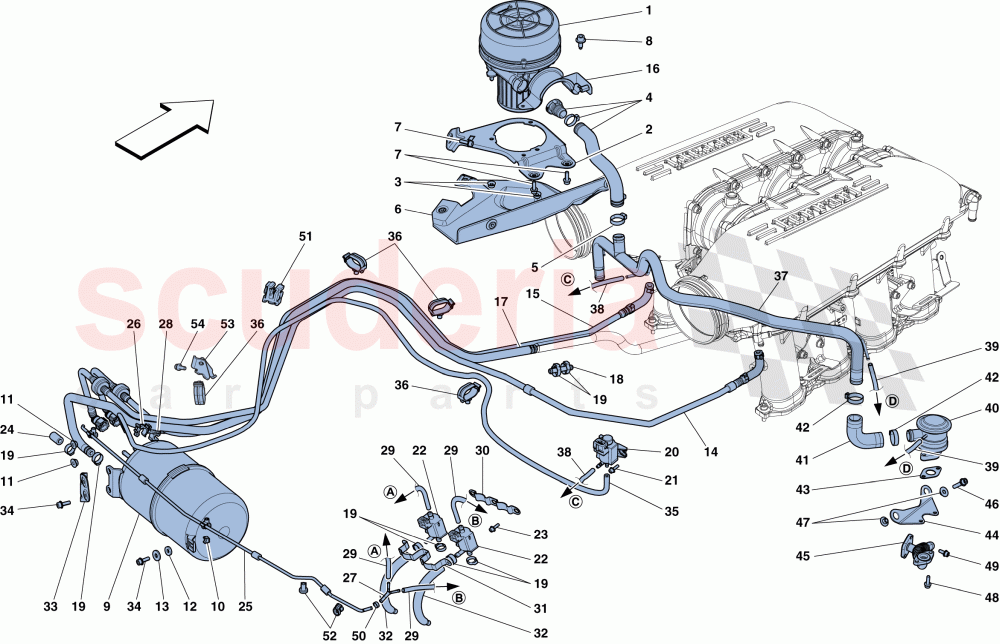

SECONDARY AIR SYSTEM of Ferrari Ferrari 458 Italia Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 247795
SECONDARY AIR SYSTEM PUMP 		$802.28 (23.9% off) 1
2 251773
BRACKET 		$38.69 1
3 14059290
FLANGED NUT M6 		$1.51 3
4 262254
CONNECTOR PIPE 		$125.14 1
5 13433370
Screw Collar
No longer supplied; Replaced by 296779 		$0.91 1
5 262111
JUBILEE CLAMP 		$1.60 1
6 258291
LH HEAT SHIELD 		$192.54 1
7 231619
SCREW
M6 X 18 		$0.31 3
8 85833900
SCREW
ARRIVING SOON 		$0.36 2
9 195645
VACUUM ACCUMULATOR TANK 		$215.00 (19.6% off) 1
10 60758600
NUT 		$0.57 (63.2% off) 1
11 14059290
FLANGED NUT M6 		$1.51 2
12 12644424
WASHER 		$0.06 (85% off) 3
13 11197774
WASHER 		$0.06 (80% off) 3
14 278294
RH VACUUM PIPE TO ENGINE 		$133.17 1
15 278295
LH VACUUM PIPE TO ENGINE 		$133.17 1
16 265726
SHIELD BRACKET 		$13.63 1
17 260385
PIPE FROM TANK TO CONNECTOR 		$147.61 1
18 251422
CONNECTOR 		$12.72 1
19 13432070
HOSE COLLAR
D. 15.7 		$0.57 (46.7% off) 1
19 10716370
COLLAR
D. 18 		$0.89 4
19 13432070
HOSE COLLAR
D. 16.2 		$0.57 (46.7% off) 7
21 85833900
SCREW
ARRIVING SOON 		$0.36 2
22 178309
SOLENOID VALVE 		$109.10 (21.5% off) 2
23 85833900
SCREW
M5 X 16
ARRIVING SOON 		$0.36 3
24 248008
CAP 		$14.59 1
25 260386
ALUMINIUM PIPE 		$97.86 1
26 141546
CLIP 		$0.23 1
28 140130
CLIP 		$0.15 (72.2% off) 2
29 260272
BENT PIPE 		$11.54 2
30 260244
BRACKET 		$10.89 1
31 260246
BRACKET 		$7.44 1
32 264289
PIPE 		$97.86 1
32 264089
PIPE 		$105.89 1
32 260250
PIPE
Replaced by 264289 and 264089; No longer supplied 		- 2 Enquire
33 260387
BRACKET 		$94.66 1
34 231619
SCREW
M6 X 18 		$0.31 5
35 262245
RUBBER PIPE 		$37.25 1
36 149773
CLIP
For air pipes on chassis 		$0.44 2
36 149773
CLIP
For LH vacuum pipe 		$0.44 4
36 263772
CLIP
For actuator pipes on LH reinforcement 		$1.65 2
36 249393
CLIP
For rubber pipe leading to solenoid valve 		$0.52 1
37 258623
SECONDARY AIR SYSTEM PIPE 		$258.00 1
39 141235
RUBBER PIPE 		$10.73 2
40 171175
SECONDARY AIR VALVE 		$336.95 2
41 183717
SLEEVE 		$372.69 2
42 262111
JUBILEE CLAMP 		$1.60 4
43 186781
GASKET 		$5.28 (16.9% off) 4
44 245816
RH VALVE FASTENER BRACKET 		$15.71 1
44 245815
LH VALVE FASTENER BRACKET 		$20.84 1
45 263794
PIPE FROM AIR VALVE TO RH MANIFOLD 		$224.63 1
45 263795
PIPE FROM AIR VALVE TO LH MANIFOLD 		$224.63 1
46 231620
SCREW
M6 X 25 		$0.32 (8.6% off) 4
47 819489
FLANGED BUSHING 		$14.75 8
48 231619
SCREW
M6 X 20 		$0.31 4
49 248334
SCREW
M6 X 14 		$0.68 4
50 241986
COLLAR FOR HOSE UNION 		$1.05 1
51 258595
ANCHOR FOR CLIPS 		$0.94 1
52 249556
CLIP 		$0.55 4
53 303076
BRACKET 		$43.31 1
54 231619
SCREW
M6 X 18 		$0.31 1
