Ferrari 458 Italia - LUBRICATION SYSTEM: TANK, PUMP AND FILTER

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
781584 COMPL. OIL PUMP $3,786.84 To Order
793012 COMPL. OIL PUMP $3,948.90 IN STOCK
Photo Part No Description Price (each) Stock
237937 COMPLETE CAP $288.81 To Order
Photo Part No Description Price (each) Stock
176179 RUBBER PIPE FROM TANK TO CONNECTOR $6.73 To Order
Photo Part No Description Price (each) Stock
258855 3-WAY CONNECTOR $44.04 IN STOCK
Photo Part No Description Price (each) Stock
165608 RUBBER PIPE $2.54 To Order
Photo Part No Description Price (each) Stock
141235 RUBBER PIPE $10.10 To Order
Photo Part No Description Price (each) Stock
290312 RH INLET PIPE $107.49 To Order
290312 RH INLET PIPE $107.49 To Order
274264 RH INLET PIPE $68.98 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
290313 LH INLET PIPE $107.49 IN STOCK
290313 LH INLET PIPE $107.49 IN STOCK
274266 LH INLET PIPE $67.38 IN STOCK
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
13432070 HOSE COLLAR $0.57 IN STOCK
Photo Part No Description Price (each) Stock
255176 OIL PICKUP $160.44 IN STOCK
Photo Part No Description Price (each) Stock
104212 O-RING $0.65 IN STOCK
862084 GASKET $5.67 To Order
Photo Part No Description Price (each) Stock
239453 YOKE $6.89 To Order
Photo Part No Description Price (each) Stock
284579 OIL VAPOUR BREATHER PIPE $201.00 To Order
281311 OIL VAPOUR BREATHER PIPE $144.40 To Order
Photo Part No Description Price (each) Stock
13432070 HOSE COLLAR $0.57 IN STOCK
13431970 COLLAR $0.91 To Order
13432070 HOSE COLLAR $0.57 IN STOCK
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
100332 OIL PICKUP FILTER $20.89 IN STOCK
Photo Part No Description Price (each) Stock
125521 O-RING $11.20 IN STOCK
Photo Part No Description Price (each) Stock
231619 SCREW $0.31 IN STOCK
11500524 STUD BOLT $0.37 To Order
Photo Part No Description Price (each) Stock
177576 CABLE GROMMET $2.20 IN STOCK
Photo Part No Description Price (each) Stock
293107 THREADED PLUG $86.03 IN STOCK
Photo Part No Description Price (each) Stock
231620 SCREW $0.32 IN STOCK
Photo Part No Description Price (each) Stock
12643724 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
253909 OIL RECOVERY PIPE $320.90 To Order
Photo Part No Description Price (each) Stock
121903 GASKET $0.78 IN STOCK
Photo Part No Description Price (each) Stock
239452 YOKE $6.89 To Order
Photo Part No Description Price (each) Stock
248334 SCREW $0.68 To Order
Photo Part No Description Price (each) Stock
10261460 COPPER WASHER 16 X 24 X 1.5 $0.36 IN STOCK
Photo Part No Description Price (each) Stock
248334 SCREW $0.68 To Order
Photo Part No Description Price (each) Stock
241986 COLLAR FOR HOSE UNION $0.99 IN STOCK
Photo Part No Description Price (each) Stock
14306424 SCREW $0.21 IN STOCK
Photo Part No Description Price (each) Stock
14306624 SCREW $0.28 IN STOCK
Photo Part No Description Price (each) Stock
239462 CALIBRATED SCREW $7.42 To Order
Photo Part No Description Price (each) Stock
986899 WASHER $6.34 To Order
Photo Part No Description Price (each) Stock
247044 HEXAGONAL OIL PUMP DRIVE ROD $32.08 To Order
Photo Part No Description Price (each) Stock
271893 OIL PUMP GASKET KIT $88.24 To Order
Photo Part No Description Price (each) Stock
14326101 THREADED PLUG $1.17 To Order
291502 CONNECTOR $67.38 To Order
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.43 IN STOCK
Photo Part No Description Price (each) Stock
819489 FLANGED BUSHING $14.75 To Order
Photo Part No Description Price (each) Stock
255546 CLIP $1.96 To Order
Photo Part No Description Price (each) Stock
263347 BRACKET $10.89 To Order
Photo Part No Description Price (each) Stock
248334 SCREW $0.68 To Order
Photo Part No Description Price (each) Stock
269662 OIL TANK $2,182.24 To Order
274262 OIL TANK $2,299.37 To Order
Photo Part No Description Price (each) Stock
284208 OIL VAPOUR BREATHER PIPE ON HEADS $176.49 IN STOCK
Photo Part No Description Price (each) Stock
284209 OIL VAPOUR BREATHER PIPE, TANK SIDE $70.59 To Order
Photo Part No Description Price (each) Stock
13046011 NUT $0.39 To Order
View All

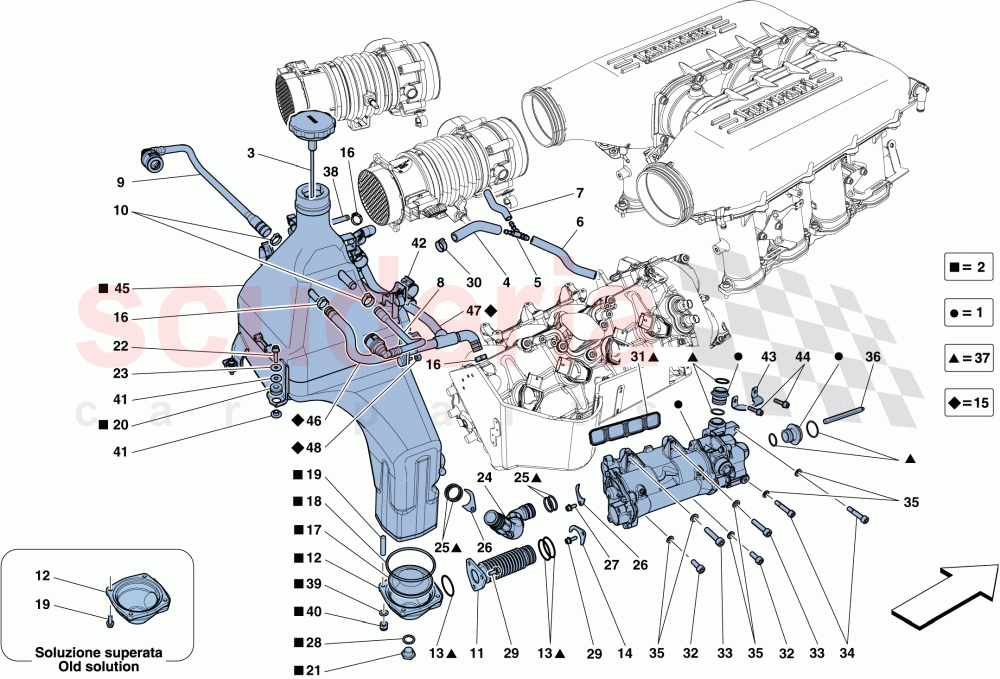

LUBRICATION SYSTEM: TANK, PUMP AND FILTER of Ferrari Ferrari 458 Italia Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 781584
COMPL. OIL PUMP
No longer supplied; Replaced by 793012 		$3,786.84 1
1 793012
COMPL. OIL PUMP
IN STOCK 		$3,948.90 1
3 237937
COMPLETE CAP 		$288.81 1
4 176179
RUBBER PIPE FROM TANK TO CONNECTOR
Applicable for USA, CDN 		$6.73 1
5 258855
3-WAY CONNECTOR
Applicable for USA, CDN
IN STOCK 		$44.04 1
6 165608
RUBBER PIPE
Applicable for USA, CDN 		$2.54 1
7 141235
RUBBER PIPE
Applicable for USA, CDN 		$10.10 1
8 290312
RH INLET PIPE
Applicable for USA, CDN; Applicable up to Ass. No. 118577 		$107.49 1
8 290312
RH INLET PIPE
Applicable for USA, CDN; Applicable from Ass. No. 118578 		$107.49 1
8 274264
RH INLET PIPE
Not for USA, CDN; Applicable up to Ass. No. 118577 		$68.98 1
8 274264
RH INLET PIPE
Not for USA, CDN; Applicable from Ass. No. 118578 		$68.98 1
9 290313
LH INLET PIPE
Applicable for USA, CDN; Applicable up to Ass. No. 118577
IN STOCK 		$107.49 1
9 290313
LH INLET PIPE
Applicable for USA, CDN; Applicable from Ass. No. 118578
IN STOCK 		$107.49 1
9 274266
LH INLET PIPE
Not for USA, CDN; Applicable up to Ass. No. 118577
IN STOCK 		$67.38 1
9 274266
LH INLET PIPE
Not for USA, CDN; Applicable from Ass. No. 118578
IN STOCK 		$67.38 1
10 13432070
HOSE COLLAR
D. 15.7
IN STOCK 		$0.57 (46.7% off) 2
12 255176
OIL PICKUP
IN STOCK 		$160.44 1
13 104212
O-RING
Also supplied with kit 271893 ref. 37
IN STOCK 		$0.65 (35% off) 2
13 862084
GASKET
Also supplied with kit 271893 ref. 37 		$5.67 1
14 239453
YOKE 		$6.89 1
15 284579
OIL VAPOUR BREATHER PIPE
Applicable for USA, CDN; Applicable up to Ass. No. 118577 		$201.00 1
15 281311
OIL VAPOUR BREATHER PIPE
For vehicles up to Engine No. 178072, also order union 272276 (q.ty 2); Not for USA, CDN 		$144.40 1
16 13432070
HOSE COLLAR
D. 15.7; Head side; Applicable for USA, CDN
IN STOCK 		$0.57 (46.7% off) 2
16 13431970
COLLAR
Tank side; Applicable for USA, CDN 		$0.91 1
16 13432070
HOSE COLLAR
D. 15.7; Head side; Not for USA, CDN; Applicable from engine No. 178073
IN STOCK 		$0.57 (46.7% off) 2
16 10716370
COLLAR
D. 18; Not for USA, CDN; Applicable up to engine No. 178072
IN STOCK 		$0.86 3
16 13431970
COLLAR
Tank side; Not for USA, CDN; Applicable from engine No. 178073 		$0.91 1
17 100332
OIL PICKUP FILTER
IN STOCK 		$20.89 1
18 125521
O-RING
IN STOCK 		$11.20 1
19 231619
SCREW
M6 X 20; No longer supplied; Replaced by 11500524
IN STOCK 		$0.31 4
19 11500524
STUD BOLT 		$0.37 (63% off) 4
20 177576
CABLE GROMMET
IN STOCK 		$2.20 4
21 293107
THREADED PLUG
IN STOCK 		$86.03 1
22 231620
SCREW
M6 X 25
IN STOCK 		$0.32 (8.6% off) 4
23 12643724
WASHER
IN STOCK 		$0.06 (88% off) 4
24 253909
OIL RECOVERY PIPE 		$320.90 1
25 121903
GASKET
Also supplied with kit 271893 ref. 37
IN STOCK 		$0.78 (60% off) 4
26 239452
YOKE 		$6.89 2
27 248334
SCREW
M6 X 14 		$0.68 2
28 10261460
COPPER WASHER 16 X 24 X 1.5
IN STOCK 		$0.36 (64% off) 1
29 248334
SCREW
M6 X 14 		$0.68 4
30 241986
COLLAR FOR HOSE UNION
Applicable for USA, CDN
IN STOCK 		$0.99 1
32 14306424
SCREW
M8 X 20
IN STOCK 		$0.21 (48.8% off) 2
33 14306624
SCREW
M8 X 35
IN STOCK 		$0.28 2
34 239462
CALIBRATED SCREW 		$7.42 2
35 986899
WASHER 		$6.34 6
36 247044
HEXAGONAL OIL PUMP DRIVE ROD 		$32.08 1
37 271893
OIL PUMP GASKET KIT 		$88.24 (27.9% off) 1
38 14326101
THREADED PLUG
Applicable for compl. oil tank 269663 ref. 2; Applicable for USA, CDN 		$1.17 (29.1% off) 1
38 291502
CONNECTOR
Applicable for compl. oil tank 269663 ref. 2; Not for USA, CDN 		$67.38 1
39 11197774
WASHER
IN STOCK 		$0.06 (80% off) 4
40 14059290
FLANGED NUT M6
IN STOCK 		$1.43 4
41 819489
FLANGED BUSHING 		$14.75 8
42 255546
CLIP 		$1.96 1
43 263347
BRACKET 		$10.89 1
44 248334
SCREW 		$0.68 2
45 269662
OIL TANK
Applicable up to Ass. No. 118577 		$2,182.24 1
45 274262
OIL TANK
Applicable from Ass. No. 118578 		$2,299.37 1
46 284208
OIL VAPOUR BREATHER PIPE ON HEADS
Applicable for USA, CDN; Applicable from Ass. No. 118578
IN STOCK 		$176.49 1
47 284209
OIL VAPOUR BREATHER PIPE, TANK SIDE
Applicable for USA, CDN; Applicable from Ass. No. 118578 		$70.59 1
48 13046011
NUT
Applicable for USA, CDN; Applicable from Ass. No. 118578 		$0.39 1
