Ferrari 458 Spider - GEARBOX OIL COOLING RADIATORS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
14054577 CAP NUT $0.32 IN STOCK
Photo Part No Description Price (each) Stock
12648978 WASHER $0.55 IN STOCK
Photo Part No Description Price (each) Stock
255048 GROMMET SHIM $2.66 IN STOCK
Photo Part No Description Price (each) Stock
255047 CABLE GROMMET $3.65 To Order
Photo Part No Description Price (each) Stock
277070 COMPL. ELECTRIC FAN $304.57 To Order
Photo Part No Description Price (each) Stock
257824 BRACKET $6.73 To Order
Photo Part No Description Price (each) Stock
83002200 LH AIR DUCT ON OIL RADIATOR $113.91 To Order
83002700 RH AIR DUCT ON OIL RADIATOR $113.91 To Order
Photo Part No Description Price (each) Stock
62769800 WASHER $0.23 IN STOCK
Photo Part No Description Price (each) Stock
14054048 NUT Enquire IN STOCK
Photo Part No Description Price (each) Stock
62769800 WASHER $0.23 IN STOCK
Photo Part No Description Price (each) Stock
62766300 SCRE CLIP M6 $0.76 IN STOCK
68700800 CLIP $1.00 To Order
Photo Part No Description Price (each) Stock
264386 PROTECTIVE FOAM FOR OIL RADIATORS $4.80 To Order
Photo Part No Description Price (each) Stock
83021900 LH AIR DUCT $336.95 To Order
83021800 RH AIR DUCT $336.95 To Order
Photo Part No Description Price (each) Stock
83002900 RH AIR DUCT ON BODYSHELL $272.77 To Order
83002500 LH AIR DUCT ON BODYSHELL $272.77 To Order
Photo Part No Description Price (each) Stock
11625824 SCREW $0.39 IN STOCK
Photo Part No Description Price (each) Stock
16281827 SCREW $0.23 IN STOCK
Photo Part No Description Price (each) Stock
12643724 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
81591700 SCREW $2.24 To Order
11568124 SCREW $0.96 IN STOCK
Photo Part No Description Price (each) Stock
12643724 WASHER $0.06 IN STOCK
View All

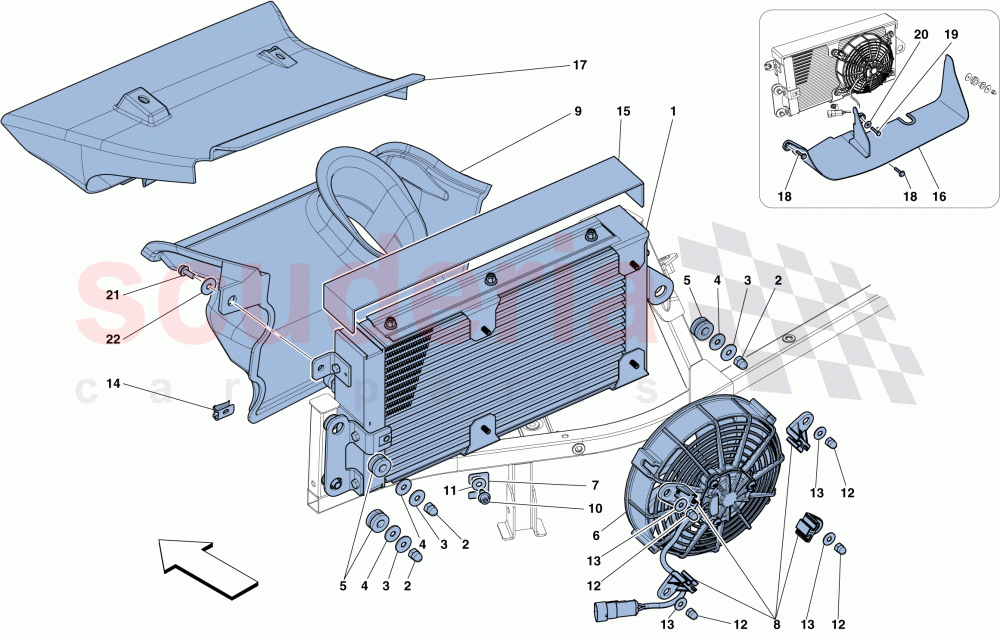

GEARBOX OIL COOLING RADIATORS of Ferrari Ferrari 458 Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
2 14054577
CAP NUT
IN STOCK 		$0.32 6
3 12648978
WASHER
IN STOCK 		$0.55 12
4 255048
GROMMET SHIM
IN STOCK 		$2.66 6
5 255047
CABLE GROMMET 		$3.65 6
6 277070
COMPL. ELECTRIC FAN 		$304.57 1
7 155751
CLIP 		$4.39 (11.3% off) 1
8 257824
BRACKET 		$6.73 4
9 83002200
LH AIR DUCT ON OIL RADIATOR 		$113.91 1
9 83002700
RH AIR DUCT ON OIL RADIATOR 		$113.91 1
10 85833900
SCREW
IN STOCK 		$0.36 1
11 62769800
WASHER
IN STOCK 		$0.23 (23.3% off) 1
12 14054048
NUT
IN STOCK 		- 4 Enquire
13 62769800
WASHER
IN STOCK 		$0.23 (23.3% off) 4
14 62766300
SCRE CLIP M6
IN STOCK 		$0.76 4
14 68700800
CLIP 		$1.00 6
15 264386
PROTECTIVE FOAM FOR OIL RADIATORS 		$4.80 2
16 83021900
LH AIR DUCT 		$336.95 1
16 83021800
RH AIR DUCT 		$336.95 (33.5% off) 1
17 83002900
RH AIR DUCT ON BODYSHELL 		$272.77 1
17 83002500
LH AIR DUCT ON BODYSHELL 		$272.77 1
18 11625824
SCREW
M6 X 18
IN STOCK 		$0.39 (61% off) 4
19 16281827
SCREW
IN STOCK 		$0.23 2
20 12643724
WASHER
IN STOCK 		$0.06 (88% off) 2
21 81591700
SCREW
M5 X 20; No longer supplied; Replaced by 16285127 		$2.24 6
21 11568124
SCREW
M5 X 16
IN STOCK 		$0.96 6
22 12643724
WASHER
IN STOCK 		$0.06 (88% off) 6
