GEARBOX HOUSING of Ferrari Ferrari 458 Spider

View All

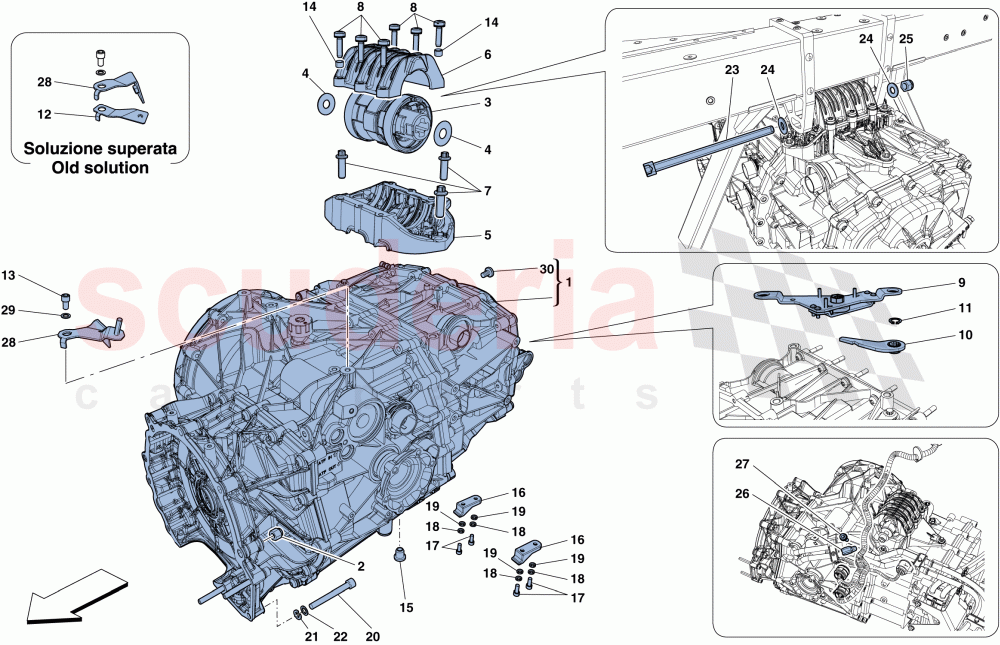

Ferrari 458 Spider - GEARBOX HOUSING

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	263938	COMPL. DUAL CLUTCH GEARBOX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059421	NUT	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	247723	VIBRATION DAMPER	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	255733	SHIM	Enquire	To Order
	255731	SHIM	Enquire	To Order
	255732	SHIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	259440	BUSHING-GEARBOX CONNECTOR PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	259441	BUSHING COVER COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	259443	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	216576	SCREW	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	310524	COMPL. RELEASE CURSOR MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	238370	COMPLETE RELEASE LEVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11066176	SEEGER RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	268009	SHIELD BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14360524	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	102032	CENTERING DOWEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	273038	OIL DRAIN PLUG	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	248689	RETENTION BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14814234	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	12638524	WASHER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14309024	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12638524	WASHER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	921971	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10552324	WASHER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	851485	SELF-LOCKING NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10448890	BRACKET WITH SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82271400	SCREW	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	127498	WASHER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	263679	FUEL LEVEL PLUG	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	263938	COMPL. DUAL CLUTCH GEARBOX	263938 COMPL. DUAL CLUTCH GEARBOX	-	1	Enquire
2	14059421	NUT IN STOCK	14059421 NUT IN STOCK	-	7	Enquire
3	247723	VIBRATION DAMPER ARRIVING SOON	247723 VIBRATION DAMPER ARRIVING SOON	-	1	Enquire
4	255733	SHIM	255733 SHIM Th. 1.5 mm; No longer supplied	-	2	Enquire
4	255731	SHIM	255731 SHIM Th. 0.4 mm	-	3	Enquire
4	255732	SHIM	255732 SHIM Th. 1 mm	-	3	Enquire
5	259440	BUSHING-GEARBOX CONNECTOR PLATE	259440 BUSHING-GEARBOX CONNECTOR PLATE	-	1	Enquire
6	259441	BUSHING COVER COLLAR	259441 BUSHING COVER COLLAR	-	1	Enquire
7	259443	SCREW	259443 SCREW	-	3	Enquire
8	216576	SCREW IN STOCK	216576 SCREW IN STOCK	-	6	Enquire
9	310524	COMPL. RELEASE CURSOR MOUNTING BRACKET	310524 COMPL. RELEASE CURSOR MOUNTING BRACKET	-	1	Enquire
10	238370	COMPLETE RELEASE LEVER	238370 COMPLETE RELEASE LEVER	-	1	Enquire
11	11066176	SEEGER RING	11066176 SEEGER RING	-	1	Enquire
12	268009	SHIELD BRACKET	268009 SHIELD BRACKET No longer supplied	-	1	Enquire
13	14360524	SCREW	14360524 SCREW	-	1	Enquire
14	102032	CENTERING DOWEL	102032 CENTERING DOWEL	-	2	Enquire
15	273038	OIL DRAIN PLUG IN STOCK	273038 OIL DRAIN PLUG IN STOCK	-	1	Enquire
16	248689	RETENTION BRACKET	248689 RETENTION BRACKET	-	2	Enquire
17	14814234	SCREW	14814234 SCREW	-	4	Enquire
18	12601374	WASHER IN STOCK	12601374 WASHER IN STOCK	-	4	Enquire
19	12638524	WASHER IN STOCK	12638524 WASHER IN STOCK	-	4	Enquire
20	14309024	SCREW	14309024 SCREW	-	3	Enquire
21	12638524	WASHER IN STOCK	12638524 WASHER IN STOCK	-	3	Enquire
22	12601374	WASHER IN STOCK	12601374 WASHER IN STOCK	-	3	Enquire
23	921971	SCREW	921971 SCREW	-	1	Enquire
24	10552324	WASHER IN STOCK	10552324 WASHER IN STOCK	-	2	Enquire
25	851485	SELF-LOCKING NUT	851485 SELF-LOCKING NUT	-	1	Enquire
26	10448890	BRACKET WITH SHEATH	10448890 BRACKET WITH SHEATH	-	1	Enquire
27	82271400	SCREW IN STOCK	82271400 SCREW IN STOCK	-	1	Enquire
29	127498	WASHER IN STOCK	127498 WASHER IN STOCK	-	1	Enquire
30	263679	FUEL LEVEL PLUG	263679 FUEL LEVEL PLUG	-	1	Enquire
