Gearbox Oil Lubrication And Cooling System

Ferrari 458 Speciale Aperta

Find Your Part

Ferrari 458 Speciale Aperta - GEARBOX OIL LUBRICATION AND COOLING SYSTEM

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
248224 GEARBOX OIL DELIVERY PIPE $417.18 To Order
Photo Part No Description Price (each) Stock
248225 GEARBOX OIL RETURN PIPE $1,315.75 To Order
Photo Part No Description Price (each) Stock
254644 O-RING $0.41 IN STOCK
Photo Part No Description Price (each) Stock
253632 FORK $43.02 To Order
Photo Part No Description Price (each) Stock
253465 SCREW $36.21 To Order
Photo Part No Description Price (each) Stock
986899 WASHER $6.34 To Order
Photo Part No Description Price (each) Stock
306000 BRACKET $60.96 To Order
Photo Part No Description Price (each) Stock
13543824 STUD BOLT $3.19 IN STOCK
Photo Part No Description Price (each) Stock
243396 RETAINER BLOCK $25.66 To Order
Photo Part No Description Price (each) Stock
243399 BUSH $0.75 IN STOCK
Photo Part No Description Price (each) Stock
243398 PLATE $14.10 To Order
Photo Part No Description Price (each) Stock
11625824 SCREW $0.39 IN STOCK
11568224 SCREW $0.92 To Order
Photo Part No Description Price (each) Stock
304575 BRACKET $113.91 To Order
Photo Part No Description Price (each) Stock
13836424 SCREW $0.36 IN STOCK
Photo Part No Description Price (each) Stock
13046224 NUT $0.37 IN STOCK
Photo Part No Description Price (each) Stock
256689 OIL DELIVERY PIPE $1,808.37 To Order
Photo Part No Description Price (each) Stock
260773 OIL RETURN PIPE $1,808.37 To Order
Photo Part No Description Price (each) Stock
254644 O-RING $0.41 IN STOCK
Photo Part No Description Price (each) Stock
274609 FORK $37.65 To Order
Photo Part No Description Price (each) Stock
253465 SCREW $36.21 To Order
Photo Part No Description Price (each) Stock
986899 WASHER $6.34 To Order
Photo Part No Description Price (each) Stock
283630 DRIP BAFFLE RING $5.54 To Order
Photo Part No Description Price (each) Stock
257790 RING CLAMP $2.07 To Order
View All

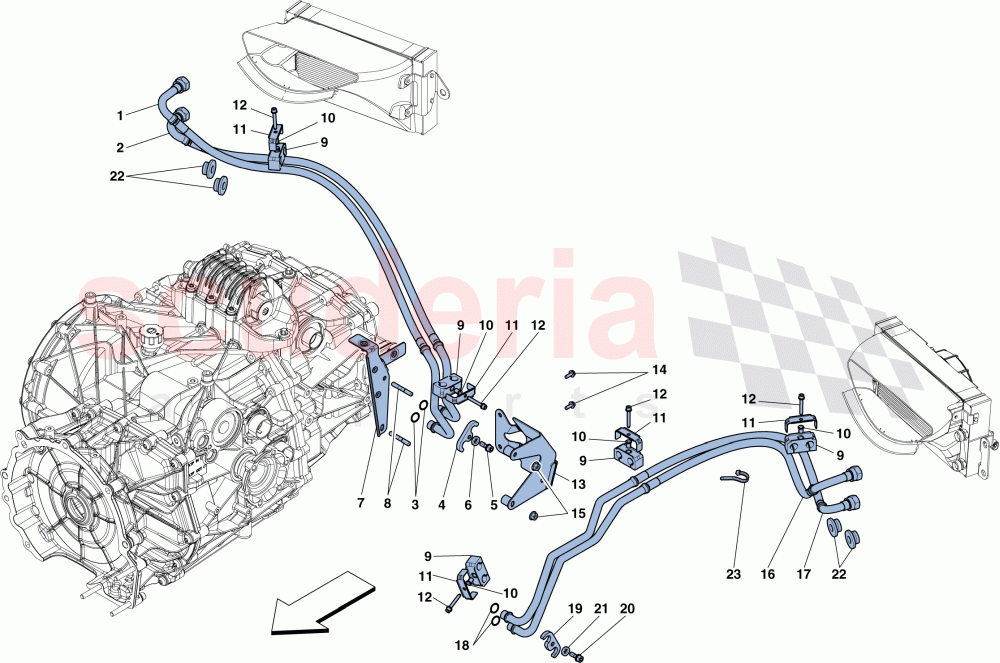

GEARBOX OIL LUBRICATION AND COOLING SYSTEM of Ferrari Ferrari 458 Speciale Aperta Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 248224
GEARBOX OIL DELIVERY PIPE 		$417.18 1
2 248225
GEARBOX OIL RETURN PIPE 		$1,315.75 1
3 254644
O-RING
IN STOCK 		$0.41 (18% off) 2
4 253632
FORK 		$43.02 1
5 253465
SCREW 		$36.21 1
6 986899
WASHER 		$6.34 1
7 306000
BRACKET 		$60.96 1
8 13543824
STUD BOLT
IN STOCK 		$3.19 2
9 243396
RETAINER BLOCK 		$25.66 5
10 243399
BUSH
IN STOCK 		$0.75 5
11 243398
PLATE 		$14.10 5
12 11625824
SCREW
M6 X 40
IN STOCK 		$0.39 (61% off) 2
12 11568224
SCREW
M6 X 45 		$0.92 3
13 304575
BRACKET 		$113.91 1
14 13836424
SCREW
M6 X 16
IN STOCK 		$0.36 1
15 13046224
NUT
IN STOCK 		$0.37 2
16 256689
OIL DELIVERY PIPE 		$1,808.37 1
17 260773
OIL RETURN PIPE 		$1,808.37 (28.3% off) 1
18 254644
O-RING
IN STOCK 		$0.41 (18% off) 2
19 274609
FORK 		$37.65 1
20 253465
SCREW 		$36.21 1
21 986899
WASHER 		$6.34 1
22 283630
DRIP BAFFLE RING 		$5.54 4
23 257790
RING CLAMP 		$2.07 4
