Gearbox Oil Cooling Radiators

Ferrari 458 Speciale Aperta

Find Your Part

Ferrari 458 Speciale Aperta - GEARBOX OIL COOLING RADIATORS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
295369 RH RADIATOR Enquire To Order
295371 LH RADIATOR Enquire To Order
Photo Part No Description Price (each) Stock
14054577 CAP NUT Enquire To Order
Photo Part No Description Price (each) Stock
12648978 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
255048 GROMMET SHIM Enquire To Order
Photo Part No Description Price (each) Stock
255047 CABLE GROMMET Enquire To Order
Photo Part No Description Price (each) Stock
277070 COMPL. ELECTRIC FAN Enquire To Order
Photo Part No Description Price (each) Stock
155751 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
257824 BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
83002700 RH AIR DUCT ON OIL RADIATOR Enquire To Order
83002200 LH AIR DUCT ON OIL RADIATOR Enquire To Order
Photo Part No Description Price (each) Stock
85833700 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
62769800 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
14054048 NUT Enquire To Order
Photo Part No Description Price (each) Stock
62769800 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
68700800 CLIP Enquire To Order
62766300 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
264386 PROTECTIVE FOAM FOR OIL RADIATORS Enquire To Order
Photo Part No Description Price (each) Stock
83021900 LH AIR DUCT Enquire To Order
83021800 RH AIR DUCT Enquire To Order
Photo Part No Description Price (each) Stock
83002500 LH AIR DUCT ON BODYSHELL Enquire To Order
83002900 RH AIR DUCT ON BODYSHELL Enquire To Order
Photo Part No Description Price (each) Stock
11568124 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
12643724 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
11625824 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
16281827 SCREW M5 X 14 Enquire To Order
Photo Part No Description Price (each) Stock
12643724 WASHER Enquire To Order
View All

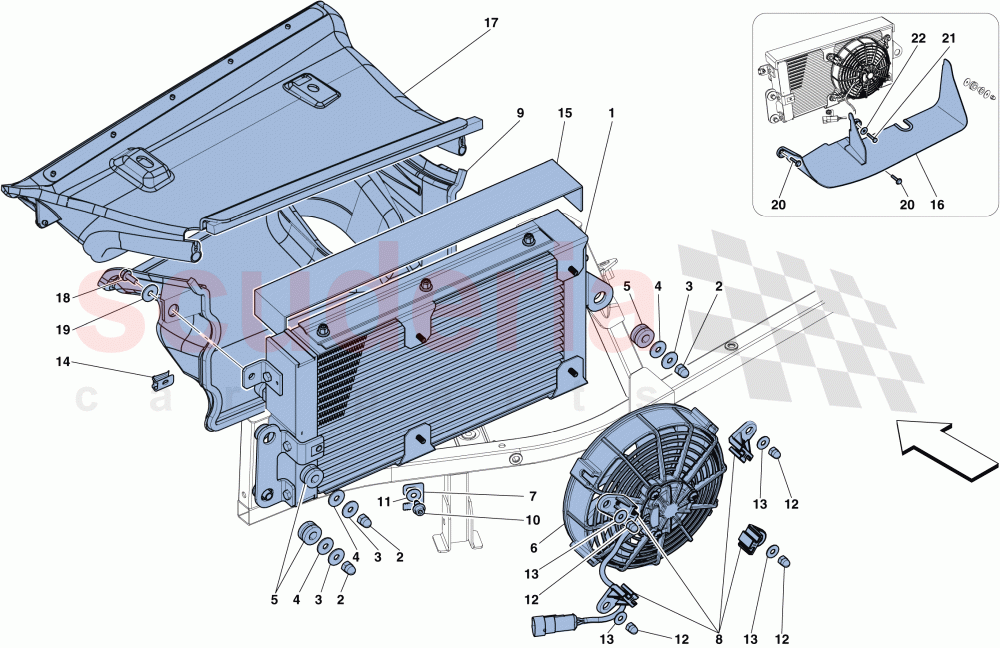

GEARBOX OIL COOLING RADIATORS of Ferrari Ferrari 458 Speciale Aperta Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 295369
RH RADIATOR 		- 1 Enquire
1 295371
LH RADIATOR 		- 1 Enquire
2 14054577
CAP NUT 		- 6 Enquire
3 12648978
WASHER 		- 12 Enquire
4 255048
GROMMET SHIM 		- 6 Enquire
5 255047
CABLE GROMMET 		- 6 Enquire
6 277070
COMPL. ELECTRIC FAN 		- 1 Enquire
7 155751
CLIP 		- 1 Enquire
8 257824
BRACKET 		- 4 Enquire
9 83002700
RH AIR DUCT ON OIL RADIATOR 		- 1 Enquire
9 83002200
LH AIR DUCT ON OIL RADIATOR 		- 1 Enquire
10 85833700
SCREW 		- 1 Enquire
11 62769800
WASHER 		- 1 Enquire
12 14054048
NUT 		- 4 Enquire
13 62769800
WASHER 		- 4 Enquire
14 68700800
CLIP 		- 6 Enquire
14 62766300
CLIP 		- 4 Enquire
15 264386
PROTECTIVE FOAM FOR OIL RADIATORS 		- 2 Enquire
16 83021900
LH AIR DUCT 		- 1 Enquire
16 83021800
RH AIR DUCT 		- 1 Enquire
17 83002500
LH AIR DUCT ON BODYSHELL 		- 1 Enquire
17 83002900
RH AIR DUCT ON BODYSHELL 		- 1 Enquire
18 11568124
SCREW
M5 X 16 		- 6 Enquire
19 12643724
WASHER 		- 6 Enquire
20 11625824
SCREW
M6 X 18 		- 4 Enquire
21 16281827
SCREW M5 X 14 		- 2 Enquire
22 12643724
WASHER 		- 2 Enquire
