CRANKSHAFT - CONNECTING RODS AND PISTONS

Find Your Part

Ferrari 458 Speciale - CRANKSHAFT - CONNECTING RODS AND PISTONS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
300599 CRANKSHAFT $2,270.88 To Order
275436 CRANKSHAFT $2,459.61 To Order
300599 CRANKSHAFT $2,270.88 To Order
Photo Part No Description Price (each) Stock
103877 BEARING $33.28 To Order
Photo Part No Description Price (each) Stock
186201 TAB $1.00 To Order
Photo Part No Description Price (each) Stock
268866 UPPER HALF-BEARING $25.66 To Order
268865 UPPER HALF-BEARING $24.05 To Order
286834 UPPER HALF-BEARING $24.05 To Order
...and 6 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
268871 LOWER HALF-BEARING $25.79 To Order
268870 LOWER HALF-BEARING $24.05 To Order
286838 LOWER HALF-BEARING $22.45 To Order
...and 6 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
261727 SHIM RING $10.89 To Order
222874 SHIM RING $33.68 To Order
261727 SHIM RING $10.89 To Order
Photo Part No Description Price (each) Stock
256341 ENGINE DAMPER FLYWHEEL $3,351.99 To Order
Photo Part No Description Price (each) Stock
229907 SCREW $9.21 To Order
Photo Part No Description Price (each) Stock
266912 TORSION DAMPER $2,276.91 To Order
Photo Part No Description Price (each) Stock
196216 SCREW $75.92 To Order
Photo Part No Description Price (each) Stock
263683 WASHER $52.89 To Order
Photo Part No Description Price (each) Stock
300663 COMPL. CONNECTING ROD AND CAP $657.87 To Order
Photo Part No Description Price (each) Stock
281320 SCREW $186.33 To Order
Photo Part No Description Price (each) Stock
292751 ALIGNMENT PIN $28.66 To Order
Photo Part No Description Price (each) Stock
300758 BUSH $42.98 To Order
Photo Part No Description Price (each) Stock
306481 PISTON COMPL. WITH RINGS, LH CYLINDER BANK $774.05 To Order
306480 PISTON COMPL. WITH RINGS, RH CYLINDER BANK $774.05 To Order
300383 PISTON COMPL. WITH RINGS, LH CYLINDER BANK Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
263328 PISTON RING SET $240.67 To Order
Photo Part No Description Price (each) Stock
285296 GUDGEON PIN $417.18 To Order
Photo Part No Description Price (each) Stock
257919 STOP RING $6.06 To Order
Photo Part No Description Price (each) Stock
304683 CONNECTING ROD HALF-BEARING $21.48 To Order
262987 CONNECTING ROD HALF-BEARING $19.24 To Order
304683 CONNECTING ROD HALF-BEARING $21.48 To Order
...and 10 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
309085 CYLINDER SLEEVE AND PISTON KIT $11,930.17 To Order
View All

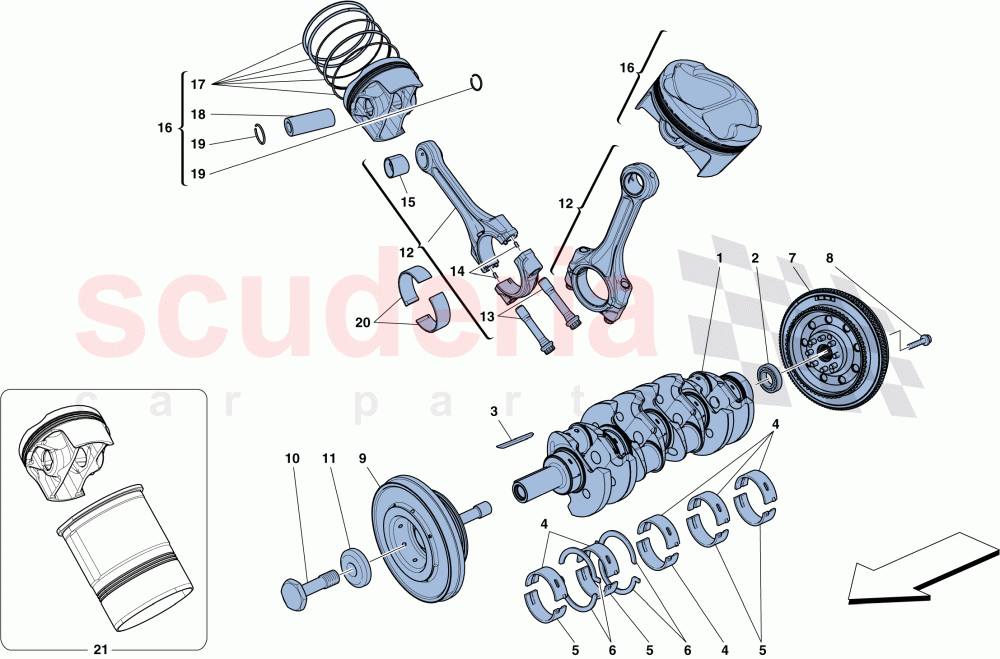

CRANKSHAFT - CONNECTING RODS AND PISTONS of Ferrari Ferrari 458 Speciale Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 300599
CRANKSHAFT
Lead free; Applicable for EU GS, UK 		$2,270.88 1
1 275436
CRANKSHAFT
Not for EU GS, UK; Applicable up to Ass. No. 121490 		$2,459.61 1
1 300599
CRANKSHAFT
Lead free; Not for EU GS, UK; Applicable from Ass. No. 121491 		$2,270.88 1
2 103877
BEARING 		$33.28 1
3 186201
TAB 		$1.00 1
4 268866
UPPER HALF-BEARING
Green; Lead free; Applicable for EU GS, UK 		$25.66 6
4 268865
UPPER HALF-BEARING
Yellow; Lead free; Applicable for EU GS, UK 		$24.05 6
4 286834
UPPER HALF-BEARING
Green; Not for EU GS, UK; Applicable up to Ass. No. 121490 		$24.05 6
4 268866
UPPER HALF-BEARING
Green; Lead free; Not for EU GS, UK; Applicable from Ass. No. 121491 		$25.66 6
4 286833
UPPER HALF-BEARING
Yellow; Not for EU GS, UK; Applicable up to Ass. No. 121490 		$25.79 6
4 268865
UPPER HALF-BEARING
Yellow; Lead free; Not for EU GS, UK; Applicable from Ass. No. 121491 		$24.05 6
4 286832
UPPER MAIN HALF BEARING BLUE
Blue; Not for EU GS, UK; Applicable up to Ass. No. 121490 		$25.66 6
4 268864
UPPER HALF-BEARING
Blue; Lead free; Not for EU GS, UK; Applicable from Ass. No. 121491 		$27.21 6
4 268864
UPPER HALF-BEARING
Blue; Lead free; Applicable for EU GS, UK 		$27.21 6
5 268871
LOWER HALF-BEARING
Green; Lead free; Applicable for EU GS, UK 		$25.79 4
5 268870
LOWER HALF-BEARING
Yellow; Lead free; Applicable for EU GS, UK 		$24.05 4
5 286838
LOWER HALF-BEARING
Green; Not for EU GS, UK; Applicable up to Ass. No. 121490 		$22.45 4
5 268871
LOWER HALF-BEARING
Green; Lead free; Not for EU GS, UK; Applicable from Ass. No. 121491 		$25.79 4
5 268869
LOWER HALF-BEARING
Blue; Lead free; Applicable for EU GS, UK 		$27.21 4
5 286837
LOWER HALF-BEARING
Yellow; Not for EU GS, UK; Applicable up to Ass. No. 121490 		$24.05 4
5 268870
LOWER HALF-BEARING
Yellow; Lead free; Not for EU GS, UK; Applicable from Ass. No. 121491 		$24.05 4
5 200194
Lower Main Half Bearing Blue
Blue; Not for EU GS, UK; Applicable up to Ass. No. 121490 		$30.47 4
5 268869
LOWER HALF-BEARING
Blue; Lead free; Not for EU GS, UK; Applicable from Ass. No. 121491 		$27.21 4
6 261727
SHIM RING
Lead free; Applicable for EU GS, UK 		$10.89 4
6 222874
SHIM RING
Not for EU GS, UK; Applicable up to Ass. No. 121490 		$33.68 4
6 261727
SHIM RING
Lead free; Not for EU GS, UK; Applicable from Ass. No. 121491 		$10.89 4
7 256341
ENGINE DAMPER FLYWHEEL 		$3,351.99 1
8 229907
SCREW 		$9.21 8
9 266912
TORSION DAMPER 		$2,276.91 1
10 196216
SCREW 		$75.92 1
11 263683
WASHER 		$52.89 1
12 300663
COMPL. CONNECTING ROD AND CAP
Lead free 		$657.87 8
13 281320
SCREW
Lead free 		$186.33 16
14 292751
ALIGNMENT PIN 		$28.66 16
15 300758
BUSH 		$42.98 8
16 306481
PISTON COMPL. WITH RINGS, LH CYLINDER BANK
Applicable from Ass. No. 218667 		$774.05 4
16 306480
PISTON COMPL. WITH RINGS, RH CYLINDER BANK
Applicable from Ass. No. 218667 		$774.05 4
16 300383
PISTON COMPL. WITH RINGS, LH CYLINDER BANK
Replaced by cylinder sleeves and pistons KIT 309085, Tab. 2 Pos. 21; Applicable up to Ass. No. 218666; No longer supplied 		- 4 Enquire
16 300382
PISTON COMPL. WITH RINGS, RH CYLINDER BANK
Replaced by cylinder sleeves and pistons KIT 309085, Tab. 2 Pos. 21; Applicable up to Ass. No. 218666; No longer supplied 		$576.63 4
17 263328
PISTON RING SET 		$240.67 8
18 285296
GUDGEON PIN
Applicable until depletion 		$417.18 8
19 257919
STOP RING
Applicable until depletion 		$6.06 16
20 304683
CONNECTING ROD HALF-BEARING
Pink; Lead free; Not for EU GS, UK; Applicable from Ass. No. 121491 		$21.48 16
20 262987
CONNECTING ROD HALF-BEARING
Pink; Lead free; Applicable for EU GS, UK; Applicable up to Ass. No. 120887 		$19.24 16
20 304683
CONNECTING ROD HALF-BEARING
Pink; Lead free; Applicable for EU GS, UK; Applicable from Ass. No. 120888 		$21.48 16
20 244418
CONNECTING ROD HALF-BEARING
Black; Not for EU GS, UK; Applicable up to Ass. No. 121490 		$25.79 16
20 261720
CONNECTING ROD HALF-BEARING
Black; Lead free; Applicable for EU GS, UK; Applicable up to Ass. No. 120887 		$20.05 16
20 244417
CONNECTING ROD HALF-BEARING
Blue; Not for EU GS, UK; Applicable up to Ass. No. 121490 		$27.21 16
20 304681
CONNECTING ROD HALF-BEARING
Blue; Lead free; Not for EU GS, UK; Applicable from Ass. No. 121491 		$21.48 16
20 304682
CONNECTING ROD HALF-BEARING
Red; Lead free; Not for EU GS, UK; Applicable from Ass. No. 121491 		$21.48 16
20 261719
CONNECTING ROD HALF-BEARING
Blue; Lead free; Applicable for EU GS, UK; Applicable up to Ass. No. 120887 		$20.05 16
20 304681
CONNECTING ROD HALF-BEARING
Blue; Lead free; Applicable for EU GS, UK; Applicable from Ass. No. 120888 		$21.48 16
20 261718
CONNECTING ROD HALF-BEARING
Red; Lead free; Applicable for EU GS, UK; Applicable up to Ass. No. 120887 		$20.05 16
20 304682
CONNECTING ROD HALF-BEARING
Red; Lead free; Applicable for EU GS, UK; Applicable from Ass. No. 120888 		$21.48 16
20 244416
CONNECTING ROD HALF-BEARING
Red; Not for EU GS, UK; Applicable up to Ass. No. 121490 		$25.79 16
21 309085
CYLINDER SLEEVE AND PISTON KIT
Includes 4 RH pistons, 4 LH pistons and 8 cylinder sleeves 		$11,930.17 1
