POWER STEERING PUMP AND RESERVOIR of Ferrari Ferrari 458 Speciale

View All

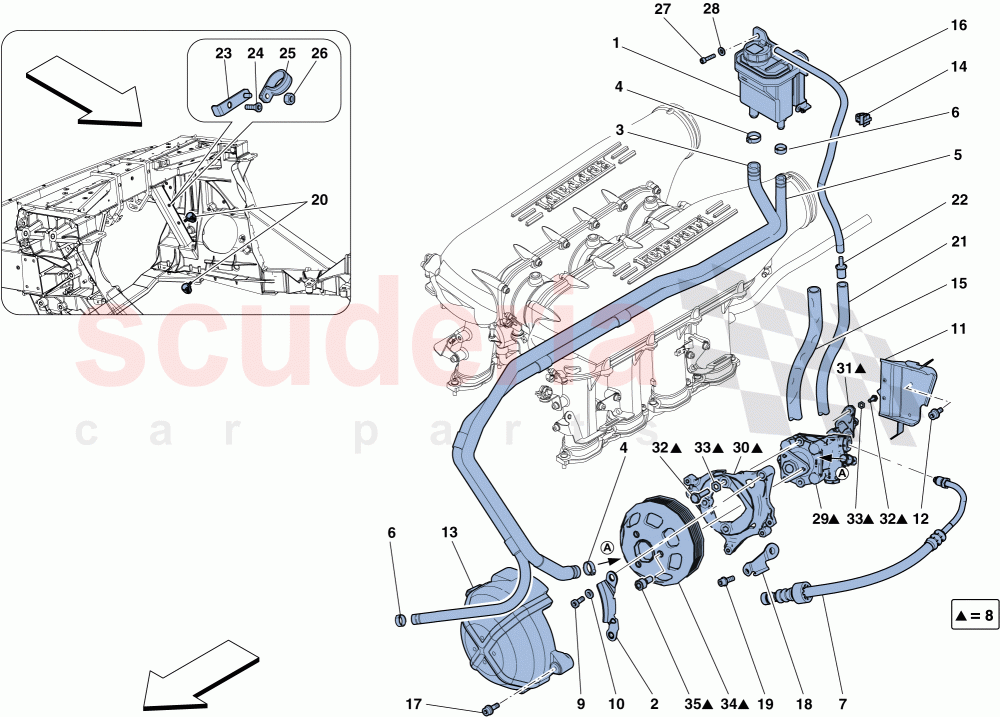

Ferrari 458 Speciale - POWER STEERING PUMP AND RESERVOIR

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	292342	COMPL. POWER STEERING FLUID RESERVOIR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	297133	POWER STEERING PIPE GUARD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	276459	PIPE FROM RESERVOIR TO POWER STEERING PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13126370	COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	276460	PIPE FROM UNDERFLOOR TO RESERVOIR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13127070	COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	263052	DELIVERY PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	299544	COMPL. POWER STEERING PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231629	SOCKET HEAD ALLEN SCREW WITH WASHER M8 X 30	Enquire	To Order
	285494	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11193874	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	262828	HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	303519	SOUNDPROOFING COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	204774	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	278362	SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	277512	RUBBER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	259135	POWER STEERING PUMP PIPE BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	157386	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	277185	BREATHER PIPE FROM REGULATOR CYLINDER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	222606	BREATHER PIPE UNION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	278083	PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	282385	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	291225	P clip Bracket With Sheath	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12647704	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	277566	POWER STEERING PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	261948	FRONT POWER STEERING PUMP MOUNT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	252563	REAR POWER STEERING PUMP MOUNT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231629	SOCKET HEAD ALLEN SCREW WITH WASHER M8 X 30	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11193874	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	243460	PULLEY FOR POWER STEERING PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231627	SCREW	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	292342	COMPL. POWER STEERING FLUID RESERVOIR	292342 COMPL. POWER STEERING FLUID RESERVOIR	-	1	Enquire
2	297133	POWER STEERING PIPE GUARD	297133 POWER STEERING PIPE GUARD	-	1	Enquire
3	276459	PIPE FROM RESERVOIR TO POWER STEERING PUMP	276459 PIPE FROM RESERVOIR TO POWER STEERING PUMP	-	1	Enquire
4	13126370	COLLAR	13126370 COLLAR	-	2	Enquire
5	276460	PIPE FROM UNDERFLOOR TO RESERVOIR	276460 PIPE FROM UNDERFLOOR TO RESERVOIR	-	1	Enquire
6	13127070	COLLAR	13127070 COLLAR	-	2	Enquire
7	263052	DELIVERY PIPE	263052 DELIVERY PIPE	-	1	Enquire
8	299544	COMPL. POWER STEERING PUMP	299544 COMPL. POWER STEERING PUMP Applicable until depletion	-	1	Enquire
9	231629	SOCKET HEAD ALLEN SCREW WITH WASHER M8 X 30	231629 SOCKET HEAD ALLEN SCREW WITH WASHER M8 X 30 M8 X 30	-	1	Enquire
9	285494	SCREW	285494 SCREW M8 X 45	-	2	Enquire
10	11193874	WASHER	11193874 WASHER	-	2	Enquire
11	262828	HEAT SHIELD	262828 HEAT SHIELD	-	1	Enquire
12	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM M6 X 14	-	3	Enquire
13	303519	SOUNDPROOFING COVER	303519 SOUNDPROOFING COVER	-	1	Enquire
14	204774	CLIP	204774 CLIP	-	1	Enquire
15	278362	SHEATH	278362 SHEATH	-	1	Enquire
16	277512	RUBBER PIPE	277512 RUBBER PIPE	-	1	Enquire
17	231620	SCREW	231620 SCREW M6 X 30	-	3	Enquire
18	259135	POWER STEERING PUMP PIPE BRACKET	259135 POWER STEERING PUMP PIPE BRACKET	-	1	Enquire
19	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM	-	1	Enquire
20	157386	CLIP	157386 CLIP	-	2	Enquire
21	277185	BREATHER PIPE FROM REGULATOR CYLINDER	277185 BREATHER PIPE FROM REGULATOR CYLINDER	-	1	Enquire
22	222606	BREATHER PIPE UNION	222606 BREATHER PIPE UNION	-	1	Enquire
23	278083	PLATE	278083 PLATE	-	1	Enquire
24	282385	SCREW	282385 SCREW	-	1	Enquire
25	291225	P clip Bracket With Sheath	291225 P clip Bracket With Sheath	-	1	Enquire
26	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	1	Enquire
27	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER M6 X 22	-	2	Enquire
28	12647704	WASHER	12647704 WASHER	-	2	Enquire
29	277566	POWER STEERING PUMP	277566 POWER STEERING PUMP	-	1	Enquire
30	261948	FRONT POWER STEERING PUMP MOUNT	261948 FRONT POWER STEERING PUMP MOUNT	-	1	Enquire
31	252563	REAR POWER STEERING PUMP MOUNT	252563 REAR POWER STEERING PUMP MOUNT	-	1	Enquire
32	231629	SOCKET HEAD ALLEN SCREW WITH WASHER M8 X 30	231629 SOCKET HEAD ALLEN SCREW WITH WASHER M8 X 30	-	5	Enquire
33	11193874	WASHER	11193874 WASHER	-	5	Enquire
34	243460	PULLEY FOR POWER STEERING PUMP	243460 PULLEY FOR POWER STEERING PUMP	-	1	Enquire
35	231627	SCREW	231627 SCREW	-	3	Enquire
