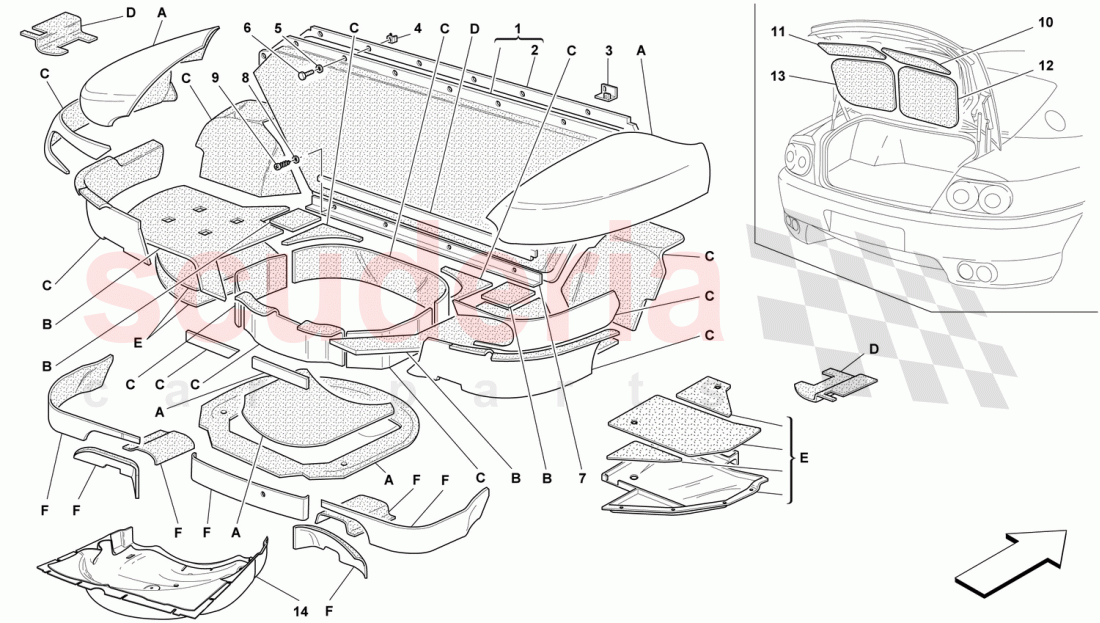

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	63854900	SHIELD FOR LUGGAGE COMPARTMENT AND FUEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63761800	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63859600	FIXING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	60659100	Caged Captive Nut 6mm	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68040000	WASHER 6 X 20 X 2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10902821	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63853500	ANGLE PIECE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62769800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15687275	Screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63494800	R.H. UPPER HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63494900	L.H. UPPER HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63495000	R.H. LOWER HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63495100	L.H. LOWER HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63938600	SPARE WHEEL HEAT SHIELD	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	64467100	HEAT SHIELD SERIES	64467100 HEAT SHIELD SERIES Valid for USA and CDN / TANK- SPARE WHEEL SHIELD / SERIES / L.H. BOOT SHIELD SERIES	-	1	Enquire
-	65809400	R.H. BOOT SHIELD SERIES	65809400 R.H. BOOT SHIELD SERIES REAR HEAT SHIELD SERIES /	-	1	Enquire
-	63495400	HEAT SHIELD SERIES	63495400 HEAT SHIELD SERIES HEAT SHIELD SERIES / HEAT SHIELD SERIES / Not for USA and CDN	-	1	Enquire
1	63854900	SHIELD FOR LUGGAGE COMPARTMENT AND FUEL	63854900 SHIELD FOR LUGGAGE COMPARTMENT AND FUEL COMPARTMENT AND FUEL	-	1	Enquire
2	63761800	GASKET	63761800 GASKET	-	1	Enquire
3	63859600	FIXING BRACKET	63859600 FIXING BRACKET	-	3	Enquire
4	60659100	Caged Captive Nut 6mm	60659100 Caged Captive Nut 6mm	-	17	Enquire
5	68040000	WASHER 6 X 20 X 2	68040000 WASHER 6 X 20 X 2	-	17	Enquire
6	10902821	SCREW	10902821 SCREW	-	17	Enquire
7	63853500	ANGLE PIECE	63853500 ANGLE PIECE	-	1	Enquire
8	62769800	WASHER	62769800 WASHER	-	3	Enquire
9	15687275	Screw	15687275 Screw	-	3	Enquire
10	63494800	R.H. UPPER HEAT SHIELD	63494800 R.H. UPPER HEAT SHIELD	-	1	Enquire
11	63494900	L.H. UPPER HEAT SHIELD	63494900 L.H. UPPER HEAT SHIELD	-	1	Enquire
12	63495000	R.H. LOWER HEAT SHIELD	63495000 R.H. LOWER HEAT SHIELD	-	1	Enquire
13	63495100	L.H. LOWER HEAT SHIELD	63495100 L.H. LOWER HEAT SHIELD	-	1	Enquire
14	63938600	SPARE WHEEL HEAT SHIELD	63938600 SPARE WHEEL HEAT SHIELD	-	1	Enquire
