HYDRAULIC STEERING PUMPS of Ferrari Ferrari 456 GT/GTA

View All

Ferrari 456 GT/GTA - HYDRAULIC STEERING PUMPS

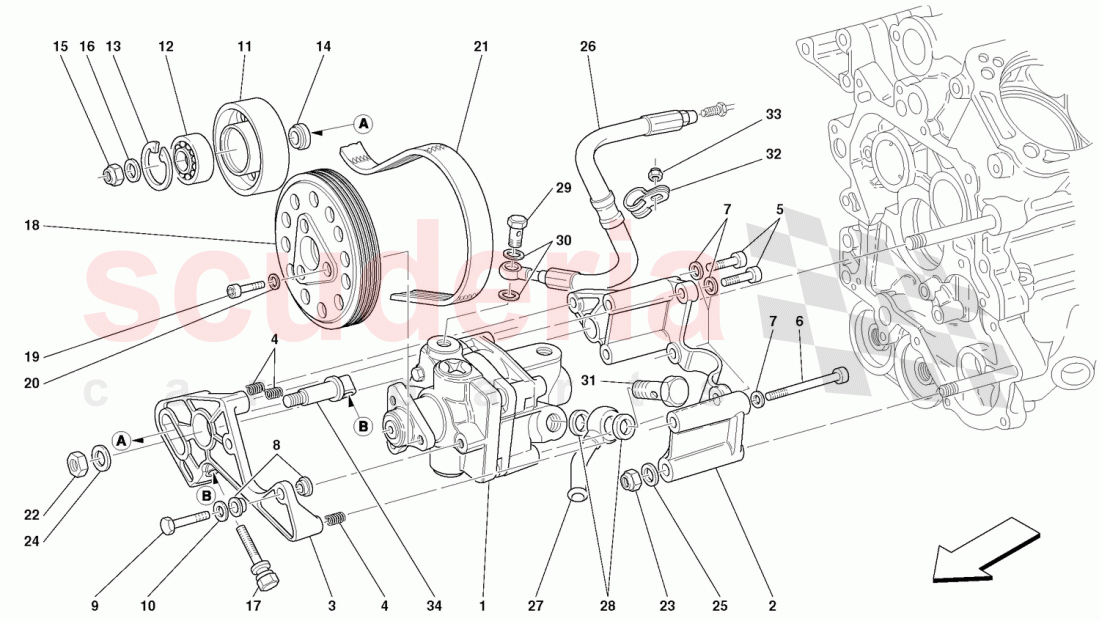

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	154512	HYDRAULIC SERVO-CONTROL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	153360	INNER SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	153378	SUPPORT WITH BELT TIGHTENER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13525770	THREADED INSERT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14306424	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14307224	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11193874	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	150309	BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16052024	Screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	148631	PULLEY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	123350	BEARING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11060076	Seeger Ring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	148638	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	148020	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	101016	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	157289	Screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	150333	PULLEY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14307024	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	199825	Water & Power Steering Belt	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	148020	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	102742	Nyloc Nut M10 x 1.25 x 10mm	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	84653800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	128944	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	154154	HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	155449	SWINGING UNION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10261560	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	113670	Screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10260160	Copper Washer D. 10 - 14 x 1	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	155448	CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	320600	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	153165	PIN	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	199834	Water & Power Steering Belt ARRIVING SOON	199834 Water & Power Steering Belt PUMP BELT / Valid for Ø 102 pulley / Not for 456 GTA ARRIVING SOON	-	1	Enquire
-	199836	Water & Power Steering Belt	199836 Water & Power Steering Belt PUMP BELT / Valid for 456 GTA	-	1	Enquire
1	154512	HYDRAULIC SERVO-CONTROL	154512 HYDRAULIC SERVO-CONTROL	-	1	Enquire
2	153360	INNER SUPPORT	153360 INNER SUPPORT	-	1	Enquire
3	153378	SUPPORT WITH BELT TIGHTENER	153378 SUPPORT WITH BELT TIGHTENER TIGHTENER	-	1	Enquire
4	13525770	THREADED INSERT	13525770 THREADED INSERT	-	4	Enquire
5	14306424	SCREW	14306424 SCREW	-	4	Enquire
6	14307224	SCREW	14307224 SCREW	-	3	Enquire
7	11193874	WASHER	11193874 WASHER	-	7	Enquire
8	150309	BUSHING	150309 BUSHING	-	4	Enquire
9	16052024	Screw	16052024 Screw	-	2	Enquire
10	12601374	WASHER	12601374 WASHER	-	2	Enquire
11	148631	PULLEY	148631 PULLEY	-	1	Enquire
12	123350	BEARING	123350 BEARING	-	1	Enquire
13	11060076	Seeger Ring	11060076 Seeger Ring	-	1	Enquire
14	148638	SPACER	148638 SPACER	-	1	Enquire
15	148020	NUT	148020 NUT	-	1	Enquire
16	101016	WASHER	101016 WASHER	-	1	Enquire
17	157289	Screw	157289 Screw	-	1	Enquire
18	150333	PULLEY	150333 PULLEY	-	1	Enquire
19	14307024	SCREW	14307024 SCREW	-	3	Enquire
20	12601374	WASHER	12601374 WASHER	-	3	Enquire
21	199825	Water & Power Steering Belt	199825 Water & Power Steering Belt PUMP BELT / Valid for Ø 120 pulley / Not for 456 GTA	-	1	Enquire
22	148020	NUT	148020 NUT	-	1	Enquire
23	102742	Nyloc Nut M10 x 1.25 x 10mm ARRIVING SOON	102742 Nyloc Nut M10 x 1.25 x 10mm ARRIVING SOON	-	1	Enquire
24	84653800	WASHER	84653800 WASHER	-	1	Enquire
25	128944	WASHER	128944 WASHER	-	1	Enquire
26	154154	HOSE	154154 HOSE	-	1	Enquire
27	155449	SWINGING UNION	155449 SWINGING UNION	-	1	Enquire
28	10261560	GASKET	10261560 GASKET	-	2	Enquire
29	113670	Screw	113670 Screw	-	1	Enquire
30	10260160	Copper Washer D. 10 - 14 x 1	10260160 Copper Washer D. 10 - 14 x 1	-	2	Enquire
31	155448	CONNECTOR	155448 CONNECTOR	-	1	Enquire
32	320600	CLIP	320600 CLIP	-	1	Enquire
33	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	1	Enquire
34	153165	PIN	153165 PIN	-	1	Enquire
