HYDRAULIC STEERING BOX AND SERPENTINE -Not for GD-

Find Your Part

Ferrari 456 GT/GTA - HYDRAULIC STEERING BOX AND SERPENTINE -Not for GD-

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
150879 L.H. BALL JOINT PROTECTION $15.48 To Order
Photo Part No Description Price (each) Stock
150878 R.H. BALL JOINT PROTECTION $12.56 To Order
Photo Part No Description Price (each) Stock
14058319 NUT $0.34 To Order
Photo Part No Description Price (each) Stock
10730014 WASHER $0.39 To Order
Photo Part No Description Price (each) Stock
184727 Banjo bolt For Union M16 x 1.5 $6.03 To Order
Photo Part No Description Price (each) Stock
10278660 GASKET $1.56 To Order
Photo Part No Description Price (each) Stock
161872 STEERING BOX $4,768.27 To Order
Photo Part No Description Price (each) Stock
158016 BALL JOINT $333.79 To Order
Photo Part No Description Price (each) Stock
149807 NUT $1.18 To Order
Photo Part No Description Price (each) Stock
155002 Washer $15.66 To Order
Photo Part No Description Price (each) Stock
135139 Buffer $120.33 To Order
Photo Part No Description Price (each) Stock
108294 Spacer pipe $92.95 To Order
Photo Part No Description Price (each) Stock
116413 WASHER $1.09 To Order
Photo Part No Description Price (each) Stock
16044434 SCREW $1.85 To Order
Photo Part No Description Price (each) Stock
147985 NUT $0.16 To Order
Photo Part No Description Price (each) Stock
157350 PIPE FROM PUMP TO STEERING BOX $834.37 To Order
Photo Part No Description Price (each) Stock
155572 RUBBER PIPE TO COOLING PIPE $50.68 To Order
Photo Part No Description Price (each) Stock
61712500 BRACKET WITH SHEATH $1.77 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.51 To Order
Photo Part No Description Price (each) Stock
12639724 WASHER $0.05 To Order
Photo Part No Description Price (each) Stock
156656 REFRIGERATING COIL $192.54 To Order
Photo Part No Description Price (each) Stock
155878 SCREW $6.06 To Order
Photo Part No Description Price (each) Stock
12646604 WASHER $0.26 To Order
Photo Part No Description Price (each) Stock
127494 WASHER $0.08 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.51 To Order
Photo Part No Description Price (each) Stock
171454 PIPE UNION $51.91 To Order
Photo Part No Description Price (each) Stock
10261060 GASKET COPPER 12 - 16 X 1.5 $0.16 To Order
Photo Part No Description Price (each) Stock
262111 JUBILEE CLAMP $1.60 To Order
Photo Part No Description Price (each) Stock
175271 CARDANIC TRANSMISSION $1,742.58 To Order
Photo Part No Description Price (each) Stock
150427 SCREW $6.55 To Order
Photo Part No Description Price (each) Stock
150427 SCREW $6.55 To Order
Photo Part No Description Price (each) Stock
151683 GASKET FOR RESIN SHIELD $77.00 To Order
Photo Part No Description Price (each) Stock
900613 RUBBER BOOT $641.82 To Order
View All

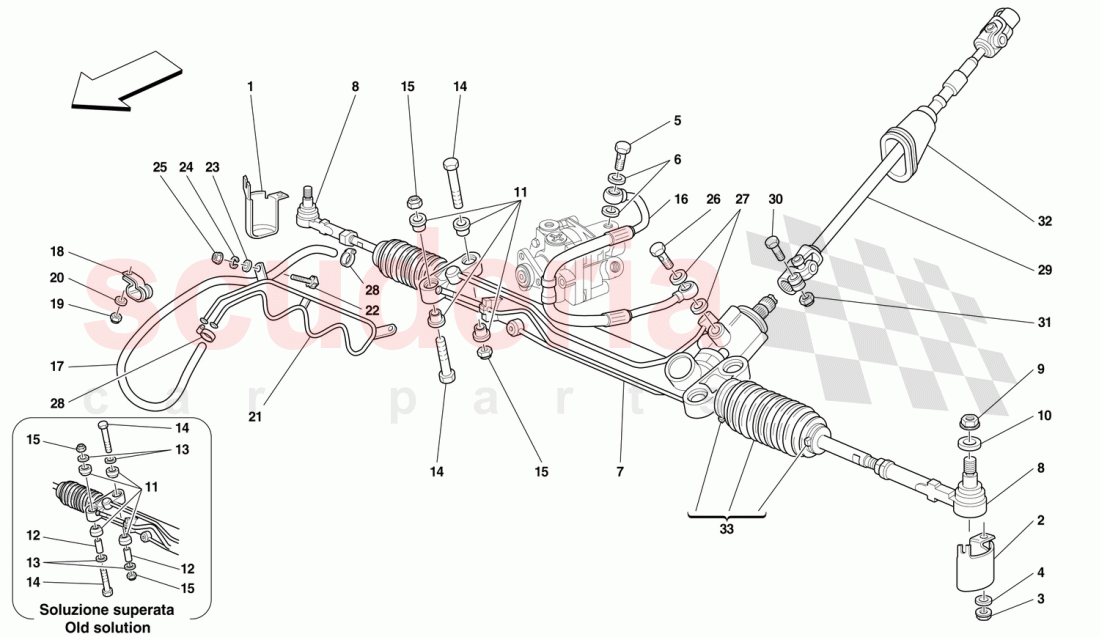

HYDRAULIC STEERING BOX AND SERPENTINE -Not for GD- of Ferrari Ferrari 456 GT/GTA Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 167341
GASKET FOR STEEL SHIELD
Replace the 154807 		$23.66 1
- 175271
CARDANIC TRANSMISSION
Valid after stock exhaustion of 150837 		$1,742.58 1
- 175701
SCREW
Substitutes 16287634 		$2.74 (29.6% off) 4
- 14058519
FLANGED NUT M8 X 8
Valid for steering box 161872 		$0.24 (74.7% off) 4
- 155567
SILENT BLOCK
Valid for steering box 161872 		$133.17 8
- 161872
STEERING BOX
Valid after stock exhaustion of 155004 		$4,768.27 (33.1% off) 1
1 150879
L.H. BALL JOINT PROTECTION 		$15.48 1
2 150878
R.H. BALL JOINT PROTECTION 		$12.56 1
3 14058319
NUT 		$0.34 4
4 10730014
WASHER 		$0.39 4
5 184727
Banjo bolt For Union M16 x 1.5 		$6.03 1
6 10278660
GASKET 		$1.56 2
7 161872
STEERING BOX 		$4,768.27 (33.1% off) 1
8 158016
BALL JOINT 		$333.79 (17.6% off) 2
9 149807
NUT 		$1.18 (41% off) 2
10 155002
Washer 		$15.66 2
11 135139
Buffer
Valid for steering box 155004 		$120.33 8
12 108294
Spacer pipe
Valid for steering box 155004 		$92.95 (7.5% off) 4
13 116413
WASHER
Valid for steering box 155004 		$1.09 8
14 16044434
SCREW
Valid for steering box 155004 		$1.85 4
15 147985
NUT
Valid for steering box 155004 		$0.16 (68% off) 4
16 157350
PIPE FROM PUMP TO STEERING BOX
STEERING BOX 		$834.37 1
17 155572
RUBBER PIPE TO COOLING PIPE
PIPE 		$50.68 (24.6% off) 1
18 61712500
BRACKET WITH SHEATH 		$1.77 1
19 14059290
FLANGED NUT M6 		$1.51 1
20 12639724
WASHER 		$0.05 (90% off) 1
21 156656
REFRIGERATING COIL 		$192.54 1
22 155878
SCREW 		$6.06 2
23 12646604
WASHER 		$0.26 (13.3% off) 2
24 127494
WASHER 		$0.08 (88.2% off) 2
25 14059290
FLANGED NUT M6 		$1.51 2
26 171454
PIPE UNION 		$51.91 1
27 10261060
GASKET COPPER 12 - 16 X 1.5 		$0.16 (67.3% off) 2
28 262111
JUBILEE CLAMP 		$1.60 2
29 175271
CARDANIC TRANSMISSION 		$1,742.58 1
30 150427
SCREW 		$6.55 2
31 150427
SCREW 		$6.55 2
32 151683
GASKET FOR RESIN SHIELD 		$77.00 1
33 900613
RUBBER BOOT 		$641.82 2
