Ferrari 430 Scuderia Spider 16M - CHASSIS - REAR ELEMENT SUBASSEMBLIES

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
82408111 COMPLETE RH. LATERAL FRAME $15,269.34 To Order
82408011 COMPLETE RH. LATERAL FRAME $15,269.34 To Order
Photo Part No Description Price (each) Stock
68887411 COMPLETE LH LATERAL TRELLIS $15,269.34 To Order
69327111 COMPLETE LH LATERAL TRELLIS $15,269.34 To Order
Photo Part No Description Price (each) Stock
68887511 RH REAR LATERAL CASTING $2,820.87 To Order
Photo Part No Description Price (each) Stock
68887611 LH REAR LATERAL CASTING $2,820.87 To Order
Photo Part No Description Price (each) Stock
202584 R.H. UPPER FRAME $320.90 To Order
207881 R.H. UPPER FRAME $369.04 To Order
Photo Part No Description Price (each) Stock
207880 L.H. UPPER FRAME $465.32 To Order
202583 L.H. UPPER FRAME $417.18 To Order
Photo Part No Description Price (each) Stock
212303 R.H. LOWER FRAME $200.67 To Order
212301 R.H. LOWER FRAME $834.37 To Order
Photo Part No Description Price (each) Stock
212302 L.H. LOWER FRAME $200.67 To Order
212300 L.H. LOWER FRAME $834.37 To Order
Photo Part No Description Price (each) Stock
66051211 COMPLETE RH REAR PILLAR $716.70 To Order
Photo Part No Description Price (each) Stock
66051111 COMPLETE LH REAR PILLAR $716.70 To Order
Photo Part No Description Price (each) Stock
985234102 RH ENGINE SUPPORT STRUT $449.87 To Order
Photo Part No Description Price (each) Stock
985234101 LH ENGINE SUPPORT STRUT $481.36 To Order
Photo Part No Description Price (each) Stock
65942200 R.H. SUPPORT FOR BRACKET $1,428.08 To Order
Photo Part No Description Price (each) Stock
65942311 LH STRUT MOUNT $786.24 To Order
Photo Part No Description Price (each) Stock
985242545 REAR BUMPER CROSS MEMBER $3,201.16 To Order
Photo Part No Description Price (each) Stock
985207272 RH REAR BOX MEMBER $486.21 To Order
Photo Part No Description Price (each) Stock
207271 L.H. REAR FRAME $691.31 To Order
Photo Part No Description Price (each) Stock
80084211 REAR RH FENDER FRAME $930.65 To Order
Photo Part No Description Price (each) Stock
67780211 REAR LH FENDER FRAME $930.65 To Order
Photo Part No Description Price (each) Stock
68027011 RH LATERAL BRACKET $272.77 To Order
68440411 RH LATERAL BRACKET $208.58 To Order
Photo Part No Description Price (each) Stock
68027111 LH LATERAL BRACKET $272.77 To Order
68440511 LH LATERAL BRACKET $208.58 To Order
Photo Part No Description Price (each) Stock
14642891 POP RIVET $0.15 To Order
Photo Part No Description Price (each) Stock
65133800 RIVET $0.15 To Order
Photo Part No Description Price (each) Stock
248146 HEXAGONAL RIVET $1.07 To Order
15624311 HEXAGONAL RIVET $4.64 To Order
15624211 Hexagonal Rivet $1.00 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
65151200 Rivet $4.80 To Order
Photo Part No Description Price (each) Stock
166101 Knurled Rivet $1.54 To Order
65135000 Knurled Rivet $1.26 To Order
65930400 Knurled Rivet $1.00 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
65065400 HEXAGONAL HEAD STUD BOLT $3.45 To Order
Photo Part No Description Price (each) Stock
13836771 SCREW $2.25 To Order
Photo Part No Description Price (each) Stock
6166261 R.H. UPPER FUSION REAR PILLAR $473.02 To Order
Photo Part No Description Price (each) Stock
6166161 L.H. UPPER FUSION REAR PILLAR $473.02 To Order
Photo Part No Description Price (each) Stock
70000950 REPAIR INSERTS KIT $1,785.90 To Order
Photo Part No Description Price (each) Stock
181980 UPPER INNER CORE $336.95 To Order
Photo Part No Description Price (each) Stock
181979 LOWER INNER CORE $12.59 To Order
Photo Part No Description Price (each) Stock
985196575 RH REINFORCEMENT Enquire To Order
Photo Part No Description Price (each) Stock
985196574 LH REINFORCEMENT Enquire To Order
View All

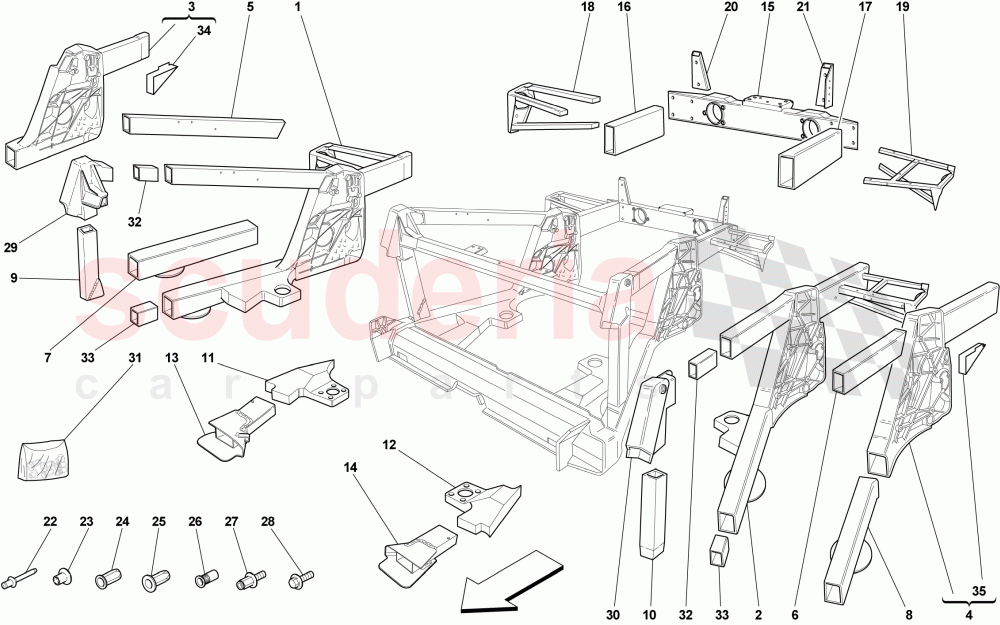

CHASSIS - REAR ELEMENT SUBASSEMBLIES of Ferrari Ferrari 430 Scuderia Spider 16M Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 82408111
COMPLETE RH. LATERAL FRAME
Applicable for Spider 16M; 		$15,269.34 1
1 82408011
COMPLETE RH. LATERAL FRAME
Not for Spider 16M; 		$15,269.34 1
2 68887411
COMPLETE LH LATERAL TRELLIS
Not for Spider 16M; 		$15,269.34 1
2 69327111
COMPLETE LH LATERAL TRELLIS
Applicable for Spider 16M; 		$15,269.34 1
3 68887511
RH REAR LATERAL CASTING 		$2,820.87 1
4 68887611
LH REAR LATERAL CASTING 		$2,820.87 1
5 202584
R.H. UPPER FRAME
Not for Spider 16M 		$320.90 1
5 207881
R.H. UPPER FRAME
Applicable for Spider 16M 		$369.04 1
6 207880
L.H. UPPER FRAME
Applicable for Spider 16M 		$465.32 1
6 202583
L.H. UPPER FRAME
Not for Spider 16M 		$417.18 1
7 212303
R.H. LOWER FRAME
Not for Spider 16M 		$200.67 1
7 212301
R.H. LOWER FRAME
Applicable for Spider 16M 		$834.37 1
8 212302
L.H. LOWER FRAME
Not for Spider 16M 		$200.67 1
8 212300
L.H. LOWER FRAME
Applicable for Spider 16M 		$834.37 1
9 66051211
COMPLETE RH REAR PILLAR 		$716.70 1
10 66051111
COMPLETE LH REAR PILLAR 		$716.70 1
11 985234102
RH ENGINE SUPPORT STRUT 		$449.87 1
12 985234101
LH ENGINE SUPPORT STRUT 		$481.36 1
13 65942200
R.H. SUPPORT FOR BRACKET 		$1,428.08 1
14 65942311
LH STRUT MOUNT 		$786.24 1
15 985242545
REAR BUMPER CROSS MEMBER 		$3,201.16 1
16 985207272
RH REAR BOX MEMBER 		$486.21 1
17 207271
L.H. REAR FRAME 		$691.31 1
18 80084211
REAR RH FENDER FRAME 		$930.65 1
19 67780211
REAR LH FENDER FRAME 		$930.65 1
20 68027011
RH LATERAL BRACKET
Not for Spider 16M 		$272.77 1
20 68440411
RH LATERAL BRACKET
Applicable for Spider 16M 		$208.58 1
21 68027111
LH LATERAL BRACKET
Not for Spider 16M 		$272.77 1
21 68440511
LH LATERAL BRACKET
Applicable for Spider 16M 		$208.58 1
22 14642891
POP RIVET
L. 14 mm 		$0.15 -
23 65133800
RIVET
L. 6.4 mm 		$0.15 -
24 248146
HEXAGONAL RIVET
M6 		$1.07 -
24 15624311
HEXAGONAL RIVET
M5 		$4.64 -
24 15624211
Hexagonal Rivet
M4 		$1.00 -
24 15180411
Hexagonal Blind Rivet 		$1.56 -
24 248150
ESAGONAL RIVET M8
M8 		$0.44 -
25 65151200
Rivet
M6 		$4.80 -
26 166101
Knurled Rivet
M4 		$1.54 -
26 65135000
Knurled Rivet
M8 		$1.26 -
26 65930400
Knurled Rivet
M6 		$1.00 -
26 65319800
Nut Knurled Rivet
M5 		$0.84 -
26 60853400
RIVET 		$0.66 -
27 65065400
HEXAGONAL HEAD STUD BOLT
M6 		$3.45 -
28 13836771
SCREW 		$2.25 -
29 6166261
R.H. UPPER FUSION REAR PILLAR 		$473.02 1
30 6166161
L.H. UPPER FUSION REAR PILLAR 		$473.02 1
31 70000950
REPAIR INSERTS KIT 		$1,785.90 1
32 181980
UPPER INNER CORE 		$336.95 -
33 181979
LOWER INNER CORE 		$12.59 -
34 985196575
RH REINFORCEMENT 		- 1 Enquire
35 985196574
LH REINFORCEMENT 		- 1 Enquire
