COOLING SYSTEM of Ferrari Ferrari 430 Scuderia

View All

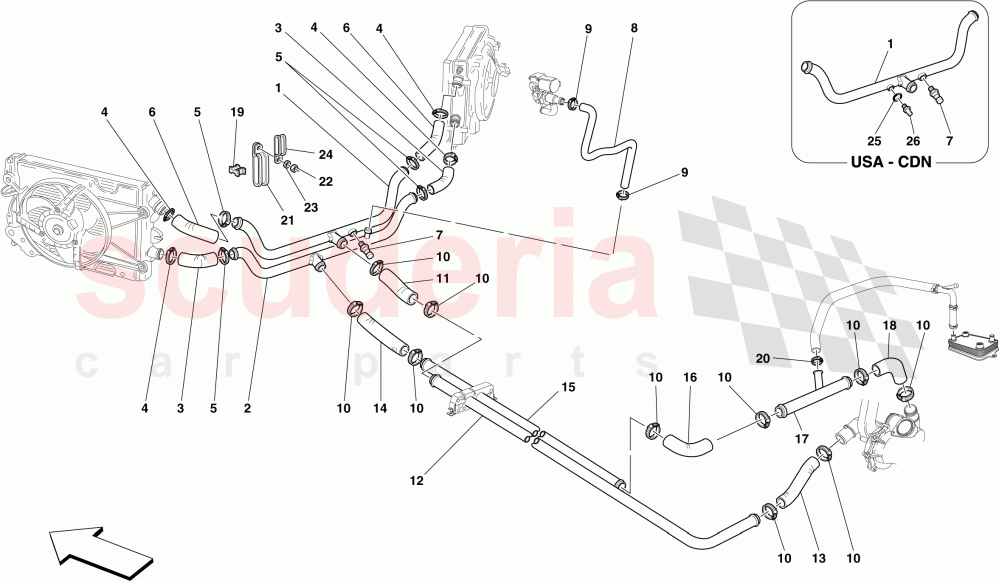

Ferrari 430 Scuderia - COOLING SYSTEM

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	216372	WATER DELIVERY PIPE	Enquire	To Order
	217917	WATER DELIVERY PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	216373	WATER RETURN PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	238691	RUBBER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13001690	SCREW COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13000590	SCREW COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	238695	RUBBER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	176322	THERMAL CONTACT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65231800	PIPE FROM TGK VALVE TO RETURN PIPE	Enquire	To Order
	68641200	PIPE FROM TGK VALVE TO RETURN PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	262111	JUBILEE CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13001690	SCREW COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	202547	RUBBER DELIVERY PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	206621	UNDERBODY ALUMINIUM DELIVERY PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	208338	RUBBER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	202548	RUBBER RETURN PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	206728	UNDERBODY ALUMINIUM RETURN PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	193463	RUBBER RETURN PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	241611	ALUMINIUM PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	206717	Rubber Pipe	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	183641	SHIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	177995	CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	183642	BRACKET WITH SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10730114	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61712500	BRACKET WITH SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10298460	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	180137	TEMPERATURE SENSOR	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	216372	WATER DELIVERY PIPE	216372 WATER DELIVERY PIPE Applicable for USA, CDN	-	1	Enquire
1	217917	WATER DELIVERY PIPE	217917 WATER DELIVERY PIPE Not for USA, CDN	-	1	Enquire
2	216373	WATER RETURN PIPE	216373 WATER RETURN PIPE	-	1	Enquire
3	238691	RUBBER PIPE	238691 RUBBER PIPE	-	2	Enquire
4	13001690	SCREW COLLAR	13001690 SCREW COLLAR	-	4	Enquire
5	13000590	SCREW COLLAR	13000590 SCREW COLLAR	-	4	Enquire
6	238695	RUBBER PIPE	238695 RUBBER PIPE	-	2	Enquire
7	176322	THERMAL CONTACT	176322 THERMAL CONTACT	-	1	Enquire
8	65231800	PIPE FROM TGK VALVE TO RETURN PIPE	65231800 PIPE FROM TGK VALVE TO RETURN PIPE Not for GD	-	1	Enquire
8	68641200	PIPE FROM TGK VALVE TO RETURN PIPE	68641200 PIPE FROM TGK VALVE TO RETURN PIPE Applicable for GD	-	1	Enquire
9	262111	JUBILEE CLAMP	262111 JUBILEE CLAMP	-	2	Enquire
10	13001690	SCREW COLLAR	13001690 SCREW COLLAR	-	10	Enquire
11	202547	RUBBER DELIVERY PIPE	202547 RUBBER DELIVERY PIPE	-	1	Enquire
12	206621	UNDERBODY ALUMINIUM DELIVERY PIPE	206621 UNDERBODY ALUMINIUM DELIVERY PIPE	-	1	Enquire
13	208338	RUBBER PIPE	208338 RUBBER PIPE	-	1	Enquire
14	202548	RUBBER RETURN PIPE	202548 RUBBER RETURN PIPE	-	1	Enquire
15	206728	UNDERBODY ALUMINIUM RETURN PIPE	206728 UNDERBODY ALUMINIUM RETURN PIPE	-	1	Enquire
16	193463	RUBBER RETURN PIPE	193463 RUBBER RETURN PIPE	-	1	Enquire
17	241611	ALUMINIUM PIPE	241611 ALUMINIUM PIPE	-	1	Enquire
18	206717	Rubber Pipe	206717 Rubber Pipe	-	1	Enquire
19	183641	SHIM	183641 SHIM	-	2	Enquire
20	177995	CLAMP	177995 CLAMP	-	1	Enquire
21	183642	BRACKET WITH SHEATH	183642 BRACKET WITH SHEATH	-	2	Enquire
22	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	2	Enquire
23	10730114	WASHER	10730114 WASHER	-	2	Enquire
24	61712500	BRACKET WITH SHEATH	61712500 BRACKET WITH SHEATH	-	2	Enquire
25	10298460	GASKET	10298460 GASKET Applicable for USA, CDN	-	1	Enquire
26	180137	TEMPERATURE SENSOR	180137 TEMPERATURE SENSOR Applicable for USA, CDN	-	1	Enquire
