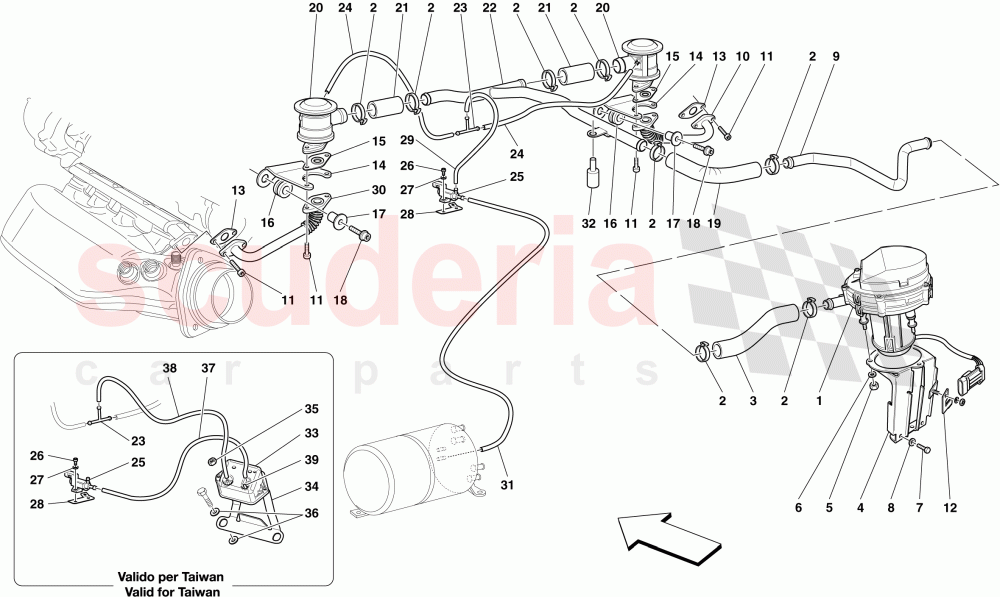

Ferrari 430 Scuderia - SECONDARY AIR SYSTEM

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	181197	Secondary Air Pump	$545.55	To Order

Photo	Part No	Description	Price (each)	Stock
	262111	JUBILEE CLAMP	$1.60	To Order
	262111	JUBILEE CLAMP	$1.60	To Order

Photo	Part No	Description	Price (each)	Stock
	122221	PIPE	$33.29	To Order

Photo	Part No	Description	Price (each)	Stock
	227181	PUMP MOUNTING BRACKET	$208.58	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	16296934	SCREW 6 X 14MM	$0.47	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	236154	PIPE	$433.23	To Order

Photo	Part No	Description	Price (each)	Stock
	232992	PIPE	$850.42	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW	$0.31	To Order

Photo	Part No	Description	Price (each)	Stock
	162606	CLIP	$1.36	To Order

Photo	Part No	Description	Price (each)	Stock
	186781	GASKET	$5.28	To Order

Photo	Part No	Description	Price (each)	Stock
	231559	AIR VALVE BRACKET	$372.69	To Order

Photo	Part No	Description	Price (each)	Stock
	186781	GASKET	$5.28	To Order

Photo	Part No	Description	Price (each)	Stock
	177576	CABLE GROMMET	$2.33	To Order

Photo	Part No	Description	Price (each)	Stock
	819489	FLANGED BUSHING	$14.75	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW	$0.31	To Order

Photo	Part No	Description	Price (each)	Stock
	228369	CONNECTOR PIPE	$45.56	To Order

Photo	Part No	Description	Price (each)	Stock
	171175	SECONDARY AIR VALVE	$336.95	To Order

Photo	Part No	Description	Price (each)	Stock
	254756	CONNECTOR PIPE	$33.68	To Order

Photo	Part No	Description	Price (each)	Stock
	262422	PIPE	$1,175.41	To Order

Photo	Part No	Description	Price (each)	Stock
	257691	3-WAY CONNECTOR	$1.56	To Order
	161816257691	THREE-WAY UNION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	147119	Rubber pipe from R.H. cut-off	$16.09	To Order

Photo	Part No	Description	Price (each)	Stock
	14304124	SCREW	$0.16	To Order

Photo	Part No	Description	Price (each)	Stock
	12544179	Washer	$0.57	To Order

Photo	Part No	Description	Price (each)	Stock
	200111	BRACKET	$81.82	To Order

Photo	Part No	Description	Price (each)	Stock
	118501	PIPE	$12.03	To Order

Photo	Part No	Description	Price (each)	Stock
	232993	PIPE	$850.42	To Order

Photo	Part No	Description	Price (each)	Stock
	138505	PIPE	$9.90	To Order

Photo	Part No	Description	Price (each)	Stock
	239609	STUD BOLT	$10.73	To Order

Photo	Part No	Description	Price (each)	Stock
	198339	VACUUM ACCUMULATOR TANK	$51.33	To Order

Photo	Part No	Description	Price (each)	Stock
	260063	TANK MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	12644478	WASHER	$0.21	To Order
	66121400	WASHER	$11.46	To Order

Photo	Part No	Description	Price (each)	Stock
	289103	RUBBER PIPE	$13.31	To Order

Photo	Part No	Description	Price (each)	Stock
	194323	PIPE	$13.31	To Order

Photo	Part No	Description	Price (each)	Stock
	225098	PLUG	$1.54	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	181197	Secondary Air Pump	181197 Secondary Air Pump	$545.55 MSRP: ~~663.39~~ (17.8% off)	1
2	262111	JUBILEE CLAMP	262111 JUBILEE CLAMP	$1.60	6
2	262111	JUBILEE CLAMP	262111 JUBILEE CLAMP Hose fastener ref. 3	$1.60	2
3	122221	PIPE	122221 PIPE	$33.29	1
4	227181	PUMP MOUNTING BRACKET	227181 PUMP MOUNTING BRACKET	$208.58	1
5	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	$1.51	3
6	11197774	WASHER	11197774 WASHER	$0.06 MSRP: ~~0.30~~ (80% off)	3
7	16296934	SCREW 6 X 14MM	16296934 SCREW 6 X 14MM	$0.47	3
8	12643724	WASHER	12643724 WASHER	$0.06 MSRP: ~~0.50~~ (88% off)	3
9	236154	PIPE	236154 PIPE	$433.23	1
10	232992	PIPE	232992 PIPE	$850.42	1
11	231619	SCREW	231619 SCREW	$0.31	8
12	162606	CLIP	162606 CLIP	$1.36 MSRP: ~~1.47~~ (7.5% off)	1
13	186781	GASKET	186781 GASKET	$5.28 MSRP: ~~6.35~~ (16.9% off)	2
14	231559	AIR VALVE BRACKET	231559 AIR VALVE BRACKET	$372.69	2
15	186781	GASKET	186781 GASKET	$5.28 MSRP: ~~6.35~~ (16.9% off)	2
16	177576	CABLE GROMMET	177576 CABLE GROMMET	$2.33	4
17	819489	FLANGED BUSHING	819489 FLANGED BUSHING	$14.75	4
18	231619	SCREW	231619 SCREW	$0.31	4
19	228369	CONNECTOR PIPE	228369 CONNECTOR PIPE	$45.56	1
20	171175	SECONDARY AIR VALVE	171175 SECONDARY AIR VALVE	$336.95	2
21	254756	CONNECTOR PIPE	254756 CONNECTOR PIPE	$33.68	2
22	262422	PIPE	262422 PIPE	$1,175.41	1
23	257691	3-WAY CONNECTOR	257691 3-WAY CONNECTOR	$1.56	1
23	161816257691	THREE-WAY UNION	161816257691 THREE-WAY UNION No longer supplied; Replaced by 257691	-	1	Enquire
24	147119	Rubber pipe from R.H. cut-off	147119 Rubber pipe from R.H. cut-off	$16.09	2
26	14304124	SCREW	14304124 SCREW	$0.16 MSRP: ~~0.75~~ (78.7% off)	2
27	12544179	Washer	12544179 Washer	$0.57	2
28	200111	BRACKET	200111 BRACKET	$81.82	1
29	118501	PIPE	118501 PIPE Not for Taiwan	$12.03	1
30	232993	PIPE	232993 PIPE	$850.42	1
31	138505	PIPE	138505 PIPE Not for Taiwan	$9.90	1
32	239609	STUD BOLT	239609 STUD BOLT Not for USA, CDN	$10.73	1
33	198339	VACUUM ACCUMULATOR TANK	198339 VACUUM ACCUMULATOR TANK Applicable for Taiwan; Not for Spider 16M	$51.33	1
34	260063	TANK MOUNTING BRACKET	260063 TANK MOUNTING BRACKET Applicable for Taiwan; Not for Spider 16M	-	1	Enquire
35	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6 Applicable for Taiwan; Not for Spider 16M	$1.51	2
36	12644478	WASHER	12644478 WASHER Applicable for Taiwan; Not for Spider 16M	$0.21	2
36	66121400	WASHER	66121400 WASHER Applicable for Taiwan; Not for Spider 16M	$11.46 MSRP: ~~14.76~~ (22.4% off)	2
37	289103	RUBBER PIPE	289103 RUBBER PIPE Applicable for Taiwan; Not for Spider 16M	$13.31	1
38	194323	PIPE	194323 PIPE Applicable for Taiwan; Not for Spider 16M	$13.31	1
39	225098	PLUG	225098 PLUG Applicable for Taiwan; Not for Spider 16M	$1.54	1
