DOORS - WINDOW AND REARVIEW MIRROR

Find Your Part

Ferrari 360 Challenge (2000) - DOORS - WINDOW AND REARVIEW MIRROR

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
65984000 RH DOOR GLASS WITH SLIDING ELEMENT $730.25 To Order
Photo Part No Description Price (each) Stock
65981100 R.H. DOOR FRAME $1,522.03 To Order
Photo Part No Description Price (each) Stock
66213700 R.H. FRONT BRACKET $150.82 To Order
Photo Part No Description Price (each) Stock
66213900 R.H. REAR BRACKET $160.44 To Order
Photo Part No Description Price (each) Stock
12638124 WASHER $0.05 To Order
Photo Part No Description Price (each) Stock
62797600 Allen Bolt Countersunk M6 x 20 $1.10 To Order
Photo Part No Description Price (each) Stock
12648925 WASHER $0.39 To Order
Photo Part No Description Price (each) Stock
13836721 SCREW $0.49 To Order
Photo Part No Description Price (each) Stock
12643724 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
13836324 SCREW $0.34 To Order
Photo Part No Description Price (each) Stock
65987300 PLATE $5.87 To Order
Photo Part No Description Price (each) Stock
13272011 SCREW $0.21 To Order
Photo Part No Description Price (each) Stock
65731910 COMPLETE RH OUTER REAR VIEW MIRROR $1,273.61 To Order
Photo Part No Description Price (each) Stock
65226000 EXTERNAL RH MIRROR GASKET $556.31 To Order
Photo Part No Description Price (each) Stock
13550277 WASHER $0.37 To Order
Photo Part No Description Price (each) Stock
13274117 SCREW $0.06 To Order
Photo Part No Description Price (each) Stock
65713200 SCREW $0.75 To Order
Photo Part No Description Price (each) Stock
85833900 SCREW $0.36 ARRIVING SOON
Photo Part No Description Price (each) Stock
13831801 NUT $0.18 To Order
Photo Part No Description Price (each) Stock
66213200 RH OUTER REAR VIEW MIRROR GLASS $136.13 To Order
View All

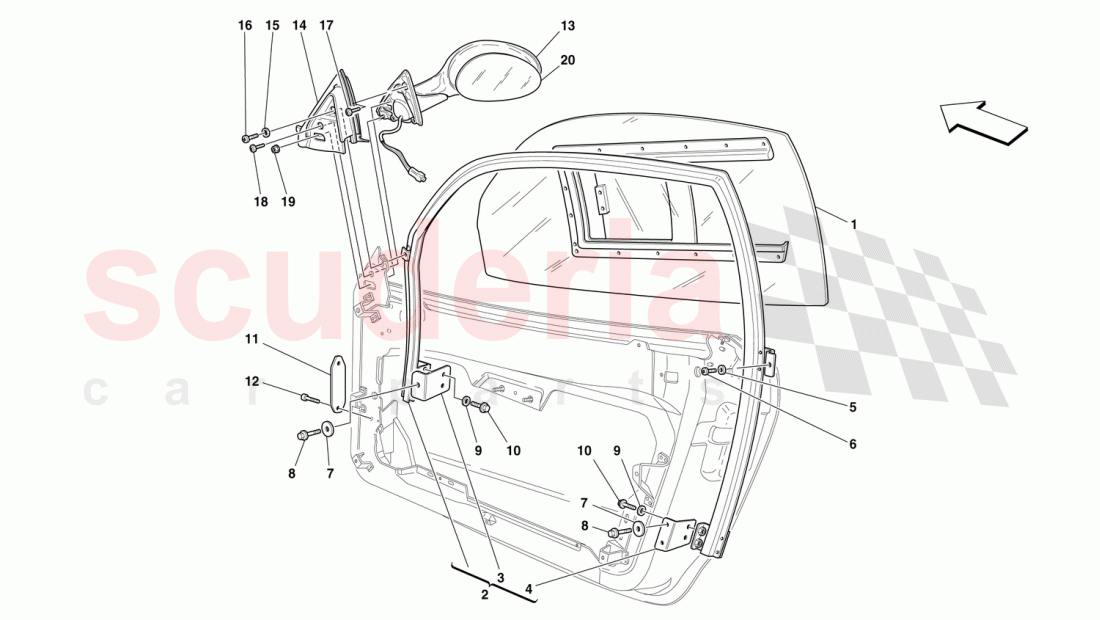

DOORS - WINDOW AND REARVIEW MIRROR of Ferrari Ferrari 360 Challenge (2000) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 66213300
LH OUTER REAR VIEW MIRROR GLASS
MIRROR GLASS 		$136.13 (33.5% off) 1
- 65731810
COMPLETE LH OUTER REAR VIEW MIRROR
VIEW MIRROR 		$1,273.61 1
- 65226100
LH EXTERNAL MIRROR GASKET
GASKET 		$556.31 1
- 65981200
L.H. DOOR FRAME 		$1,421.07 1
- 66213800
L.H. FRONT BRACKET 		$150.82 1
- 66214000
L.H. REAR BRACKET 		$160.44 1
- 65984100
LH DOOR GLASS WITH SLIDING ELEMENT
SLIDING ELEMENT 		$730.25 1
1 65984000
RH DOOR GLASS WITH SLIDING ELEMENT
SLIDING ELEMENT 		$730.25 1
2 65981100
R.H. DOOR FRAME 		$1,522.03 1
3 66213700
R.H. FRONT BRACKET 		$150.82 1
4 66213900
R.H. REAR BRACKET 		$160.44 1
5 12638124
WASHER 		$0.05 (92.9% off) 2
6 62797600
Allen Bolt Countersunk M6 x 20 		$1.10 (24.1% off) 2
7 12648925
WASHER 		$0.39 6
8 13836721
SCREW 		$0.49 6
9 12643724
WASHER 		$0.06 (88% off) 8
10 13836324
SCREW 		$0.34 (79.4% off) 8
11 65987300
PLATE 		$5.87 2
12 13272011
SCREW 		$0.21 4
13 65731910
COMPLETE RH OUTER REAR VIEW MIRROR
VIEW MIRROR 		$1,273.61 1
14 65226000
EXTERNAL RH MIRROR GASKET
GASKET 		$556.31 1
15 13550277
WASHER 		$0.37 2
16 13274117
SCREW 		$0.06 2
17 65713200
SCREW 		$0.75 (36.4% off) 2
18 85833900
SCREW
ARRIVING SOON 		$0.36 2
19 13831801
NUT 		$0.18 4
20 66213200
RH OUTER REAR VIEW MIRROR GLASS
MIRROR GLASS 		$136.13 1
