Find Your Part

FLAT FLOOR PAN AND WHEELHOUSE of Ferrari Ferrari 360 Challenge (2000)

View All

Ferrari 360 Challenge (2000) - FLAT FLOOR PAN AND WHEELHOUSE

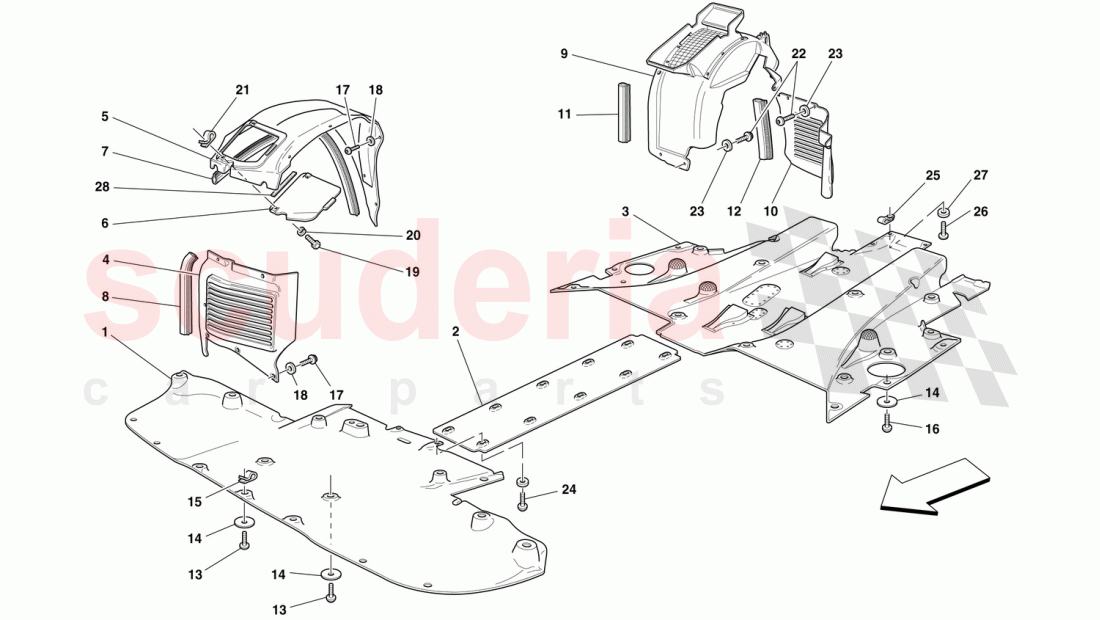

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock

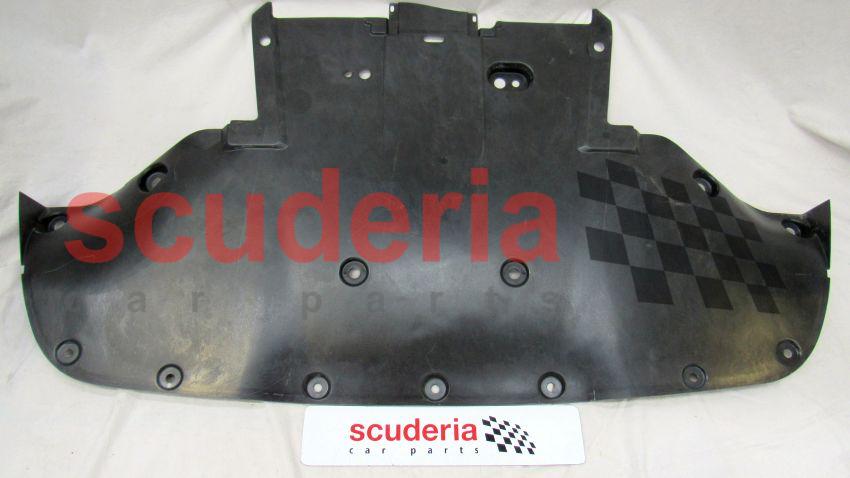

	65512200	CENRAL FRONT UNDER TRAY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

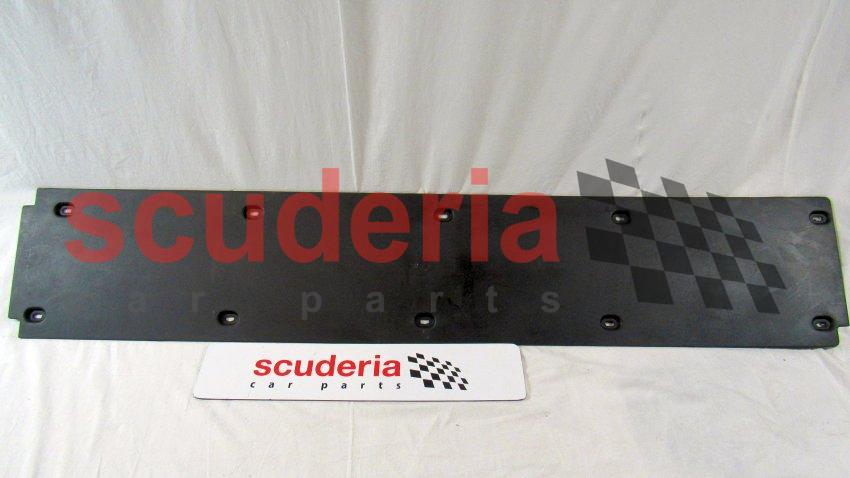

	65512100	Central Under the Body Shell Shield	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65251900	REAR UNDER THE BODY SHELL SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65872500	RH FRONT GRAVEL GUARD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65536700	RH FRONT WHEELHOUSE OUTER CARPET SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65522300	RH WHEELHOUSE COVER PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64857800	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64994500	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66205200	RH REAR WHEELHOUSE ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63266100	RH REAR GRAVEL GUARD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64865000	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64994500	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15644175	Screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66121400	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66252300	Clip for Screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81911600	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13276477	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10977887	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62769800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	60714300	CLIP FOR SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13276477	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81911600	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66252300	Clip for Screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15644175	Screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	60711900	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66092500	ANTI-VIBRATION GASKET	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	63266200	LH REAR GRAVEL GUARD	63266200 LH REAR GRAVEL GUARD REAR WHEEL / Valid for car Ass. Nr. 39354	-	1	Enquire
-	66483800	L.H. GRAVEL GUARD FOR	66483800 L.H. GRAVEL GUARD FOR REAR WHEEL / Valid from car Ass. Nr. 39355	-	1	Enquire
-	65988900	LH REAR WHEELHOUSE ASSEMBLY	65988900 LH REAR WHEELHOUSE ASSEMBLY ASSEMBLY / Front side	-	1	Enquire
-	66483700	RH rear wheel arch (2001 model)	66483700 RH rear wheel arch (2001 model) REAR WHEEL / Valid from car Ass. Nr. 39355	-	1	Enquire
-	66484000	FRONT GRAVEL GUARD FOR L.H.	66484000 FRONT GRAVEL GUARD FOR L.H. FRONT WHEEL / Valid from car Ass. Nr. 39355	-	1	Enquire
-	65536800	LH FRONT WHEELHOUSE OUTER CARPET SHIELD	65536800 LH FRONT WHEELHOUSE OUTER CARPET SHIELD OUTER CARPET SHIELD	-	1	Enquire
-	65522400	LH WHEELHOUSE COVER PLATE	65522400 LH WHEELHOUSE COVER PLATE	-	1	Enquire
-	66483900	RH front wheel arch (2001 model)	66483900 RH front wheel arch (2001 model) FRONT WHEEL / Valid from car Ass. Nr. 39355	-	1	Enquire
-	65872600	LH Front Gravel Guard	65872600 LH Front Gravel Guard FRONT WHEEL / Valid for car Ass. Nr. 39354	-	1	Enquire
1	65512200	CENRAL FRONT UNDER TRAY	65512200 CENRAL FRONT UNDER TRAY SHIELD	-	1	Enquire
2	65512100	Central Under the Body Shell Shield	65512100 Central Under the Body Shell Shield SHIELD	-	1	Enquire
3	65251900	REAR UNDER THE BODY SHELL SHIELD	65251900 REAR UNDER THE BODY SHELL SHIELD SHIELD	-	1	Enquire
4	65872500	RH FRONT GRAVEL GUARD	65872500 RH FRONT GRAVEL GUARD FRONT WHEEL / Valid for car Ass. Nr. 39354	-	1	Enquire
5	65536700	RH FRONT WHEELHOUSE OUTER CARPET SHIELD	65536700 RH FRONT WHEELHOUSE OUTER CARPET SHIELD OUTER CARPET SHIELD	-	1	Enquire
6	65522300	RH WHEELHOUSE COVER PLATE	65522300 RH WHEELHOUSE COVER PLATE	-	1	Enquire
7	64857800	GASKET	64857800 GASKET	-	2	Enquire
8	64994500	GASKET	64994500 GASKET	-	2	Enquire
9	66205200	RH REAR WHEELHOUSE ASSEMBLY	66205200 RH REAR WHEELHOUSE ASSEMBLY ASSEMBLY / Front side	-	1	Enquire
10	63266100	RH REAR GRAVEL GUARD	63266100 RH REAR GRAVEL GUARD REAR WHEEL / Valid for car Ass. Nr. 39354	-	1	Enquire
11	64865000	GASKET	64865000 GASKET	-	2	Enquire
12	64994500	GASKET	64994500 GASKET	-	2	Enquire
13	15644175	Screw	15644175 Screw	-	6	Enquire
14	66121400	WASHER	66121400 WASHER	-	20	Enquire
15	66252300	Clip for Screw	66252300 Clip for Screw	-	8	Enquire
16	81911600	SCREW	81911600 SCREW	-	22	Enquire
17	13276477	SCREW	13276477 SCREW	-	10	Enquire
18	12643724	WASHER	12643724 WASHER	-	10	Enquire
19	10977887	SCREW	10977887 SCREW	-	4	Enquire
20	62769800	WASHER	62769800 WASHER	-	4	Enquire
21	60714300	CLIP FOR SCREW	60714300 CLIP FOR SCREW	-	4	Enquire
22	13276477	SCREW	13276477 SCREW	-	18	Enquire
23	12643724	WASHER	12643724 WASHER	-	18	Enquire
24	81911600	SCREW	81911600 SCREW	-	10	Enquire
25	66252300	Clip for Screw	66252300 Clip for Screw	-	2	Enquire
26	15644175	Screw	15644175 Screw	-	2	Enquire
27	60711900	WASHER	60711900 WASHER	-	2	Enquire
28	66092500	ANTI-VIBRATION GASKET	66092500 ANTI-VIBRATION GASKET	-	2	Enquire
