DOORS - FRAMEWORK AND COVERINGS of Ferrari Ferrari 360 Spider

View All

Ferrari 360 Spider - DOORS - FRAMEWORK AND COVERINGS

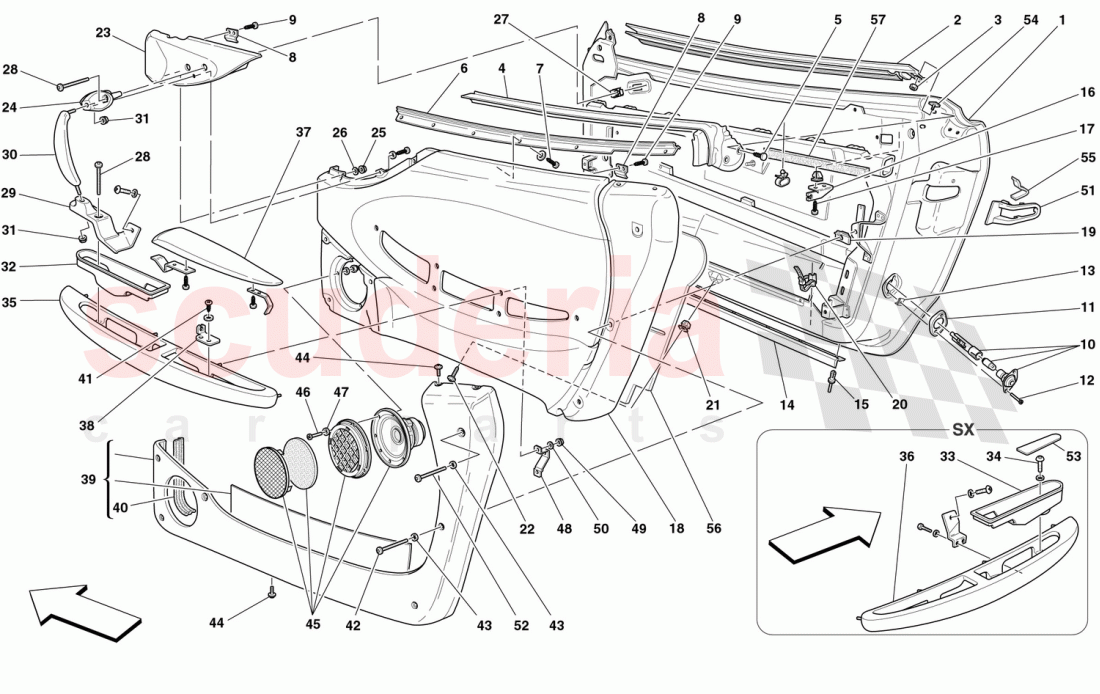

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	65909011	R.H. DOOR FRAME	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65164400	EXTERNAL RH WINDOW SCRAPER SEAL	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	14042077	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65544600	RH INTERNAL WINDOW SCRAPER SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14591687	FASTENER BUTTON	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65013000	RH MOULDING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64595200	FASTENER CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184786	Open-Door Light	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	140576	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15901575	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61828500	FASTENER CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64855600	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62764000	RIVET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65546400	RH BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15903975	Screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	650075	R.H. COVERED DOOR PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14190290	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	177553	CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14201980	BLOCK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15784201	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	635767	COVERED UPPER FRONT PANEL FOR RH DOOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65157600	UPPER FASTENER FOR RH GRAB-HANDLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14084111	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12637824	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14190190	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87627200	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65157500	LOWER FASTENER FOR RH GRAB-HANDLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	651594	R.H. HANDLE MOULDING KNOB -Not for GD-	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059211	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65011500	HANDLE SURROUND RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65705900	LH HANDLE PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13246314	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	659388	R.H. DOOR ARM-REST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	659392	L.H. DOOR ARM-REST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	659445	R.H. DOOR ARM-REST INSERT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65075100	RH BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65009600	R.H. UTILITY POCKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65011600	R.H. GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65071800	Screw M5 x 40	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65916400	Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65392800	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65865100	WOOFER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15526501	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65875900	Client	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65537600	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14084111	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12637824	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65705000	RH DOOR TRIM PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66076300A	Screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	659214	COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67194200	PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65705300	Clip	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66212700	R.H. WATER PROTECTION CLOTH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65973200	R.H. REAR GASKET	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	66212800	L.H. WATER PROTECTION CLOTH	66212800 L.H. WATER PROTECTION CLOTH	-	1	Enquire
-	65717800	L.H. PLATE	65717800 L.H. PLATE	-	1	Enquire
-	66124500	R.H. UTILITY POCKET	66124500 R.H. UTILITY POCKET Valid from Ass. Nr. 42075	-	1	Enquire
-	65009700	L.H. UTILITY POCKET	65009700 L.H. UTILITY POCKET Valid till Ass. Nr. 42074	-	1	Enquire
-	66124600	L.H. UTILITY POCKET	66124600 L.H. UTILITY POCKET Valid from Ass. Nr. 42075	-	1	Enquire
-	65708200	L.H. GASKET	65708200 L.H. GASKET	-	1	Enquire
-	659448	R.H. DOOR ARM-REST	659448 R.H. DOOR ARM-REST Valid for GD	-	1	Enquire
-	659446	L.H. DOOR ARM-REST INSERT	659446 L.H. DOOR ARM-REST INSERT	-	1	Enquire
-	65702800	LH BRACKET	65702800 LH BRACKET	-	1	Enquire
-	659447	L.H. DOOR ARM-REST	659447 L.H. DOOR ARM-REST Valid for GD	-	1	Enquire
-	65158900	LOWER FASTENER FOR LH GRAB-HANDLE	65158900 LOWER FASTENER FOR LH GRAB-HANDLE LOWER CONNECTION / Valid for GD	-	1	Enquire
-	651595	L.H. HANDLE MOULDING KNOB -Valid for GD-	651595 L.H. HANDLE MOULDING KNOB -Valid for GD- Valid for GD	-	1	Enquire
-	65159000	UPPER LH GRAB HANDLE MOUNTING	65159000 UPPER LH GRAB HANDLE MOUNTING UPPER CONNECTION / Valid for GD	-	1	Enquire
-	657075	COVERED UPPER FRONT PANEL FOR RH DOOR	657075 COVERED UPPER FRONT PANEL FOR RH DOOR FOR R.H. DOOR / Valid for GD	-	1	Enquire
-	635768	COVERED UPPER FRONT PANEL FOR LH DOOR	635768 COVERED UPPER FRONT PANEL FOR LH DOOR FOR L.H. DOOR / Not for GD	-	1	Enquire
-	657076	COVERED UPPER FRONT PANEL FOR LH DOOR	657076 COVERED UPPER FRONT PANEL FOR LH DOOR FOR L.H. DOOR / Valid for GD	-	1	Enquire
-	657074	L.H. COVERED DOOR PANEL	657074 L.H. COVERED DOOR PANEL Valid for GD	-	1	Enquire
-	657073	R.H. COVERED DOOR PANEL	657073 R.H. COVERED DOOR PANEL Valid for GD	-	1	Enquire
-	650076	L.H. COVERED DOOR PANEL	650076 L.H. COVERED DOOR PANEL Not for GD	-	1	Enquire
-	65547800	LH BRACKET	65547800 LH BRACKET	-	1	Enquire
-	65544700	LH INTERNAL WINDOW SCRAPER SEAL	65544700 LH INTERNAL WINDOW SCRAPER SEAL SCRAPER	-	1	Enquire
-	65546200	LH MOULDING	65546200 LH MOULDING	-	1	Enquire
-	65164500	LH EXTERNAL WINDOW SCRAPER SEAL	65164500 LH EXTERNAL WINDOW SCRAPER SEAL SCRAPER	-	1	Enquire
-	65909511	L.H. DOOR FRAME	65909511 L.H. DOOR FRAME	-	1	Enquire
1	65909011	R.H. DOOR FRAME	65909011 R.H. DOOR FRAME	-	1	Enquire
2	65164400	EXTERNAL RH WINDOW SCRAPER SEAL ARRIVING SOON	65164400 EXTERNAL RH WINDOW SCRAPER SEAL SCRAPER ARRIVING SOON	-	1	Enquire
3	14042077	NUT	14042077 NUT	-	2	Enquire
4	65544600	RH INTERNAL WINDOW SCRAPER SEAL	65544600 RH INTERNAL WINDOW SCRAPER SEAL SCRAPER	-	1	Enquire
5	14591687	FASTENER BUTTON	14591687 FASTENER BUTTON	-	4	Enquire
6	65013000	RH MOULDING	65013000 RH MOULDING	-	1	Enquire
7	85833700	SCREW	85833700 SCREW	-	12	Enquire
8	64595200	FASTENER CLIP	64595200 FASTENER CLIP	-	6	Enquire
9	85833700	SCREW	85833700 SCREW	-	12	Enquire
10	184786	Open-Door Light	184786 Open-Door Light	-	2	Enquire
11	140576	GASKET	140576 GASKET	-	2	Enquire
12	15901575	SCREW	15901575 SCREW	-	4	Enquire
13	61828500	FASTENER CLIP	61828500 FASTENER CLIP	-	4	Enquire
14	64855600	GASKET	64855600 GASKET	-	2	Enquire
15	62764000	RIVET	62764000 RIVET	-	14	Enquire
16	65546400	RH BRACKET	65546400 RH BRACKET	-	1	Enquire
17	15903975	Screw	15903975 Screw	-	4	Enquire
18	650075	R.H. COVERED DOOR PANEL	650075 R.H. COVERED DOOR PANEL Not for GD	-	1	Enquire
19	14190290	NUT	14190290 NUT	-	12	Enquire
20	177553	CLAMP	177553 CLAMP	-	8	Enquire
21	14201980	BLOCK	14201980 BLOCK	-	2	Enquire
22	15784201	SCREW	15784201 SCREW	-	2	Enquire
23	635767	COVERED UPPER FRONT PANEL FOR RH DOOR	635767 COVERED UPPER FRONT PANEL FOR RH DOOR FOR R.H. DOOR / Not for GD	-	1	Enquire
24	65157600	UPPER FASTENER FOR RH GRAB-HANDLE	65157600 UPPER FASTENER FOR RH GRAB-HANDLE UPPER CONNECTION / Not for GD	-	1	Enquire
25	14084111	NUT	14084111 NUT	-	6	Enquire
26	12637824	WASHER	12637824 WASHER	-	6	Enquire
27	14190190	NUT	14190190 NUT	-	4	Enquire
28	87627200	SCREW	87627200 SCREW	-	2	Enquire
29	65157500	LOWER FASTENER FOR RH GRAB-HANDLE	65157500 LOWER FASTENER FOR RH GRAB-HANDLE LOWER CONNECTION / Not for GD	-	1	Enquire
30	651594	R.H. HANDLE MOULDING KNOB -Not for GD-	651594 R.H. HANDLE MOULDING KNOB -Not for GD- Not for GD	-	1	Enquire
31	14059211	NUT	14059211 NUT	-	2	Enquire
32	65011500	HANDLE SURROUND RH	65011500 HANDLE SURROUND RH	-	1	Enquire
33	65705900	LH HANDLE PLATE	65705900 LH HANDLE PLATE	-	1	Enquire
34	13246314	SCREW	13246314 SCREW	-	1	Enquire
35	659388	R.H. DOOR ARM-REST	659388 R.H. DOOR ARM-REST Not for GD	-	1	Enquire
36	659392	L.H. DOOR ARM-REST	659392 L.H. DOOR ARM-REST Not for GD	-	1	Enquire
37	659445	R.H. DOOR ARM-REST INSERT	659445 R.H. DOOR ARM-REST INSERT	-	1	Enquire
38	65075100	RH BRACKET	65075100 RH BRACKET	-	1	Enquire
39	65009600	R.H. UTILITY POCKET	65009600 R.H. UTILITY POCKET Valid till Ass. Nr. 42074	-	1	Enquire
40	65011600	R.H. GASKET	65011600 R.H. GASKET	-	1	Enquire
41	85833700	SCREW	85833700 SCREW	-	4	Enquire
42	65071800	Screw M5 x 40	65071800 Screw M5 x 40	-	10	Enquire
43	65916400	Washer	65916400 Washer	-	12	Enquire
44	65392800	SCREW	65392800 SCREW	-	8	Enquire
45	65865100	WOOFER	65865100 WOOFER	-	2	Enquire
46	15526501	SCREW	15526501 SCREW	-	6	Enquire
47	65875900	Client	65875900 Client	-	6	Enquire
48	65537600	BRACKET	65537600 BRACKET	-	2	Enquire
49	14084111	NUT	14084111 NUT	-	12	Enquire
50	12637824	WASHER	12637824 WASHER	-	12	Enquire
51	65705000	RH DOOR TRIM PLATE	65705000 RH DOOR TRIM PLATE	-	1	Enquire
52	66076300A	Screw	66076300A Screw	-	2	Enquire
53	659214	COVER	659214 COVER	-	1	Enquire
54	67194200	PLATE	67194200 PLATE	-	2	Enquire
55	65705300	Clip	65705300 Clip	-	4	Enquire
56	66212700	R.H. WATER PROTECTION CLOTH	66212700 R.H. WATER PROTECTION CLOTH	-	1	Enquire
57	65973200	R.H. REAR GASKET	65973200 R.H. REAR GASKET	-	2	Enquire
