DOORS - OPENING CONTROL AND HINGES

Find Your Part

Ferrari 360 Spider - DOORS - OPENING CONTROL AND HINGES

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
179567 LOCKS SET COMPLETED WITH STEERING LOCK AND KEY $946.70 To Order
Photo Part No Description Price (each) Stock
185451 BLANK KEY $208.58 To Order
Photo Part No Description Price (each) Stock
66217700 RH INNER HANDLE FOR DOOR OPENING $746.93 To Order
Photo Part No Description Price (each) Stock
68993100 RH Door Lock With Cables $320.90 To Order
Photo Part No Description Price (each) Stock
68602600 External Door Release Cable $30.47 To Order
Photo Part No Description Price (each) Stock
65069300 DOOR INTERNAL OPENING CABLE $24.31 To Order
Photo Part No Description Price (each) Stock
88831000 GRUB SCREW M5 X 40 $0.57 To Order
Photo Part No Description Price (each) Stock
62769800 WASHER $0.23 To Order
Photo Part No Description Price (each) Stock
65839400 RH DOOR LOCK BLOCK $320.90 To Order
Photo Part No Description Price (each) Stock
63859200 MICROSWITCH $288.81 To Order
Photo Part No Description Price (each) Stock
13046011 NUT $0.39 To Order
Photo Part No Description Price (each) Stock
65836500 SAFETY TIE-ROD $107.49 To Order
Photo Part No Description Price (each) Stock
65302000 SAFETY TIE ROD $3.31 To Order
Photo Part No Description Price (each) Stock
62794000 JOINT $1.28 To Order
Photo Part No Description Price (each) Stock
171120 HANDLE MIRCO SWITCH $160.44 To Order
Photo Part No Description Price (each) Stock
63722800 COUPLING $12.17 To Order
Photo Part No Description Price (each) Stock
63723400 PIN $4.59 To Order
Photo Part No Description Price (each) Stock
63724600 RH SPRING $5.12 To Order
Photo Part No Description Price (each) Stock
11087476 SNAP RING $6.19 To Order
Photo Part No Description Price (each) Stock
65582700 SPRING PIN $0.31 To Order
Photo Part No Description Price (each) Stock
65069000 TIE ROD $224.63 To Order
Photo Part No Description Price (each) Stock
13273977 SCREW $0.28 To Order
Photo Part No Description Price (each) Stock
63576010 RH EXTERNAL DOOR HANDLE $224.63 To Order
Photo Part No Description Price (each) Stock
13309277 SCREW $0.37 To Order
Photo Part No Description Price (each) Stock
64861100 RH INTERNAL GASKET $20.65 To Order
Photo Part No Description Price (each) Stock
64860600 ARM $117.12 To Order
Photo Part No Description Price (each) Stock
64860700 HANDLE SPRING $27.26 To Order
Photo Part No Description Price (each) Stock
64860900 RH HANDLE GASKET $185.42 To Order
Photo Part No Description Price (each) Stock
64860410 RH Handle Seat $97.86 To Order
Photo Part No Description Price (each) Stock
65398700 BUSHING $54.54 To Order
Photo Part No Description Price (each) Stock
64860800 PIN $80.93 To Order
Photo Part No Description Price (each) Stock
65520700 WASHER $13.10 To Order
Photo Part No Description Price (each) Stock
65398600 GUIDE $22.45 To Order
Photo Part No Description Price (each) Stock
178187 MICROSWITCH $80.21 To Order
Photo Part No Description Price (each) Stock
63179900 Fastener Clip $4.10 To Order
Photo Part No Description Price (each) Stock
65806300 PLATE $42.53 To Order
Photo Part No Description Price (each) Stock
63853400 RUBBER BUSHING $4.80 To Order
Photo Part No Description Price (each) Stock
14578283 TIE ROD RETAINING CLIP $0.11 To Order
Photo Part No Description Price (each) Stock
64803300 MOBILE HINGE $256.72 To Order
Photo Part No Description Price (each) Stock
62825300 BUSHING $37.25 To Order
Photo Part No Description Price (each) Stock
65195200 TIE-ROD $320.90 To Order
Photo Part No Description Price (each) Stock
65010500 CLOTH FOR LOUD SPEAKER PLATE Enquire To Order
Photo Part No Description Price (each) Stock
16043436 SCREW $0.50 To Order
Photo Part No Description Price (each) Stock
84653800 WASHER $5.75 To Order
Photo Part No Description Price (each) Stock
13550405 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
63895200 RH COLUMN $30.47 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.51 To Order
Photo Part No Description Price (each) Stock
64810200 R.H. BRACKET $176.49 To Order
Photo Part No Description Price (each) Stock
13836971 SCREW $0.55 To Order
Photo Part No Description Price (each) Stock
64803400 PIN $72.19 To Order
Photo Part No Description Price (each) Stock
11087974 SNAP RING $0.19 To Order
Photo Part No Description Price (each) Stock
65713400 SHIM $1.09 To Order
Photo Part No Description Price (each) Stock
179697 PILLAR SWITCH $34.49 To Order
Photo Part No Description Price (each) Stock
14578283 TIE ROD RETAINING CLIP $0.11 To Order
Photo Part No Description Price (each) Stock
66308300 SPRING CLIP $7.50 To Order
Photo Part No Description Price (each) Stock
64803200 FIXED HINGE $154.03 To Order
Photo Part No Description Price (each) Stock
66842800 Pin $4.00 To Order
Photo Part No Description Price (each) Stock
16043436 SCREW $0.50 To Order
Photo Part No Description Price (each) Stock
84653800 WASHER $5.75 To Order
Photo Part No Description Price (each) Stock
13550405 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
62825300 BUSHING $37.25 To Order
Photo Part No Description Price (each) Stock
810790 FASTENER CLIP Enquire To Order
Photo Part No Description Price (each) Stock
14573280 FLEXIBLE CLIP $0.13 To Order
Photo Part No Description Price (each) Stock
62769800 WASHER $0.23 To Order
Photo Part No Description Price (each) Stock
64074200 RETUTN SPRING FOR TIE ROD $32.08 To Order
Photo Part No Description Price (each) Stock
12644424 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
63892300 DOOR GASKET $4.80 To Order
Photo Part No Description Price (each) Stock
85833900 SCREW $0.36 ARRIVING SOON
Photo Part No Description Price (each) Stock
82242400 WASHER $0.10 To Order
Photo Part No Description Price (each) Stock
65547500 SHIM $1.65 To Order
View All

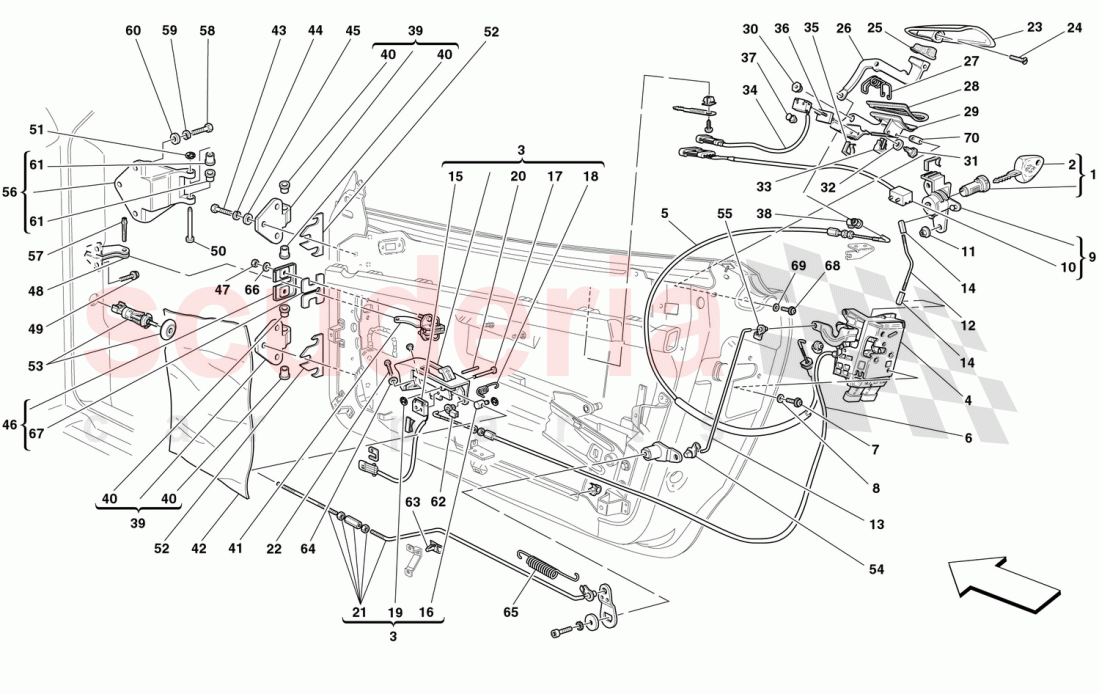

DOORS - OPENING CONTROL AND HINGES of Ferrari Ferrari 360 Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 63895300
LH COLUMN 		$28.87 (35% off) 1
- 64861200
LH INTERNAL GASKET 		$20.65 1
- 64861000
LH HANDLE GASKET 		$185.42 1
- 64860510
LH HANDLE SEAT 		$97.86 1
- 63576110
LH EXTERNAL DOOR HANDLE 		$224.63 1
- 63724700
LH SPRING 		$5.12 1
- 65839500
LH DOOR LOCK BLOCK 		$320.90 1
- 63859200
MICROSWITCH 		$288.81 (17.4% off) 1
- 66217700
RH INNER HANDLE FOR DOOR OPENING
DOOR OPENING / Valid from Ass. Nr. 36782 		$746.93 1
- 66217400
LH INNER HANDLE FOR DOOR OPENING
DOOR OPENING / Valid till Ass. Nr. 36781 		$684.56 1
- 66217400
LH INNER HANDLE FOR DOOR OPENING
DOOR OPENING / Valid from Ass. Nr. 36782 		$684.56 1
- 68993200
LH Door Lock with Cables 		$320.90 (28.1% off) 1
- 185451
BLANK KEY
Valid from Ass. Nr. 42075 		$208.58 (36.8% off) -
1 179567
LOCKS SET COMPLETED WITH STEERING LOCK AND KEY
WITH STEERING / LOCK AND KEY 		$946.70 (32.3% off) 1
2 185451
BLANK KEY
Valid till Ass. Nr. 42074 		$208.58 (36.8% off) -
3 66217700
RH INNER HANDLE FOR DOOR OPENING
DOOR OPENING / Valid till Ass. Nr. 36781 		$746.93 1
4 68993100
RH Door Lock With Cables 		$320.90 (28.1% off) 1
5 68602600
External Door Release Cable 		$30.47 (23.2% off) 2
6 65069300
DOOR INTERNAL OPENING CABLE 		$24.31 (66.2% off) 2
7 88831000
GRUB SCREW M5 X 40 		$0.57 6
8 62769800
WASHER 		$0.23 (23.3% off) 6
9 65839400
RH DOOR LOCK BLOCK 		$320.90 1
10 63859200
MICROSWITCH 		$288.81 (17.4% off) 1
11 13046011
NUT 		$0.39 4
12 65836500
SAFETY TIE-ROD 		$107.49 2
13 65302000
SAFETY TIE ROD 		$3.31 2
14 62794000
JOINT 		$1.28 (35% off) 4
15 171120
HANDLE MIRCO SWITCH 		$160.44 2
16 63722800
COUPLING 		$12.17 2
17 63723400
PIN 		$4.59 2
18 63724600
RH SPRING 		$5.12 1
19 11087476
SNAP RING 		$6.19 2
20 65582700
SPRING PIN 		$0.31 2
21 65069000
TIE ROD 		$224.63 2
22 13273977
SCREW 		$0.28 2
23 63576010
RH EXTERNAL DOOR HANDLE 		$224.63 (16.8% off) 1
24 13309277
SCREW 		$0.37 2
25 64861100
RH INTERNAL GASKET 		$20.65 1
26 64860600
ARM 		$117.12 (20.8% off) 2
27 64860700
HANDLE SPRING 		$27.26 (45.9% off) 2
28 64860900
RH HANDLE GASKET 		$185.42 1
29 64860410
RH Handle Seat 		$97.86 1
30 65398700
BUSHING 		$54.54 (42.6% off) 2
31 64860800
PIN 		$80.93 (39.1% off) 2
32 65520700
WASHER 		$13.10 (49% off) 4
33 65398600
GUIDE 		$22.45 2
34 178187
MICROSWITCH 		$80.21 (22.4% off) 2
35 63179900
Fastener Clip 		$4.10 (25.3% off) 2
36 65806300
PLATE 		$42.53 2
37 63853400
RUBBER BUSHING 		$4.80 2
38 14578283
TIE ROD RETAINING CLIP 		$0.11 (85.3% off) 2
39 64803300
MOBILE HINGE 		$256.72 4
40 62825300
BUSHING 		$37.25 (23.5% off) 8
41 65195200
TIE-ROD 		$320.90 2
42 65010500
CLOTH FOR LOUD SPEAKER PLATE 		- 2 Enquire
43 16043436
SCREW 		$0.50 12
44 84653800
WASHER 		$5.75 12
45 13550405
WASHER 		$0.06 (70% off) 12
46 63895200
RH COLUMN 		$30.47 (31.4% off) 1
47 14059290
FLANGED NUT M6 		$1.51 4
48 64810200
R.H. BRACKET 		$176.49 2
49 13836971
SCREW 		$0.55 (57.7% off) 4
50 64803400
PIN 		$72.19 4
51 11087974
SNAP RING 		$0.19 (61.2% off) 4
52 65713400
SHIM 		$1.09 4
53 179697
PILLAR SWITCH 		$34.49 (24.8% off) 2
54 14578283
TIE ROD RETAINING CLIP 		$0.11 (85.3% off) 2
55 66308300
SPRING CLIP 		$7.50 (3.6% off) 2
56 64803200
FIXED HINGE 		$154.03 4
57 66842800
Pin 		$4.00 (19.2% off) 2
58 16043436
SCREW 		$0.50 12
59 84653800
WASHER 		$5.75 12
60 13550405
WASHER 		$0.06 (70% off) 12
61 62825300
BUSHING 		$37.25 (23.5% off) 8
62 810790
FASTENER CLIP 		- 2 Enquire
63 14573280
FLEXIBLE CLIP 		$0.13 (80% off) 2
64 62769800
WASHER 		$0.23 (23.3% off) 2
65 64074200
RETUTN SPRING FOR TIE ROD 		$32.08 2
66 12644424
WASHER 		$0.06 (85% off) 4
67 63892300
DOOR GASKET 		$4.80 2
68 85833900
SCREW
ARRIVING SOON 		$0.36 2
69 82242400
WASHER 		$0.10 2
70 65547500
SHIM 		$1.65 6
