FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISC of Ferrari Ferrari 360 Spider

View All

Ferrari 360 Spider - FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISC

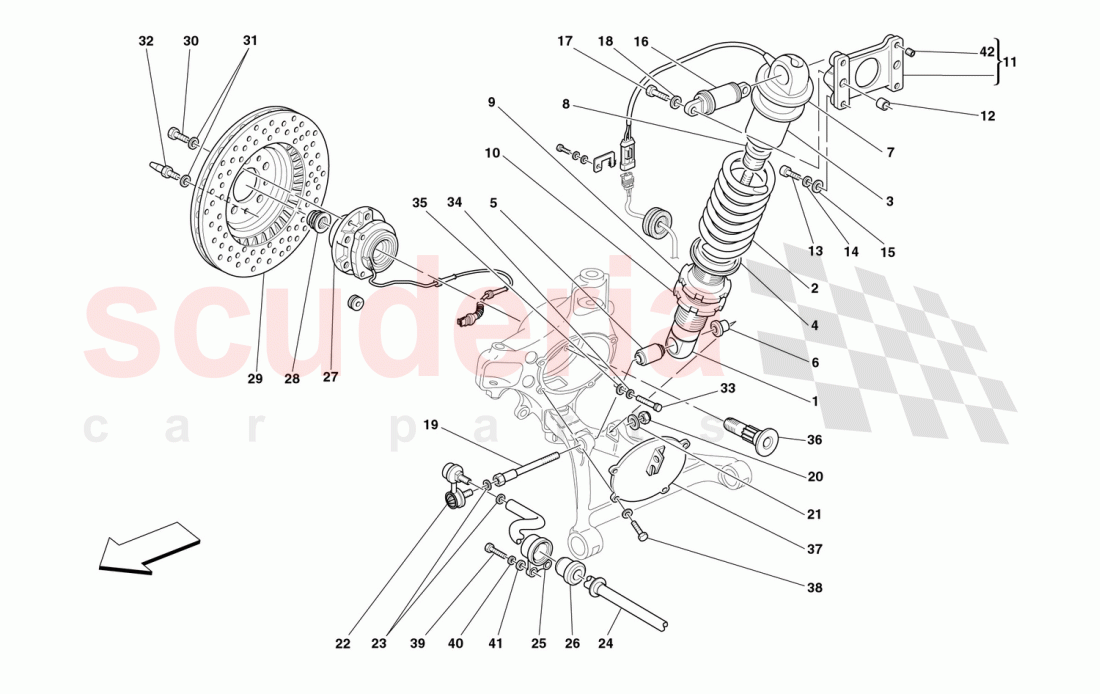

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	174722	FRONT SHOCK ABSORBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	216381	Front Spring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	245623	UPPER SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	181408	LOWER SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	157630	BALL JOINT	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	177661	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	174727	UPPER SPRING RETENTION CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	174728	SHOCK ABSORBER BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	174725	RING NUT, SHOCK ABSORBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	174726	THREADED RING NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	174729	SHOCK ABSORBER CONNECTION SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	100013	CENTERING DOWEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14306774	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127496	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14496524	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	212948	Silent Block	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11306934	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	160092	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	177660	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	148020	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12646921	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	259573	RH SPHERICAL TIE-ROD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	160092	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	170715	FRONT STABILISER BAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	170714	ANTI-ROLL BAR SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	170588	Stabiliser Bar Bush	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	179070	Hub Bearing	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	167259	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	182606	Brake Disc (Front & Rear)	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	14306924	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127496	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	104370	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	180591	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	160092	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10732414	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	180542	BEARING FASTENING PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	165871	R.H. STEERING KNUCKLE COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	250657	SCREW M6 X 14	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14306924	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	178341	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12638524	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13526170	THREADED INSERT	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	165872	L.H. STEERING KNUCKLE COVER	165872 L.H. STEERING KNUCKLE COVER	-	1	Enquire
-	259572	LH Ball Tie Rod	259572 LH Ball Tie Rod	-	1	Enquire
-	216381	Front Spring	216381 Front Spring	-	2	Enquire
1	174722	FRONT SHOCK ABSORBER	174722 FRONT SHOCK ABSORBER	-	2	Enquire
2	216381	Front Spring	216381 Front Spring Replace together / Not as spare part / Replaced by 182404	-	2	Enquire
3	245623	UPPER SPACER	245623 UPPER SPACER	-	2	Enquire
4	181408	LOWER SPACER	181408 LOWER SPACER	-	2	Enquire
5	157630	BALL JOINT ARRIVING SOON	157630 BALL JOINT ARRIVING SOON	-	2	Enquire
6	177661	SPACER	177661 SPACER	-	2	Enquire
7	174727	UPPER SPRING RETENTION CAP	174727 UPPER SPRING RETENTION CAP SPACER	-	2	Enquire
8	174728	SHOCK ABSORBER BUSHING	174728 SHOCK ABSORBER BUSHING	-	2	Enquire
9	174725	RING NUT, SHOCK ABSORBER	174725 RING NUT, SHOCK ABSORBER	-	2	Enquire
10	174726	THREADED RING NUT	174726 THREADED RING NUT	-	2	Enquire
11	174729	SHOCK ABSORBER CONNECTION SUPPORT	174729 SHOCK ABSORBER CONNECTION SUPPORT CONNECTION SUPPORT / Valid till car Nr. 120572	-	2	Enquire
12	100013	CENTERING DOWEL	100013 CENTERING DOWEL Valid till car Nr. 120572	-	4	Enquire
13	14306774	SCREW	14306774 SCREW Valid till car Nr. 120572	-	8	Enquire
14	127496	WASHER	127496 WASHER Valid till car Nr. 120572	-	8	Enquire
15	14496524	WASHER	14496524 WASHER Valid till car Nr. 120572	-	8	Enquire
16	212948	Silent Block	212948 Silent Block	-	2	Enquire
17	11306934	SCREW	11306934 SCREW	-	4	Enquire
18	160092	WASHER	160092 WASHER	-	4	Enquire
19	177660	SCREW	177660 SCREW	-	2	Enquire
20	148020	NUT	148020 NUT	-	2	Enquire
21	12646921	WASHER	12646921 WASHER	-	2	Enquire
22	259573	RH SPHERICAL TIE-ROD	259573 RH SPHERICAL TIE-ROD	-	1	Enquire
23	160092	WASHER	160092 WASHER	-	4	Enquire
24	170715	FRONT STABILISER BAR	170715 FRONT STABILISER BAR	-	1	Enquire
25	170714	ANTI-ROLL BAR SUPPORT	170714 ANTI-ROLL BAR SUPPORT	-	2	Enquire
26	170588	Stabiliser Bar Bush	170588 Stabiliser Bar Bush	-	2	Enquire
27	179070	Hub Bearing	179070 Hub Bearing	-	2	Enquire
28	167259	NUT	167259 NUT	-	2	Enquire
29	182606	Brake Disc (Front & Rear) ARRIVING SOON	182606 Brake Disc (Front & Rear) ARRIVING SOON	-	2	Enquire
30	14306924	SCREW	14306924 SCREW	-	2	Enquire
31	127496	WASHER	127496 WASHER	-	4	Enquire
32	104370	SCREW	104370 SCREW	-	2	Enquire
33	180591	SCREW	180591 SCREW	-	8	Enquire
34	160092	WASHER	160092 WASHER	-	8	Enquire
35	10732414	WASHER	10732414 WASHER	-	8	Enquire
36	180542	BEARING FASTENING PIN	180542 BEARING FASTENING PIN	-	2	Enquire
37	165871	R.H. STEERING KNUCKLE COVER	165871 R.H. STEERING KNUCKLE COVER	-	1	Enquire
38	250657	SCREW M6 X 14	250657 SCREW M6 X 14	-	8	Enquire
39	14306924	SCREW	14306924 SCREW	-	4	Enquire
40	178341	WASHER	178341 WASHER	-	4	Enquire
41	12638524	WASHER	12638524 WASHER	-	4	Enquire
42	13526170	THREADED INSERT	13526170 THREADED INSERT Valid till car Nr. 120572	-	4	Enquire
