INSULATIONS of Ferrari Ferrari 360 Modena

View All

Ferrari 360 Modena - INSULATIONS

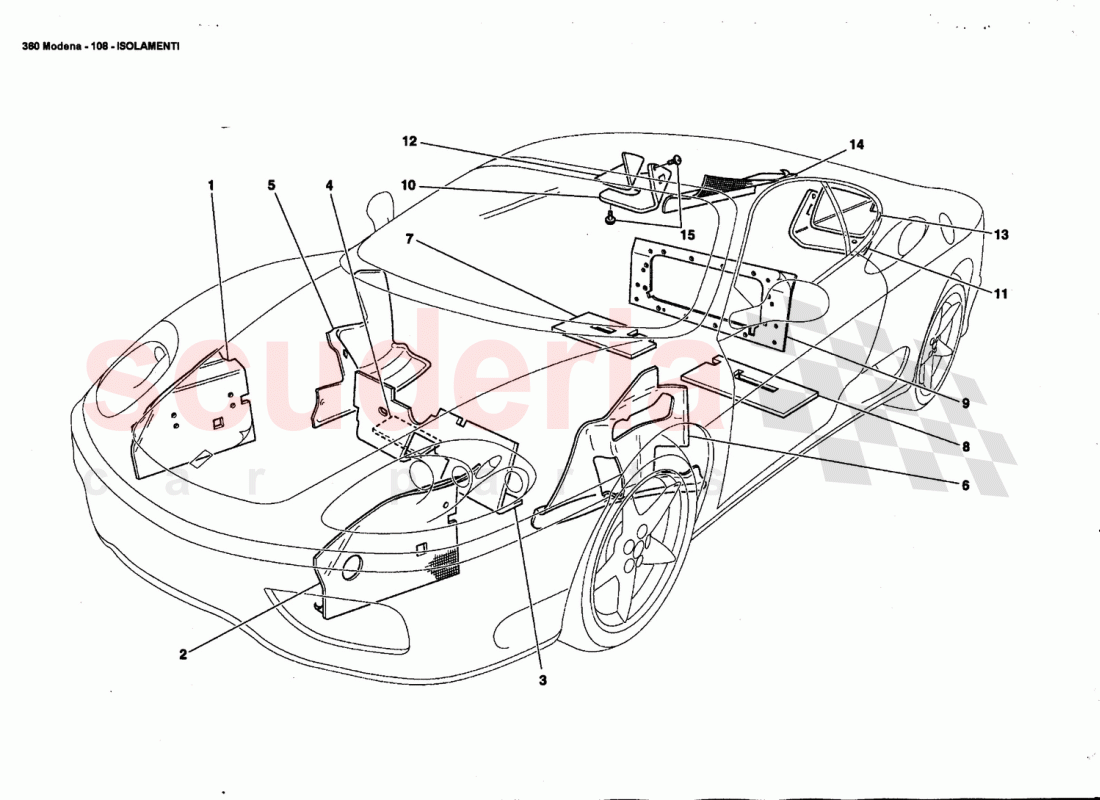

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	65774500	OUTER FRONT RH INSULATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65774400	LH Front Outer Insulation	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65856600	DASH PANEL SIDE INSULATION	Enquire	To Order
	65524200	DASH PANEL SIDE INSULATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65390800	FRONT RH INSULATION UNDER BATTERY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65302900	FRONT RH WHEELHOUSE INSULATION	Enquire	To Order
	67293100	FRONT RH WHEELHOUSE INSULATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65303000	FRONT LH WHEELHOUSE INSULATION	Enquire	To Order
	67293200	FRONT LH WHEELHOUSE INSULATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65303100	UPPER REAR RH INSULATION FOR PLATFORM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65303200	UPPER REAR LH INSULATION FOR PLATFORM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65524300	MOTOR COMPARTMENT REAR SIDE INSULATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65840800	RH ENGINE COMPARTMENT/TANK INSULATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65840700	LH INSULATION ENGINE COMPARTMENT/TANK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81095600	RH SHELF INSULATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81095700	LH SHELF INSULATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65774600	RH REAR MUDGUARD INSULATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66252500	BUTTON FASTENER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	65774500	OUTER FRONT RH INSULATION	65774500 OUTER FRONT RH INSULATION INSULATION	-	1	Enquire
2	65774400	LH Front Outer Insulation	65774400 LH Front Outer Insulation INSULATION	-	1	Enquire
3	65856600	DASH PANEL SIDE INSULATION	65856600 DASH PANEL SIDE INSULATION Valid for GD	-	1	Enquire
3	65524200	DASH PANEL SIDE INSULATION	65524200 DASH PANEL SIDE INSULATION Not for GD	-	1	Enquire
4	65390800	FRONT RH INSULATION UNDER BATTERY	65390800 FRONT RH INSULATION UNDER BATTERY UNDER BATTERY	-	1	Enquire
5	65302900	FRONT RH WHEELHOUSE INSULATION	65302900 FRONT RH WHEELHOUSE INSULATION INSULATION / Not for GD	-	1	Enquire
5	67293100	FRONT RH WHEELHOUSE INSULATION	67293100 FRONT RH WHEELHOUSE INSULATION INSULATION / Valid for GD	-	1	Enquire
6	65303000	FRONT LH WHEELHOUSE INSULATION	65303000 FRONT LH WHEELHOUSE INSULATION INSULATION / Not for GD	-	1	Enquire
6	67293200	FRONT LH WHEELHOUSE INSULATION	67293200 FRONT LH WHEELHOUSE INSULATION INSULATION / Valid for GD	-	1	Enquire
7	65303100	UPPER REAR RH INSULATION FOR PLATFORM	65303100 UPPER REAR RH INSULATION FOR PLATFORM FOR PLATFORM	-	1	Enquire
8	65303200	UPPER REAR LH INSULATION FOR PLATFORM	65303200 UPPER REAR LH INSULATION FOR PLATFORM FOR PLATFORM	-	1	Enquire
9	65524300	MOTOR COMPARTMENT REAR SIDE INSULATION	65524300 MOTOR COMPARTMENT REAR SIDE INSULATION SIDE INSULATION	-	1	Enquire
10	65840800	RH ENGINE COMPARTMENT/TANK INSULATION	65840800 RH ENGINE COMPARTMENT/TANK INSULATION R.H. INSULATION	-	1	Enquire
11	65840700	LH INSULATION ENGINE COMPARTMENT/TANK	65840700 LH INSULATION ENGINE COMPARTMENT/TANK L.H. INSULATION	-	1	Enquire
12	81095600	RH SHELF INSULATION	81095600 RH SHELF INSULATION	-	1	Enquire
13	81095700	LH SHELF INSULATION	81095700 LH SHELF INSULATION	-	1	Enquire
14	65774600	RH REAR MUDGUARD INSULATION	65774600 RH REAR MUDGUARD INSULATION INSULATION	-	1	Enquire
15	66252500	BUTTON FASTENER	66252500 BUTTON FASTENER	-	6	Enquire
