REAR BUMPER of Ferrari Ferrari 360 Modena

View All

Ferrari 360 Modena - REAR BUMPER

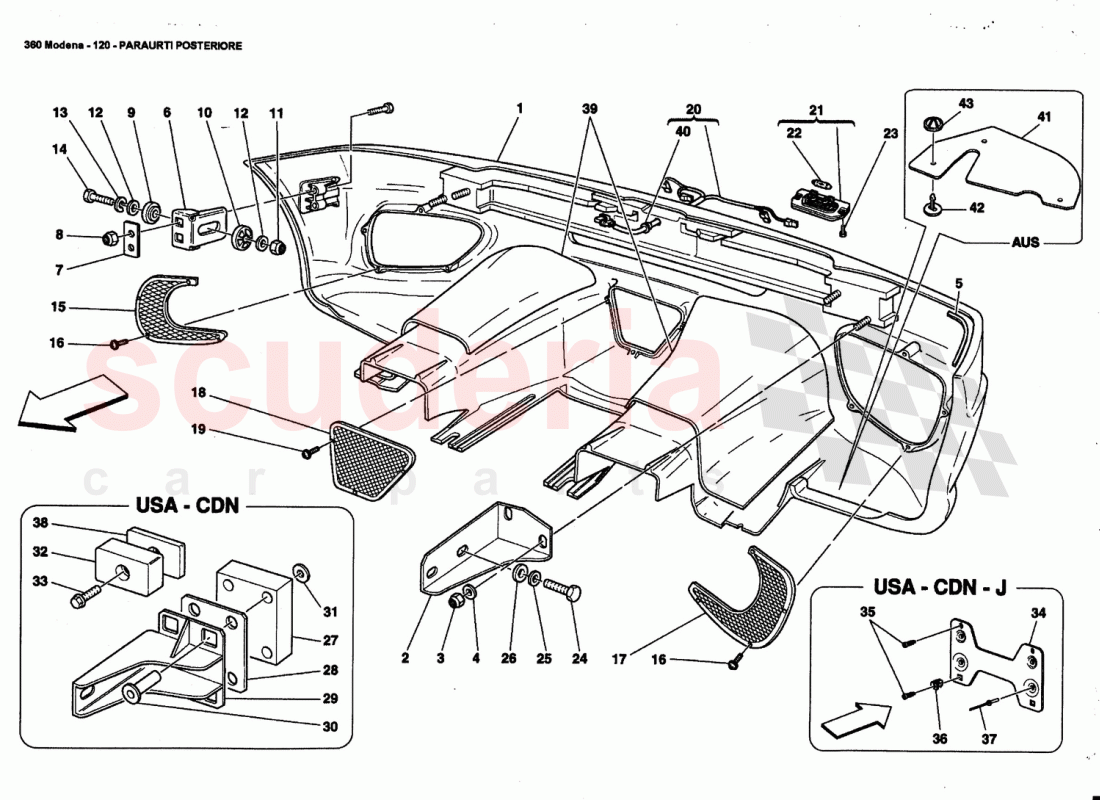

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	64852810	COMPLETE REAR BUMPER	Enquire	To Order
	64853710	COMPLETE REAR BUMPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65306500	R.H. CENTRAL BRACKET	Enquire	To Order
	65306600	L.H. CENTRAL BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12574521	Nyloc Nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83220900	Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65856200	RUBBER PROFILE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83203500	LATERAL LH BUMPER MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62126600	Plate	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	104030	NYLOC NUT M8 X 1.25 X 9.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83203600	EXTERNAL VIBRATION DAMPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83203700	INTERNAL VIBRATION DAMPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12574521	Nyloc Nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83220900	Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127497	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11307021	Screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65006300	R.H. GRILL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15688875	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65006400	L.H. GRILL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65006200	CENTER GRILLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	88822200	SCREW TORX HEAD M4 X 10MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	182985	PLATE LIGHT CABLES	Enquire	To Order
	164823	CABLES FOR NUMBER PLATE LIGHTS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	186180	REAR LICENSE PLATE LIGHT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10857790	12 V-5 W LAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15644175	Screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15540421	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11190779	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12646921	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63214100	ABSORPTION PAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63738800	PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65155200	CENTRAL BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65372900	BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13550405	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65537700	ABSORPTION PAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13839224	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65886300	LICENSE PLATE MOUNT	Enquire	To Order
	81041900	LICENSE PLATE MOUNT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16084370	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14201980	BLOCK	Enquire	To Order
	81041900	LICENSE PLATE MOUNT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14296191	RIVET	Enquire	To Order
	900472	FASTENER BUTTON	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65537800	SPACER FOR WICK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65942000	INSULATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10399280	CABLE GROMMET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68456900	RH INSULATION FOR REAR BUMPER	Enquire	To Order
	68457000	LH INSULATION FOR REAR BUMPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68484300	BUTTON	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68484400	CLIP	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	64852810	COMPLETE REAR BUMPER	64852810 COMPLETE REAR BUMPER Not for USA and CDN /	-	1	Enquire
1	64853710	COMPLETE REAR BUMPER	64853710 COMPLETE REAR BUMPER Valid for USA and CDN /	-	1	Enquire
2	65306500	R.H. CENTRAL BRACKET	65306500 R.H. CENTRAL BRACKET Not for USA and CDN	-	1	Enquire
2	65306600	L.H. CENTRAL BRACKET	65306600 L.H. CENTRAL BRACKET Not for USA and CDN	-	1	Enquire
3	12574521	Nyloc Nut	12574521 Nyloc Nut	-	4	Enquire
4	83220900	Washer	83220900 Washer	-	8	Enquire
5	65856200	RUBBER PROFILE	65856200 RUBBER PROFILE	-	2	Enquire
6	83203500	LATERAL LH BUMPER MOUNTING BRACKET	83203500 LATERAL LH BUMPER MOUNTING BRACKET	-	2	Enquire
7	62126600	Plate	62126600 Plate	-	2	Enquire
8	104030	NYLOC NUT M8 X 1.25 X 9.5	104030 NYLOC NUT M8 X 1.25 X 9.5	-	4	Enquire
9	83203600	EXTERNAL VIBRATION DAMPER	83203600 EXTERNAL VIBRATION DAMPER	-	2	Enquire
10	83203700	INTERNAL VIBRATION DAMPER	83203700 INTERNAL VIBRATION DAMPER	-	2	Enquire
11	12574521	Nyloc Nut	12574521 Nyloc Nut	-	2	Enquire
12	83220900	Washer	83220900 Washer	-	4	Enquire
13	127497	WASHER	127497 WASHER	-	2	Enquire
14	11307021	Screw	11307021 Screw	-	2	Enquire
15	65006300	R.H. GRILL	65006300 R.H. GRILL	-	1	Enquire
16	15688875	SCREW	15688875 SCREW	-	8	Enquire
17	65006400	L.H. GRILL	65006400 L.H. GRILL	-	1	Enquire
18	65006200	CENTER GRILLE	65006200 CENTER GRILLE	-	1	Enquire
19	88822200	SCREW TORX HEAD M4 X 10MM	88822200 SCREW TORX HEAD M4 X 10MM	-	3	Enquire
20	182985	PLATE LIGHT CABLES	182985 PLATE LIGHT CABLES LIGHTS / Valid from Ass. Nr. 36337	-	1	Enquire
20	164823	CABLES FOR NUMBER PLATE LIGHTS	164823 CABLES FOR NUMBER PLATE LIGHTS LIGHTS / Valid till Ass. Nr. 36336	-	1	Enquire
21	186180	REAR LICENSE PLATE LIGHT	186180 REAR LICENSE PLATE LIGHT	-	2	Enquire
22	10857790	12 V-5 W LAMP	10857790 12 V-5 W LAMP	-	2	Enquire
23	15644175	Screw	15644175 Screw	-	4	Enquire
24	15540421	SCREW	15540421 SCREW	-	4	Enquire
25	11190779	WASHER	11190779 WASHER	-	4	Enquire
26	12646921	WASHER	12646921 WASHER	-	4	Enquire
27	63214100	ABSORPTION PAD	63214100 ABSORPTION PAD Valid for USA and CDN	-	2	Enquire
28	63738800	PLATE	63738800 PLATE Valid for USA and CDN	-	2	Enquire
29	65155200	CENTRAL BRACKET	65155200 CENTRAL BRACKET Valid for USA and CDN	-	2	Enquire
30	65372900	BUSHING	65372900 BUSHING Valid for USA and CDN	-	8	Enquire
31	13550405	WASHER	13550405 WASHER Valid for USA and CDN	-	8	Enquire
32	65537700	ABSORPTION PAD	65537700 ABSORPTION PAD Valid for USA and CDN	-	2	Enquire
33	13839224	SCREW	13839224 SCREW Valid for USA and CDN	-	2	Enquire
34	65886300	LICENSE PLATE MOUNT	65886300 LICENSE PLATE MOUNT Valid for USA and CDN	-	1	Enquire
34	81041900	LICENSE PLATE MOUNT	81041900 LICENSE PLATE MOUNT Valid for J	-	1	Enquire
35	16084370	SCREW	16084370 SCREW Valid for USA and CDN	-	4	Enquire
36	14201980	BLOCK	14201980 BLOCK Valid for USA and CDN	-	2	Enquire
36	81041900	LICENSE PLATE MOUNT	81041900 LICENSE PLATE MOUNT Valid for J	-	2	Enquire
37	14296191	RIVET	14296191 RIVET Valid for J	-	4	Enquire
37	900472	FASTENER BUTTON	900472 FASTENER BUTTON Valid for USA and CDN	-	4	Enquire
38	65537800	SPACER FOR WICK	65537800 SPACER FOR WICK Valid for USA and CDN	-	2	Enquire
39	65942000	INSULATION	65942000 INSULATION	-	2	Enquire
40	10399280	CABLE GROMMET	10399280 CABLE GROMMET	-	2	Enquire
41	68456900	RH INSULATION FOR REAR BUMPER	68456900 RH INSULATION FOR REAR BUMPER BUMPER / Valid from Nr.53911 for AUS	-	1	Enquire
41	68457000	LH INSULATION FOR REAR BUMPER	68457000 LH INSULATION FOR REAR BUMPER BUMPER / Valid from Nr.53911 for AUS	-	1	Enquire
42	68484300	BUTTON	68484300 BUTTON Valid from Nr.53911 for AUS	-	6	Enquire
43	68484400	CLIP	68484400 CLIP Valid from Nr.53911 for AUS	-	6	Enquire
