Front Suspension - Shock Absorber And Brake Disc

Ferrari 360 Modena

Find Your Part

Ferrari 360 Modena - FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISC

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
174722 FRONT SHOCK ABSORBER Enquire To Order
Photo Part No Description Price (each) Stock
216381 Front Spring Enquire To Order
Photo Part No Description Price (each) Stock
245623 UPPER SPACER Enquire To Order
Photo Part No Description Price (each) Stock
181408 LOWER SPACER Enquire To Order
Photo Part No Description Price (each) Stock
157630 BALL JOINT Enquire ARRIVING SOON
Photo Part No Description Price (each) Stock
177661 SPACER Enquire To Order
193492 SCREW SPACER Enquire To Order
Photo Part No Description Price (each) Stock
174727 UPPER SPRING RETENTION CAP Enquire To Order
Photo Part No Description Price (each) Stock
174728 SHOCK ABSORBER BUSHING Enquire To Order
Photo Part No Description Price (each) Stock
174725 RING NUT, SHOCK ABSORBER Enquire To Order
Photo Part No Description Price (each) Stock
174726 THREADED RING NUT Enquire To Order
Photo Part No Description Price (each) Stock
174729 SHOCK ABSORBER CONNECTION SUPPORT Enquire To Order
Photo Part No Description Price (each) Stock
100013 CENTERING DOWEL Enquire To Order
Photo Part No Description Price (each) Stock
14306774 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
127496 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
14496524 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
212948 Silent Block Enquire To Order
212948 Silent Block Enquire To Order
Photo Part No Description Price (each) Stock
11306934 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
160092 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
204977 SCREW Enquire To Order
177660 SCREW Enquire To Order
204977 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
148020 NUT Enquire To Order
255271 NUT Enquire To Order
Photo Part No Description Price (each) Stock
12646921 WASHER Enquire To Order
155002 Washer Enquire To Order
Photo Part No Description Price (each) Stock
259573 RH SPHERICAL TIE-ROD Enquire To Order
259572 LH Ball Tie Rod Enquire To Order
Photo Part No Description Price (each) Stock
160092 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
170715 FRONT STABILISER BAR Enquire To Order
Photo Part No Description Price (each) Stock
170714 ANTI-ROLL BAR SUPPORT Enquire To Order
Photo Part No Description Price (each) Stock
170588 Stabiliser Bar Bush Enquire To Order
Photo Part No Description Price (each) Stock
179070 Hub Bearing Enquire To Order
Photo Part No Description Price (each) Stock
209184 NUT Enquire To Order
167259 NUT Enquire To Order
Photo Part No Description Price (each) Stock
182606 Brake Disc (Front & Rear) Enquire ARRIVING SOON
Photo Part No Description Price (each) Stock
14306924 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
127496 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
104370 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
180591 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
160092 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
10732414 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
180542 BEARING FASTENING PIN Enquire To Order
Photo Part No Description Price (each) Stock
165872 L.H. STEERING KNUCKLE COVER Enquire To Order
165871 R.H. STEERING KNUCKLE COVER Enquire To Order
Photo Part No Description Price (each) Stock
250657 SCREW M6 X 14 Enquire To Order
Photo Part No Description Price (each) Stock
14306924 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
178341 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
12638524 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
13526170 THREADED INSERT Enquire To Order
Photo Part No Description Price (each) Stock
10977524 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
162606 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
127494 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
12643724 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
10460287 RUBBER RING Enquire To Order
View All

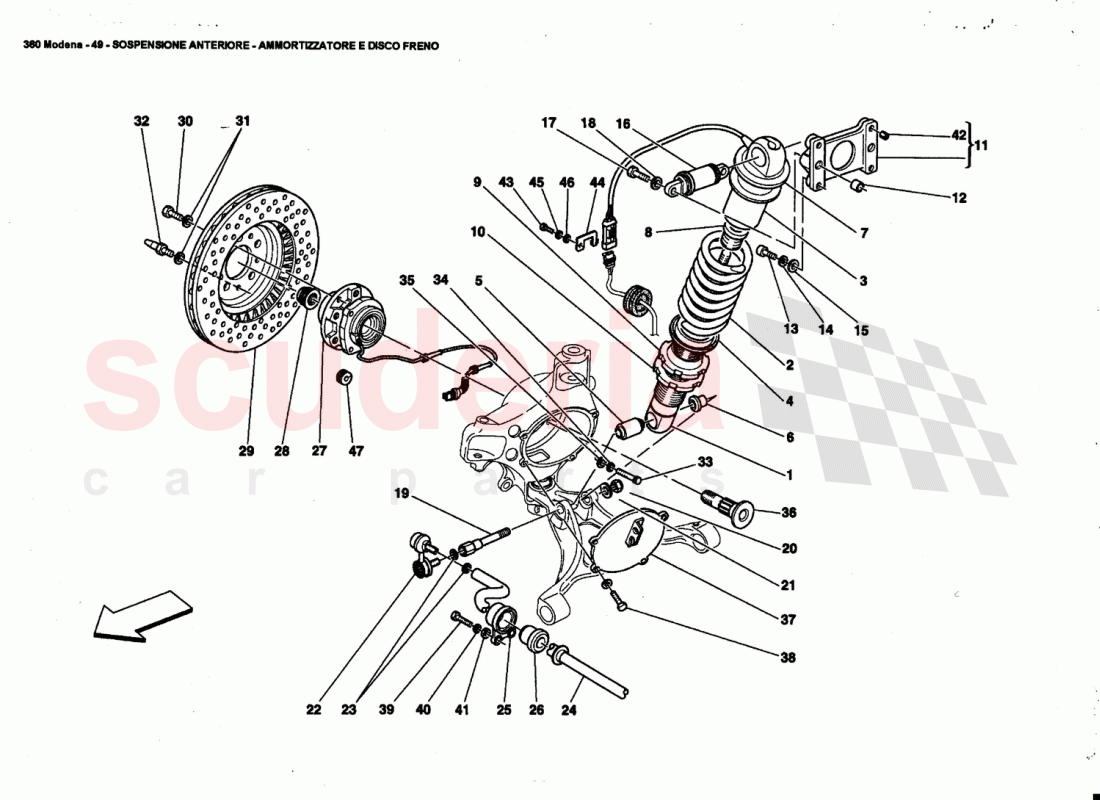

FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISC of Ferrari Ferrari 360 Modena Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 174722
FRONT SHOCK ABSORBER 		- 2 Enquire
2 216381
Front Spring 		- 2 Enquire
3 245623
UPPER SPACER 		- 2 Enquire
4 181408
LOWER SPACER 		- 2 Enquire
5 157630
BALL JOINT
ARRIVING SOON 		- 2 Enquire
6 177661
SPACER
Valid till Ass. Nr. 47927 		- 2 Enquire
6 193492
SCREW SPACER
Valid from Ass. Nr. 47928 		- 2 Enquire
7 174727
UPPER SPRING RETENTION CAP
SPACER 		- 2 Enquire
8 174728
SHOCK ABSORBER BUSHING 		- 2 Enquire
9 174725
RING NUT, SHOCK ABSORBER 		- 2 Enquire
10 174726
THREADED RING NUT 		- 2 Enquire
11 174729
SHOCK ABSORBER CONNECTION SUPPORT
CONNECTION SUPPORT / Valid till car Nr. 120068 for GS / and 120193 for GD 		- 2 Enquire
12 100013
CENTERING DOWEL
Valid till car Nr. 120068 for GS / and 120193 for GD 		- 4 Enquire
13 14306774
SCREW
Valid till car Nr. 120068 for GS / and 120193 for GD 		- 8 Enquire
14 127496
WASHER
Valid till car Nr. 120068 for GS / and 120193 for GD 		- 8 Enquire
15 14496524
WASHER
Valid till car Nr. 120068 for GS / and 120193 for GD 		- 8 Enquire
16 212948
Silent Block
Valid from Ass. Nr. 56992 and after / stock exhaustion use 181804 / Replace together 		- 2 Enquire
16 212948
Silent Block
Valid till Ass. Nr. 56991 / Valid till stock exhaustion / Replace together 		- 2 Enquire
17 11306934
SCREW 		- 4 Enquire
18 160092
WASHER 		- 4 Enquire
19 204977
SCREW
Valid from Ass. Nr. 47928 		- 2 Enquire
19 177660
SCREW
Valid till Ass. Nr. 47927 		- 2 Enquire
19 204977
SCREW
Valid from Ass. Nr. 47928 / Valid till stock exhaustion 		- 2 Enquire
20 148020
NUT 		- 2 Enquire
20 255271
NUT 		- 2 Enquire
21 12646921
WASHER 		- 2 Enquire
21 155002
Washer 		- 2 Enquire
22 259573
RH SPHERICAL TIE-ROD 		- 1 Enquire

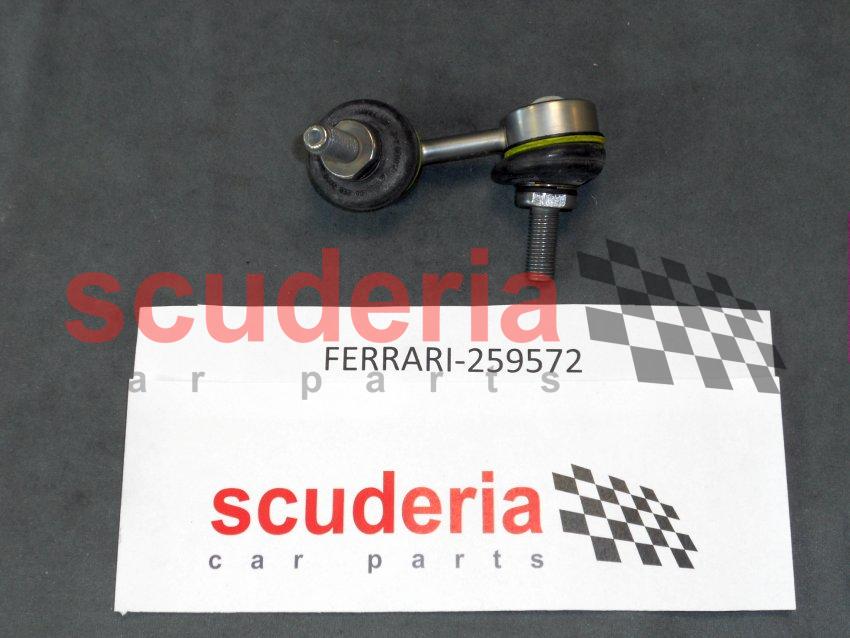

22 259572
LH Ball Tie Rod 		- 1 Enquire
23 160092
WASHER 		- 4 Enquire
24 170715
FRONT STABILISER BAR 		- 1 Enquire
25 170714
ANTI-ROLL BAR SUPPORT 		- 2 Enquire
26 170588
Stabiliser Bar Bush 		- 2 Enquire
27 179070
Hub Bearing 		- 2 Enquire
28 209184
NUT 		- 2 Enquire
28 167259
NUT
Not as spare part / Replaced by 209184 		- 2 Enquire
29 182606
Brake Disc (Front & Rear)
ARRIVING SOON 		- 2 Enquire
30 14306924
SCREW 		- 2 Enquire
31 127496
WASHER 		- 4 Enquire
32 104370
SCREW 		- 2 Enquire
33 180591
SCREW 		- 8 Enquire
34 160092
WASHER 		- 8 Enquire
35 10732414
WASHER 		- 8 Enquire
36 180542
BEARING FASTENING PIN 		- 2 Enquire
37 165872
L.H. STEERING KNUCKLE COVER 		- 1 Enquire
37 165871
R.H. STEERING KNUCKLE COVER 		- 1 Enquire
38 250657
SCREW M6 X 14 		- 8 Enquire
39 14306924
SCREW 		- 4 Enquire
40 178341
WASHER 		- 4 Enquire
41 12638524
WASHER 		- 4 Enquire
42 13526170
THREADED INSERT
Valid till car Nr. 120068 for GS / and 120193 for GD 		- 4 Enquire
43 10977524
SCREW 		- 2 Enquire
44 162606
CLIP 		- 2 Enquire
45 127494
WASHER 		- 2 Enquire
46 12643724
WASHER 		- 2 Enquire
47 10460287
RUBBER RING 		- 2 Enquire
