ELECTRICAL SEAT - SAFETY BELTS

Find Your Part

Ferrari 360 Modena - ELECTRICAL SEAT - SAFETY BELTS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
663262 SEAT BACK LINING Enquire To Order
659460 COMPLETE PILOT SEAT ELECTRICAL Enquire To Order
635803 COMPLETE PASSENGER SEAT ELECTRICAL Enquire To Order
...and 6 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
659734 COMPLETE HEAD REST Enquire To Order
Photo Part No Description Price (each) Stock
671105 RH LATERAL CUSHION LINING Enquire To Order
671103 LH LATERAL CUSHION LINING Enquire To Order
663750 RH LATERAL CUSHION LINING Enquire To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
663257 CENTRAL CUSHION Enquire To Order
672591 CENTRAL CUSHION Enquire To Order
Photo Part No Description Price (each) Stock
663259 CENTRAL SEAT BACK Enquire To Order
672592 CENTRAL SEAT BACK Enquire To Order
Photo Part No Description Price (each) Stock
663251 L.H. OUTER COVER SEAT Enquire To Order
663250 R.H. OUTER COVER SEAT Enquire To Order
Photo Part No Description Price (each) Stock
66324000 CUSHION FASTENER CLIP $6.95 To Order
Photo Part No Description Price (each) Stock
663249 COMPLETE PLUG Enquire To Order
Photo Part No Description Price (each) Stock
66370500 SCREW $2.37 To Order
Photo Part No Description Price (each) Stock
66325200 LEAD SCREW $0.45 To Order
Photo Part No Description Price (each) Stock
66370600 SCREW $2.37 To Order
Photo Part No Description Price (each) Stock
66325600 BOLSTER ADJUSTMENT KNOB $126.75 To Order
Photo Part No Description Price (each) Stock
65802500 COMPLETE L.H. SAFETY $272.77 To Order
65408200 COMPLETE RH SAFETY BELTS $272.15 To Order
65802400 COMPLETE RH SAFETY BELTS $288.81 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
66873400 BELT HEIGHT REGULATOR $28.87 To Order
Photo Part No Description Price (each) Stock
65408800 KNOB $12.03 To Order
Photo Part No Description Price (each) Stock
65629000 DRIVER SIDE BUCKLE STALK $401.34 To Order
65629100 PASSENGER SIDE BUCKLE MOUNT $258.00 To Order
Photo Part No Description Price (each) Stock
68636200 SCREW $0.76 To Order
65911400 SCREW $4.62 To Order
Photo Part No Description Price (each) Stock
65408700 NUT $0.37 To Order
Photo Part No Description Price (each) Stock
64858500 PIN $3.70 To Order
Photo Part No Description Price (each) Stock
11087776 SNAP RING $0.06 To Order
Photo Part No Description Price (each) Stock
67417700 L.H. CUSHION END PLATE $189.39 To Order
67417600 R.H. CUSHION END PLATE $185.70 To Order
Photo Part No Description Price (each) Stock
67282500 CLIP $0.31 To Order
Photo Part No Description Price (each) Stock
67282600 WASHER $0.21 To Order
Photo Part No Description Price (each) Stock
67283300 CLIP $0.99 To Order
Photo Part No Description Price (each) Stock
67286400 CLIP $0.65 To Order
View All

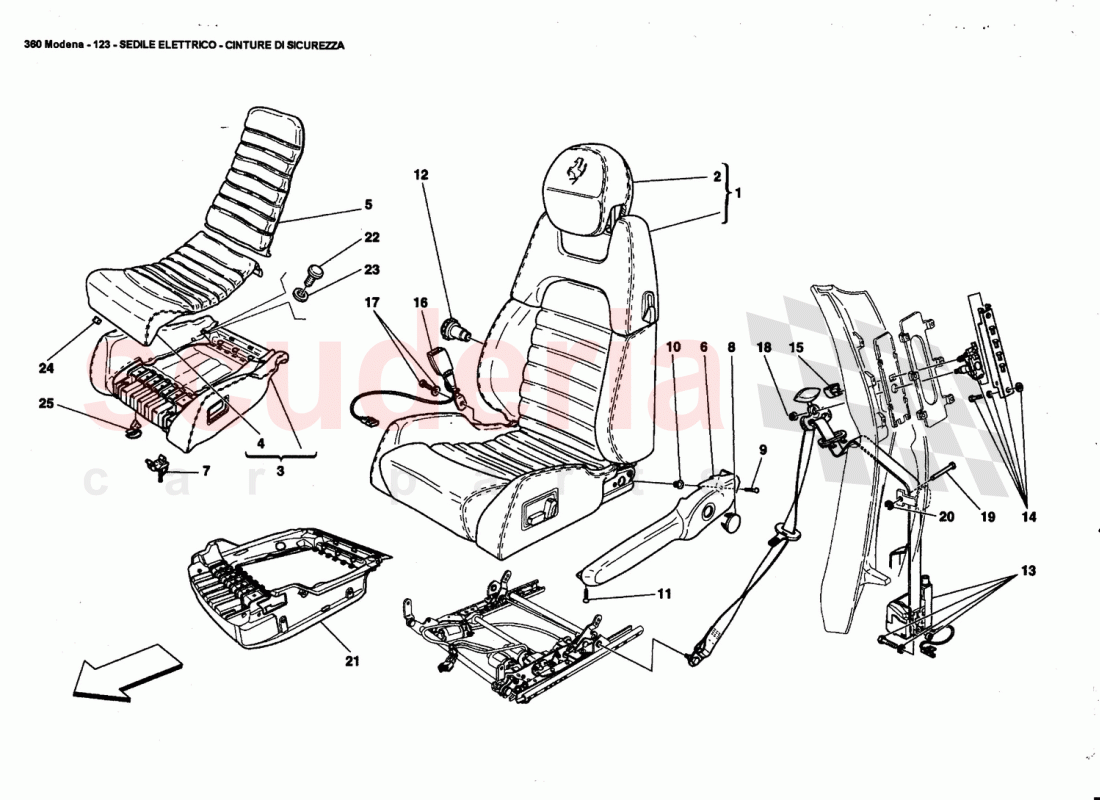

ELECTRICAL SEAT - SAFETY BELTS of Ferrari Ferrari 360 Modena Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 663262
SEAT BACK LINING 		- 2 Enquire
1 659460
COMPLETE PILOT SEAT ELECTRICAL
Valid for GD / DAYTONA / Optional 		- 1 Enquire
1 635803
COMPLETE PASSENGER SEAT ELECTRICAL
SEAT ELECTRICAL / Not for GD 		- 1 Enquire
1 659359
COMPLETE PASSENGER SEAT ELECTRICAL
SEAT ELECTRICAL / Not for GD / DAYTONA / Optional 		- 1 Enquire
1 658442
COMPLETE PASSENGER SEAT ELECTRICAL
SEAT ELECTRICAL / Valid for GD 		- 1 Enquire
1 659464
COMPLETE PASSENGER SEAT ELECTRICAL
SEAT ELECTRICAL / Valid for GD / DAYTONA / Optional 		- 1 Enquire
1 635804
COMPLETE PILOT SEAT ELECTRICAL
Not for GD 		- 1 Enquire
1 659360
COMPLETE PILOT SEAT ELECTRICAL
Not for GD / DAYTONA / Optional 		- 1 Enquire
1 658443
COMPLETE PILOT SEAT ELECTRICAL
Valid for GD 		- 1 Enquire
2 659734
COMPLETE HEAD REST 		- 2 Enquire
3 671105
RH LATERAL CUSHION LINING
LINING / Pilot side 		- 1 Enquire
3 671103
LH LATERAL CUSHION LINING
LINING / Passenger side 		- 1 Enquire
3 663750
RH LATERAL CUSHION LINING
LINING / Passenger side 		- 1 Enquire
3 663297
L.H. COMPLETE CUSHION 		- 1 Enquire
3 674117
L.H. COMPLETE CUSHION
DAYTONA / Optional 		- 1 Enquire
3 663296
R.H. COMPLETE CUSHION 		- 1 Enquire
3 674118
R.H. COMPLETE CUSHION
DAYTONA / Optional 		- 1 Enquire
3 663752
LH LATERAL CUSHION LINING
LINING / Pilot side 		- 1 Enquire
4 663257
CENTRAL CUSHION 		- 2 Enquire
4 672591
CENTRAL CUSHION
DAYTONA / Optional 		- 2 Enquire
5 663259
CENTRAL SEAT BACK 		- 2 Enquire
5 672592
CENTRAL SEAT BACK
DAYTONA / Optional 		- 2 Enquire
6 663251
L.H. OUTER COVER SEAT 		- 1 Enquire
6 663250
R.H. OUTER COVER SEAT 		- 1 Enquire
7 66324000
CUSHION FASTENER CLIP 		$6.95 4
8 663249
COMPLETE PLUG 		- 2 Enquire
9 66370500
SCREW 		$2.37 2
10 66325200
LEAD SCREW 		$0.45 2
11 66370600
SCREW 		$2.37 2
12 66325600
BOLSTER ADJUSTMENT KNOB
KNOB 		$126.75 2
13 65802500
COMPLETE L.H. SAFETY
BELTS / Valid for USA and CDN 		$272.77 (25.7% off) 1
13 65408200
COMPLETE RH SAFETY BELTS
BELTS / Not for USA and CDN 		$272.15 (16.3% off) 1
13 65802400
COMPLETE RH SAFETY BELTS
BELTS / Valid for USA and CDN 		$288.81 (21.3% off) 1
13 65408300
COMPLETE LH SAFETY BELTS
BELTS / Not for USA and CDN 		$272.15 1
14 66873400
BELT HEIGHT REGULATOR
REGULATOR 		$28.87 2
15 65408800
KNOB 		$12.03 (22.4% off) 2
16 65629000
DRIVER SIDE BUCKLE STALK 		$401.34 1
16 65629100
PASSENGER SIDE BUCKLE MOUNT 		$258.00 1
17 68636200
SCREW 		$0.76 2
17 65911400
SCREW
Not as spare part / Replaced by 68636200 		$4.62 2
18 65408700
NUT 		$0.37 2
19 64858500
PIN 		$3.70 2
20 11087776
SNAP RING 		$0.06 2
21 67417700
L.H. CUSHION END PLATE 		$189.39 1
21 67417600
R.H. CUSHION END PLATE 		$185.70 1
22 67282500
CLIP 		$0.31 16
23 67282600
WASHER 		$0.21 16
24 67283300
CLIP 		$0.99 4
25 67286400
CLIP
Fax or E-m@il, specifying serial number. - See "INNER TRIMS CAR CODES" table for codes of parts covered in leather or moquette. 		$0.65 10
