Ferrari 360 Modena - PEDALS -Valid far GD-

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
184388 PEDALS SUPPORT Enquire To Order
176168 PEDALS SUPPORT Enquire To Order
Photo Part No Description Price (each) Stock
177120 PEDAL MOUNTING PIN Enquire To Order
Photo Part No Description Price (each) Stock
177118 COMPLETE BRAKE PEDAL RHD Enquire To Order
Photo Part No Description Price (each) Stock
103163 SELF-LUBRICATING BUSHING Enquire To Order
Photo Part No Description Price (each) Stock
176475 BALL-JOINT Enquire To Order
Photo Part No Description Price (each) Stock
177119 COMPLETE CLUTCH PEDAL Enquire To Order
Photo Part No Description Price (each) Stock
103163 SELF-LUBRICATING BUSHING Enquire To Order
Photo Part No Description Price (each) Stock
176475 BALL-JOINT Enquire To Order
Photo Part No Description Price (each) Stock
16102314 NUT Enquire To Order
Photo Part No Description Price (each) Stock
187014 PEDAL ADJUSTER SCREW Enquire To Order
Photo Part No Description Price (each) Stock
133555 PUSHBUTTON SWITCH Enquire To Order
Photo Part No Description Price (each) Stock
133555 PUSHBUTTON SWITCH Enquire To Order
Photo Part No Description Price (each) Stock
176471 FORK Enquire To Order
Photo Part No Description Price (each) Stock
66535800 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
147985 NUT Enquire To Order
Photo Part No Description Price (each) Stock
176522 PLASTIC WASHER Enquire To Order
Photo Part No Description Price (each) Stock
16102314 NUT Enquire To Order
Photo Part No Description Price (each) Stock
101305 SPRING Enquire To Order
Photo Part No Description Price (each) Stock
10902424 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
10519424 WASHER Enquire To Order
14488624 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
127494 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
178511 COMPLETE BRAKE PEDAL Enquire To Order
Photo Part No Description Price (each) Stock
103163 SELF-LUBRICATING BUSHING Enquire To Order
Photo Part No Description Price (each) Stock
176475 BALL-JOINT Enquire To Order
Photo Part No Description Price (each) Stock
178496 SHIM Enquire To Order
Photo Part No Description Price (each) Stock
113836 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
113835 WASHER Enquire To Order
113836 WASHER Enquire To Order
106083 WASHER Enquire To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
13517524 STUD BOLT Enquire To Order
Photo Part No Description Price (each) Stock
12638524 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
104030 NYLOC NUT M8 X 1.25 X 9.5 Enquire To Order
Photo Part No Description Price (each) Stock
13516924 STUD BOLT Enquire To Order
Photo Part No Description Price (each) Stock
12601374 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
177131 PEDAL BOARD MOUNTING GASKET Enquire To Order
Photo Part No Description Price (each) Stock
186401 PLATE Enquire To Order
Photo Part No Description Price (each) Stock
16043224 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
127496 WASHER Enquire To Order
View All

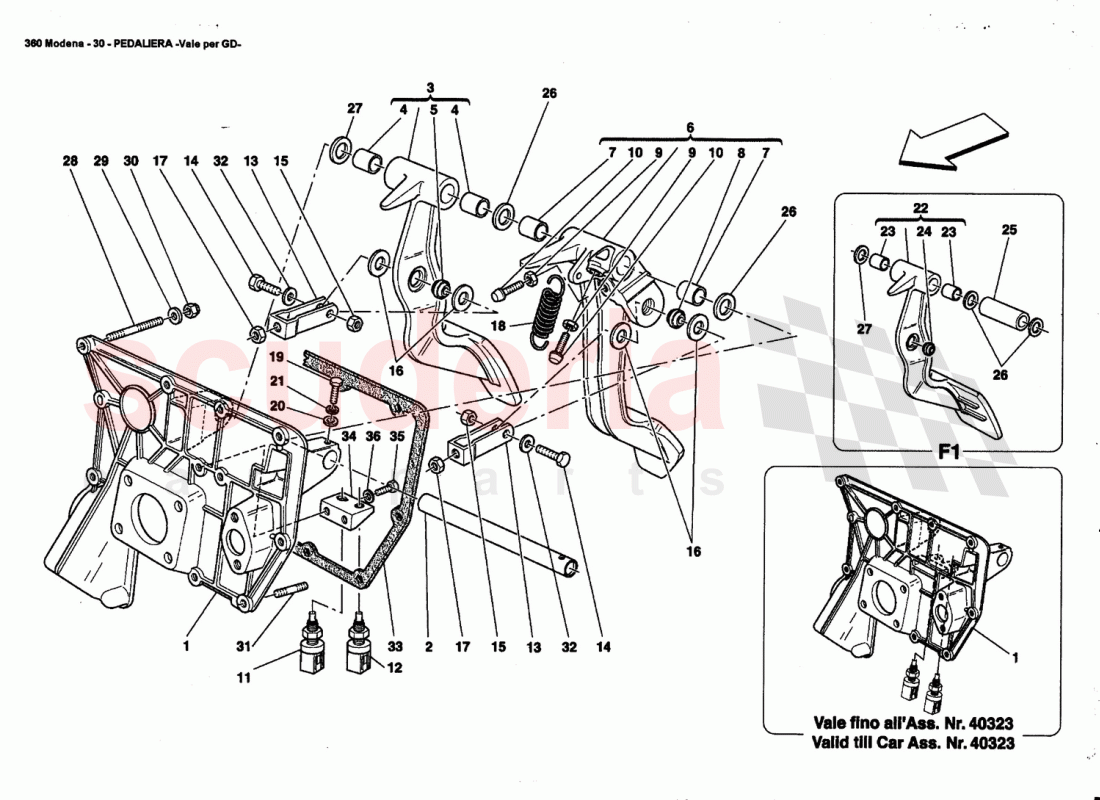

PEDALS -Valid far GD- of Ferrari Ferrari 360 Modena Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 184388
PEDALS SUPPORT
Valid from Ass. Nr. 40324 		- 1 Enquire
1 176168
PEDALS SUPPORT
Valid till Ass. Nr. 40323 		- 1 Enquire
2 177120
PEDAL MOUNTING PIN 		- 1 Enquire
3 177118
COMPLETE BRAKE PEDAL RHD 		- 1 Enquire
4 103163
SELF-LUBRICATING BUSHING 		- 2 Enquire
5 176475
BALL-JOINT 		- 1 Enquire
6 177119
COMPLETE CLUTCH PEDAL 		- 1 Enquire
7 103163
SELF-LUBRICATING BUSHING 		- 2 Enquire
8 176475
BALL-JOINT 		- 1 Enquire
9 16102314
NUT 		- 2 Enquire
10 187014
PEDAL ADJUSTER SCREW 		- 2 Enquire
11 133555
PUSHBUTTON SWITCH 		- 1 Enquire
12 133555
PUSHBUTTON SWITCH 		- 1 Enquire
13 176471
FORK 		- 2 Enquire
14 66535800
SCREW 		- 2 Enquire
15 147985
NUT 		- 2 Enquire
16 176522
PLASTIC WASHER 		- 4 Enquire
17 16102314
NUT 		- 2 Enquire
18 101305
SPRING 		- 1 Enquire
19 10902424
SCREW 		- 1 Enquire
20 10519424
WASHER 		- 1 Enquire
20 14488624
WASHER
Not as spare part now / Replaced by 10519424 		- 1 Enquire
21 127494
WASHER 		- 1 Enquire
22 178511
COMPLETE BRAKE PEDAL
Valid for F1 		- 1 Enquire
23 103163
SELF-LUBRICATING BUSHING
Valid for F1 		- 2 Enquire
24 176475
BALL-JOINT
Valid for F1 		- 1 Enquire
25 178496
SHIM
Valid for F1 		- 1 Enquire
26 113836
WASHER 		- 2 Enquire
27 113835
WASHER
Th. 1,3mm / Possible fitting 		- 1 Enquire
27 113836
WASHER
Th. 1,4mm / Possible fitting 		- 1 Enquire
27 106083
WASHER
Th. 1mm 		- 1 Enquire
27 113833
WASHER
Th. 1,1mm / Possible fitting 		- 1 Enquire
27 113834
WASHER
Th. 1,2mm / Possible fitting 		- 1 Enquire
28 13517524
STUD BOLT 		- 2 Enquire
29 12638524
WASHER 		- 11 Enquire
30 104030
NYLOC NUT M8 X 1.25 X 9.5 		- 11 Enquire
31 13516924
STUD BOLT 		- 9 Enquire
32 12601374
WASHER 		- 2 Enquire
33 177131
PEDAL BOARD MOUNTING GASKET 		- 1 Enquire
34 186401
PLATE
Valid from Ass. Nr. 40324 		- 1 Enquire
35 16043224
SCREW
Valid from Ass. Nr. 40324 		- 2 Enquire
36 127496
WASHER
Valid from Ass. Nr. 40324 		- 2 Enquire
