STEERING COLUMN of Ferrari Ferrari 360 Challenge Stradale

View All

Ferrari 360 Challenge Stradale - STEERING COLUMN

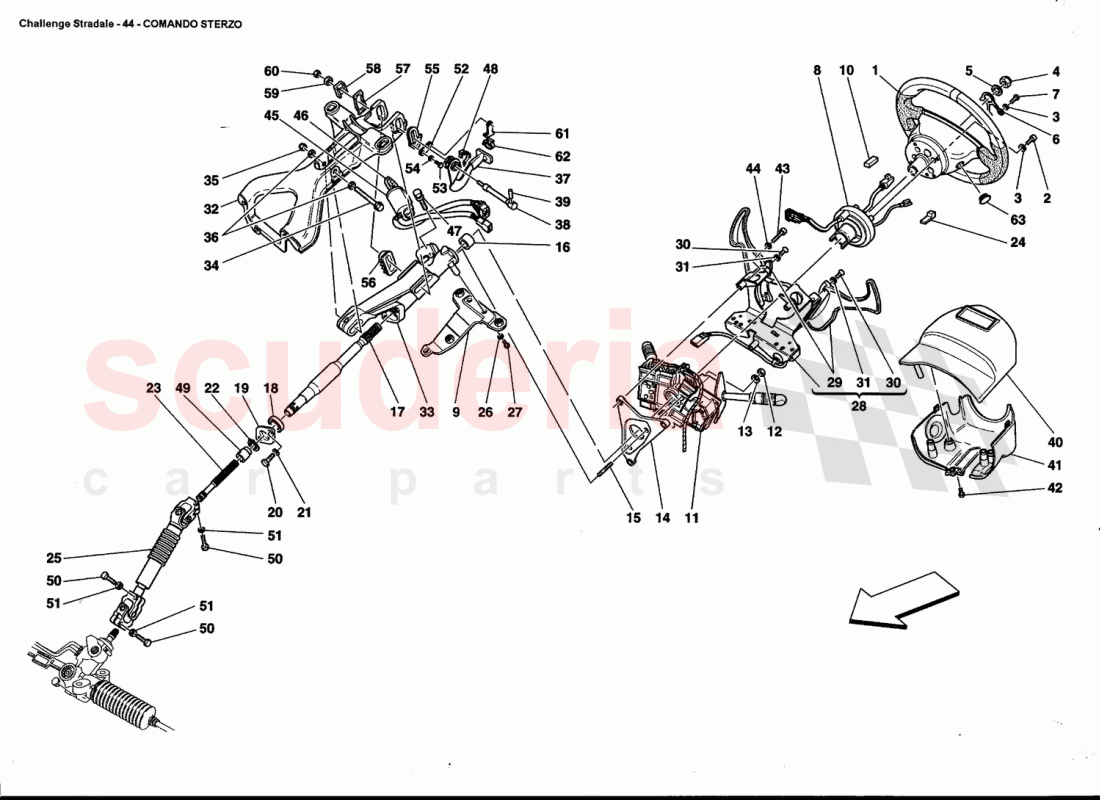

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	200107	STEERING WHEEL	Enquire	To Order
	676058	STEERING WHEEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13271914	SCREW -Valid for "60Â°anniversario"-	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10615274	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	101648	Ring nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10730921	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	157639	SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11021111	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	169471	SPIRAL CONTACT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65164200	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	163816	CLOCK SPRING CONNECTOR RESISTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	178993	UNHOOK DEVIATION ASSEMBLY	Enquire	To Order
	177585	STEERING COLUMN SWITCH ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15896470	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12604178	Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	176360	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11001424	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	171539	ROLLER BEARING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	183994	UPPER SHAFT FOR STEERING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	171540	BALL BEARING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	177645	PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10902224	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11181874	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11067376	SEEGER RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	183993	LOWER COLUMN AXLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	135355	CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	171528	STEERING CARDAN SHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62769800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10977887	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	196374	F1 GEARBOX CONTROL LEVERS ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	201895	COUPLE LEVERS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13308977	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12606673	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	171505	STEERING COLUMN SUPPORT BRACKET	Enquire	To Order
	171546	STEERING COLUMN SUPPORT BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	171516	COLUMN SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	180632	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	104030	NYLOC NUT M8 X 1.25 X 9.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12625224	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	659933	COVERED LEVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	171503	ARM PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10336630	PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65583200	COLUMN COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65310600	COLUMN LOWER COVER	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	15960507	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13274611	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12604178	Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	198908	LOCKS SET COMPLETED WITH STEERING LOCK AND KEY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	202204	BLANK KEY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	172563	ANTI-THEFT SYSTEM FASTENER SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	171531	PIN RETENTION SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	183995	RING NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	192229	HEXAGONAL SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	192230	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	171523	PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10977724	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11181574	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	171544	ARM SIDE SLIPPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	171501	SPLINED FIXED SLIPPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	171502	SLIPPER SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	171529	MOBILE SPLINED SLIPPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	171542	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	147985	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	177977	PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	178430	FASTENER CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	185486	CAP	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	200107	STEERING WHEEL	200107 STEERING WHEEL Without air bag module / Single colour	-	1	Enquire
1	676058	STEERING WHEEL	676058 STEERING WHEEL Without air bag module / Bicolor	-	1	Enquire
2	13271914	SCREW -Valid for "60Â°anniversario"-	13271914 SCREW -Valid for "60Â°anniversario"-	-	3	Enquire
3	10615274	WASHER	10615274 WASHER	-	5	Enquire
4	101648	Ring nut	101648 Ring nut	-	1	Enquire
5	10730921	WASHER	10730921 WASHER	-	1	Enquire
6	157639	SPRING	157639 SPRING	-	1	Enquire
7	11021111	SCREW	11021111 SCREW	-	2	Enquire
8	169471	SPIRAL CONTACT	169471 SPIRAL CONTACT	-	1	Enquire
9	65164200	BRACKET	65164200 BRACKET	-	1	Enquire
10	163816	CLOCK SPRING CONNECTOR RESISTOR	163816 CLOCK SPRING CONNECTOR RESISTOR	-	1	Enquire
11	178993	UNHOOK DEVIATION ASSEMBLY	178993 UNHOOK DEVIATION ASSEMBLY For normal head light	-	1	Enquire
11	177585	STEERING COLUMN SWITCH ASSEMBLY	177585 STEERING COLUMN SWITCH ASSEMBLY For gas lamps head light	-	1	Enquire
12	15896470	NUT	15896470 NUT	-	2	Enquire
13	12604178	Washer	12604178 Washer	-	2	Enquire
14	176360	BRACKET	176360 BRACKET	-	1	Enquire
15	11001424	STUD BOLT	11001424 STUD BOLT	-	2	Enquire
16	171539	ROLLER BEARING	171539 ROLLER BEARING	-	1	Enquire
17	183994	UPPER SHAFT FOR STEERING	183994 UPPER SHAFT FOR STEERING	-	1	Enquire
18	171540	BALL BEARING	171540 BALL BEARING	-	1	Enquire
19	177645	PLATE	177645 PLATE	-	1	Enquire
20	10902224	SCREW	10902224 SCREW	-	2	Enquire
21	11181874	WASHER	11181874 WASHER	-	2	Enquire
22	11067376	SEEGER RING	11067376 SEEGER RING	-	1	Enquire
23	183993	LOWER COLUMN AXLE	183993 LOWER COLUMN AXLE	-	1	Enquire
24	135355	CONNECTOR	135355 CONNECTOR	-	1	Enquire
25	171528	STEERING CARDAN SHAFT	171528 STEERING CARDAN SHAFT	-	1	Enquire
26	62769800	WASHER	62769800 WASHER	-	3	Enquire
27	10977887	SCREW	10977887 SCREW	-	3	Enquire
28	196374	F1 GEARBOX CONTROL LEVERS ASSEMBLY	196374 F1 GEARBOX CONTROL LEVERS ASSEMBLY ASSEMBLY	-	1	Enquire
29	201895	COUPLE LEVERS	201895 COUPLE LEVERS	-	1	Enquire
30	13308977	SCREW	13308977 SCREW	-	4	Enquire
31	12606673	WASHER	12606673 WASHER	-	4	Enquire
32	171505	STEERING COLUMN SUPPORT BRACKET	171505 STEERING COLUMN SUPPORT BRACKET BRACKET / Not for GD	-	1	Enquire
32	171546	STEERING COLUMN SUPPORT BRACKET	171546 STEERING COLUMN SUPPORT BRACKET BRACKET / Valid for GD	-	1	Enquire
33	171516	COLUMN SUPPORT	171516 COLUMN SUPPORT	-	1	Enquire
34	180632	SCREW	180632 SCREW	-	1	Enquire
35	104030	NYLOC NUT M8 X 1.25 X 9.5	104030 NYLOC NUT M8 X 1.25 X 9.5	-	1	Enquire
36	12625224	WASHER	12625224 WASHER	-	2	Enquire
37	659933	COVERED LEVER	659933 COVERED LEVER	-	1	Enquire
38	171503	ARM PIN	171503 ARM PIN	-	1	Enquire
39	10336630	PIN	10336630 PIN	-	1	Enquire
40	65583200	COLUMN COVER	65583200 COLUMN COVER	-	1	Enquire
41	65310600	COLUMN LOWER COVER ARRIVING SOON	65310600 COLUMN LOWER COVER ARRIVING SOON	-	1	Enquire
42	15960507	SCREW	15960507 SCREW	-	2	Enquire
43	13274611	SCREW	13274611 SCREW	-	3	Enquire
44	12604178	Washer	12604178 Washer	-	3	Enquire
45	198908	LOCKS SET COMPLETED WITH STEERING LOCK AND KEY	198908 LOCKS SET COMPLETED WITH STEERING LOCK AND KEY WITH STEERING / LOCK AND KEY	-	1	Enquire
46	202204	BLANK KEY	202204 BLANK KEY	-	-	Enquire
47	172563	ANTI-THEFT SYSTEM FASTENER SCREW	172563 ANTI-THEFT SYSTEM FASTENER SCREW	-	1	Enquire
48	171531	PIN RETENTION SPRING	171531 PIN RETENTION SPRING	-	1	Enquire
49	183995	RING NUT	183995 RING NUT	-	1	Enquire
50	192229	HEXAGONAL SCREW	192229 HEXAGONAL SCREW	-	3	Enquire
51	192230	WASHER	192230 WASHER	-	3	Enquire
52	171523	PLATE	171523 PLATE	-	1	Enquire
53	10977724	SCREW	10977724 SCREW	-	2	Enquire
54	11181574	WASHER	11181574 WASHER	-	2	Enquire
55	171544	ARM SIDE SLIPPER	171544 ARM SIDE SLIPPER	-	1	Enquire
56	171501	SPLINED FIXED SLIPPER	171501 SPLINED FIXED SLIPPER	-	1	Enquire
57	171502	SLIPPER SPRING	171502 SLIPPER SPRING	-	1	Enquire
58	171529	MOBILE SPLINED SLIPPER	171529 MOBILE SPLINED SLIPPER	-	1	Enquire
59	171542	NUT	171542 NUT	-	1	Enquire
60	147985	NUT	147985 NUT	-	1	Enquire
61	177977	PLATE	177977 PLATE	-	1	Enquire
62	178430	FASTENER CLIP	178430 FASTENER CLIP	-	1	Enquire
63	185486	CAP	185486 CAP order by Fax or E-m@il, specifying serial number. - See "INNER TRIMS CAR CODES" table for codes of par	-	2	Enquire
